All Terrain Control Module (ATCM): Removal

NOTE: Removal steps in this procedure may contain installation details.

Selectable Drive Mode Switch - Shifter Button type

  1. Shifter Button type Refer to: Selector Lever Assembly .

    Selectable Drive Mode Switch (Console rotary type)

    NOTE: Move the front seats forward and rearward as necessary to access floor console components.

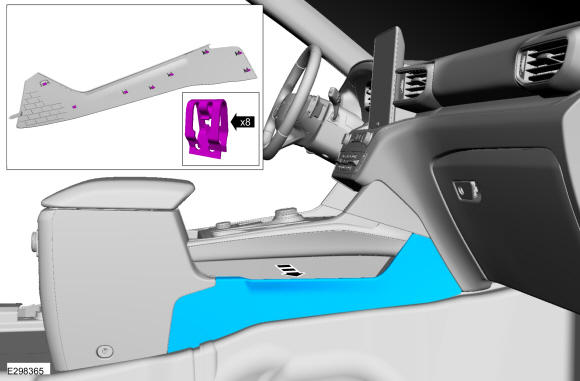

  2. Release the clips and remove the RH floor console side trim panel.
    GFD515155Courtesy of FORD MOTOR COMPANY

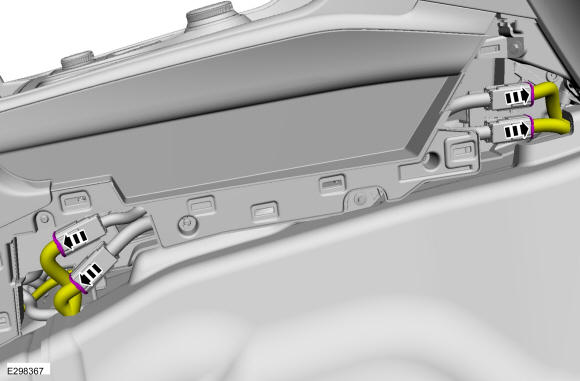

  3. Disconnect the RH floor console electrical connectors.
    GFD515156Courtesy of FORD MOTOR COMPANY

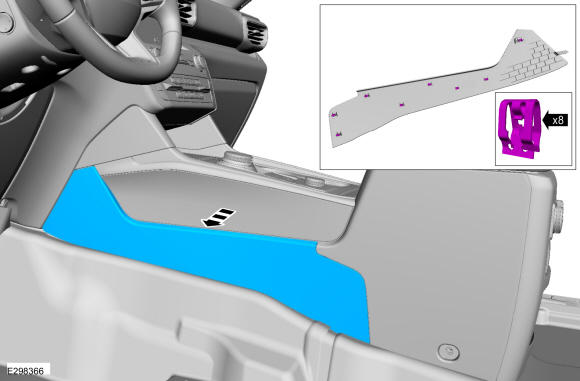

  4. Release the clips and remove the LH floor console side trim panel.
    GFD515157Courtesy of FORD MOTOR COMPANY

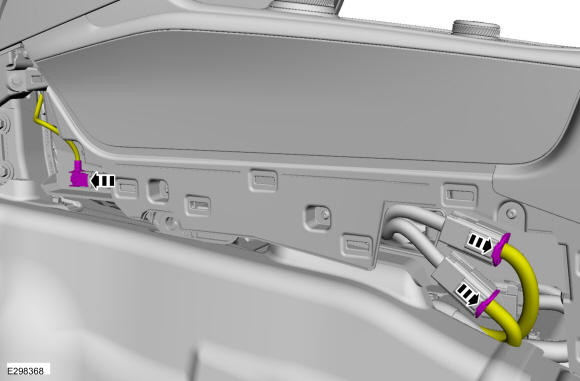

  5. Disconnect the LH floor console electrical connectors.
    GFD515158Courtesy of FORD MOTOR COMPANY

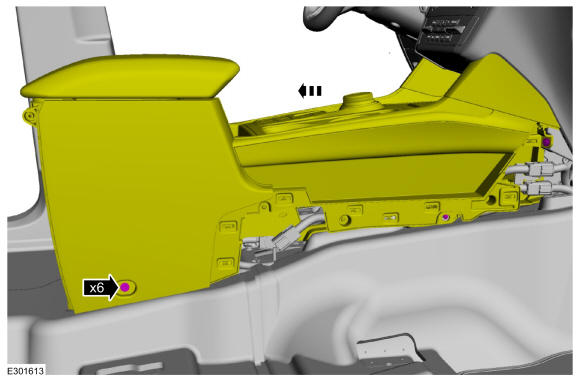

  6. Remove the bolts and position the floor console rearward.
    GFD515159Courtesy of FORD MOTOR COMPANY

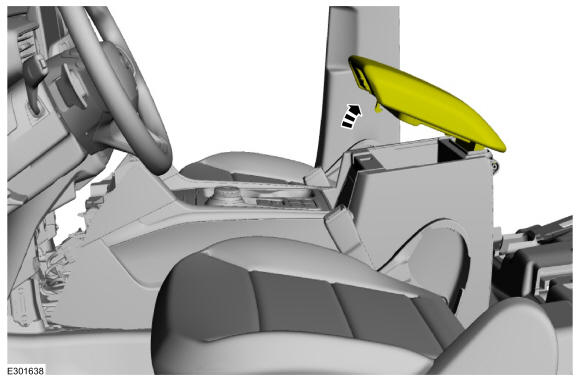

  7. Open the console door.
    GFD515160Courtesy of FORD MOTOR COMPANY

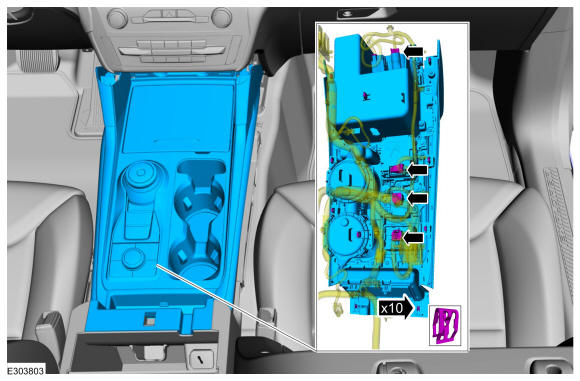

  8. Release the clips, detach the console top panel, disconnect the electrical connectors and remove the console top panel.
    GFD515227Courtesy of FORD MOTOR COMPANY

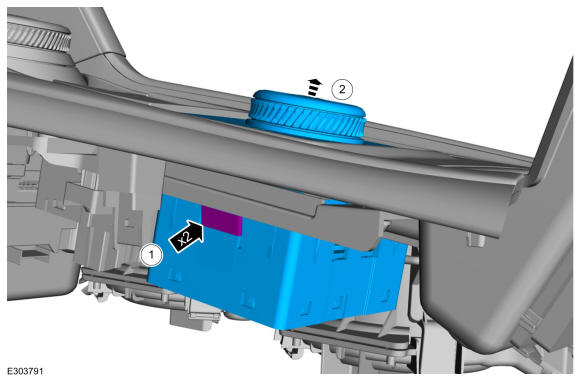

  9. Remove the module.

    1. Release the tabs.
    2. Remove the switch.

    GFD515228Courtesy of FORD MOTOR COMPANY

    Selectable Drive Mode Switch (Console Button) for

    NOTE: Move the front seats forward and rearward as necessary to access floor console components.
  10. Release the clips and remove the RH floor console side trim panel.
    GFD515155Courtesy of FORD MOTOR COMPANY
  11. Disconnect the RH floor console electrical connectors.
    GFD515156Courtesy of FORD MOTOR COMPANY
  12. Release the clips and remove the LH floor console side trim panel.
    GFD515157Courtesy of FORD MOTOR COMPANY
  13. Disconnect the LH floor console electrical connectors.
    GFD515158Courtesy of FORD MOTOR COMPANY
  14. Remove the bolts and position the floor console rearward.
    GFD515159Courtesy of FORD MOTOR COMPANY
  15. Open the console door.
    GFD515160Courtesy of FORD MOTOR COMPANY

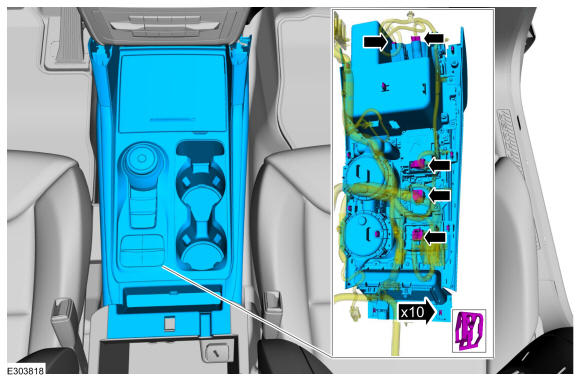

  16. Release the clips, detach the console top panel, disconnect the electrical connectors and remove the console top panel.
    GFD515229Courtesy of FORD MOTOR COMPANY

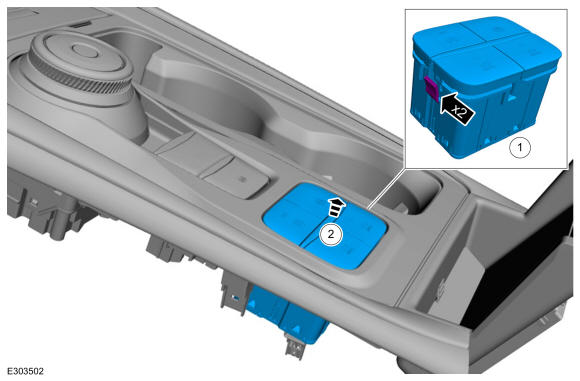

  17. Remove the module.

    1. Release the tabs.
    2. Remove the switch.

GFD515230Courtesy of FORD MOTOR COMPANY
