Front Wheel Speed Sensor: Removal

For information on Ford Color Coded Illustrations refer to OEM Color Coding

1. Remove the wheel and tire. Refer to: Wheel and Tire .

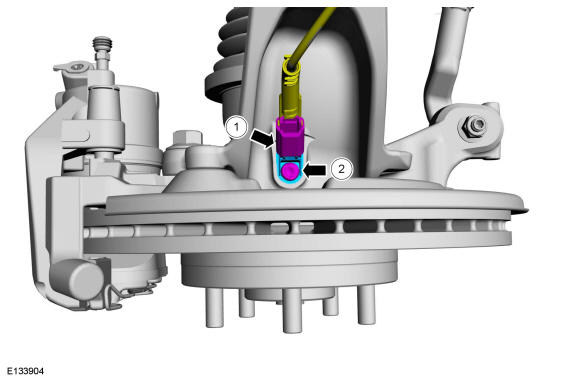

2. 1. Disconnect the front wheel speed sensor electrical connector.
   2. Remove the bolt and the front wheel speed sensor.

      Torque: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY
