Steering Angle Sensor Module (SASM): Removal

For information on Ford Color Coded Illustrations refer to OEM Color Coding

1. Remove the clockspring. Refer to: Clockspring .

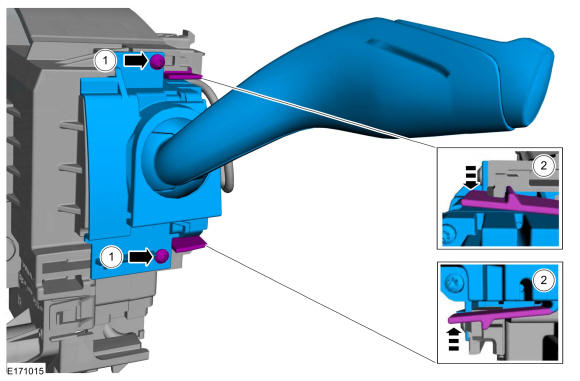

2. On both sides.
   1. Remove the screws.
   2. Push in the tabs and remove the steering column multifunction switch.

   Courtesy of FORD MOTOR COMPANY

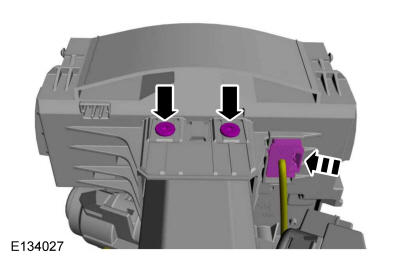

3. Disconnect the SASM electrical connector and remove the 2 SASM upper screws.

   Torque: 27 lb.in (3 Nm)

   Courtesy of FORD MOTOR COMPANY

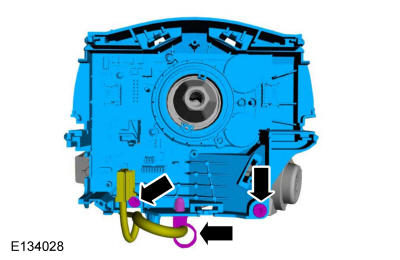

4. Remove the 2 SASM lower screws, detach the wiring harness pin-type retainer and remove the SASM.

   Torque: 27 lb.in (3 Nm)

Courtesy of FORD MOTOR COMPANY
