Steering Column: Removal

NOTE: To prevent damage to the clockspring, make sure the front wheels are in the straight-ahead position.

NOTE: Precise tolerances are required when manufacturing a steering column. Never install a repaired, rebuilt, aftermarket, or remanufactured steering column. Always install a new steering column. Failure to follow this direction can result in steering column failure.

NOTE: Removal steps in this procedure may contain installation details.

Remove the steering wheel. Refer to: Steering Wheel .
NOTE: Make sure that the clockspring rotor does not rotate.

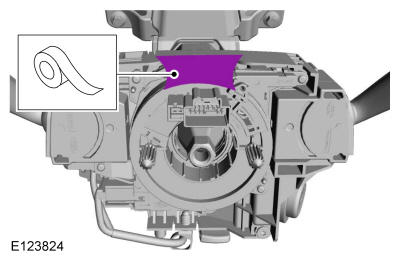

Tape the clockspring rotor to the outer housing to keep it from rotating. Use the General Equipment: Adhesive Tape

Courtesy of FORD MOTOR COMPANY

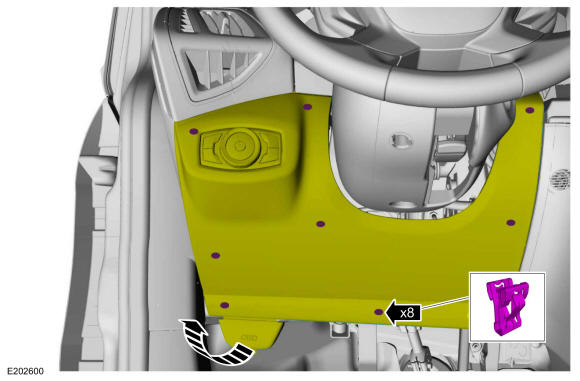

Release the clips and position aside the instrument panel finish panel.

Courtesy of FORD MOTOR COMPANY

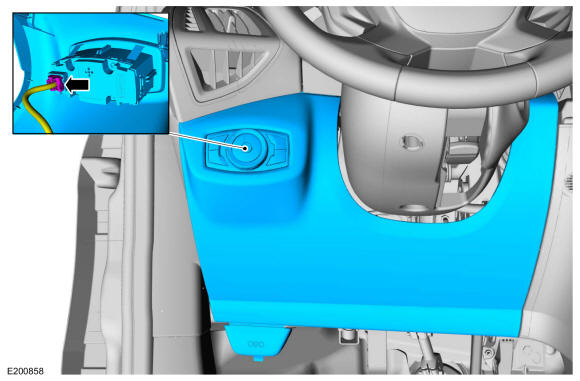

Disconnect the electrical connector and remove the instrument panel finish panel.

Courtesy of FORD MOTOR COMPANY
NOTE: Install a new steering column shaft bolt. Reuse could result in bolt failure and loss of vehicle control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

NOTE: Make sure that the road wheels are in the straight ahead position.

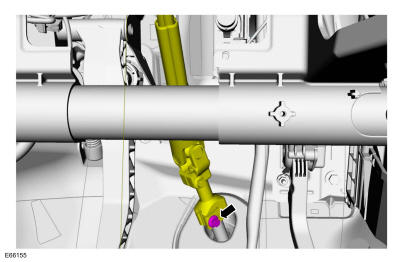

Remove and discard the bolt and disconnect the steering column shaft.

Torque: 21 lb.ft (28 Nm)

Courtesy of FORD MOTOR COMPANY

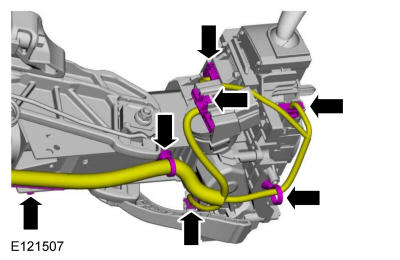

Detach the retainers and disconnect the steering column electrical connectors.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not reuse steering column bolts. This may result in fastener failure and steering column detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

NOTE: Make sure that new bolts are installed.

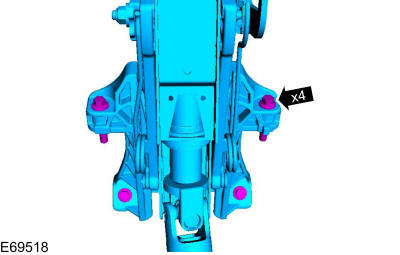

Remove the bolts and the steering column, discard the bolts.

Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
