Steering Column: Installation

  1. To install, reverse the removal procedure.
  2. Torque the steering column retainers following the sequence shown in illustration.

    Torque

    : 133 lb.in (15 Nm)

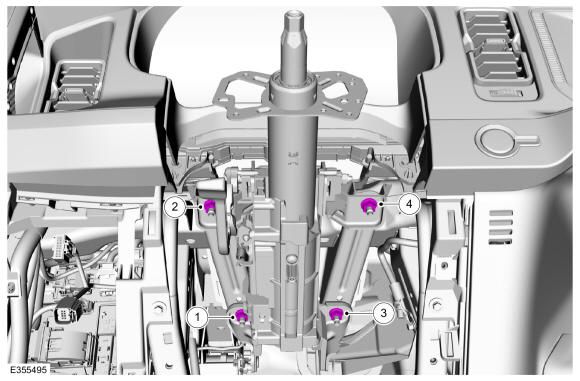

    Fig 1: Steering Column Retainers Tightening Sequence
    GFD623847Courtesy of FORD MOTOR COMPANY
  3. Repower the SRS. Refer to: Supplemental Restraint System (SRS) Repowering .
