Instrument Panel Upper Section: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the instrument panel. Refer to: Instrument Panel

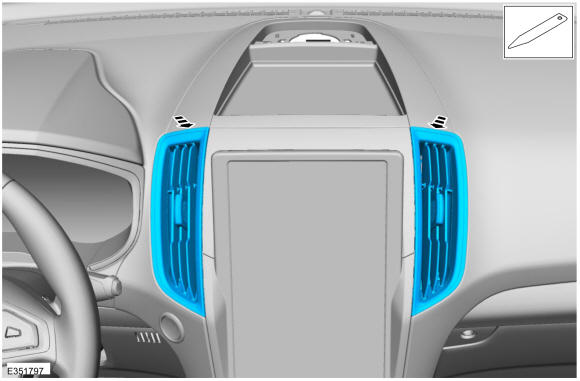

  2. Remove the instrument panel speaker grille. Use the General Equipment: Interior Trim Remover

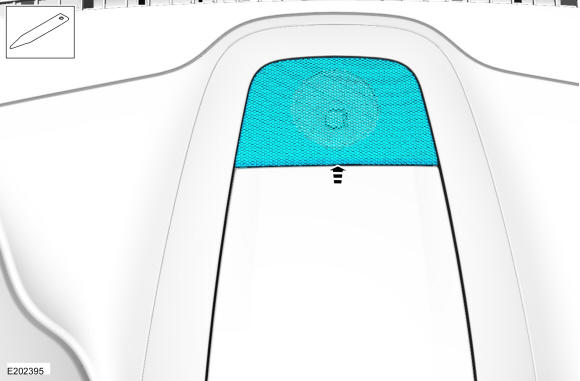

    GFD597995Courtesy of FORD MOTOR COMPANY

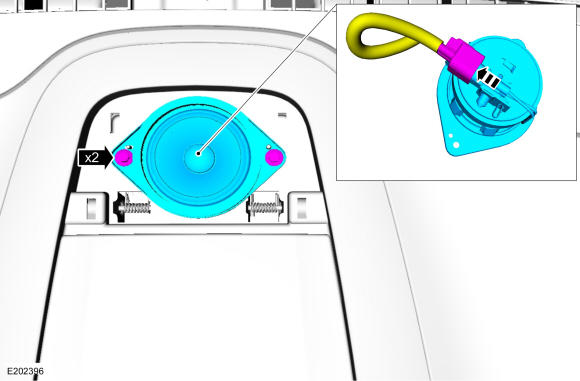

  3. Remove the bolts and the instrument panel speaker.

    • Disconnect the electrical connector.

      Torque: 22 lb.in (2.5 Nm)

    GFD597996Courtesy of FORD MOTOR COMPANY
    GFD597997Courtesy of FORD MOTOR COMPANY
    GFD597998Courtesy of FORD MOTOR COMPANY

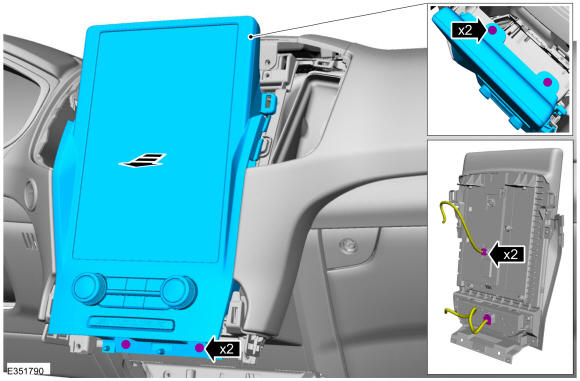

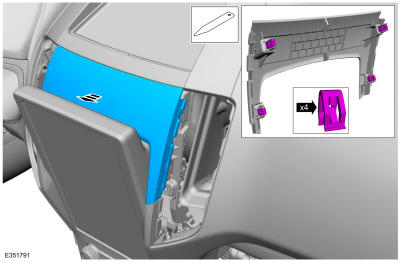

  4. Remove the bolts and the information and entertainment display unit.

    • Disconnect the electrical connectors.

      Torque: 22 lb.in (2.5 Nm)

    GFD597999Courtesy of FORD MOTOR COMPANY

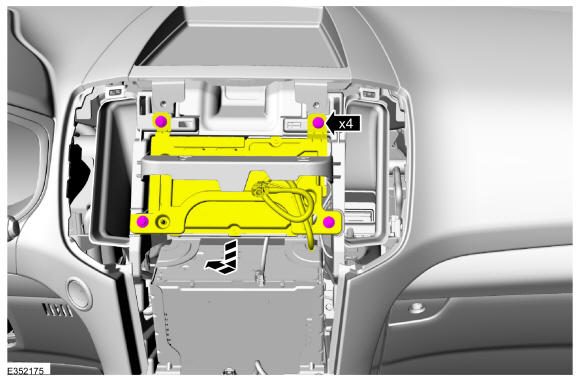

  5. Remove the screws and position the APIM down and rearward.

    Torque: 22 lb.in (2.5 Nm)

    GFD598000Courtesy of FORD MOTOR COMPANY

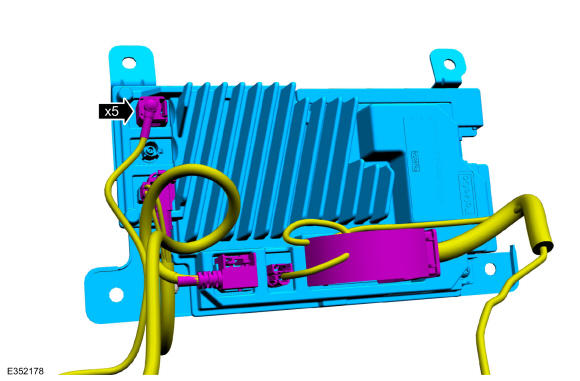

  6. Disconnect the electrical connectors.
    GFD598001Courtesy of FORD MOTOR COMPANY

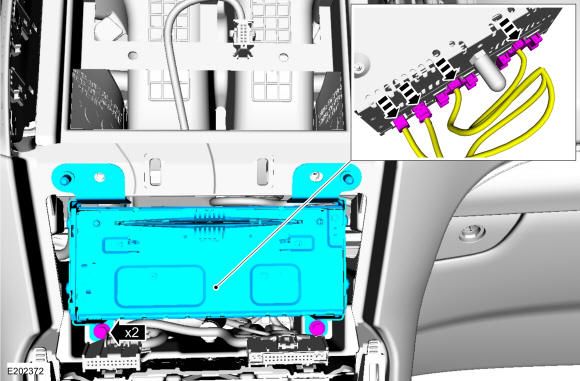

  7. Remove the bolts and the ACM.

    • Disconnect the electrical connectors.

      Torque: 22 lb.in (2.5 Nm)

    GFD598002Courtesy of FORD MOTOR COMPANY

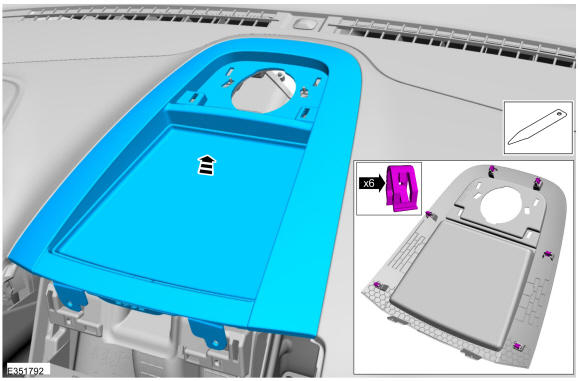

  8. Release the clips and remove the upper intstrument panel storage bin.

    Torque: 22 lb.in (2.5 Nm)

    GFD598003Courtesy of FORD MOTOR COMPANY

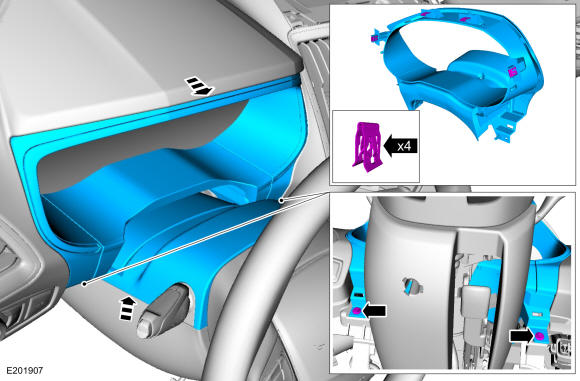

  9. Remove bolts, release the clips and remove the IPC bezel.

    Torque: 22 lb.in (2.5 Nm)

    GFD598004Courtesy of FORD MOTOR COMPANY

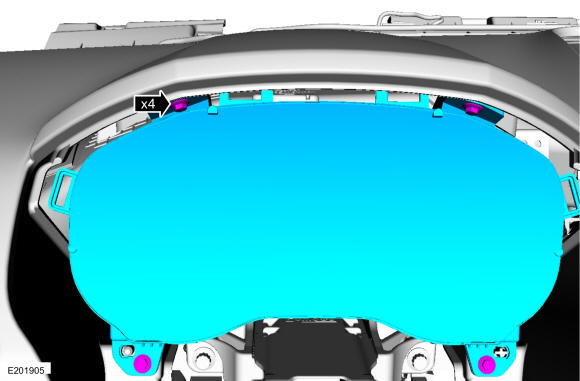

  10. Remove the bolts and the IPC.

    Torque: 22 lb.in (2.5 Nm)

    GFD598005Courtesy of FORD MOTOR COMPANY

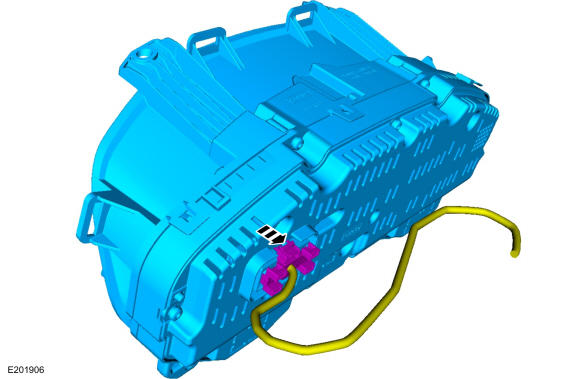

  11. Disconnect the electrical connector.
    GFD598006Courtesy of FORD MOTOR COMPANY

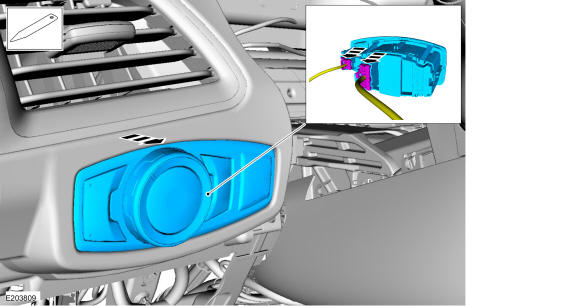

  12. Remove the headlamp switch.

    • Disconnect the electrical connector.

    GFD598007Courtesy of FORD MOTOR COMPANY

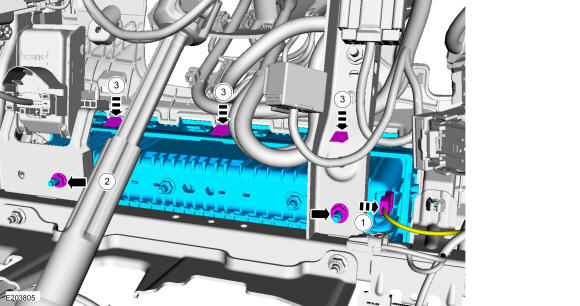

    • Disconnect the electrical connector.

    • Remove the bolts.

      Torque: 71 lb.in (8 Nm)

    • Through the opening, push the tabs down and detach the clips.

    GFD598008Courtesy of FORD MOTOR COMPANY
  13. Pivot the driver knee airbag down, separate the knee bolster clips and remove the driver knee airbag.

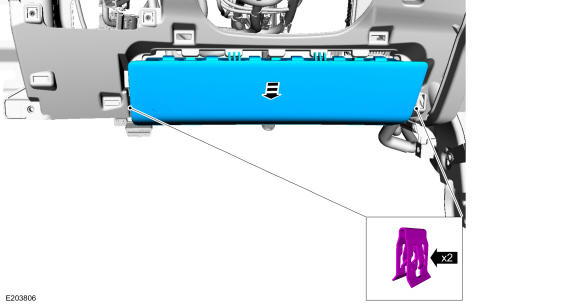

    GFD598009Courtesy of FORD MOTOR COMPANY

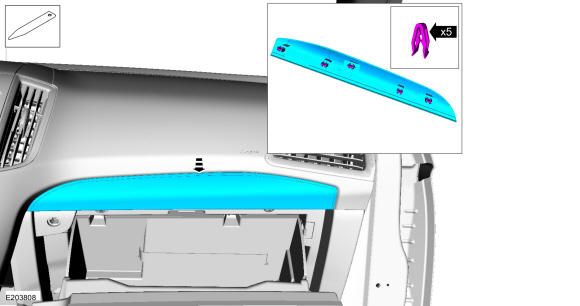

  14. Release the clips and remove the glove compartment finish panel.
    GFD598010Courtesy of FORD MOTOR COMPANY

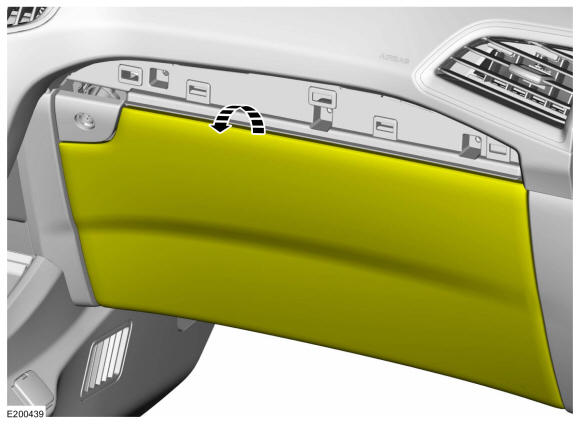

  15. Open the glove compartment.
    GFD598011Courtesy of FORD MOTOR COMPANY

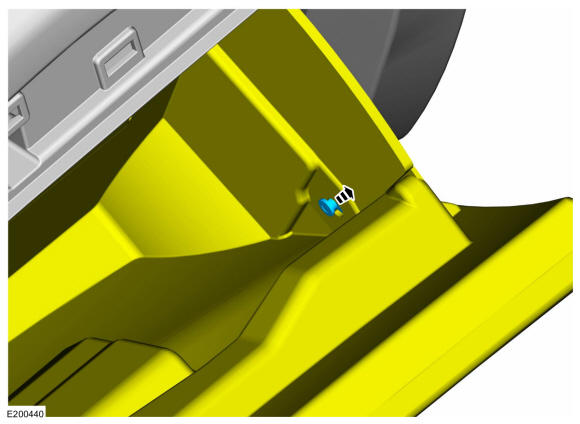

  16. Detach the glove compartment damper.
    GFD598012Courtesy of FORD MOTOR COMPANY

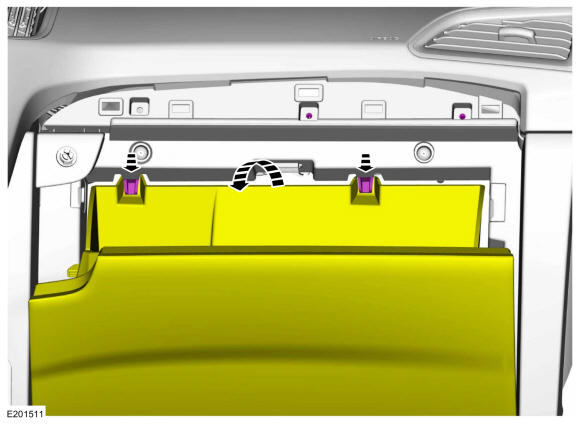

  17. Release the tabs and fully lower the glove compartment.
    GFD598013Courtesy of FORD MOTOR COMPANY
    1. Disconnect the electrical connectors.
    2. Remove the bolts.

      Torque: 35 lb.in (4 Nm)

    3. Remove the screws.

      Torque: 22 lb.in (2.5 Nm)

    4. Release the clips and remove the glove compartment. Use the General Equipment: Interior Trim Remover

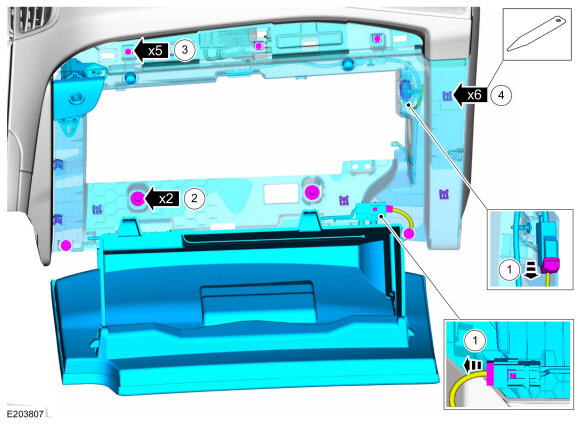

    GFD598014Courtesy of FORD MOTOR COMPANY

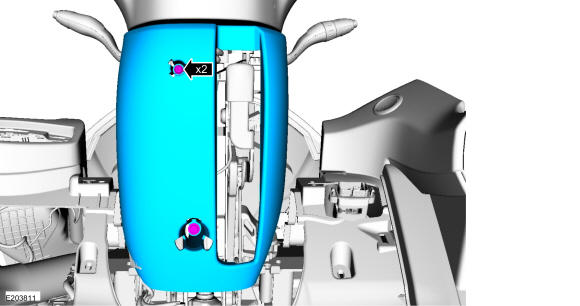

  18. Remove the screws and the lower steering column shroud.

    Torque: 22 lb.in (2.5 Nm)

    GFD598015Courtesy of FORD MOTOR COMPANY

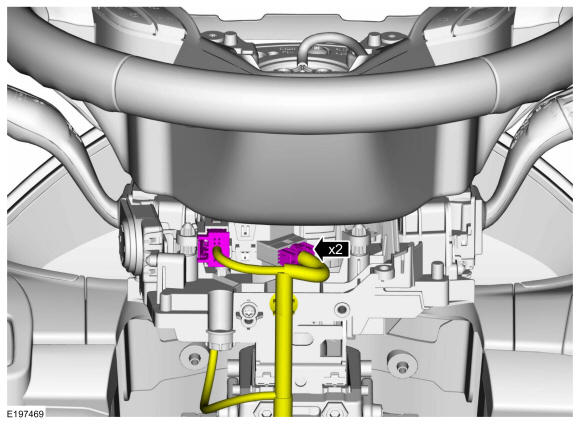

  19. Disconnect the electrical connectors.
    GFD598016Courtesy of FORD MOTOR COMPANY
  20. NOTE: Vehicles with power adjustable steering column.

    Detach the retainer, disconnect the power tilt motor and power telescopic motor electrical connectors.

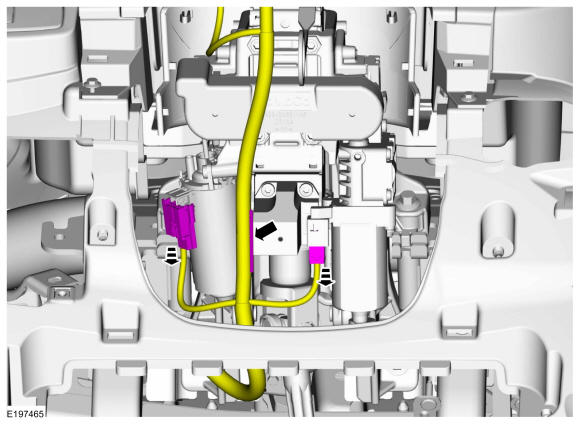

    GFD598017Courtesy of FORD MOTOR COMPANY
  21. Disconnect the deployable column electrical connector.

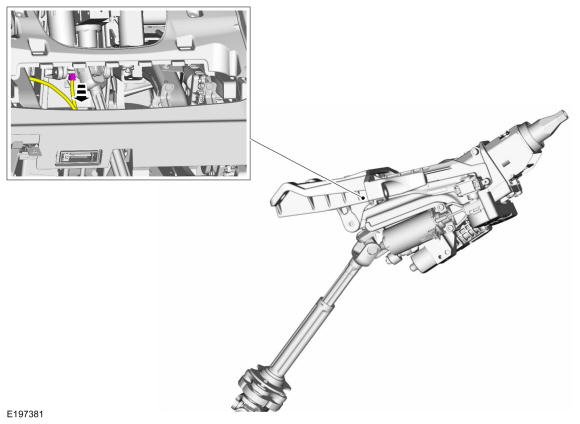

    GFD598018Courtesy of FORD MOTOR COMPANY

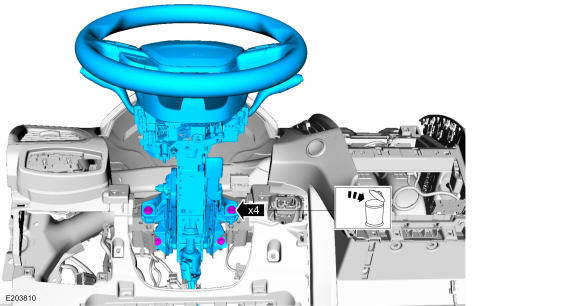

  22. NOTE: Do not reuse steering column bolts. This may result in fastener failure and steering column detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

    Remove and discard the bolts and remove the steering column.

    Torque: 18 lb.ft (25 Nm)

    GFD598019Courtesy of FORD MOTOR COMPANY

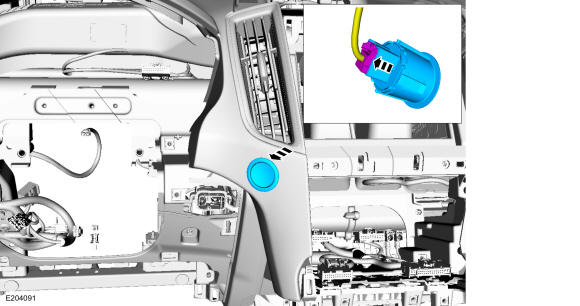

  23. Remove the engine start stop button.

    • Disconnect the electrical connector.

    GFD598020Courtesy of FORD MOTOR COMPANY
  24. Remove the 2 screws, release the clips and remove the lower instrument panel trim panel.
    GFD598021Courtesy of FORD MOTOR COMPANY

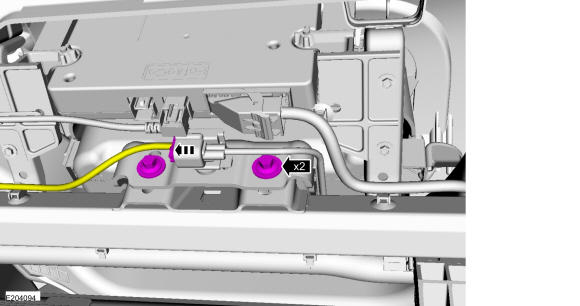

  25. Remove passenger airbag to cross car beam bolts.

    • Disconnect the electrical connector.

      Torque: 80 lb.in (9 Nm)

    GFD598022Courtesy of FORD MOTOR COMPANY

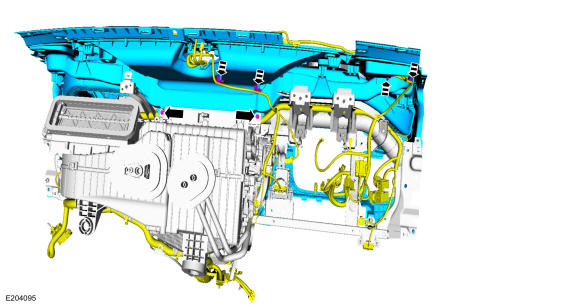

  26. Remove the HVAC to instrument panel upper section bolts.

    • Detach the wiring harness from the instrument panel upper section and position aside.

      Torque: 35 lb.in (4 Nm)

    GFD598023Courtesy of FORD MOTOR COMPANY
  27. NOTE: Make sure that all electrical connectors and wiring are not hindered before removing the instrument panel upper section or damage to the components may occur.

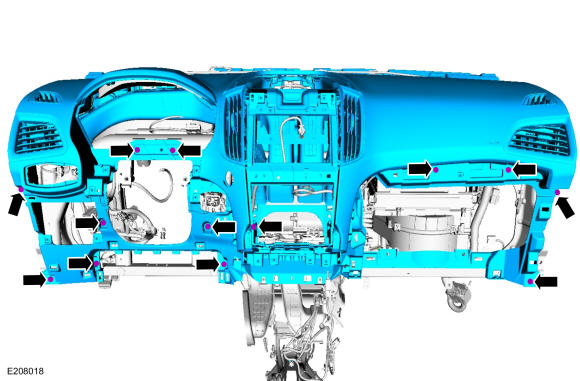

    Remove the instrument panel upper section to in-vehicle cross beam bolts and remove the instrument panel upper section.

    Torque: 22 lb.in (2.5 Nm)
