Overhead Console: Removal

NOTE: Removal steps in this procedure may contain installation details.

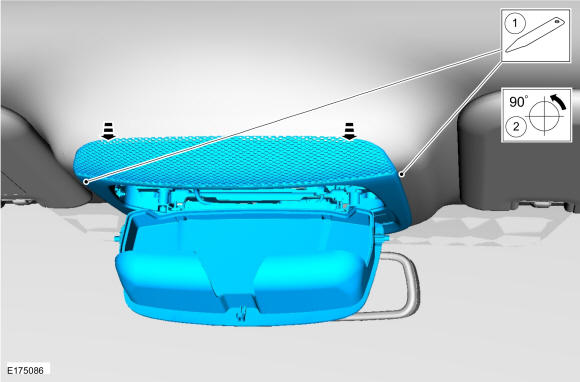

    1. Insert trim tool in location(s) shown.
    2. Rotate the tool 90 degrees to release the overhead console rear retainers.
    GFD598025Courtesy of FORD MOTOR COMPANY

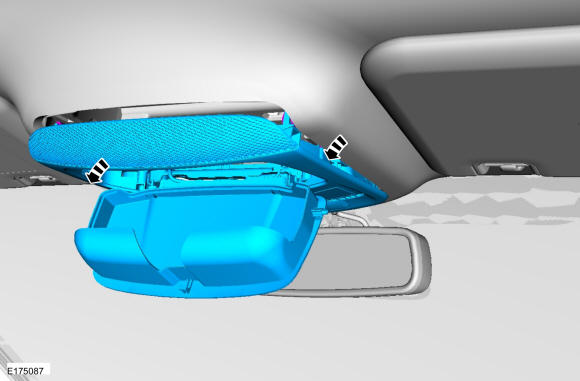

  2. Working from the rear to the front along each side release the overhead console retainers.
    GFD598026Courtesy of FORD MOTOR COMPANY

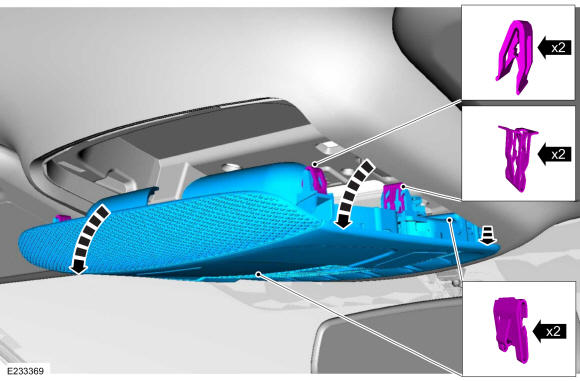

  3. Rotate and remove the overhead console.
    GFD598027Courtesy of FORD MOTOR COMPANY

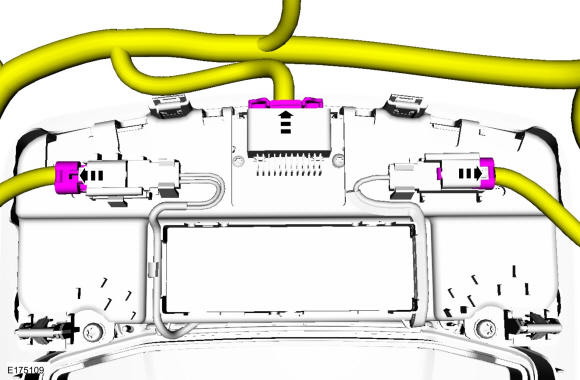

  4. Disconnect the electrical retainers.
GFD598028Courtesy of FORD MOTOR COMPANY
