Piston Diameter
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING INFORMATION
Check
NOTE:
Refer to the appropriate Engine System articlefor the specification.

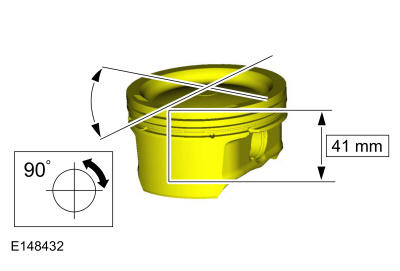

- Measure the piston diameter 90 degrees from the piston pin and 41 mm (1.61 in) down from the top of the piston at the point indicated.
