Transfer Case
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding .
Special Tool(s) / General Equipment
| Transmission Jack |
|---|
All vehicles

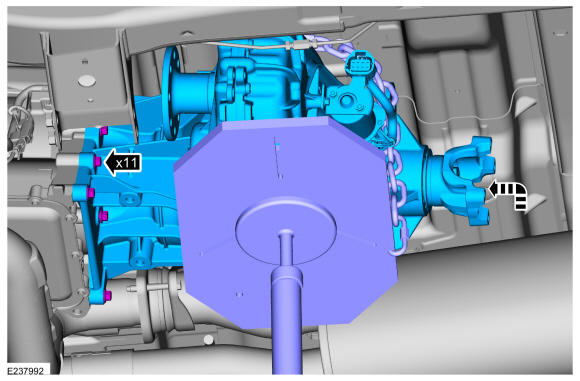

- Using a transmission jack, install the transfer case and the transfer case-to-transmission bolts. Use the General Equipment: Transmission Jack
Torque: 41 lb.ft (55 Nm)

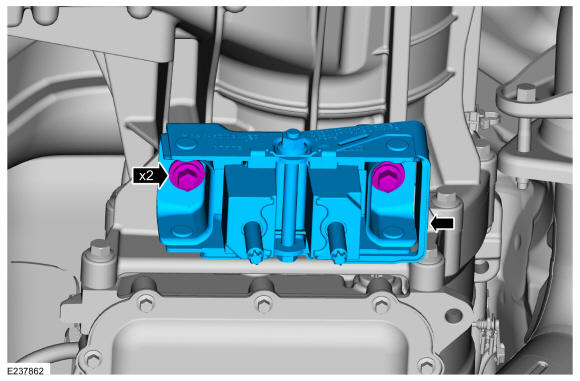

- Install the transmission mount and the transmission mount bolts.
Torque: 76 lb.ft (103 Nm)
- Install the transmission support crossmember. Refer to: Transmission Support Crossmember .

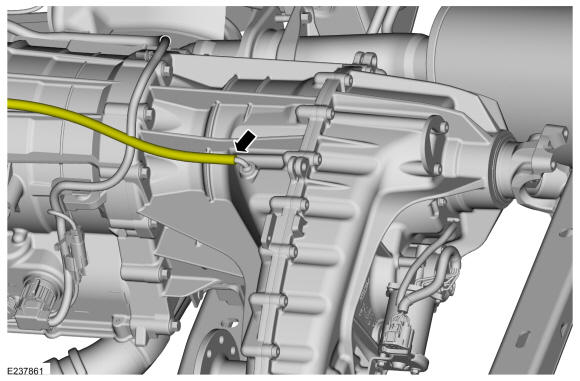

- Connect the vent hose from the transfer case.
Vehicles equipped with manual shift transfer case

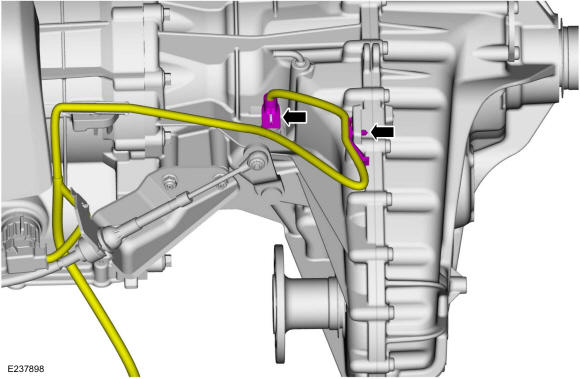

- Connect the manual shift indicator harness connector and pushpin.

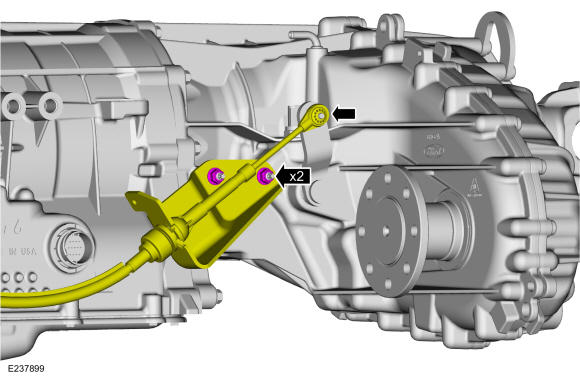

- Install the manual shift lever cable bracket nuts and connect the manual shift lever cable.
Torque: 21 lb.ft (28 Nm)
Vehicles equipped with electronic shift on the fly transfer case

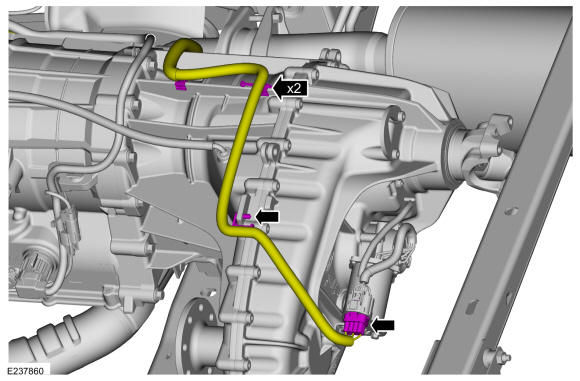

- Connect the shift motor electrical connector and attach the harness retainer clips and pushpin to the transfer case.
Vehicles equipped with a U-joint flange
- Connect the driveshaft.

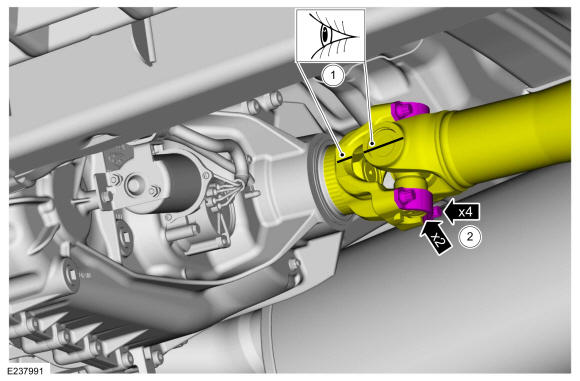

- Align the index marks and connect driveshaft and U-joint flange.
- Install the new U-joint straps and new U-joint strap bolts.
Torque: 46 lb.ft (63 Nm)
Vehicles equipped with a slip yoke
- Install the rear driveshaft. Refer to: Rear Driveshaft
.
All vehicles
- Install the front driveshaft. Refer to: Front Driveshaft .
- If the transfer case was disassembled, fill the transfer case. Refer to: Transfer Case Draining and Filling .
