Accelerator Pedal: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Fixed Accelerator Pedal

NOTE: To prevent setting DTCs, make sure the ignition switch is in the OFF position prior to disconnecting the accelerator pedal electrical connector.

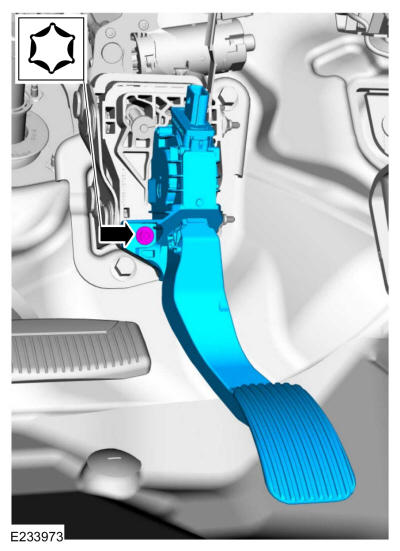

Disconnect the fixed accelerator pedal wiring harness electrical connector.

Courtesy of FORD MOTOR COMPANY

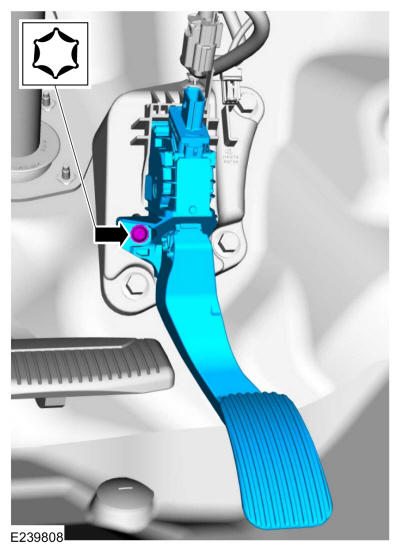

Remove the bolt and the accelerator pedal.
Torque: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY

Fixed Accelerator Pedal and Bracket

NOTE: To prevent setting DTCs, make sure the ignition switch is in the OFF position prior to disconnecting the accelerator pedal electrical connector.

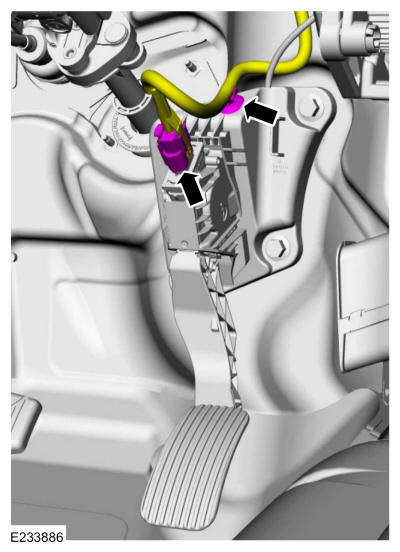

Disconnect the fixed accelerator pedal wiring harness electrical connector and retainer.

Courtesy of FORD MOTOR COMPANY

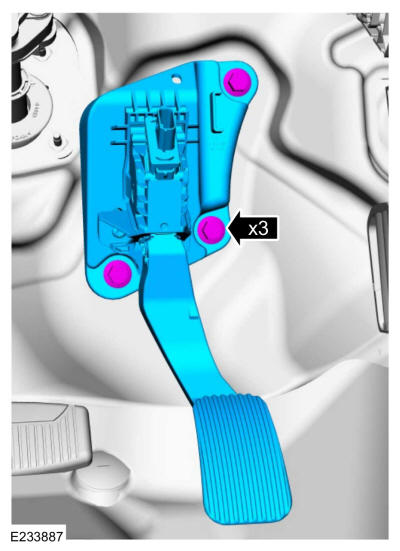

Remove the bolts and the accelerator pedal.
Torque: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY

Adjustable Accelerator Pedal

NOTE: To prevent setting DTCs, make sure the ignition switch is in the OFF position prior to disconnecting the accelerator pedal electrical connectors.

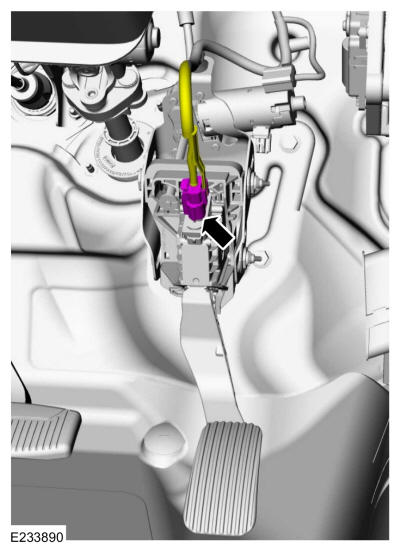

Disconnect the adjustable accelerator pedal wiring harness electrical connector.

Courtesy of FORD MOTOR COMPANY
Remove the bolt and the adjustable accelerator pedal.
Torque: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY

Adjustable Accelerator Pedal Motor and Bracket Assembly

NOTE: The adjustable pedal system must be indexed whenever the brake pedal assembly or accelerator pedal assembly is installed. Refer to HYDRAULIC BRAKE ACTUATION

NOTE: To prevent setting DTCs, make sure the ignition switch is in the OFF position prior to disconnecting the accelerator pedal electrical connectors.

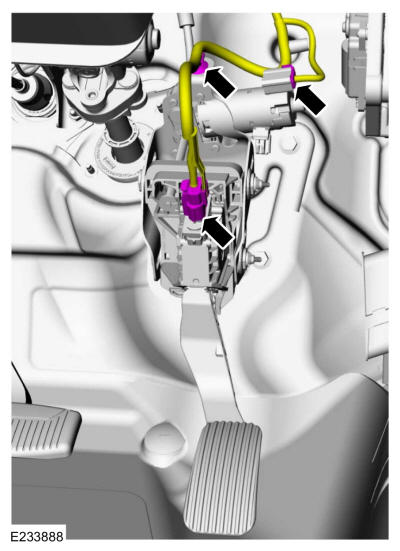

Disconnect the adjustable accelerator pedal wiring harness electrical connectors and retainer.

Courtesy of FORD MOTOR COMPANY
NOTE: The adjustable accelerator pedal cable is part of the adjustable pedal motor and bracket assembly and cannot be removed.

NOTE: Instrument panel is removed for clarity.

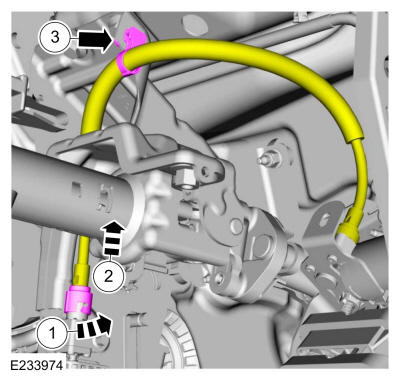

1. Rotate the adjustable accelerator pedal cable counterclockwise at the adjustable brake pedal.
2. Remove the adjustable accelerator pedal cable from the adjustable brake pedal.
3. Detach the adjustable accelerator pedal cable retainer.
- NOTE: The adjustable pedal system must be indexed whenever the brake pedal assembly or accelerator pedal assembly is installed.

  Index the adjustable pedal assemblies. Refer to: Adjustable Pedal Indexing .
Courtesy of FORD MOTOR COMPANY
Remove the bolts and the adjustable pedal motor and bracket assembly.
Torque: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY
