Engine Ignition - Component Location

WARNING: This page is about a different car, the 2019 Ford F-350 Super Duty and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

6.2L V8

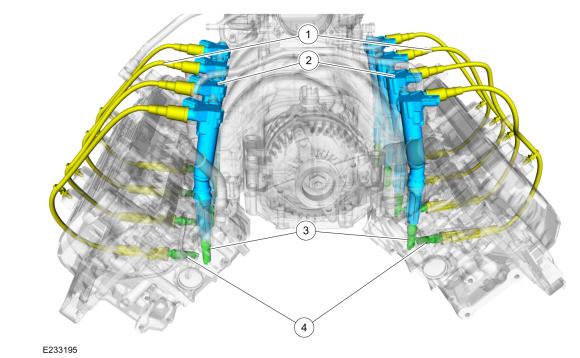

GFD407910Courtesy of FORD MOTOR COMPANY
Item Description
1 Spark plug wires
2 Ignition coil-on-plugs
3 Spark plugs - upper
4 Spark plugs - lower
