Front Brake Disc: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Vehicles with twin I-beam axle

NOTE: The brake disc and wheel hub are an assembly on vehicles with twin I-beam axle.

Remove the front wheel bearing and wheel hub. Refer to: Front Wheel Bearing and Wheel Hub - F-250/F-350 - RWD.

Vehicles with monobeam axle
Remove the wheel and tire. Refer to: Wheel and Tire - Vehicles With: Single Rear Wheels . Refer to: Wheel and Tire - Vehicles With: Dual Rear Wheels .
NOTE: Do not pry in the caliper sight hole to retract the pistons as this can damage the pistons and boots.

NOTE: Do not allow the brake caliper to hang from the brake hose or damage to the hose can occur.

NOTE: F250, F350 shown in illustration.

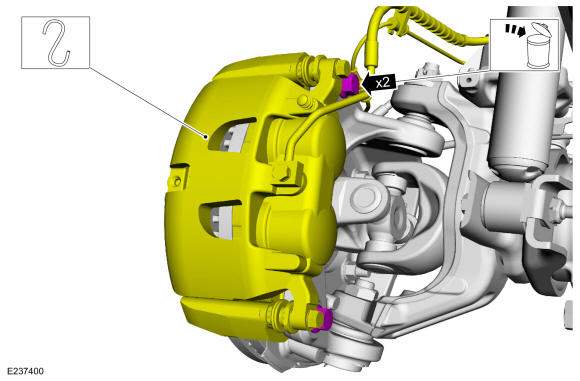

Remove the bolts and position the brake caliper and anchor plate aside. Discard the bolts.

Torque:

F250, F350: 203 lb.ft (275 Nm)

F450, F550: 166 lb.ft (225 Nm)

Courtesy of FORD MOTOR COMPANY

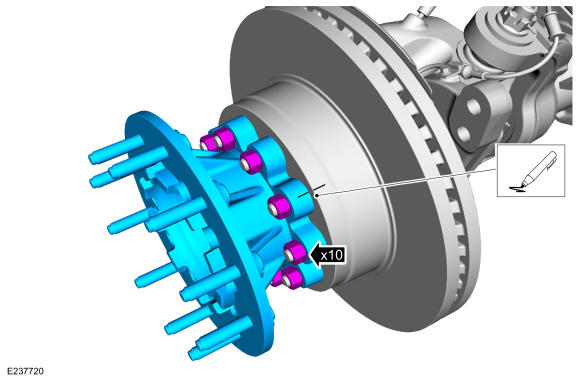

If equipped with dual rear wheels (DRW), index mark the brake disc and wheel hub extension. Remove the nuts and the wheel hub extension.
Torque: 130 lb.ft (176 Nm)

Courtesy of FORD MOTOR COMPANY

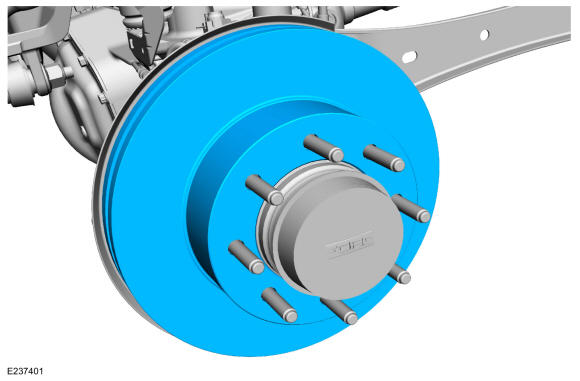

Remove the brake disc.

Courtesy of FORD MOTOR COMPANY

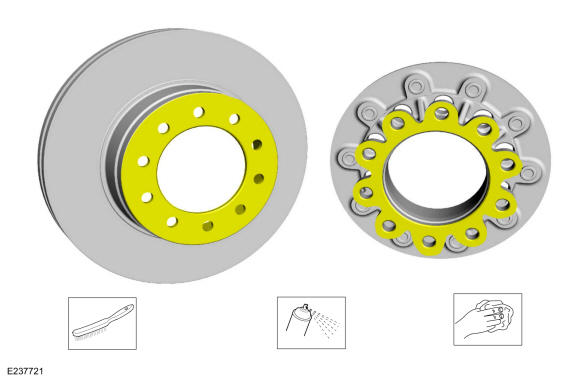

Clean the brake disc mating surfaces using a wire brush and the specified material.
Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

Courtesy of FORD MOTOR COMPANY

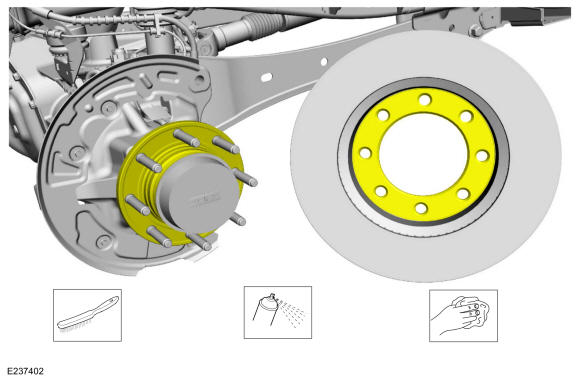

If equipped with dual rear wheels (DRW), clean the wheel hub mating surfaces using a wire brush and the specified material.
Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

Courtesy of FORD MOTOR COMPANY
