Tie Rod End: Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: Disconnect the battery ground cable anytime the steering linkage is being serviced or damage to the steering gear may occur resulting in steering gear replacement.

Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT .
Remove the wheel and tire. Refer to: Wheel and Tire

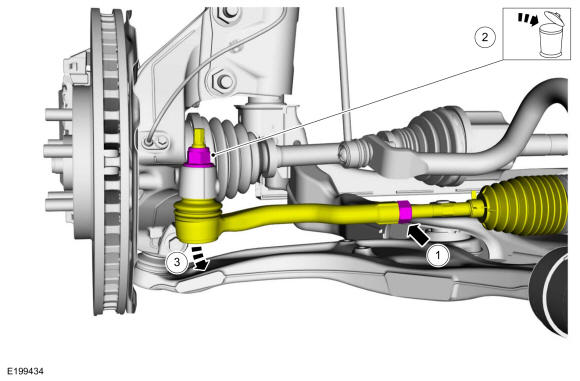

1. Loosen the tie rod end jam nut.
  Torque: 52 lb.ft (70 Nm)
2. Remove and discard the outer tie rod end nut.
  Torque: 111 lb.ft (150 Nm)
3. NOTE: Do not use a hammer to separate the outer tie-rod end from the wheel spindle or damage to the wheel spindle may result.

  NOTE: Use care when installing the tie rod separator or damage to the outer tie-rod end boot may occur.

  Separate the outer tie rod end from the wheel knuckle. Use the General Equipment: Tie Rod End Remover
Courtesy of FORD MOTOR COMPANY

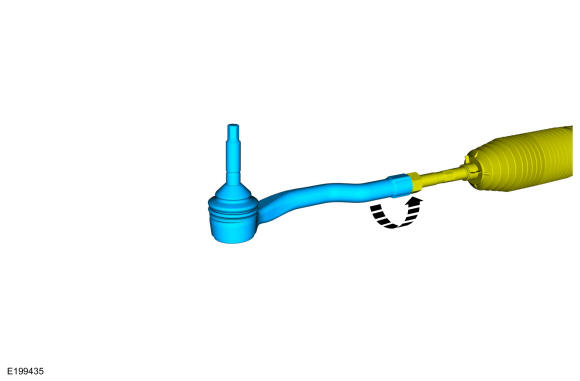

NOTE: Count and record the number of turns required to remove the outer tie-rod end for reference during installation.

Remove the tie-rod end.

Courtesy of FORD MOTOR COMPANY
