Steering Column Tilt Motor: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the steering column shrouds. Refer to: Steering Column Shrouds

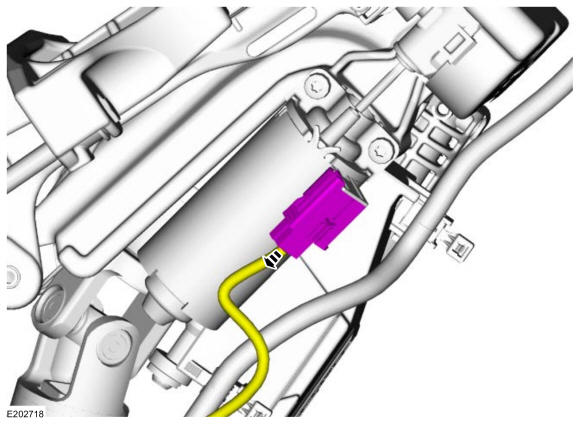

  2. Detach the tilt motor electrical connector.
    GFD593226Courtesy of FORD MOTOR COMPANY

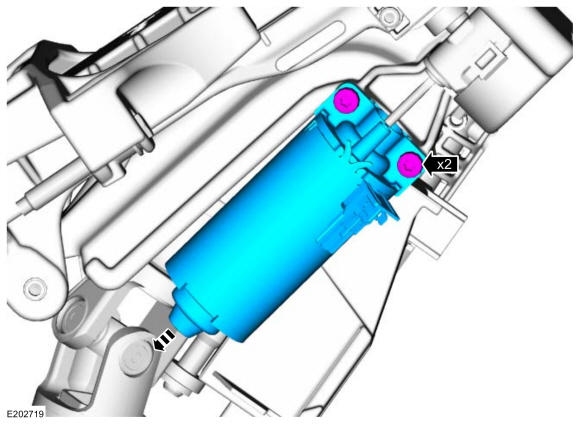

  3. Remove the screws and the tilt motor.

    Torque

    : 62 lb.in (7 Nm)

GFD593227Courtesy of FORD MOTOR COMPANY
