Front Camber Adjustment

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING INFORMATION

Special Tool(s) / General Equipment

Wheel Alignment System

Adjustment

NOTE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.

Using alignment equipment and the manufacturer's instructions, measure the front camber. Use the General Equipment: Wheel Alignment System
Remove the wheel and tire. Refer to: Wheel and Tire
NOTE: Support the wheel spindle using mechanic's wire.

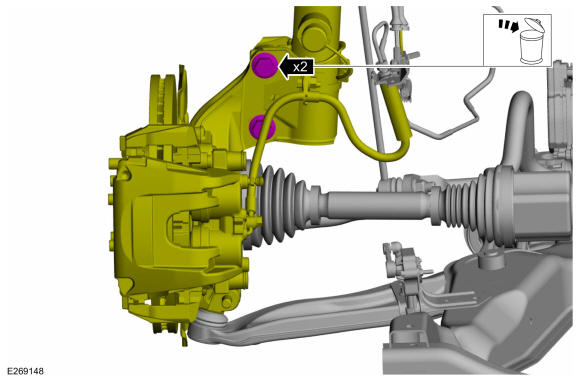

Remove and discard the strut-to-wheel knuckle bolts and nuts.

Courtesy of FORD MOTOR COMPANY
1. NOTE: Replace bolts and nuts with new service bolts and nuts.

  NOTE: Original equipment bolts are splined, service bolts are smooth and smaller in diameter.

  NOTE: Do not fully tighten the strut-to-spindle bolts and nuts until the alignment has been corrected.

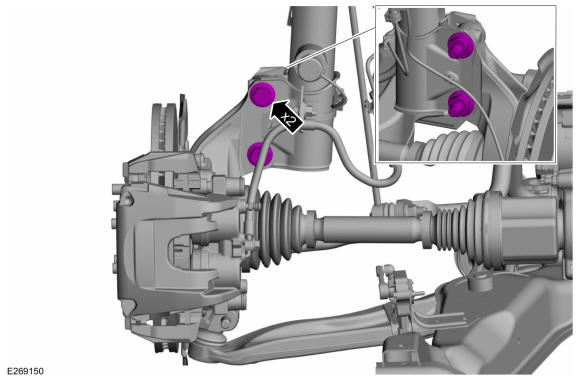

  Install the 2 new service strut-to-wheel knuckle bolts and nuts and tighten until snug.
2. NOTE: Adjustment from maximum inboard to maximum outboard is.5 deg..

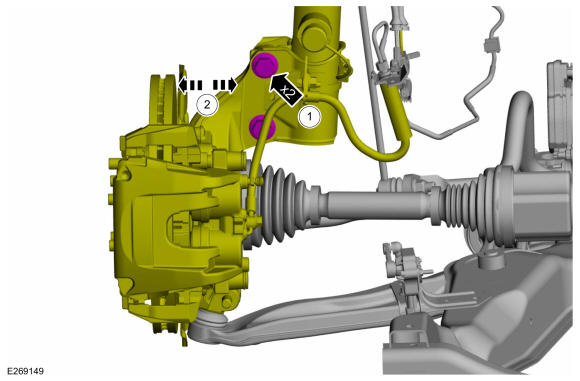

  Move the wheel knuckle assembly inboard or outboard to adjust front camber as necessary.
Courtesy of FORD MOTOR COMPANY
Tighten the strut-to-wheel knuckle bolts and nuts.
Torque: 173 lb.ft (235 Nm)

Courtesy of FORD MOTOR COMPANY
Install the wheel and tire. Refer to: Wheel and Tire
Recheck alignment to verify camber change and adjust front toe if necessary. Refer to: Front Toe Adjustment
