Upshift Paddle Switch: Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the driver airbag. Refer to: Driver Airbag

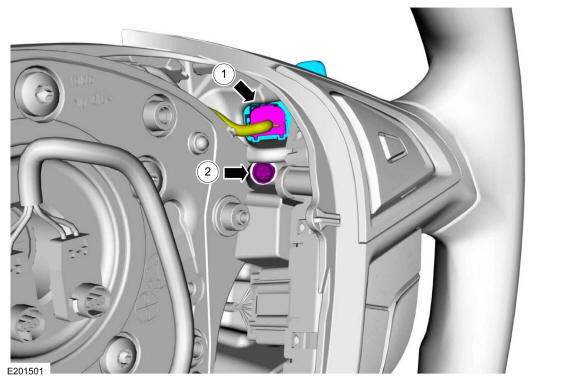

Remove the upshift paddle switch.
1. Disconnect the electrical connector.
2. Remove the retainer and the upshift paddle swicth.
  Torque: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY
