Rear Wheel Speed Sensor: Removal

All vehicles

1. Remove the wheel and tire. Refer to: Wheel and Tire

   .

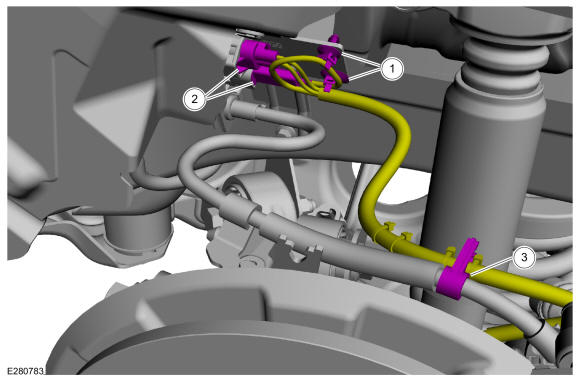

2. NOTE: Route the wheel speed sensor/parking brake actuator motor harness as shown below or contact with the wheel may occur causing damage to harness.
   NOTE: Use the white stripe on rear wheel speed sensor harness for orientation purposes, making sure the harness is not twisted during installation.
   1. Detach the pin-type retainers.
   2. Disconnect the electrical connectors.
   3. Detach the brake hose from the harness.

   Courtesy of FORD MOTOR COMPANY

   All wheel drive (AWD) vehicles

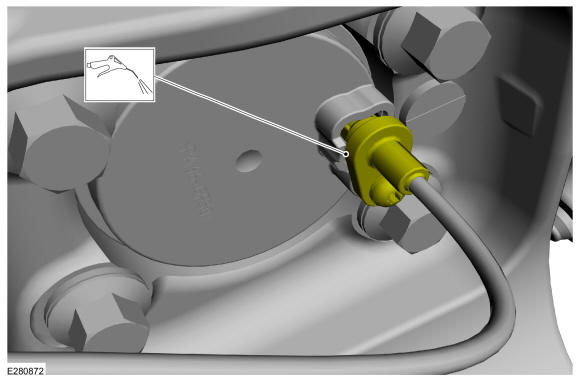

3. NOTE: Make sure that the sensor housing area is clean and free of foreign material before the sensor is removed.

   Using compressed air, clean the sensor housing area.

   Courtesy of FORD MOTOR COMPANY

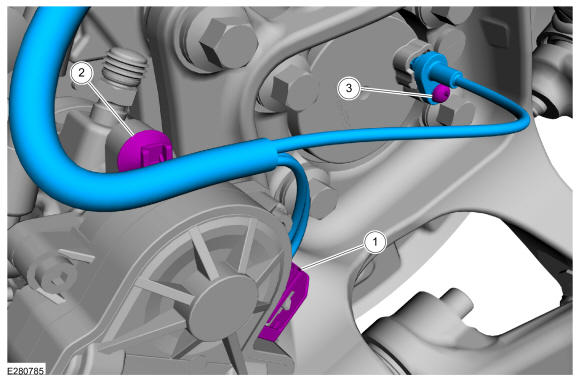

4. 1. Disconnect the electrical connector.
   2. Detach the pin-type retainer.
   3. Remove the bolt and the rear wheel speed sensor.

      Torque: 80 lb.in (9 Nm)

   Courtesy of FORD MOTOR COMPANY

   Front wheel drive (FWD) vehicles

5. NOTE: Make sure that the sensor housing area is clean and free of foreign material before the sensor is removed.

   Using compressed air, clean the sensor housing area.

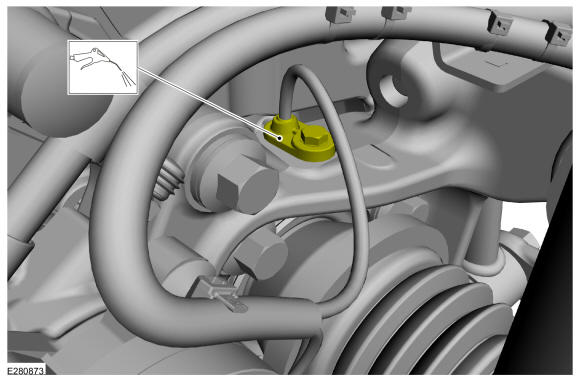

   Courtesy of FORD MOTOR COMPANY

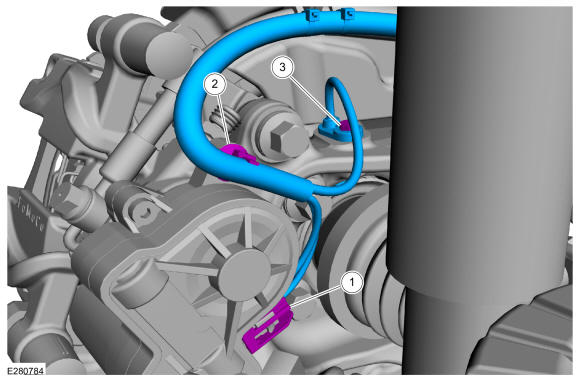

6. 1. Disconnect the electrical connector.
   2. Detach the pin-type retainer.
   3. Remove the bolt and the rear wheel speed sensor.

      Torque: 53 lb.in (6 Nm)
