Bearing Inspection

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING INFORMATION

Inspection

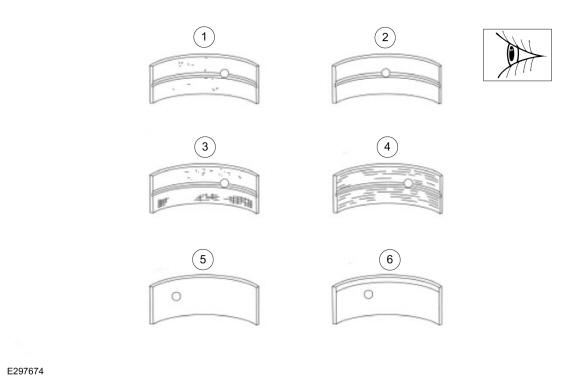

1. 1. Cratering - fatigue failure
   2. Spot glazing - incorrect seating
   3. Scratching - dirty engine oil
   4. Base exposed - poor lubrication
   5. Both edges worn - journal damaged
   6. One edge worn - journal tapered or bearing not seated

Courtesy of FORD MOTOR COMPANY
