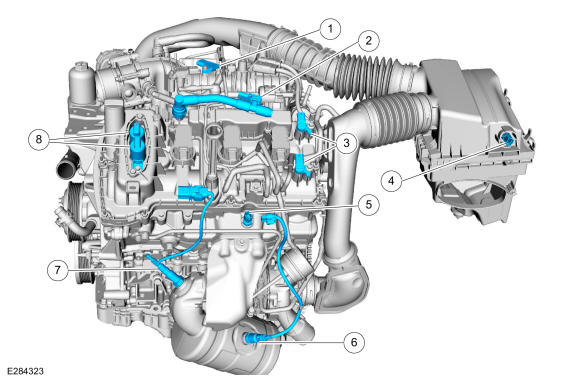

Electronic Engine Controls- LH
Courtesy of FORD MOTOR COMPANY
Item
Description
1
MAP sensor
2
Crankcase pressure sensor
3
Left hand CMP sensors
4
IAT sensor
5
CHT (CHT2) sensor
6
Left hand Catalyst monitor sensor
7
Left hand HO2S
8
Left hand VCT oil control solenoids
