Electronic Engine Controls- RH

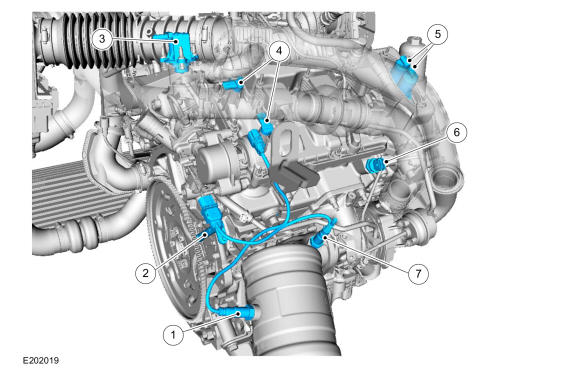

GFD595323Courtesy of FORD MOTOR COMPANY
Item Description
1 Right hand Catalyst monitor sensor
2 CKP sensor
3 Turbocharger bypass valve
4 Right hand CMP sensors
5 Right hand VCT oil control solenoids
6 EOP sensor
7 Right hand HO2S
