Fuel Pump Driver Module (FPDM): Installation

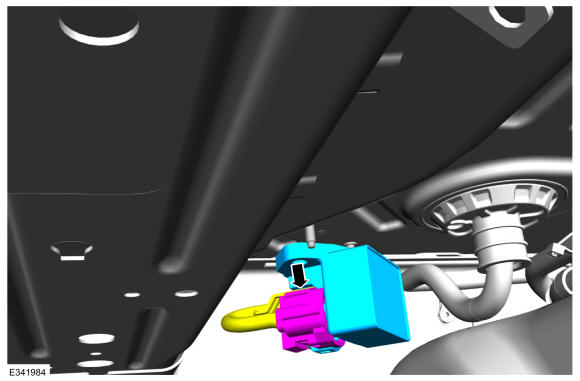

  1. Connect the fuel pump driver module electrical connector.
    GFD594912Courtesy of FORD MOTOR COMPANY

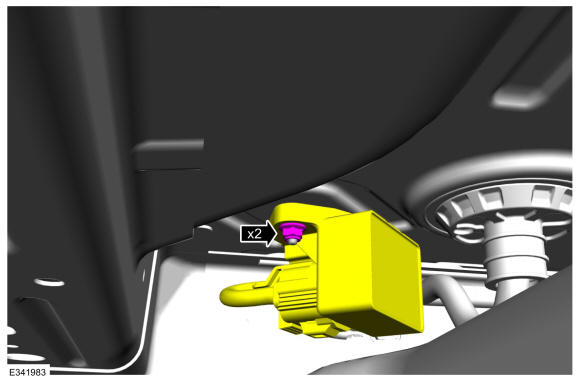

  2. Install the fuel pump driver module, then install and tighten the fuel pump driver module nuts.

    Torque

    : 36 lb.in (4.1 Nm)

    GFD594911Courtesy of FORD MOTOR COMPANY

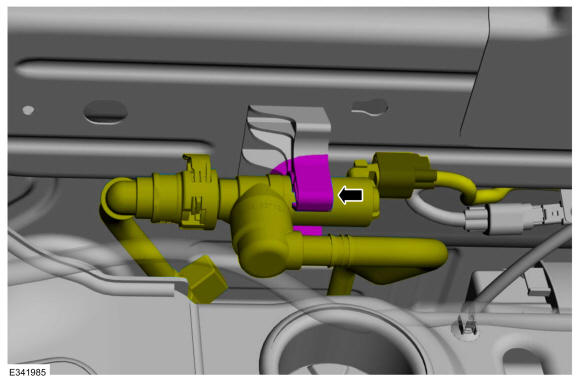

  3. Position back the EVAP blocking valve and hoses.
GFD594910Courtesy of FORD MOTOR COMPANY
