Spark Plug Wires: Installation
WARNING: This page is about a different car, the 2019 Ford F-350 Super Duty and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
-

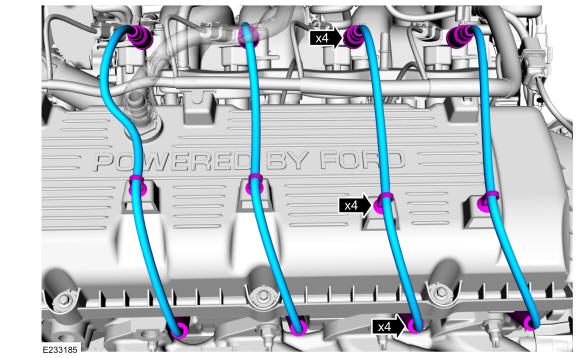

- Install and connect the left spark plug wires.
- Attach left the spark plug wire retainers.
 Courtesy of FORD MOTOR COMPANY
|
-

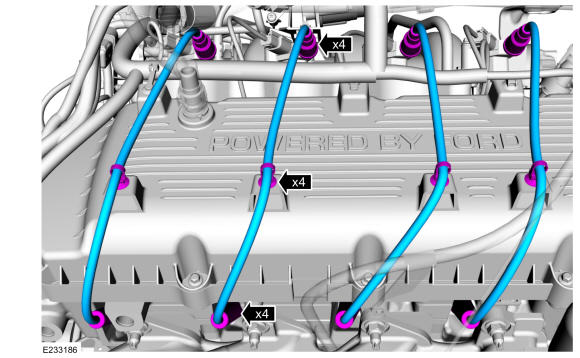

- Install and connect the right spark plug wires.
- Attach right the spark plug wire retainers.
 Courtesy of FORD MOTOR COMPANY
|
