Accelerator Pedal: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: To prevent setting Diagnostic Trouble Codes (DTCs), make sure the ignition switch is in the OFF position prior to disconnecting the accelerator pedal electrical connector.

NOTE: Vehicles with adjustable pedals, position the drivers seat to the full rearward position and if possible adjust the pedals to the full forward position.

All vehicles

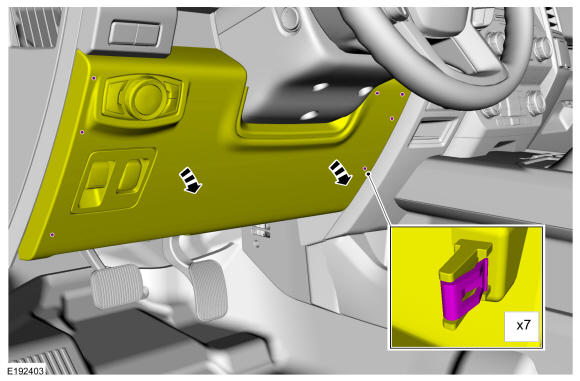

Pull outward on the steering column opening cover detaching the 7 clips and allow the cover to hinge downward.

Courtesy of FORD MOTOR COMPANY

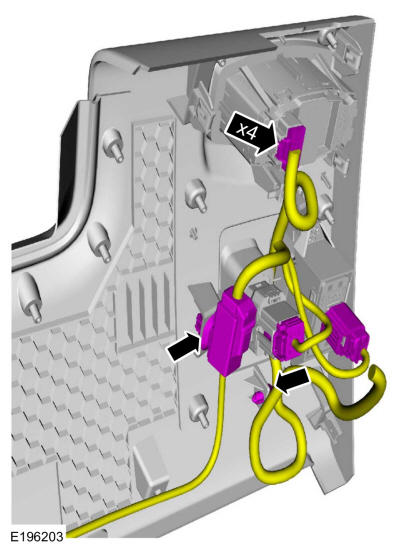

Disconnect the electrical connector(s) and the wiring retainer(s).

Courtesy of FORD MOTOR COMPANY

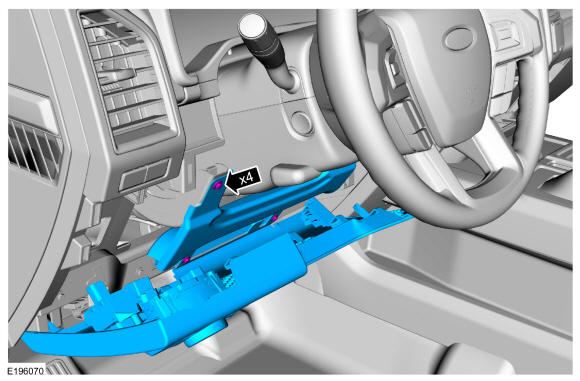

Remove the 4 bolts and the steering column opening trim panel and reinforcement.
Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY

Vehicles equipped with adjustable pedals

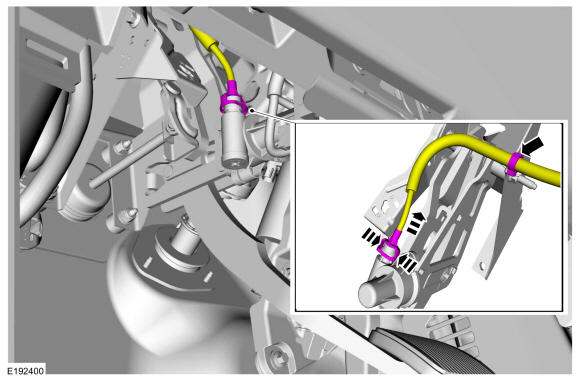

Disconnect the adjustable pedal motor drive cable from the adjustable brake pedal drive.

Courtesy of FORD MOTOR COMPANY

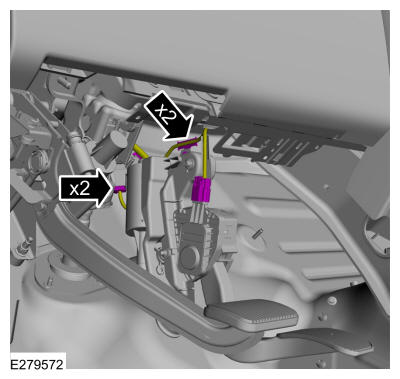

- Disconnect the 2 accelerator pedal electrical connectors.
- Remove the wiring harness clips.
Courtesy of FORD MOTOR COMPANY

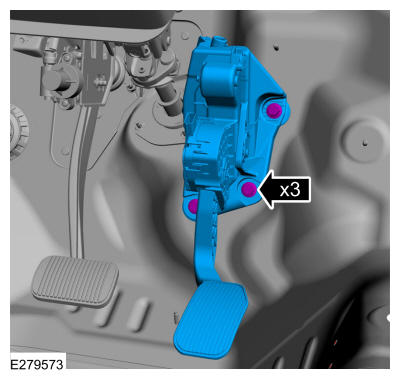

- Remove the 3 bolts and the accelerator pedal assembly.
  Torque: 155 lb.in (17.5 Nm)
Courtesy of FORD MOTOR COMPANY

Accelerator Pedal -- Fixed

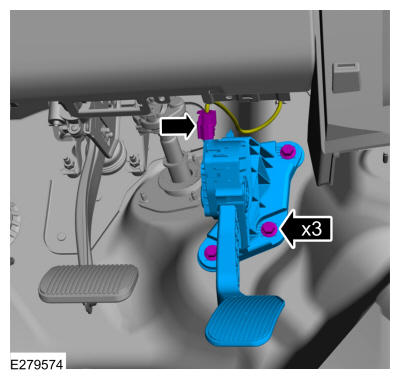

Disconnect the accelerator pedal sensor electrical connector.
Remove the bolts and the accelerator pedal assembly.
Torque: 155 lb.in (17.5 Nm)

Courtesy of FORD MOTOR COMPANY
