OEM Ground Distribution: Grounds

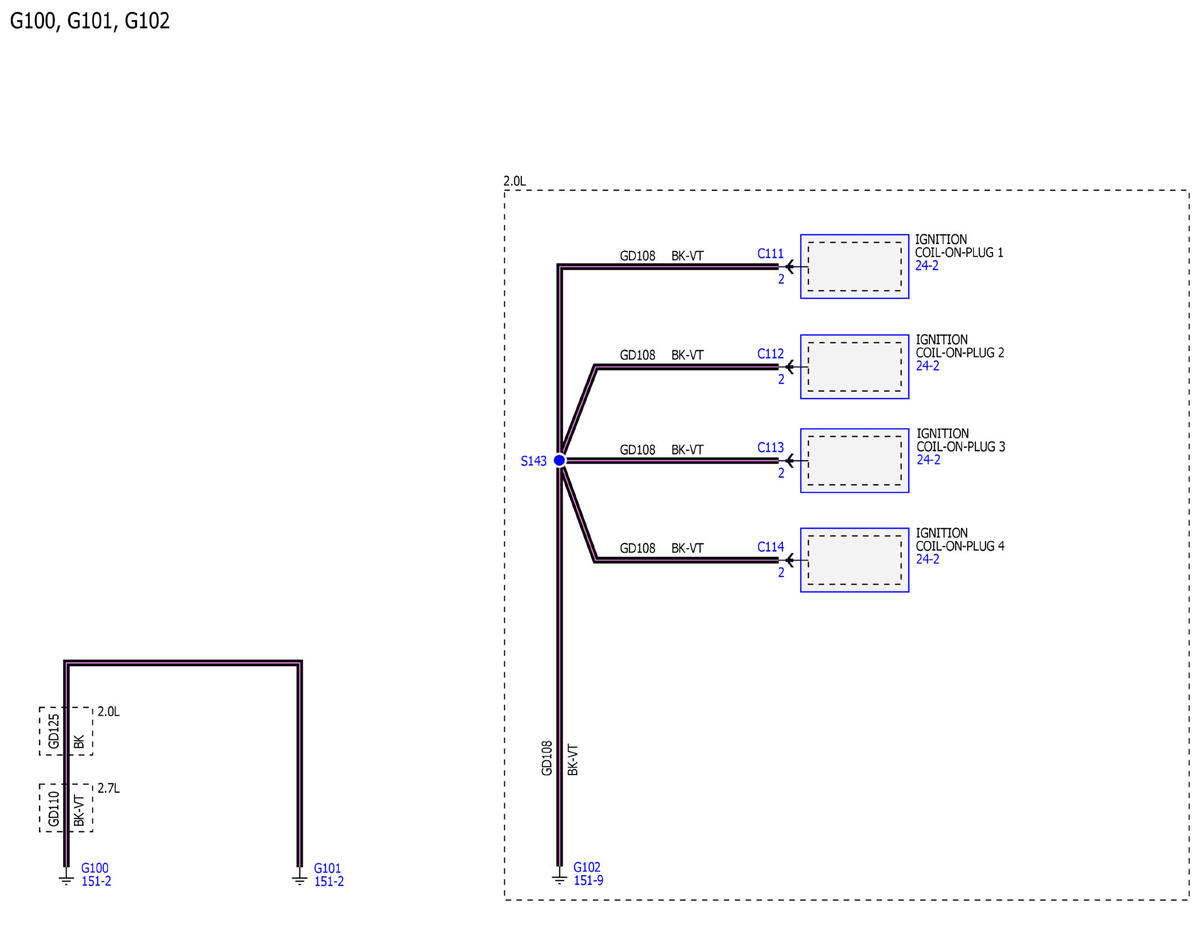

GFDWR139022Courtesy of FORD MOTOR COMPANY

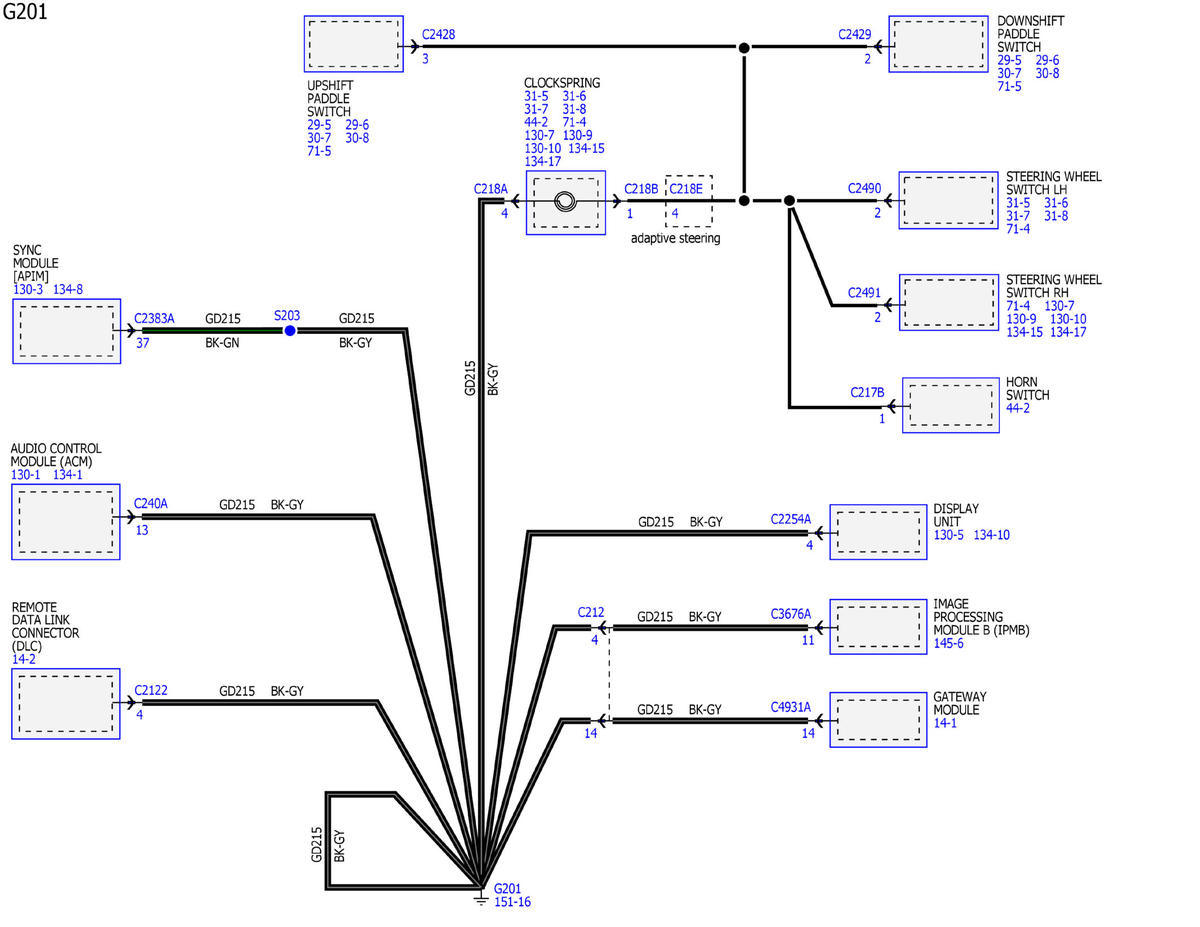

GFDWR139023Courtesy of FORD MOTOR COMPANY

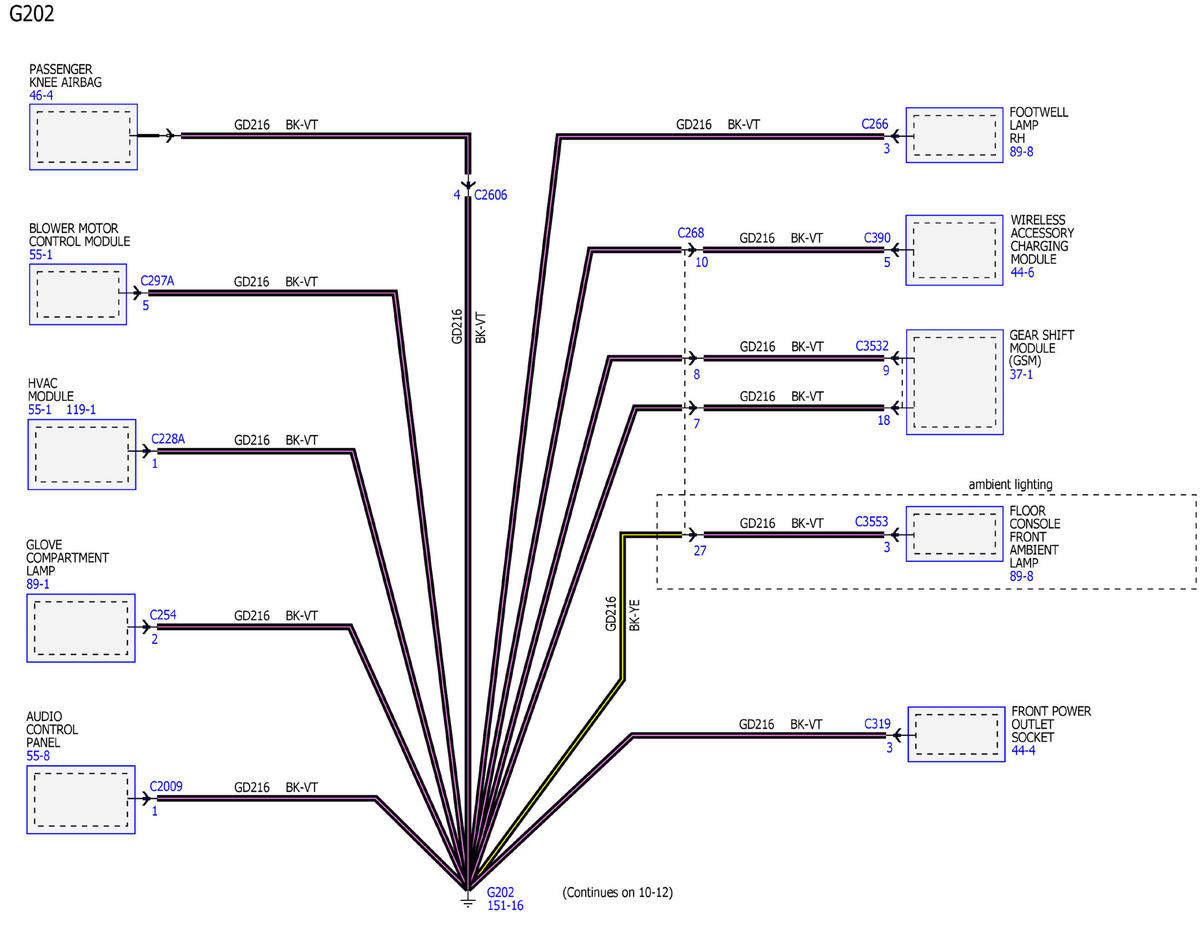

GFDWR139024Courtesy of FORD MOTOR COMPANY

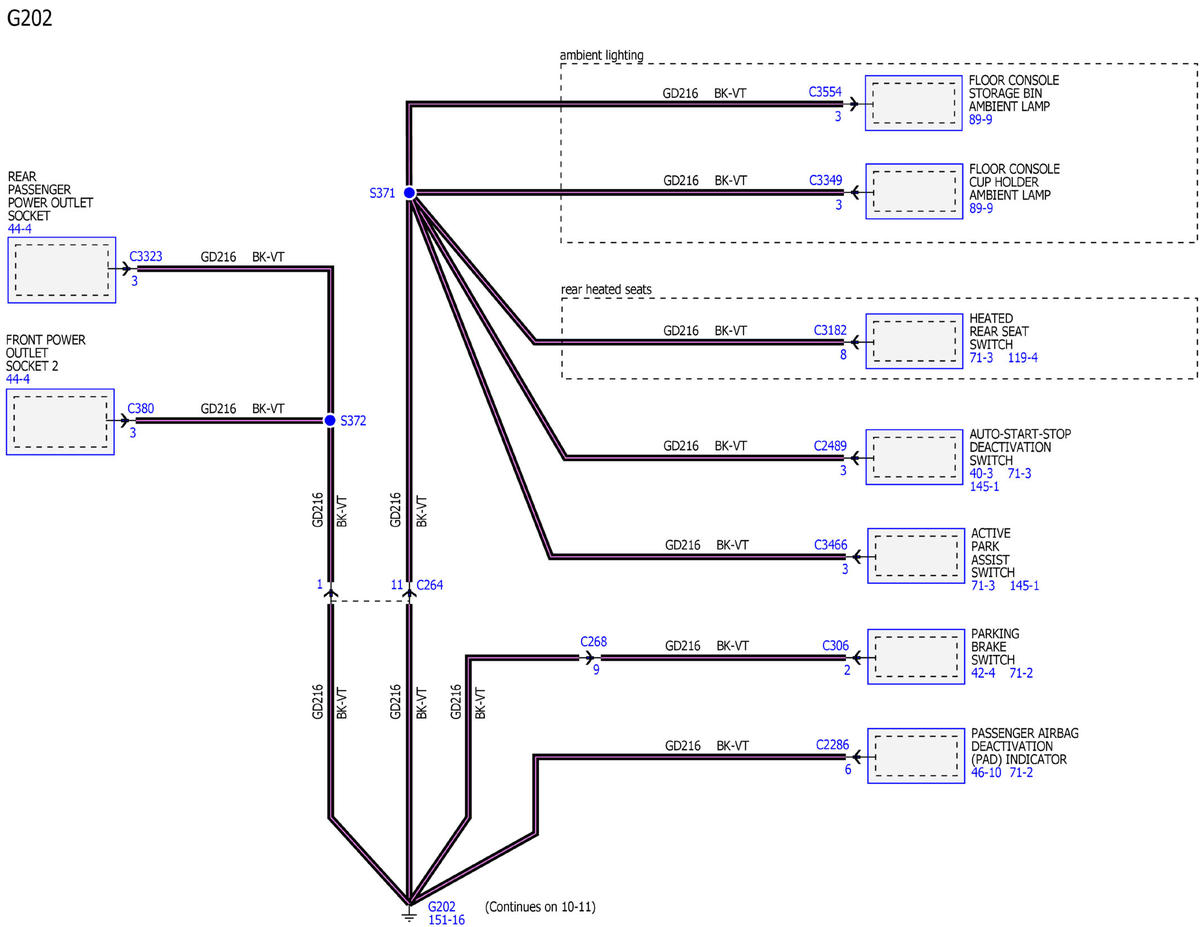

GFDWR139025Courtesy of FORD MOTOR COMPANY

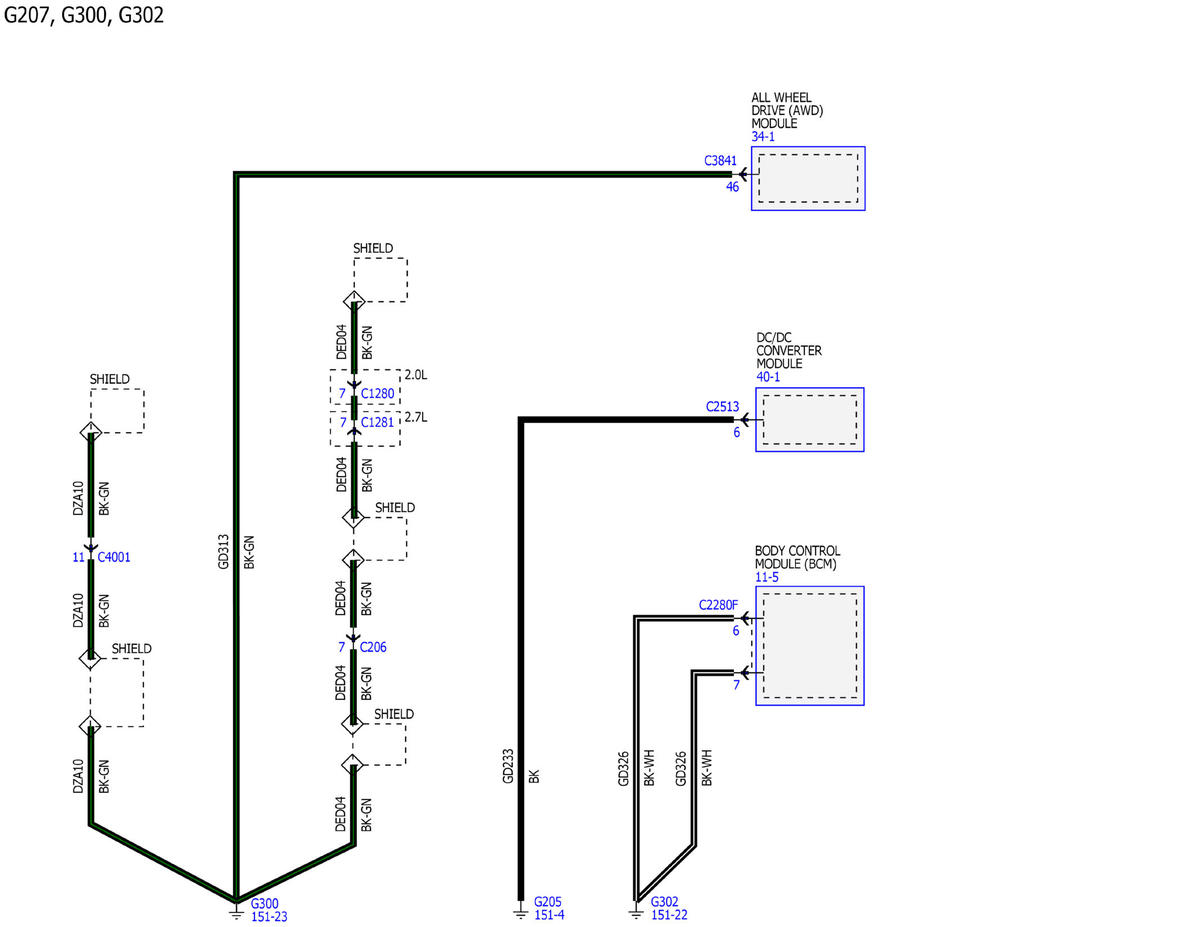

GFDWR139026Courtesy of FORD MOTOR COMPANY

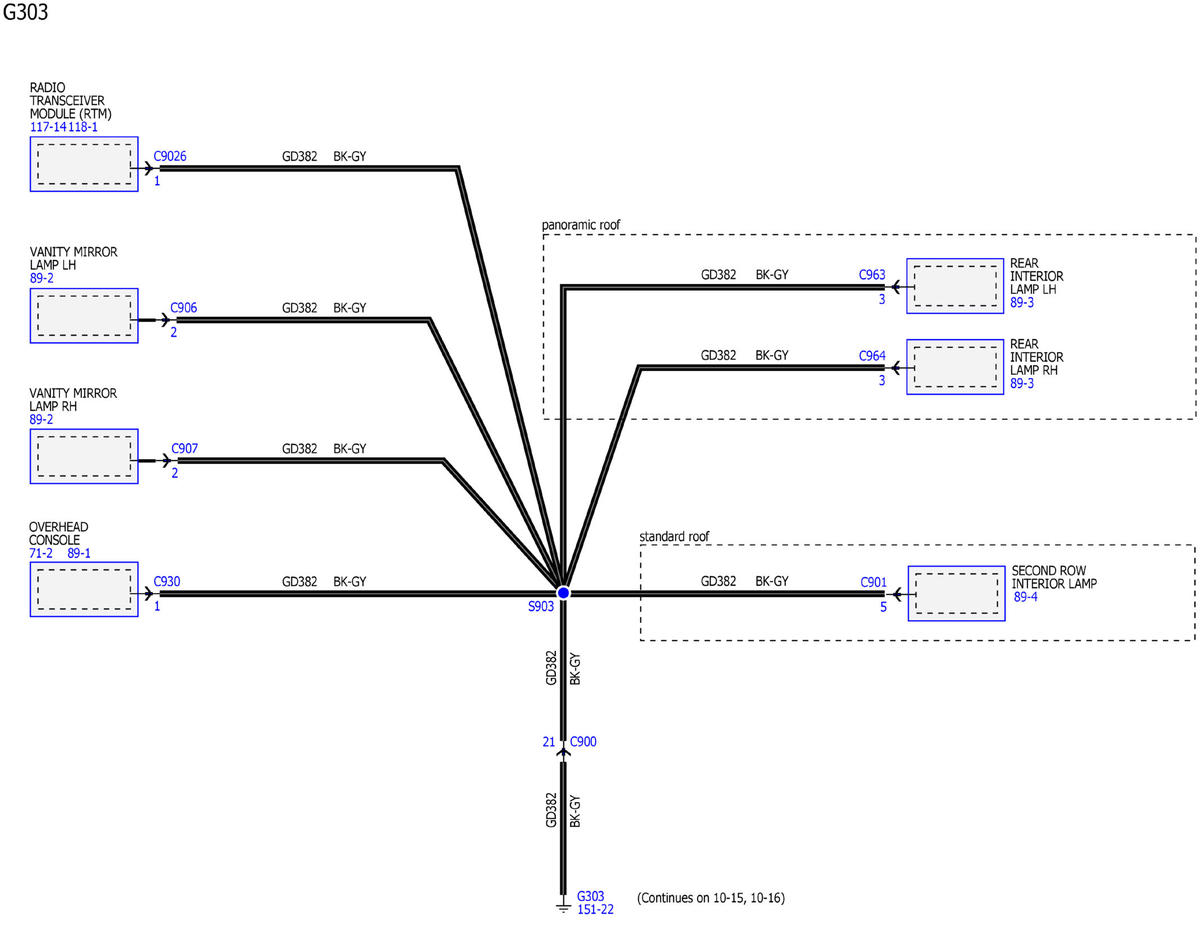

GFDWR139027Courtesy of FORD MOTOR COMPANY

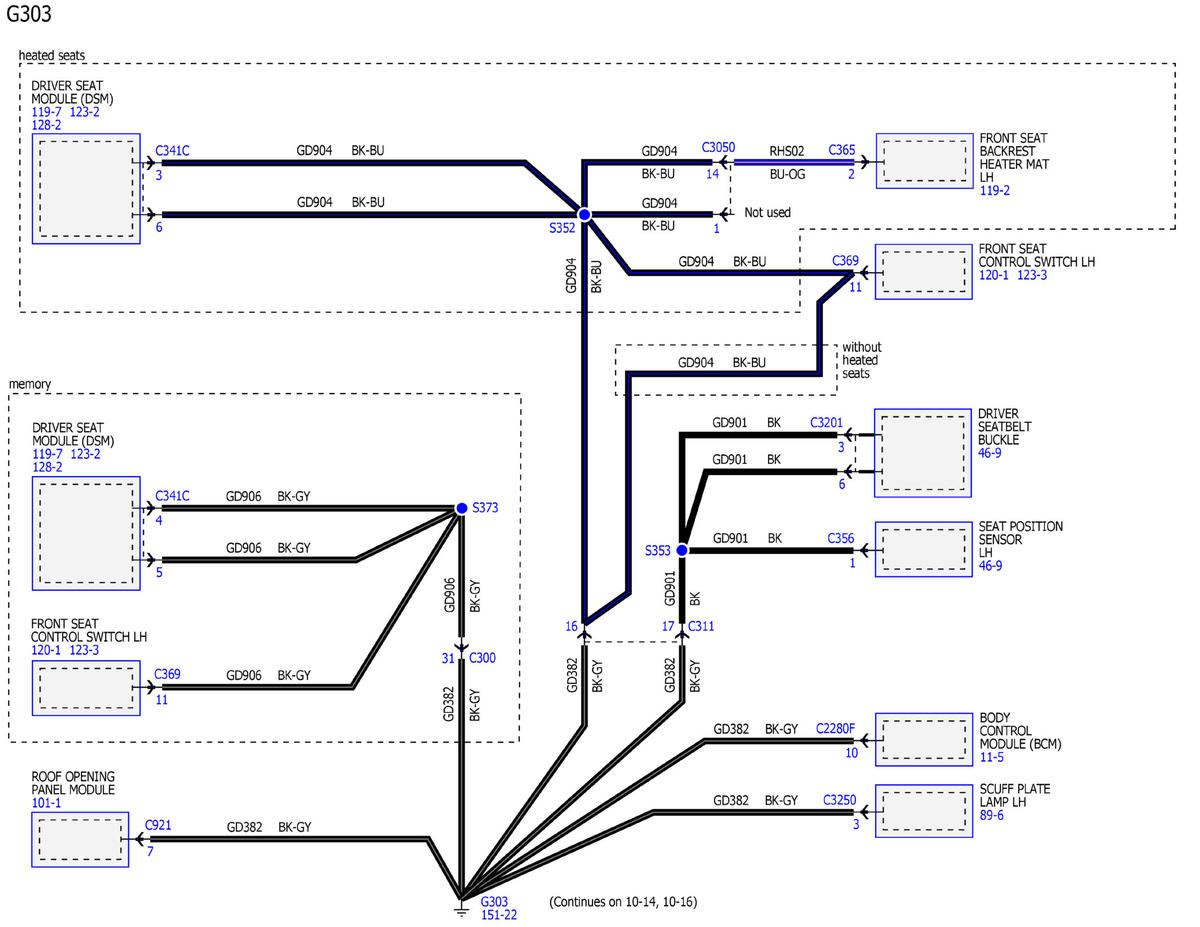

GFDWR139028Courtesy of FORD MOTOR COMPANY

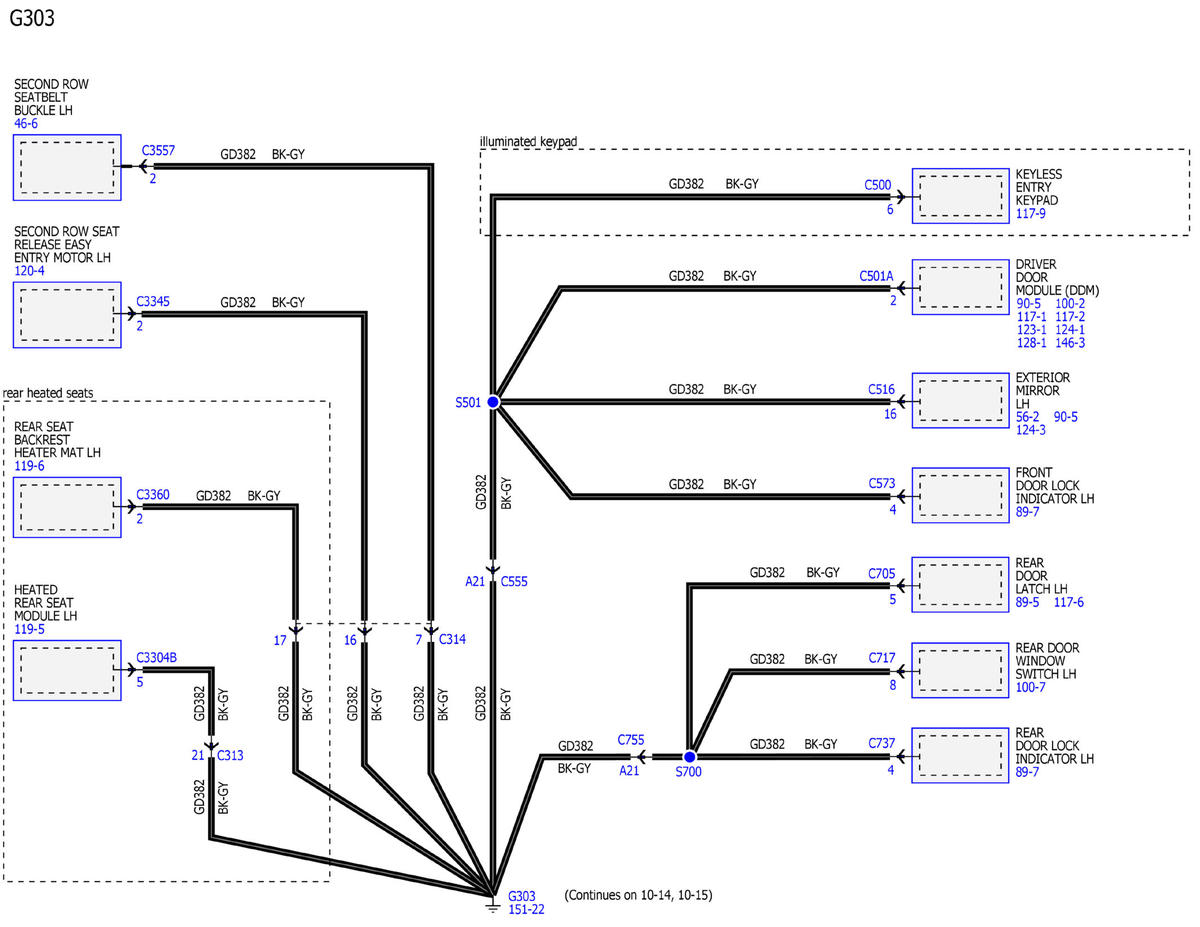

GFDWR139029Courtesy of FORD MOTOR COMPANY

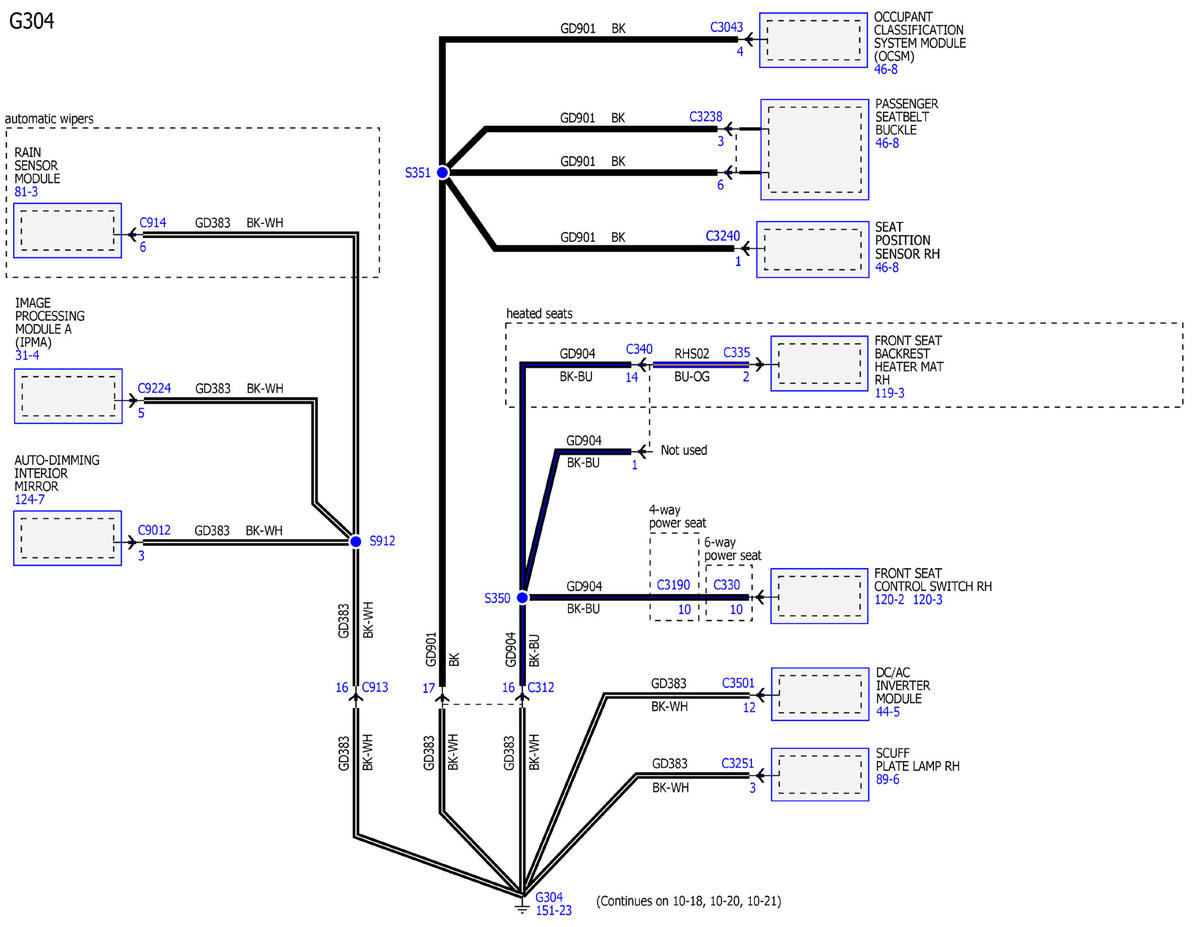

GFDWR139030Courtesy of FORD MOTOR COMPANY

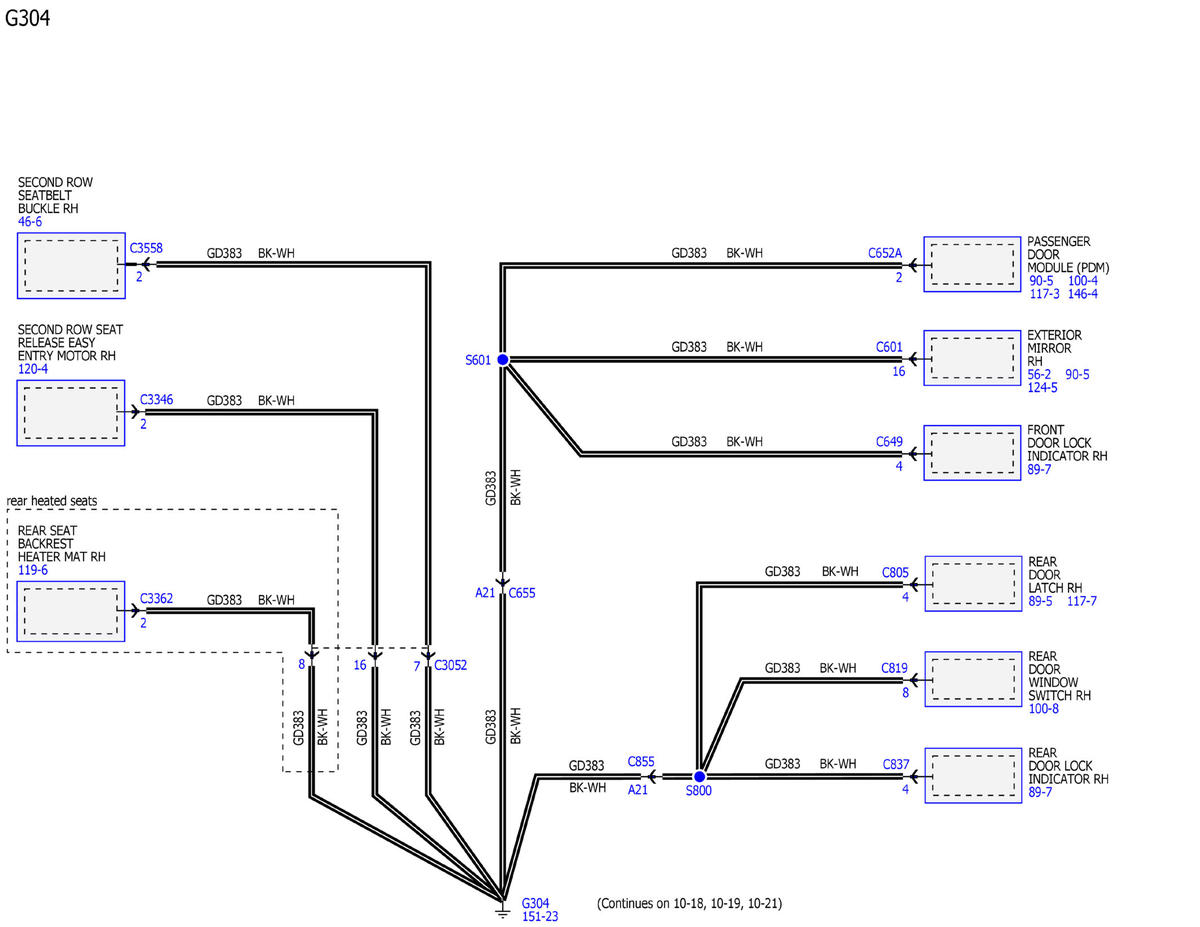

GFDWR139031Courtesy of FORD MOTOR COMPANY

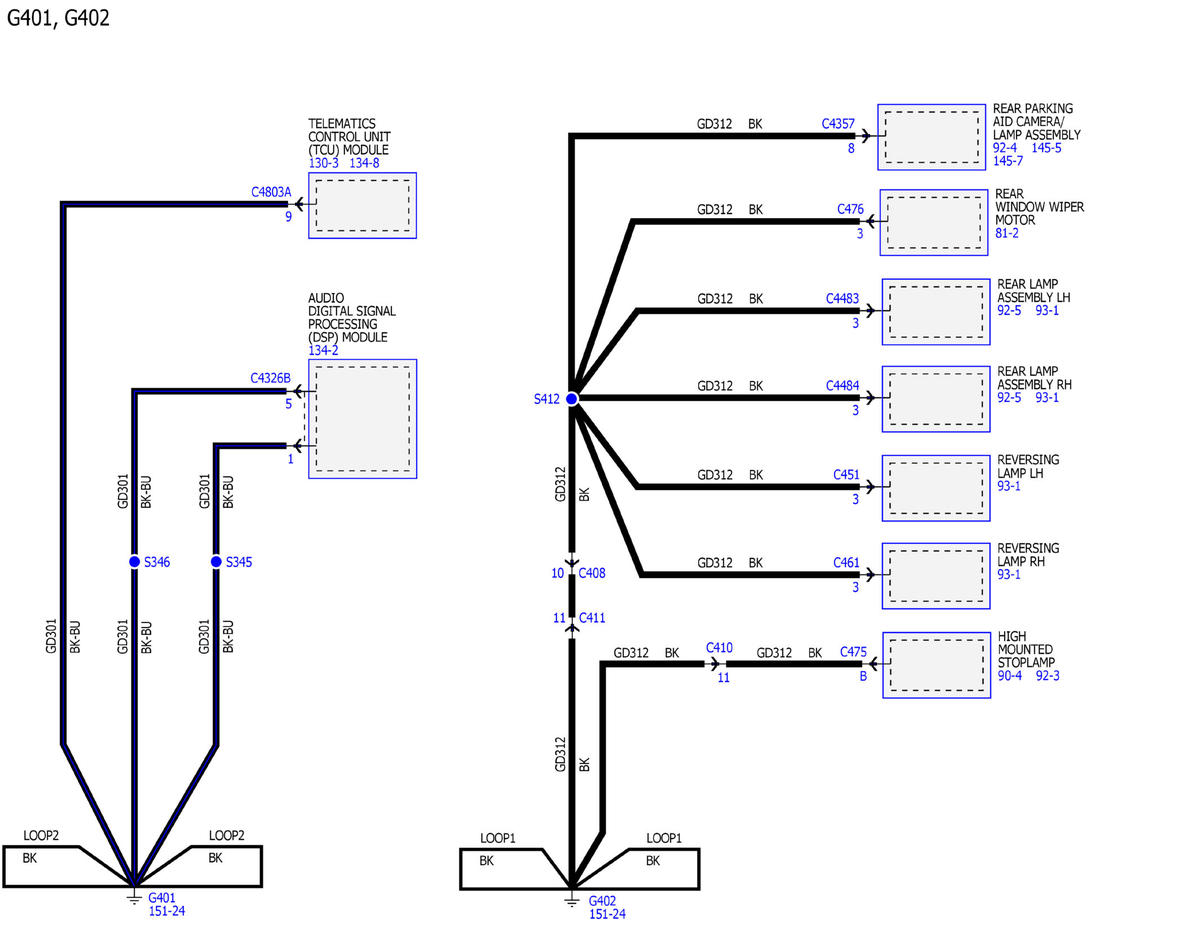

GFDWR139032Courtesy of FORD MOTOR COMPANY

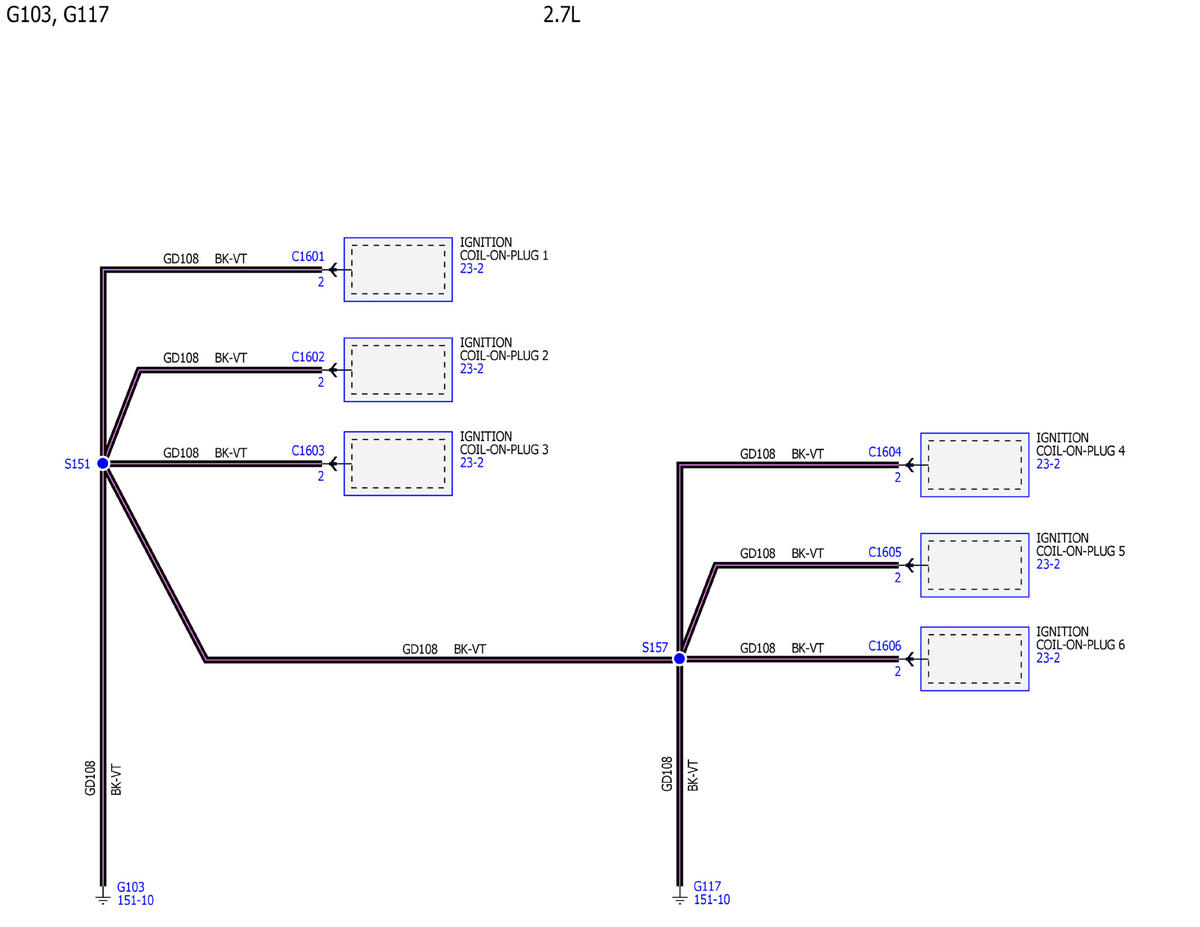

GFDWR139033Courtesy of FORD MOTOR COMPANY

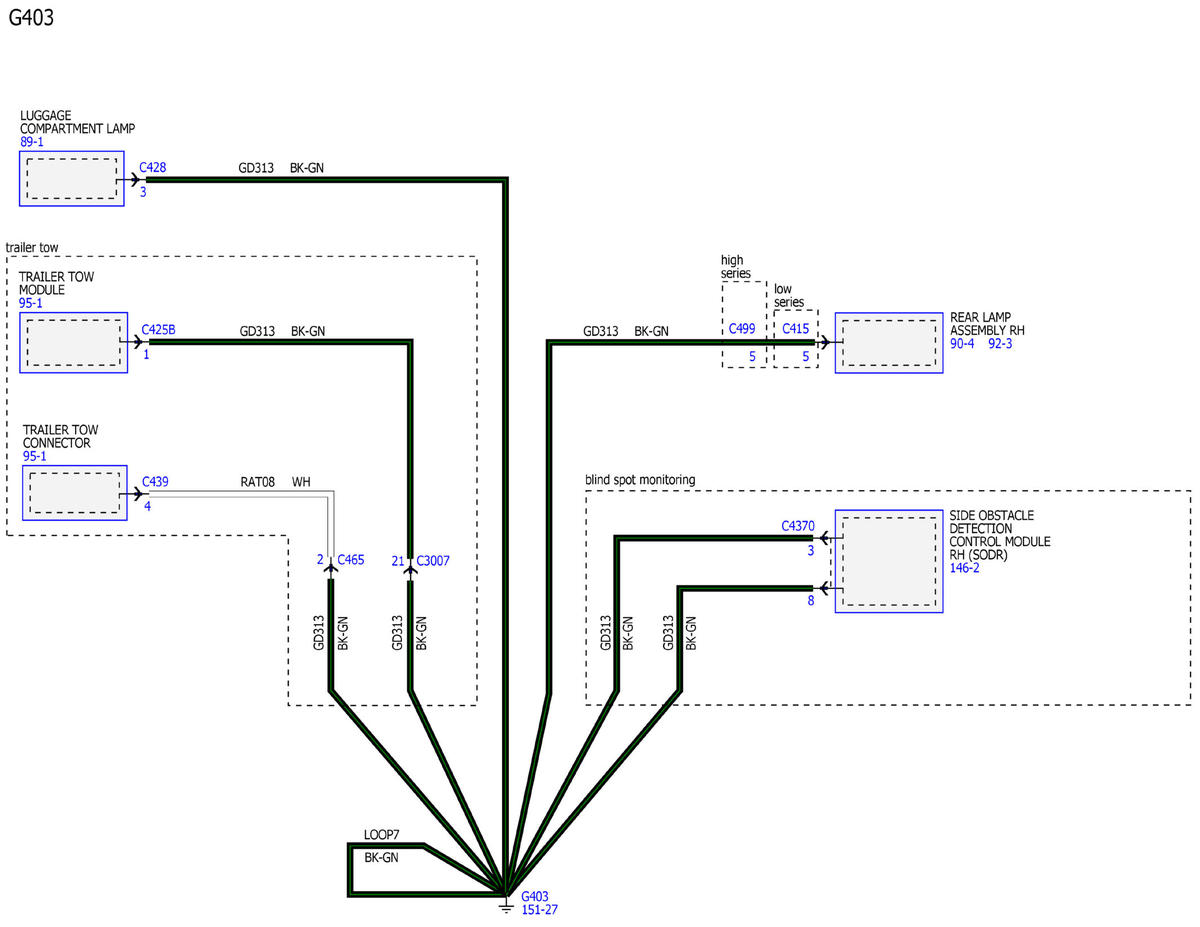

GFDWR139034Courtesy of FORD MOTOR COMPANY

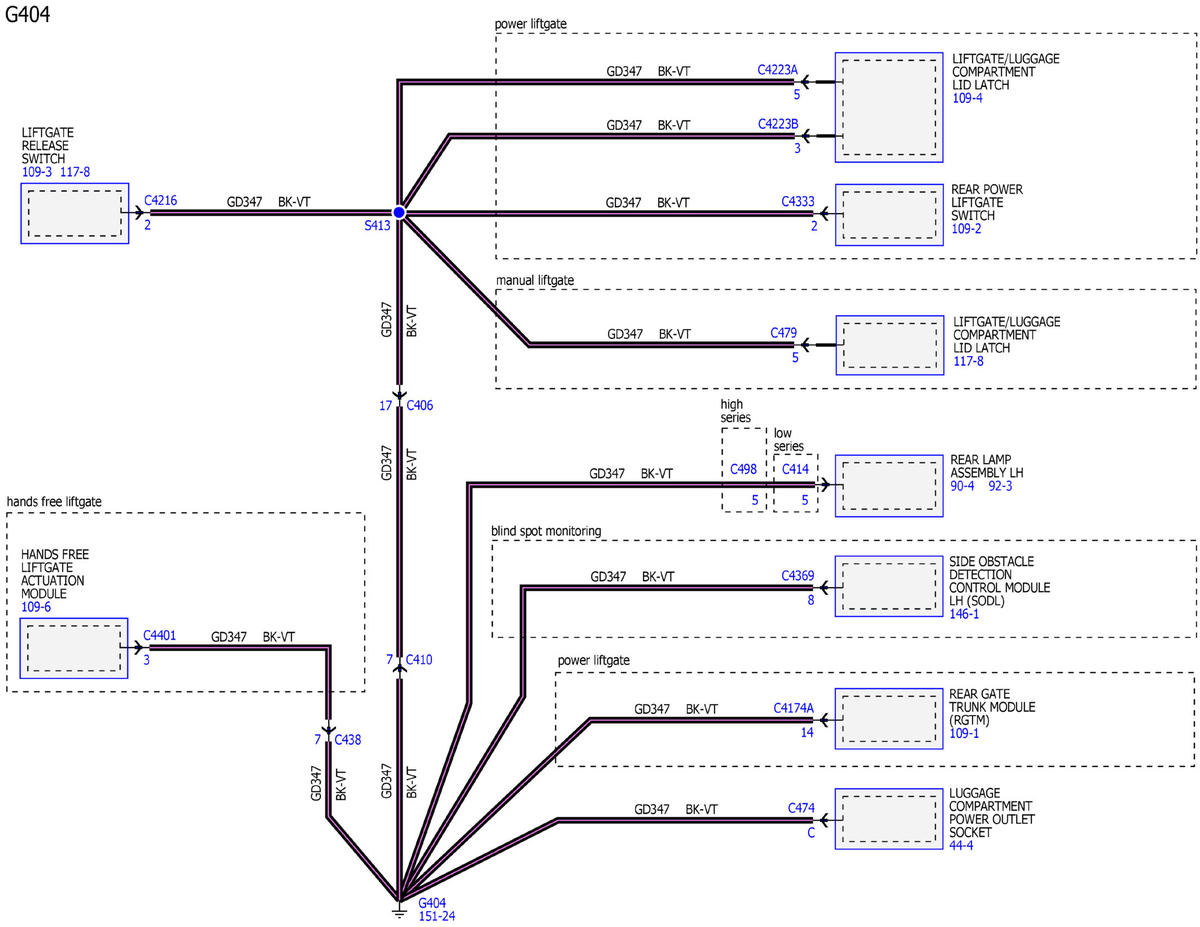

GFDWR139035Courtesy of FORD MOTOR COMPANY

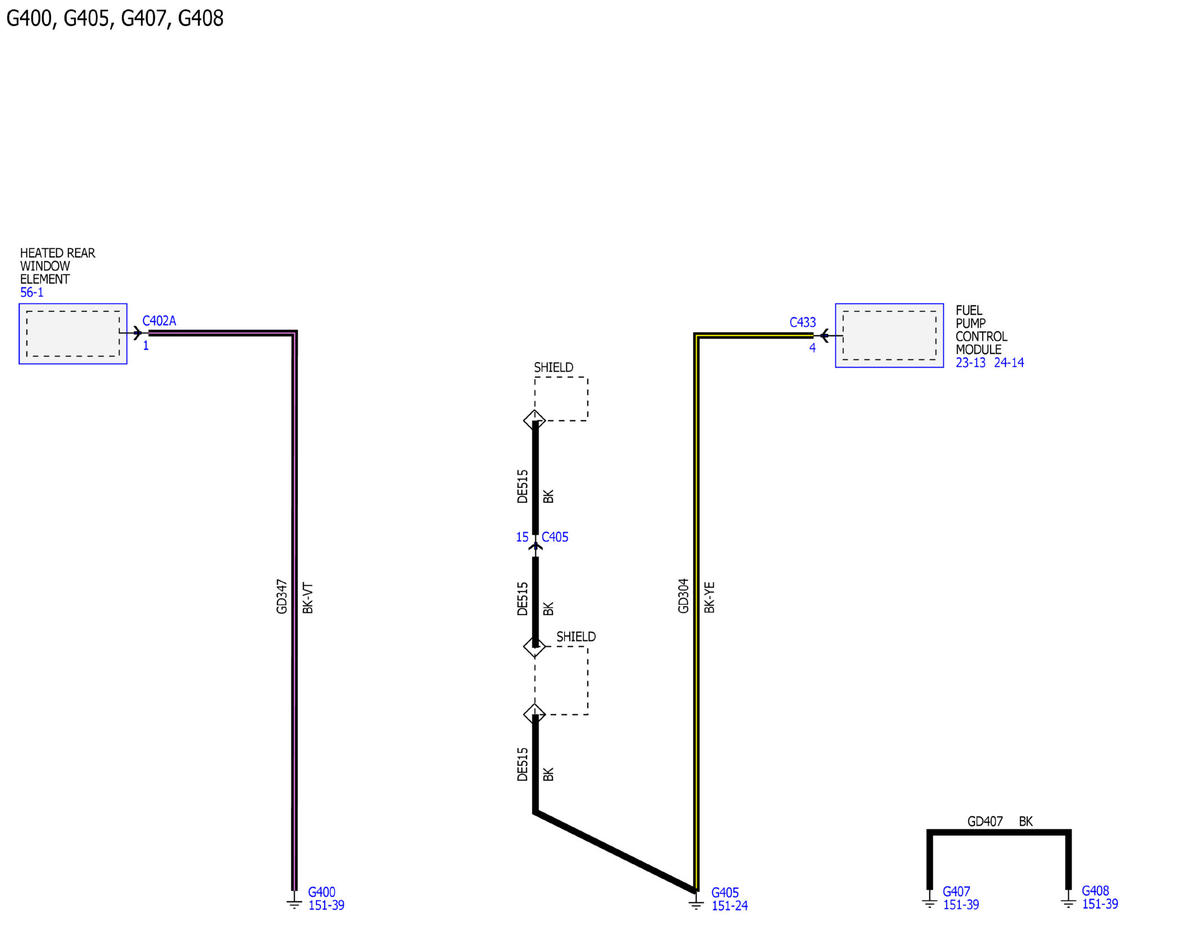

GFDWR139036Courtesy of FORD MOTOR COMPANY

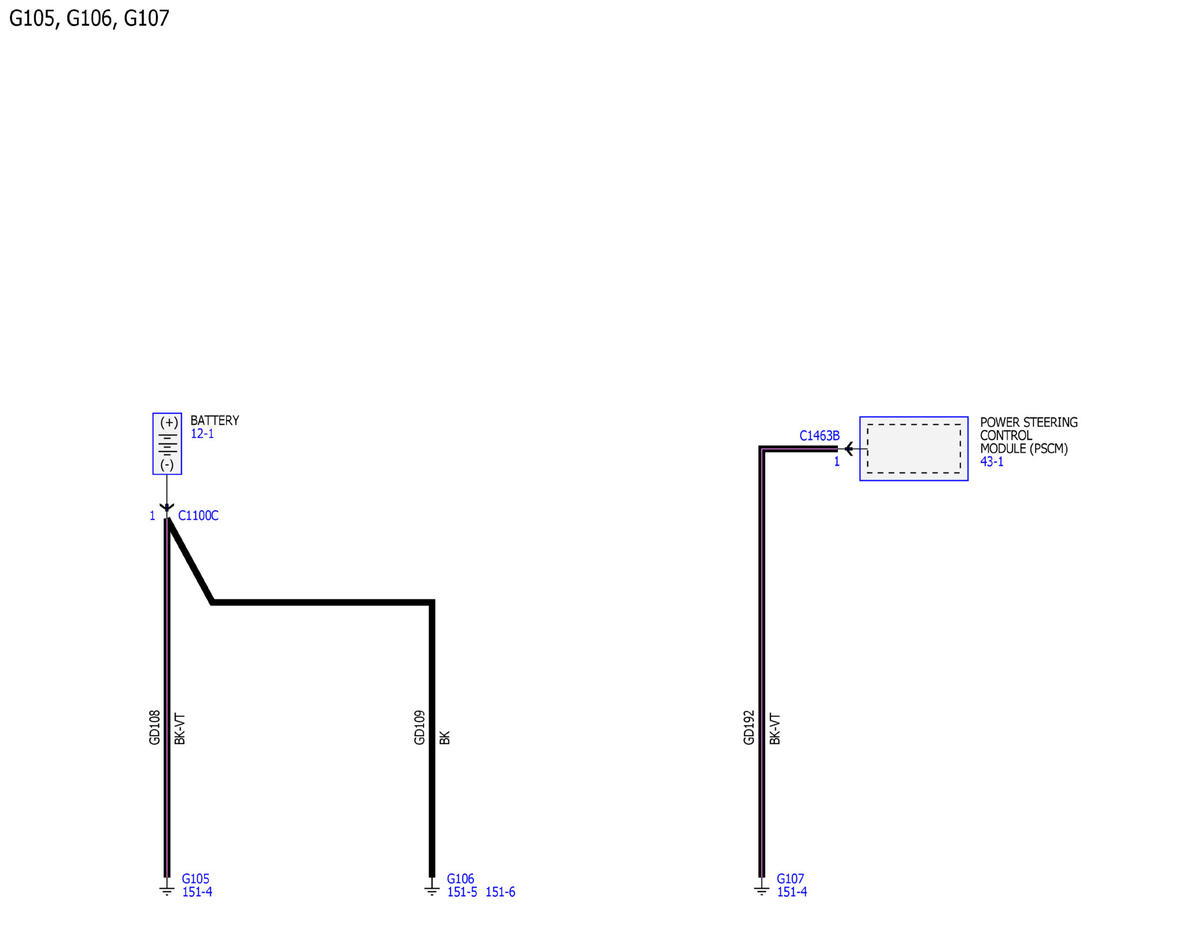

GFDWR139037Courtesy of FORD MOTOR COMPANY

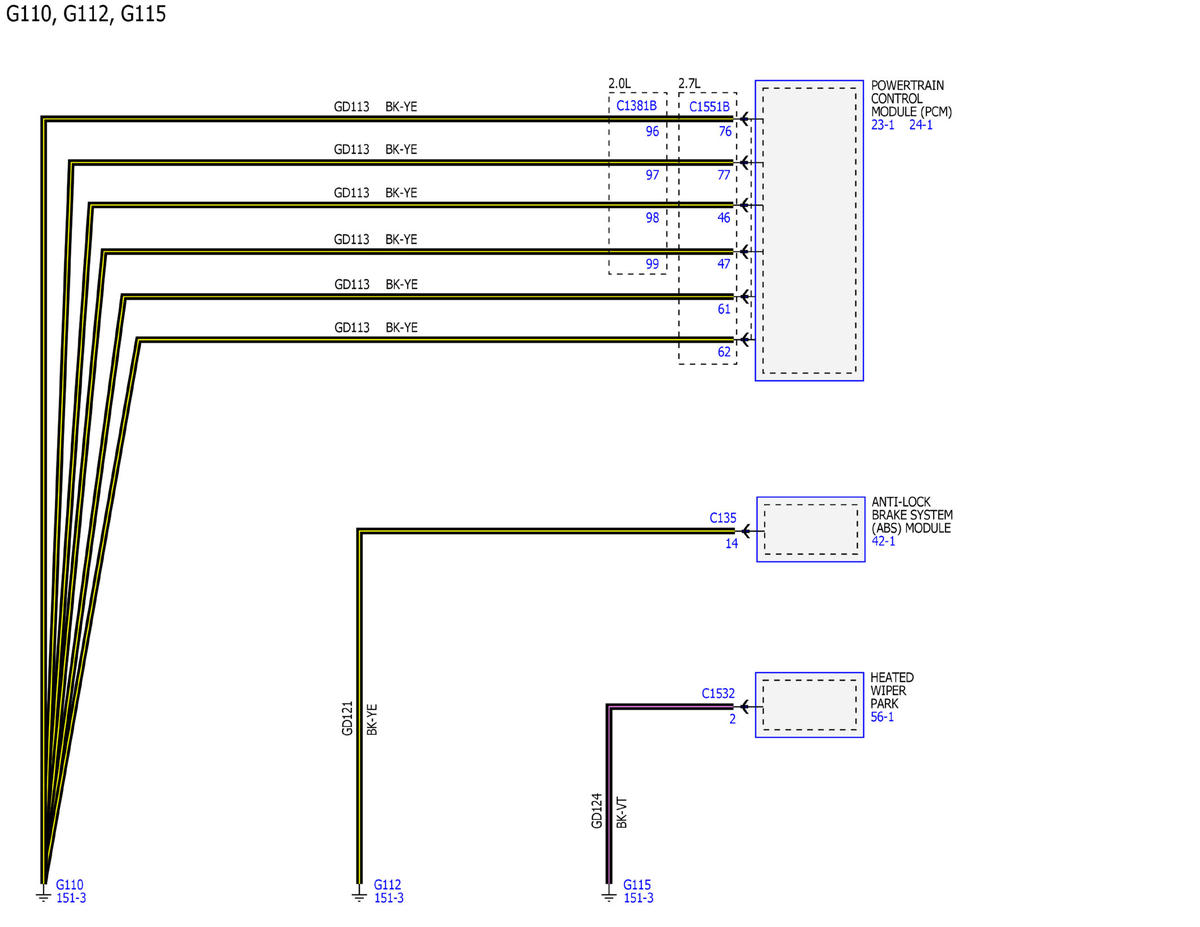

GFDWR139038Courtesy of FORD MOTOR COMPANY

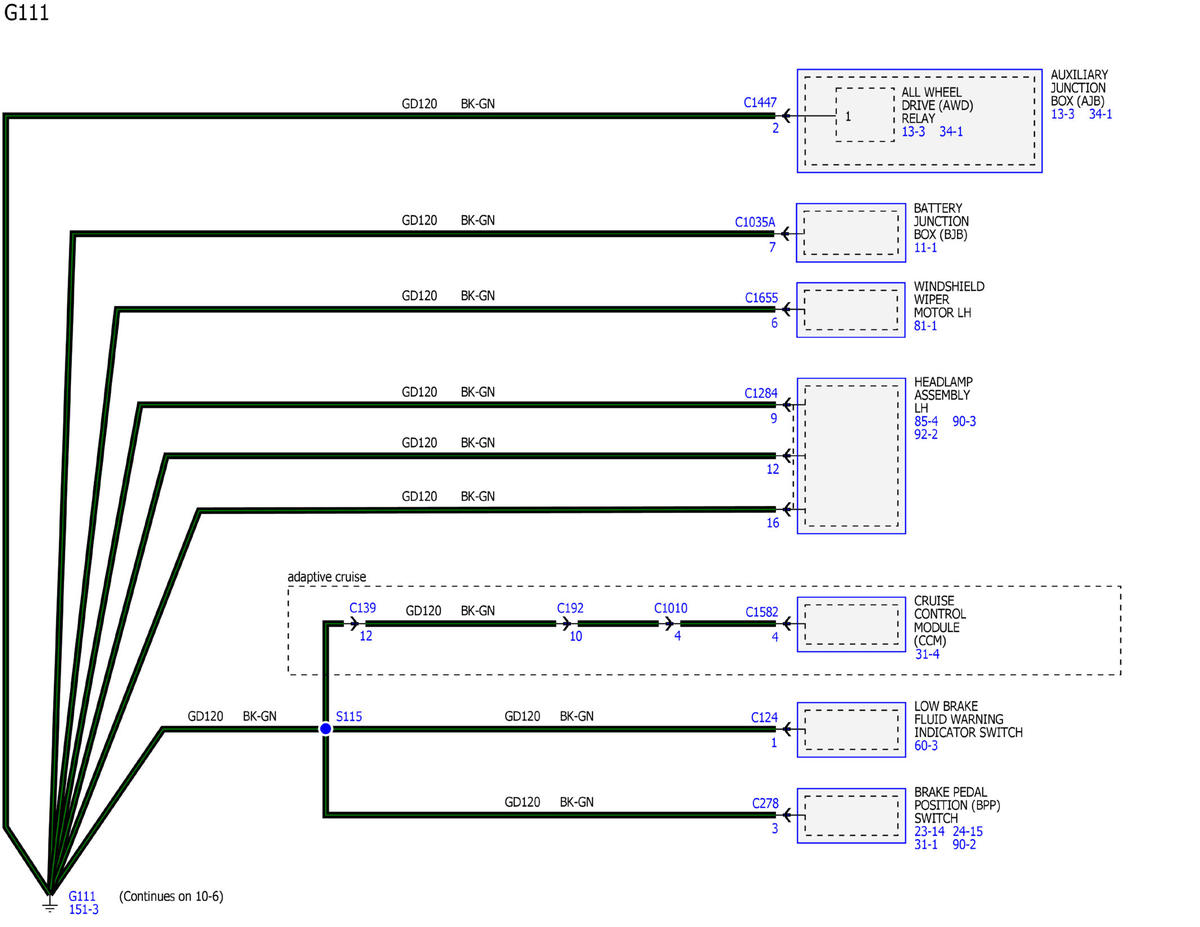

GFDWR139039Courtesy of FORD MOTOR COMPANY

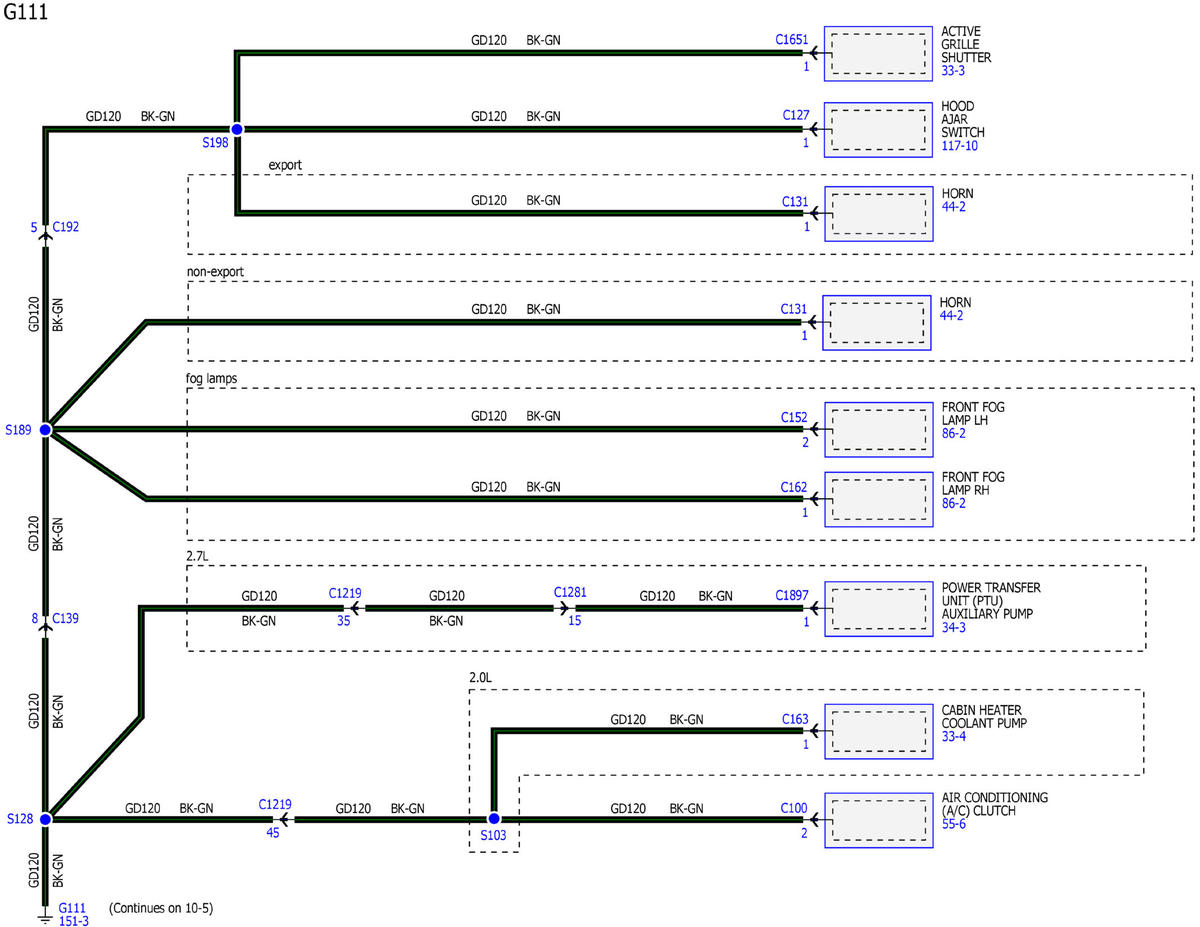

GFDWR139040Courtesy of FORD MOTOR COMPANY

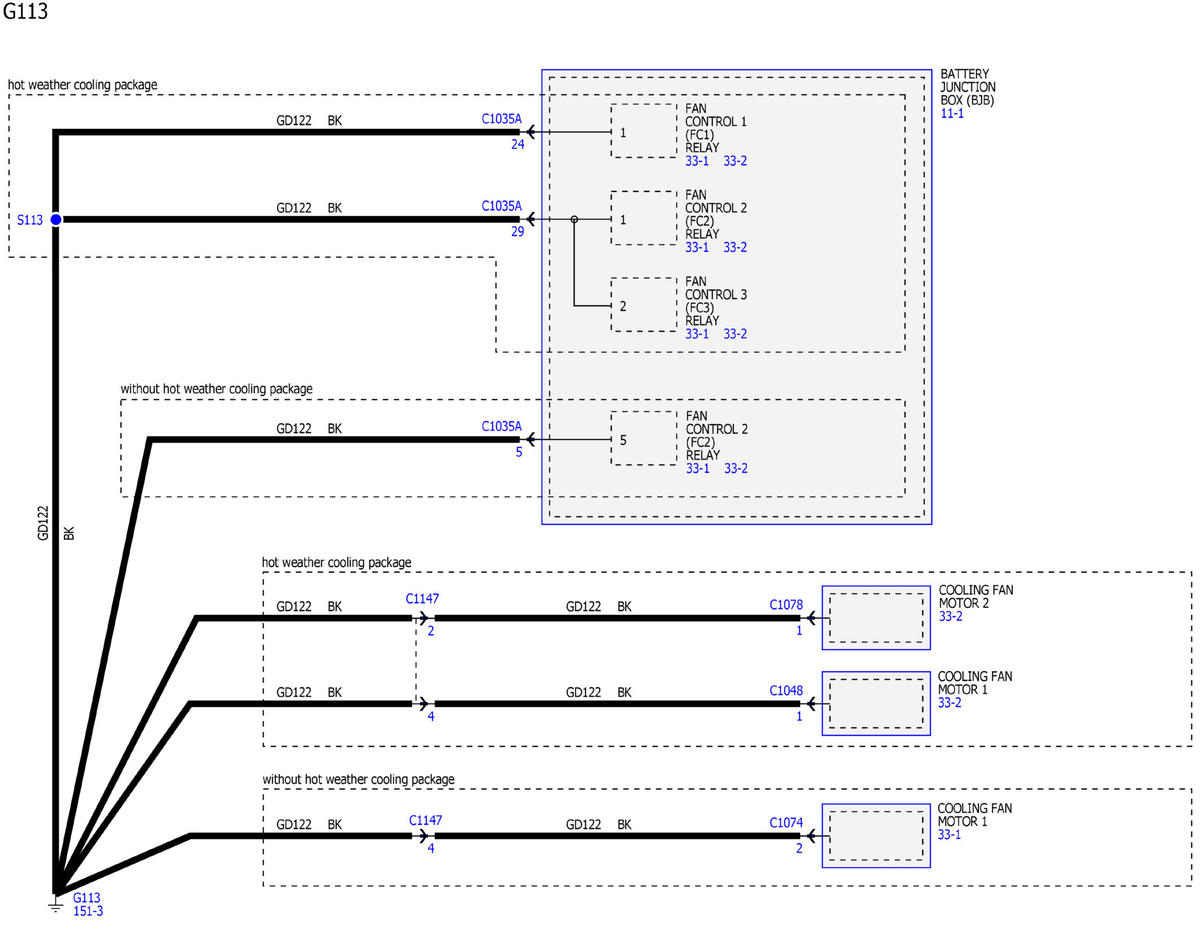

GFDWR139041Courtesy of FORD MOTOR COMPANY

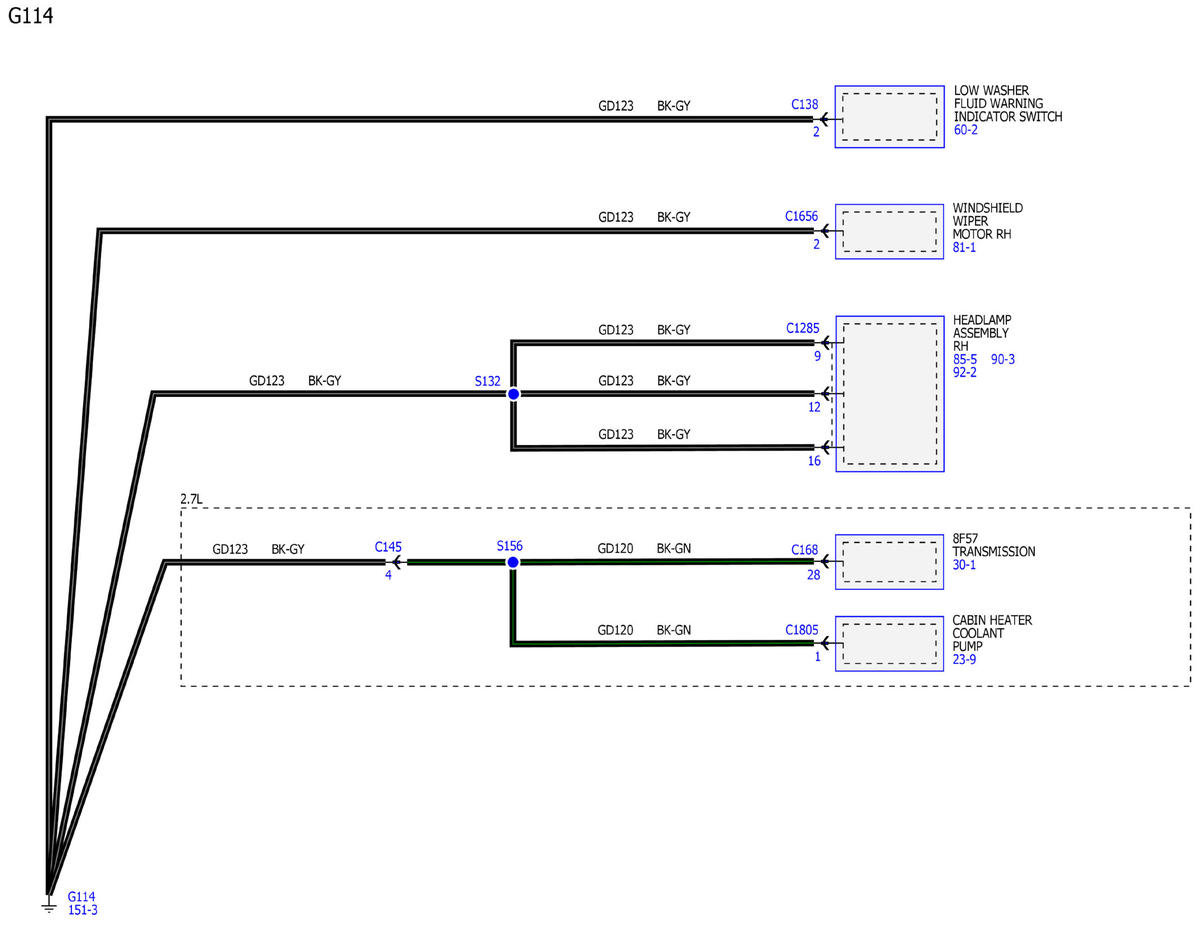

GFDWR139042Courtesy of FORD MOTOR COMPANY

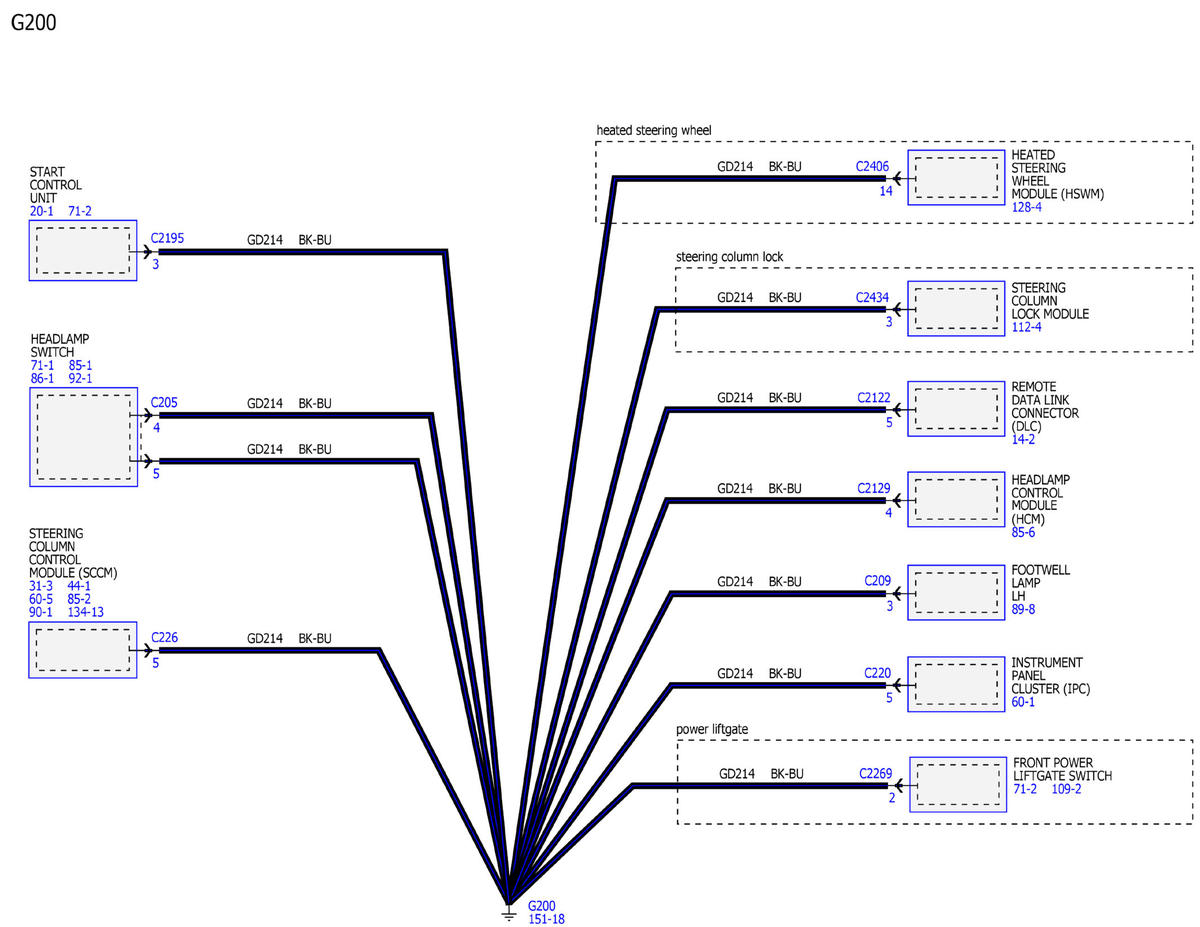

GFDWR139043Courtesy of FORD MOTOR COMPANY
