Steering Column: Removal

NOTE: To prevent damage to the clockspring, make sure the front wheels are in the straight-ahead position.

NOTE: Precise tolerances are required when manufacturing a steering column. Never install a repaired, rebuilt, aftermarket, or remanufactured steering column. Always install a new steering column. Failure to follow this direction can result in steering column failure.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: This step is only necessary when installing a new component.

If installing a new steering column, connect the scan tool and upload the module configuration information from the PSCM. Refer to: Module Configuration - System Operation and Component Description
Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering
NOTE: This step is only necessary when installing a new component.

Remove the SCCM. Refer to: Steering Column Control Module (SCCM)
NOTE: This step is not necessary when installing a new component.

Remove the steering column shrouds. Refer to: Steering Column Shrouds
NOTE: Do not allow the steering wheel to rotate while the steering column shaft is disconnected or damage to the clockspring may result. If there is evidence that the shaft has rotated, remove and recenter the clockspring.

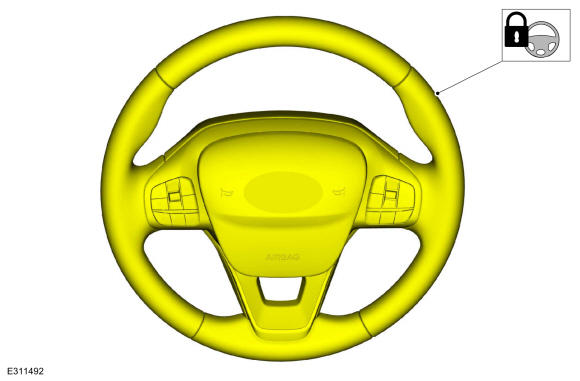

Secure the steering wheel.

Courtesy of FORD MOTOR COMPANY

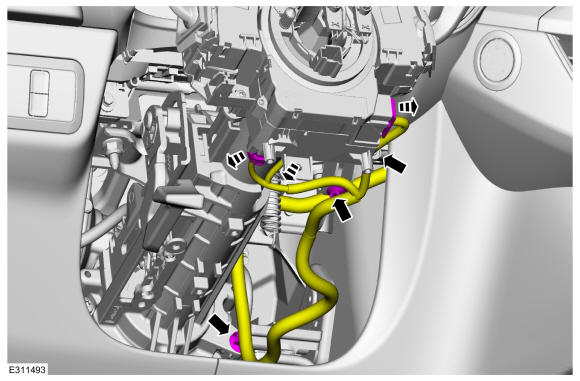

Disconnect the steering column electrical connectors and position the harness aside.

Courtesy of FORD MOTOR COMPANY

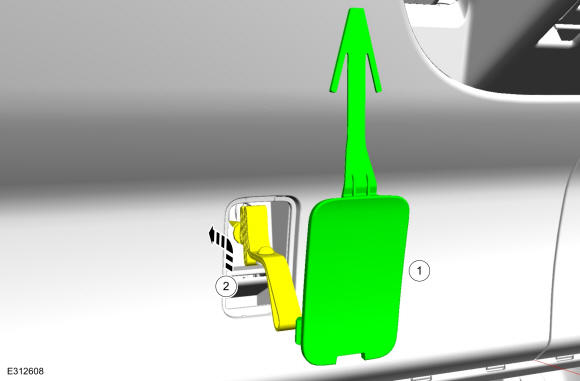

1. Remove the manual park release cover.
2. Push the manual park release up and through the steering column opening trim panel.
Courtesy of FORD MOTOR COMPANY
Remove the steering column opening trim panel.

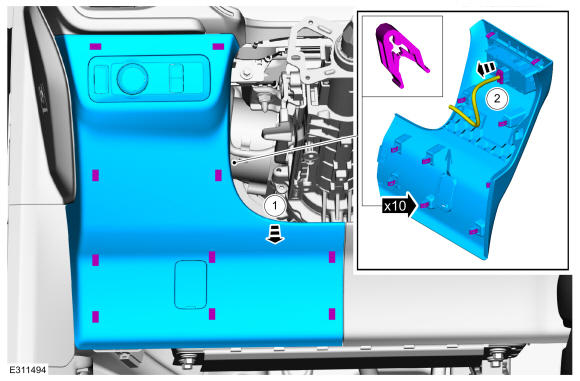

1. Remove the steering column opening trim panel.
2. Disconnect the headlamp switch electrical connector.
Courtesy of FORD MOTOR COMPANY
WARNING: WARNING: Do not reuse steering column shaft bolts. This may result in fastener failure and steering column shaft detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

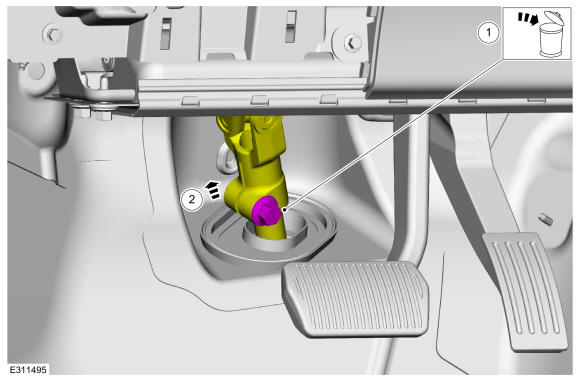

1. Remove and discard the steering shaft coupler retainer.
  Torque: 46 lb.ft (63 Nm)
2. Separate the steering column shaft from the steering gear.
Courtesy of FORD MOTOR COMPANY

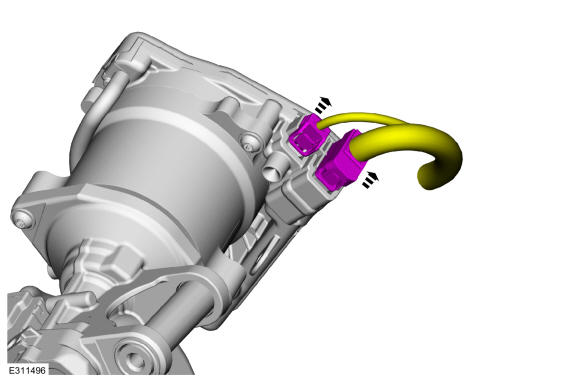

Disconnect the steering column EPAS electrical connectors.

Courtesy of FORD MOTOR COMPANY
WARNING: WARNING: Do not reuse steering column nuts. This may result in fastener failure and steering column detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

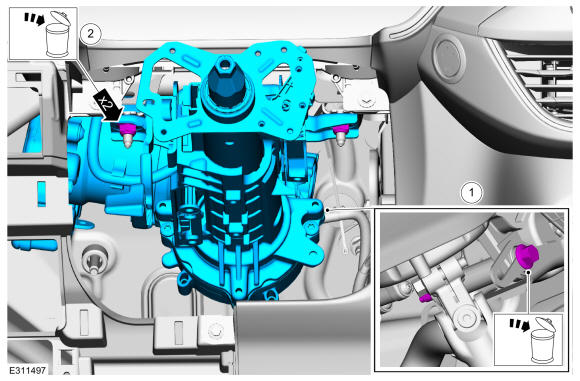

Remove the steering column.
1. Remove and discard the steering column mounting bolt.
2. Remove and discard the nuts and remove the steering column.
- Transfer parts as required.
Courtesy of FORD MOTOR COMPANY
WARNING: WARNING: Do not reuse steering column shaft bolts. This may result in fastener failure and steering column shaft detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

NOTE: This step is only necessary when installing a new component.

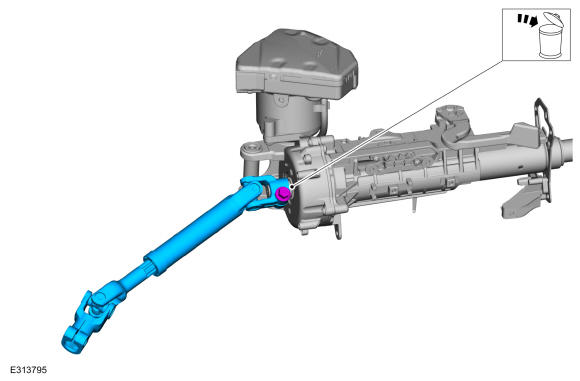

Remove and discard the steering shaft coupler retainer and remove the steering column intermediate shaft.

Torque: Stage 1: 35 lb.ft (48 Nm) / Stage 2: 120 deg.

Courtesy of FORD MOTOR COMPANY
