OEM Electrical Wiring Diagram Introduction: Introduction

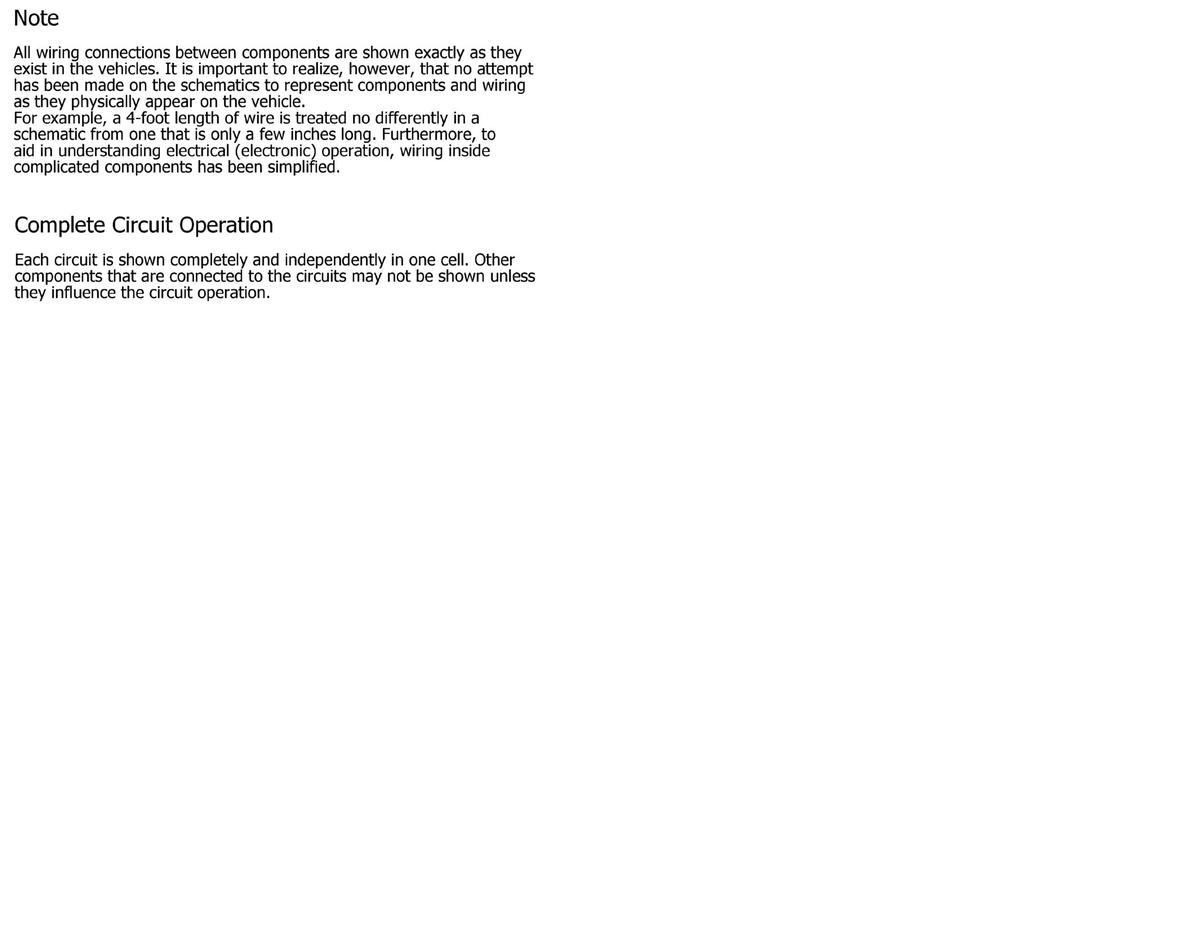

GFDWR137092Courtesy of FORD MOTOR COMPANY

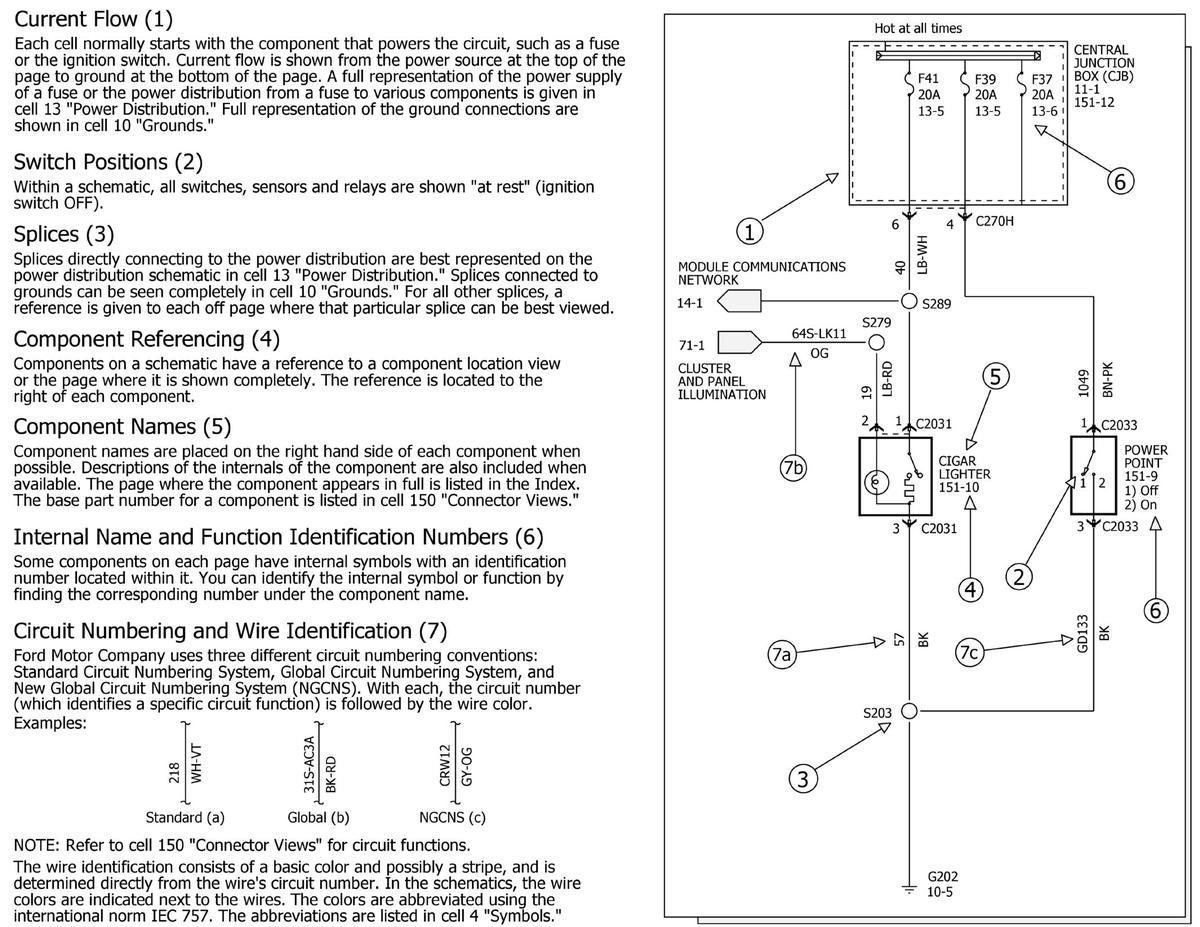

GFDWR137093Courtesy of FORD MOTOR COMPANY

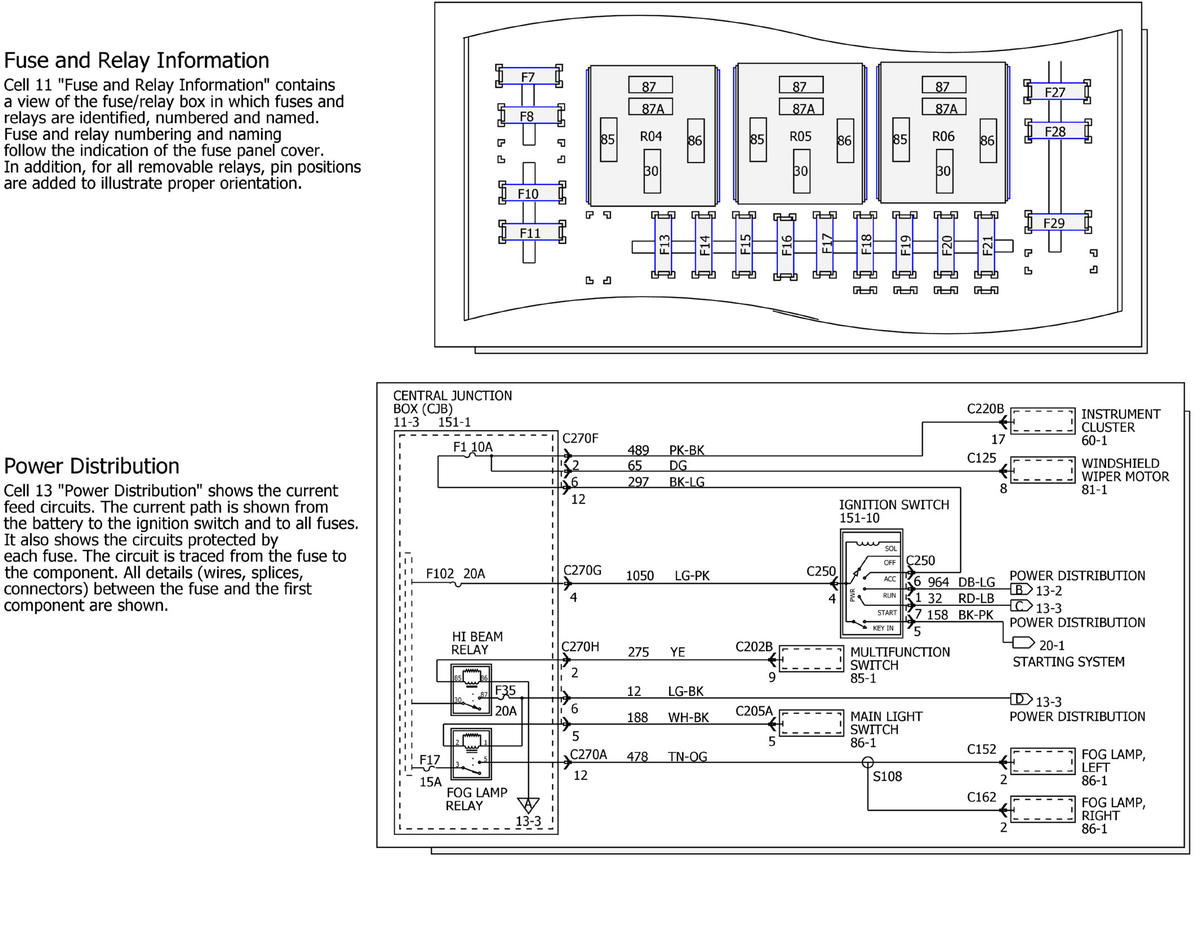

GFDWR137094Courtesy of FORD MOTOR COMPANY

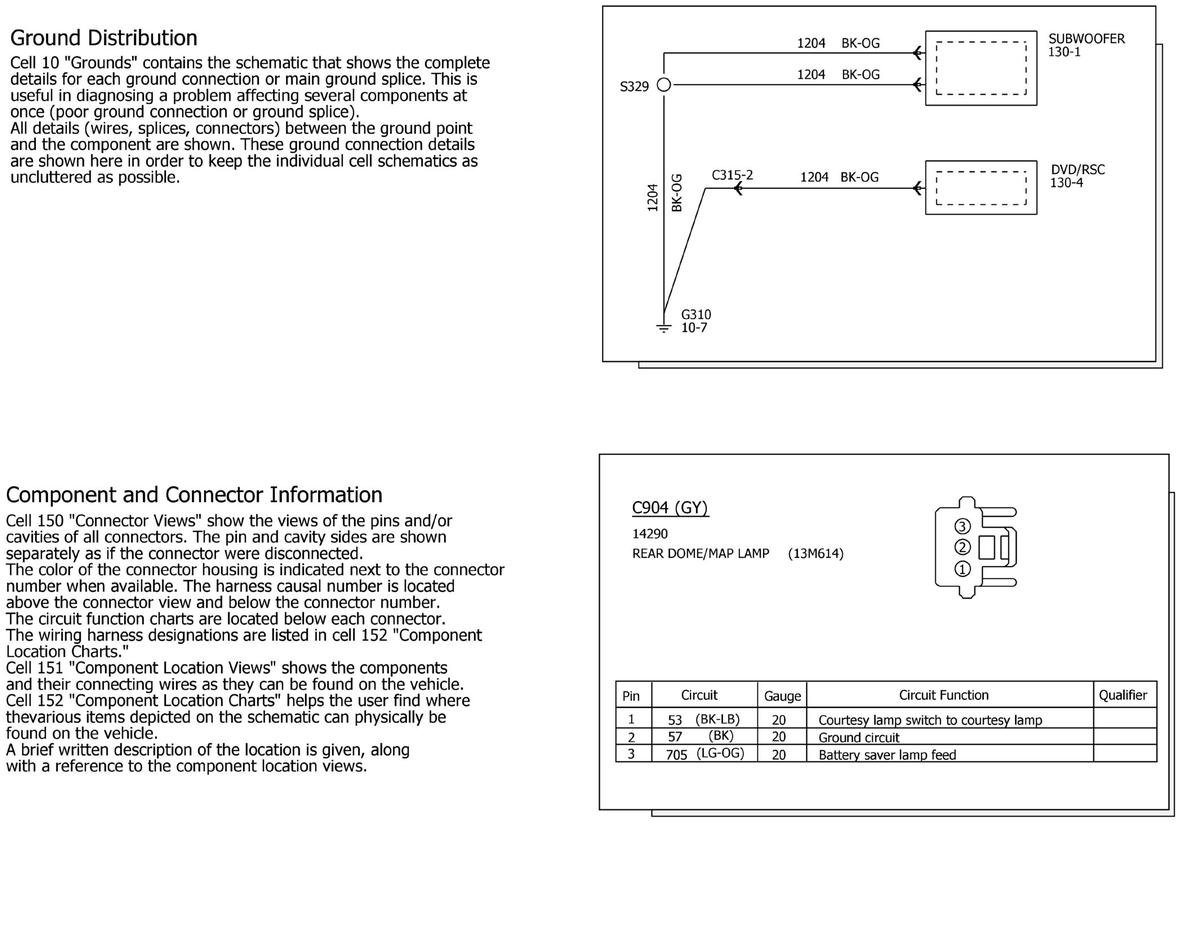

GFDWR137095Courtesy of FORD MOTOR COMPANY

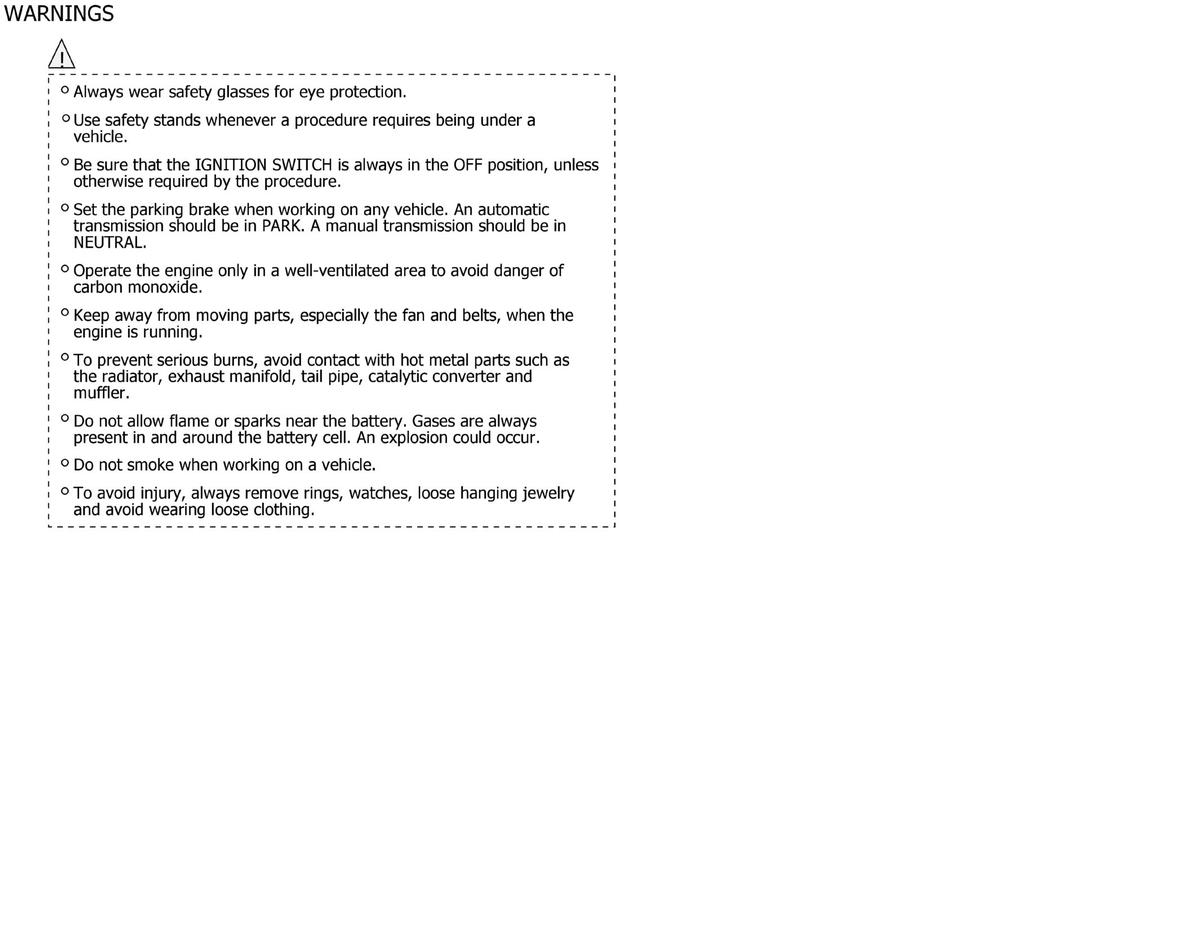

GFDWR137096Courtesy of FORD MOTOR COMPANY
