Seat Heater Mat Installation

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .

Repair

NOTE: Click here to view a video version of the seat heater mat removal and installation.
multimedia:A supplement to the article is available.

View

NOTE: Always install a new heater mat.
NOTE: During installation, it is allowable to adhere a new heater mat to any adhesive left behind on the foam.
NOTE: During installation, make sure the heater mat doesn't have any folds or creases that the customer may feel when sitting in the seat.
NOTE: Typical seat cushion foam and heater mat shown in illustration(s), other seat cushion/backrest foam and heater mats are similar.

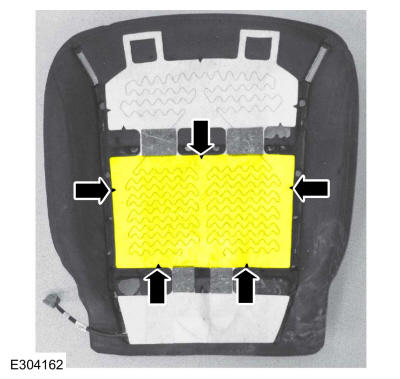

  1. Position the heater mat onto the foam so that the center section of the heater mat aligns to the center section of the foam.

    • Find the locator marks in the foam and ensure the heater mat aligns to them as closely as possible.

    GFD591521Courtesy of FORD MOTOR COMPANY

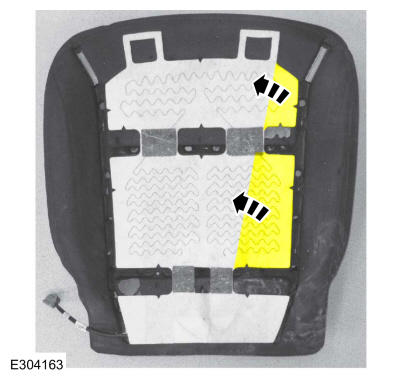

  2. Turn the RH upper and middle sections of the heater mat over to the other side to expose the adhesive paper overlay.
    GFD591522Courtesy of FORD MOTOR COMPANY

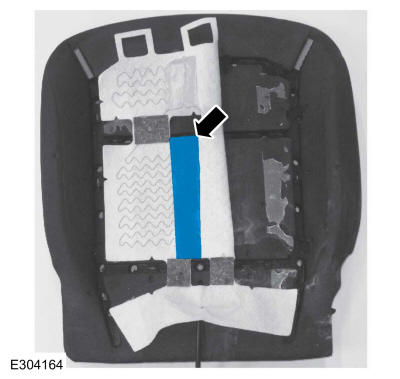

  3. Remove the heater mat adhesive paper overlay.
    GFD591523Courtesy of FORD MOTOR COMPANY

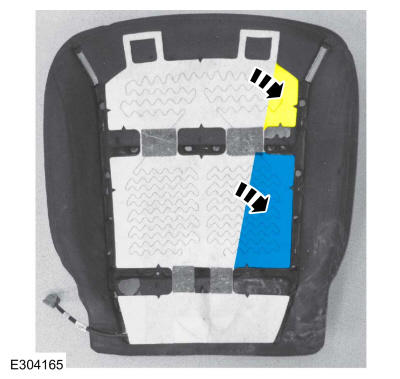

  4. Position the RH upper and middle sections of the heater mat back over and adhere the middle section of the heater mat to the middle section of the foam making sure it's aligned to the foam as in the previous step.
    GFD591524Courtesy of FORD MOTOR COMPANY

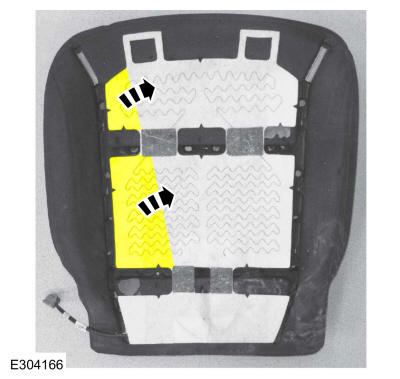

  5. Turn the LH upper and middle sections of the heater mat over to the other side to expose the adhesive paper overlay.
    GFD591525Courtesy of FORD MOTOR COMPANY

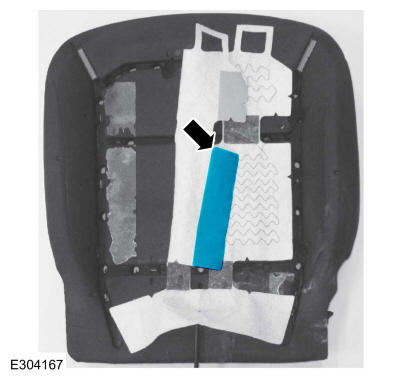

  6. Remove the heater mat adhesive paper overlay.
    GFD591526Courtesy of FORD MOTOR COMPANY

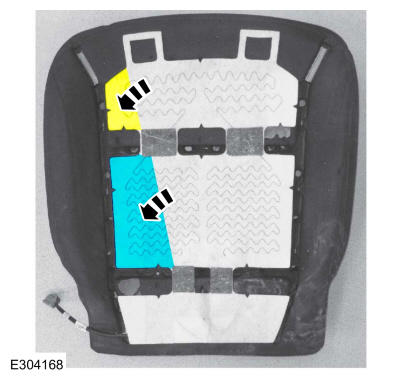

  7. Position the LH upper and middle sections of the heater mat back over and adhere the middle section of the heater mat to the middle section of the foam making sure they're aligned as in the previous step.
    GFD591527Courtesy of FORD MOTOR COMPANY

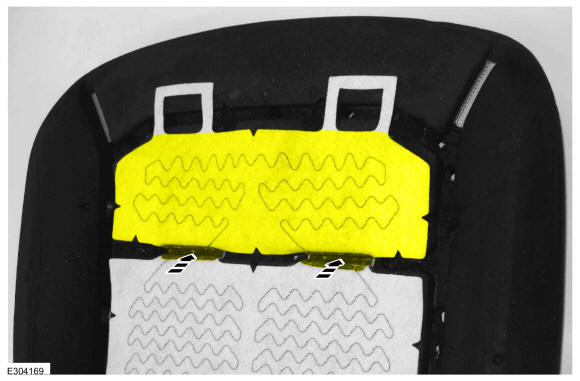

  8. NOTE: Make sure the heater mat bottoms out in the trench but do not compress the foam. Light pressure is all that is needed.

    If required, tuck the heater mat into the foam trench.

    GFD591528Courtesy of FORD MOTOR COMPANY

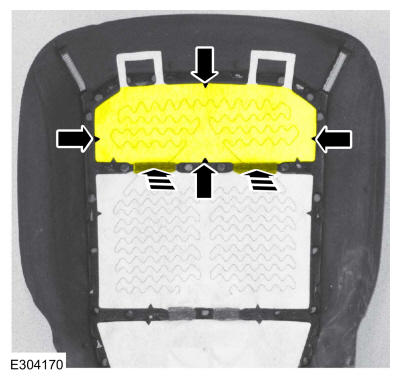

  9. While keeping the heater mat tucked (if required) in the foam trench, position the heater mat onto the foam so that the front section of the heater mat aligns to the front section of the foam.

    • Find the locator marks in the foam and ensure the heater mat aligns to them as closely as possible.

    GFD591529Courtesy of FORD MOTOR COMPANY

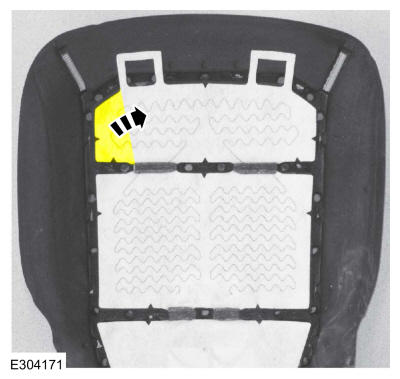

  10. Turn the LH front section of the heater mat over to the other side to expose the adhesive paper overlay.
    GFD591530Courtesy of FORD MOTOR COMPANY

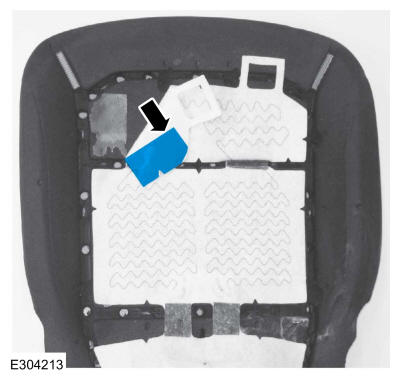

  11. Remove the heater mat adhesive paper overlay.
    GFD591531Courtesy of FORD MOTOR COMPANY

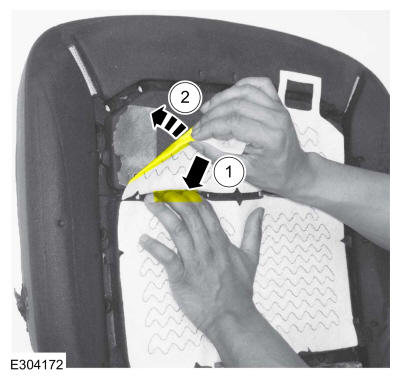

    1. NOTE: Make sure the heater mat bottoms out in the trench but do not compress the foam. Light pressure is all that is needed.

      If required, hold the heater mat in position and tucked in the trench.

    2. Position the LH front section of the heater mat back over and adhere the heater mat to the foam making sure it's aligned to the foam as in the previous step.
    GFD591532Courtesy of FORD MOTOR COMPANY

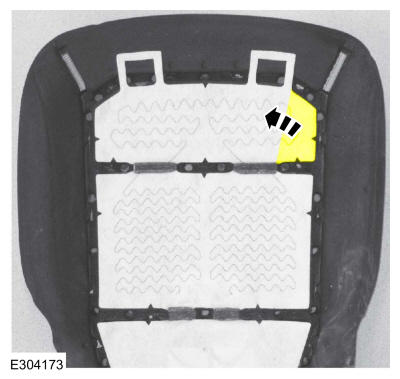

  13. Turn the RH front section of the heater mat over to the other side to expose the adhesive paper overlay.
    GFD591533Courtesy of FORD MOTOR COMPANY

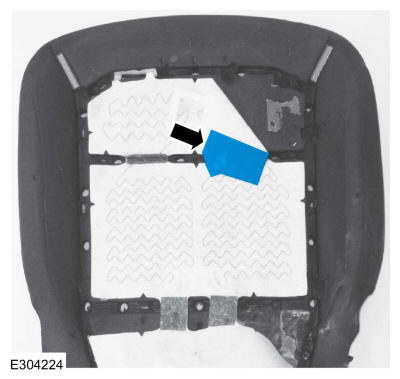

  14. Remove the heater mat adhesive paper overlay.
    GFD591534Courtesy of FORD MOTOR COMPANY

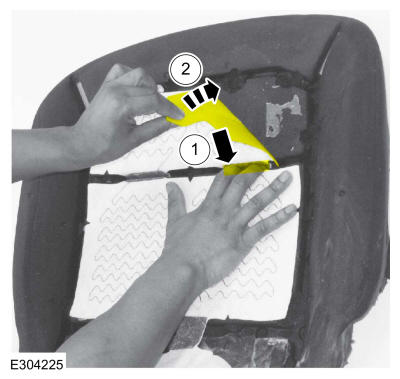

    1. NOTE: Make sure the heater mat bottoms out in the trench but do not compress the foam. Light pressure is all that is needed.

      If required, hold the heater mat in position and tucked in the trench.

    2. Position the RH front section of the heater mat back over and adhere the heater mat to the foam making sure it's aligned to the foam as in the previous step.
    GFD591535Courtesy of FORD MOTOR COMPANY

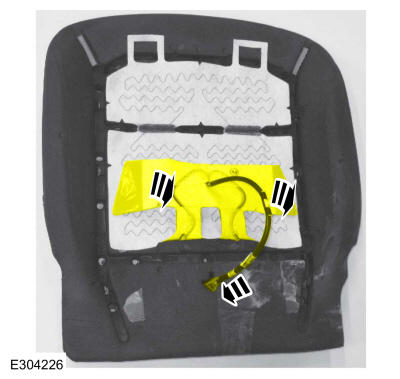

  16. NOTE: Location will vary by vehicle.

    If required  , feed the heater mat wiring pigtail through the foam opening while positioning the rear section of the heater mat back over on the foam.

    GFD591536Courtesy of FORD MOTOR COMPANY

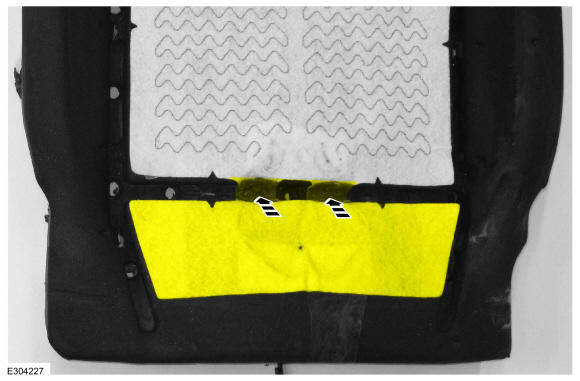

  17. NOTE: Make sure the heater mat bottoms out in the trench but do not compress the foam. Light pressure is all that is needed.

    If required, tuck the heater mat into the foam trench.

    GFD591537Courtesy of FORD MOTOR COMPANY

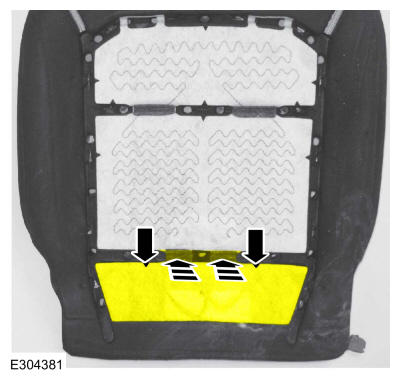

  18. While keeping the heater mat tucked (if required) in the foam trench, position the heater mat onto the foam so that the rear section of the heater mat aligns to the rear section of the foam.

    • Find the locator marks in the foam and ensure the heater mat aligns to them as closely as possible.

    GFD591538Courtesy of FORD MOTOR COMPANY

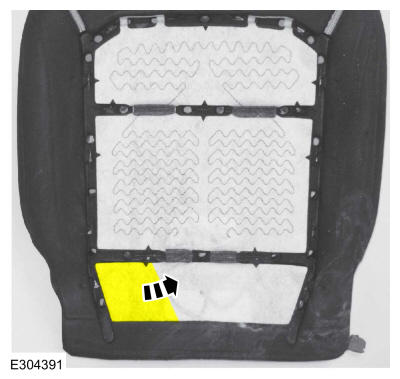

  19. Turn the LH rear section of the heater mat over to the other side to expose the adhesive paper overlay.
    GFD591539Courtesy of FORD MOTOR COMPANY

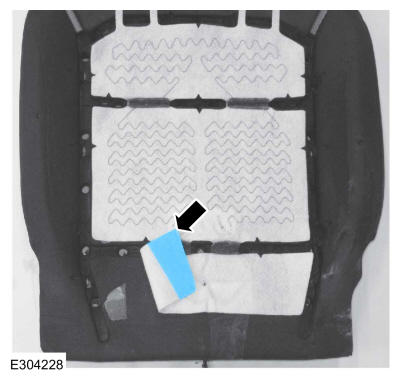

  20. Remove the heater mat adhesive paper overlay.
    GFD591540Courtesy of FORD MOTOR COMPANY

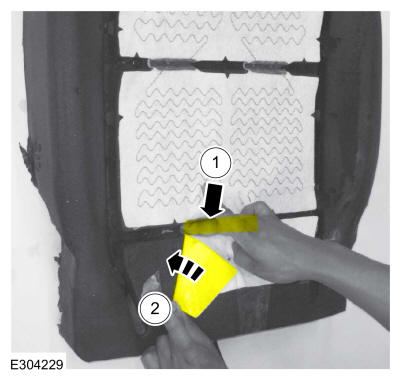

    1. NOTE: Make sure the heater mat bottoms out in the trench but do not compress the foam. Light pressure is all that is needed.

      If required, hold the heater mat in position and tucked in the trench.

    2. Position the LH rear section of the heater mat back over and adhere the heater mat to the foam making sure it's aligned to the foam as in the previous step.
    GFD591541Courtesy of FORD MOTOR COMPANY

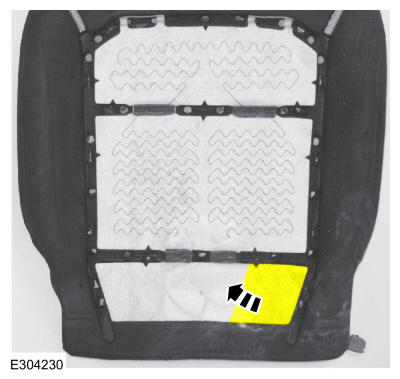

  22. Turn the RH rear section of the heater mat over to the other side to expose the adhesive paper overlay.
    GFD591542Courtesy of FORD MOTOR COMPANY

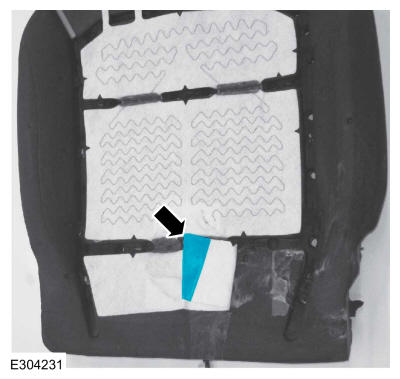

  23. Remove the heater mat adhesive paper overlay.
    GFD591543Courtesy of FORD MOTOR COMPANY

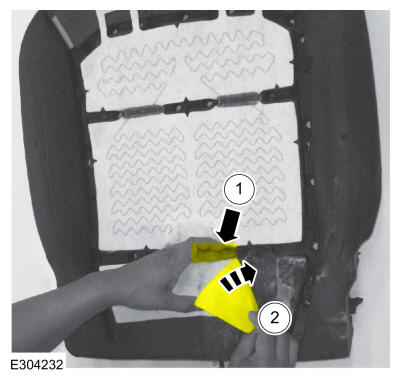

    1. NOTE: Make sure the heater mat bottoms out in the trench but do not compress the foam. Light pressure is all that is needed.

      If required, hold the heater mat in position and tucked in the trench.

    2. Position the RH rear section of the heater mat back over and adhere the heater mat to the foam making sure it's aligned to the foam as in the previous step.
    GFD591544Courtesy of FORD MOTOR COMPANY

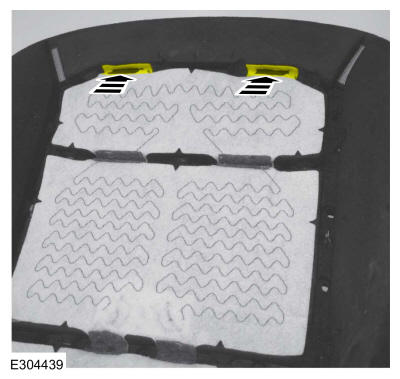

  25. NOTE: Make sure the heater mat bottoms out in the trench but do not compress the foam. Light pressure is all that is needed.

    If required, tuck the heater mat into the front trench.

    GFD591545Courtesy of FORD MOTOR COMPANY
  26. Install the seat cushion or backrest cover. Refer to Front Seat Cushion Cover  or REAR SEAT BACKREST COVER .
