Driver Front Seat Module (DSM): Removal

NOTE: This step is only necessary when installing a new component.

NOTE: The PMI (programmable module installation) process must begin with the current DSM (driver front seat module) installed. If the current DSM (driver front seat module) does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.

Using a diagnostic scan tool, begin the PMI process for the DSM following the on-screen instructions.

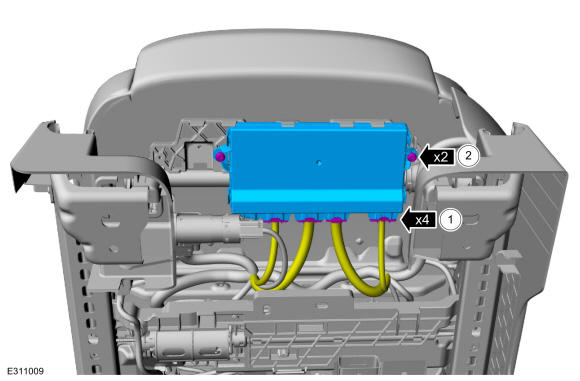

Remove the DSM.
1. Disconnect the electrical connectors.
2. Remove the screws.

Courtesy of FORD MOTOR COMPANY
