Front Seat Control Switch: Removal

NOTE: Driver seat shown in illustration, passenger seat similar.
  1. Remove the front seat. Refer to: Front Seat

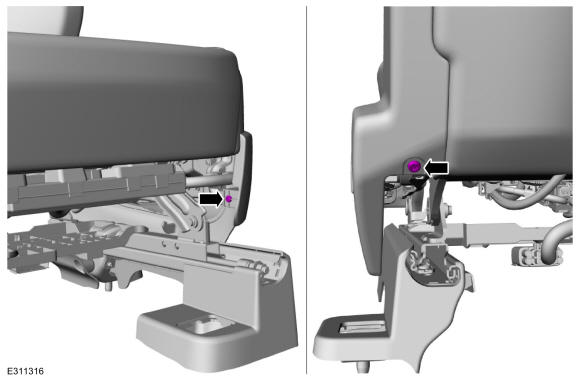

  2. Remove the front seat side shield screws.
    GFD591577Courtesy of FORD MOTOR COMPANY

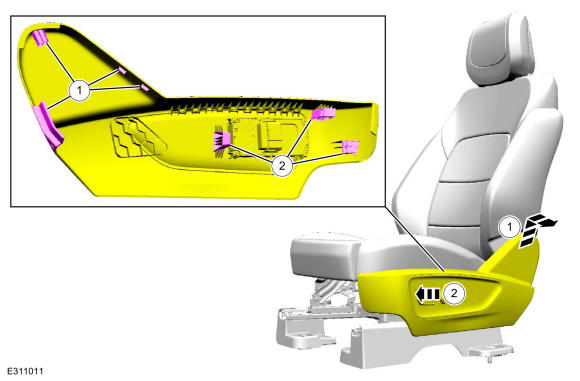

    1. Firmly grasp the front seat side shield, lift up and out, separating the side shield from the recliner bracket.
    2. Slide the front seat side shield forward and separate the side shield from the seat.
    GFD591564Courtesy of FORD MOTOR COMPANY

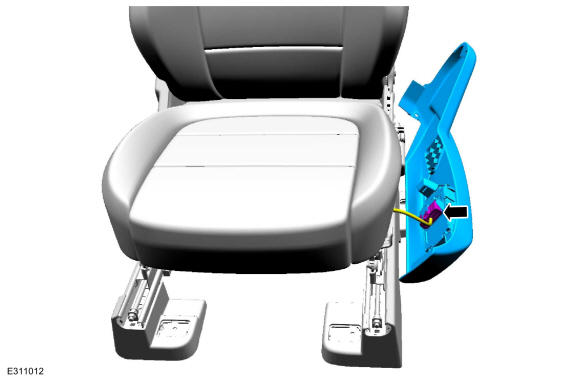

  4. Disconnect the electrical connector and remove the front seat side shield
    GFD591565Courtesy of FORD MOTOR COMPANY

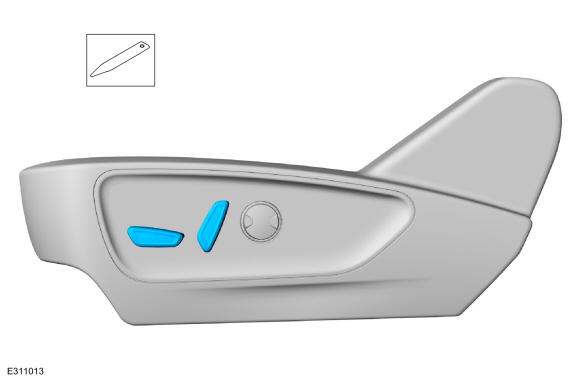

  5. Remove the front seat control switch knobs.
    GFD591578Courtesy of FORD MOTOR COMPANY

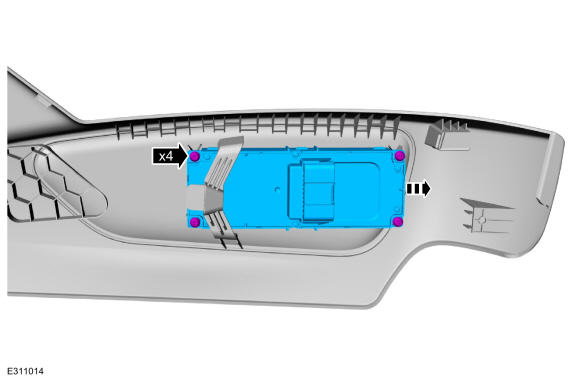

  6. Remove the screws and the front seat control switch.
GFD591579Courtesy of FORD MOTOR COMPANY
