Overhead Console: Removal

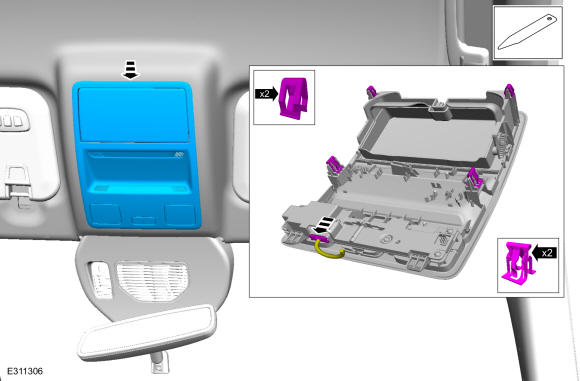

  1. Release the clips and remove the overhead console.

    • Disconnect the electrical connector.

GFD591767Courtesy of FORD MOTOR COMPANY
