Piston Diameter
For information on Ford Color Coded Illustrations, refer to OEM COLOR CODING
Check
NOTE:
Refer to the appropriate engine article for the specification.

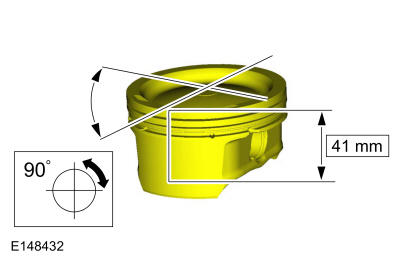

- Measure the piston diameter 90 degrees from the piston pin and 41 mm (1.61 in) down from the top of the piston at the point indicated.
