Inverter System Controller [SOBDMC]: Removal

NOTE: Be sure to keep all fluid and debris away from any open ISC (inverter system controller) connections, or disassembled/ open transmission components. Failure to do this will damage the part.

NOTE: This step is only necessary when installing a new component.

Download the module information to the diagnostic tool using the Programmable Modules Installation routine. Use the General Equipment: Ford Diagnostic Equipment
Disable the vehicle high-voltage electrical system.
Drain the engine cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding
Drain the Electric Powertrain Cooling System. Refer to: Cooling System Filling and Bleeding
Remove the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe
Remove the air cleaner. Refer to: Air Cleaner
Remove the intake manifold. Refer to: Intake Manifold
Disconnect the electrical connectors.

Courtesy of FORD MOTOR COMPANY
Remove the bolt and position aside the transducer.

Courtesy of FORD MOTOR COMPANY
Remove the nut and fuel hose bracket.

Courtesy of FORD MOTOR COMPANY
Disconnect the engine coolant hoses.

Courtesy of FORD MOTOR COMPANY
Remove the EGR bracket bolt.

Courtesy of FORD MOTOR COMPANY

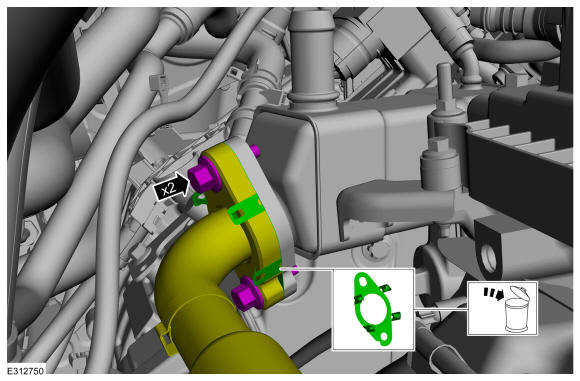

- Remove the EGR cooler inlet tube bolts.
- Remove and discard the EGR cooler inlet tube gasket.
Courtesy of FORD MOTOR COMPANY

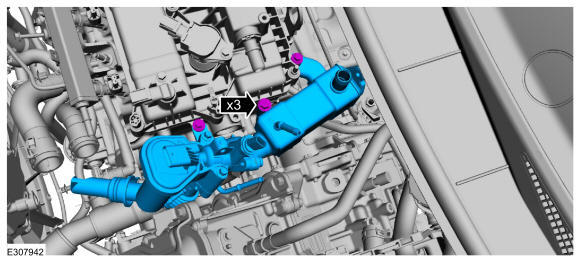

Remove the bolts and the EGR valve assembly.

Courtesy of FORD MOTOR COMPANY

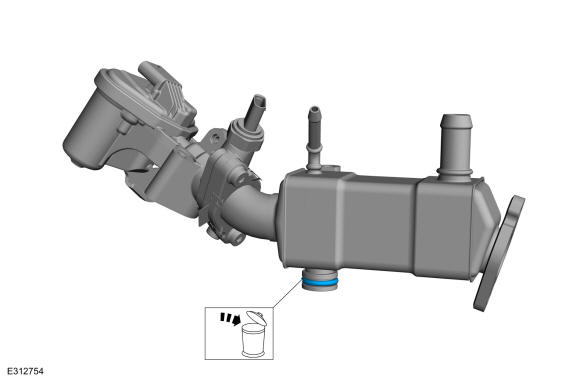

Remove and discard the EGR cooler O-ring.

Courtesy of FORD MOTOR COMPANY
NOTE: Place absorbent towels under radiator hose to prevent coolant from contacting the ISC.

Disconnect the radiator hose.

Courtesy of FORD MOTOR COMPANY
Remove the bolts and the air cleaner bracket.

Courtesy of FORD MOTOR COMPANY
NOTE: Place tape over the connectors on the ISC to prevent contaminating the connector pins.

Disconnect the ISC electrical connectors.

Courtesy of FORD MOTOR COMPANY
Remove the bolts and the air cleaner bracket.

Courtesy of FORD MOTOR COMPANY
NOTE: Place absorbent towels under the coolant connections to prevent coolant from contacting the ISC.

Disconnect the coolant tubes.

Courtesy of FORD MOTOR COMPANY
Remove the bolts and position aside the coolant tube.

Courtesy of FORD MOTOR COMPANY
Disconnect the wiring harness retainer.

Courtesy of FORD MOTOR COMPANY

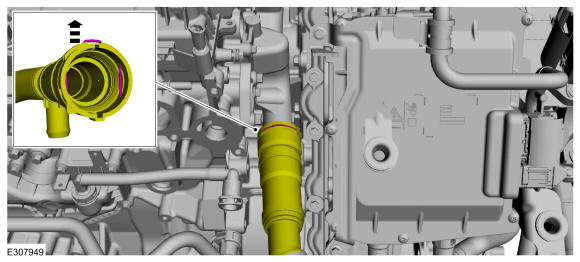

NOTE: Place absorbent towels under the coolant connection to prevent coolant from contacting the ISC.

Disconnect the coolant tube.

Courtesy of FORD MOTOR COMPANY

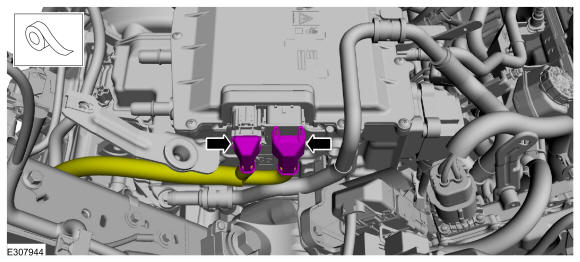

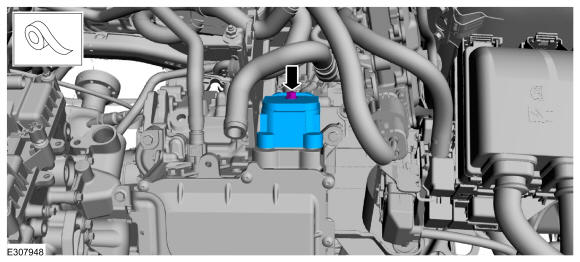

NOTE: Place tape over the connectors on the ISC to prevent contaminating the connector pins.

Remove the retainer and disconnect the high-voltage cable from the ISC.

Courtesy of FORD MOTOR COMPANY
NOTE: When removing side cover, pull cover straight out approximately 2 inches before moving upwards or damage to the high voltage interlock connector may occur.

NOTE: Place ISC side cover on a clean surface with high voltage connector facing upwards or damage to the connector may occur.

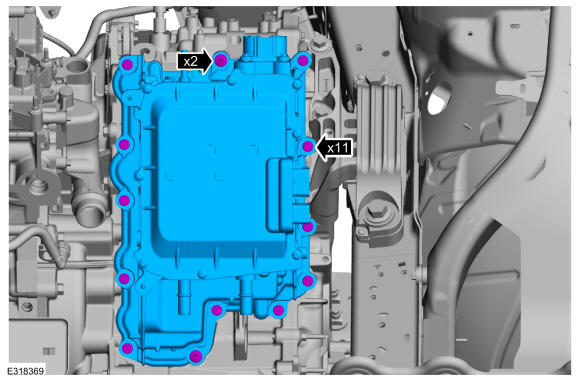

Remove the bolts and remove the ISC side cover.

Courtesy of FORD MOTOR COMPANY

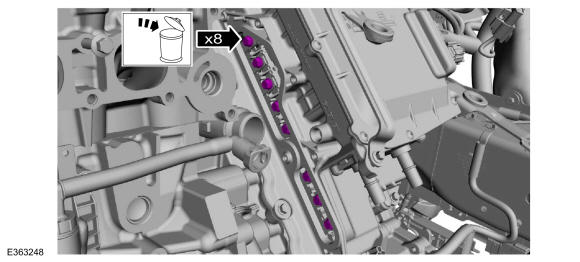

Remove the high voltage terminal bolts. Discard the bolts.

Courtesy of FORD MOTOR COMPANY
NOTE: If the ISC is being reinstalled, place the ISC on a clean surface, transmission side down. It is important to keep all debris and fluid away from the open ISC or damage to the ISC may occur.

NOTE: Note the location of the studbolts for assembly.

NOTE: Cover all coolant ports to avoid spilling coolant remaining inside the ISC. If the ISC is being replaced, plug the coolant ports with the caps included with the replacement ISC.

Remove the bolts, studbolts and the ISC.

GFD588887
