Transfer Case
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding .
Special Tool(s) / General Equipment
| Transmission Jack |
|---|
All vehicles
- Remove the front driveshaft. Refer to: Front Driveshaft .
- Drain the fluid if the transfer case is to be disassembled. Refer to: Transfer Case Draining and Filling .
Vehicles equipped with a slip yoke
- Remove the rear driveshaft. Refer to: Rear Driveshaft
.

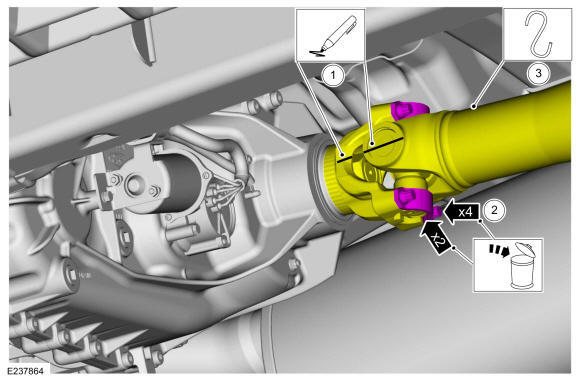

Vehicles equipped with a U-joint flange
- Position the driveshaft aside.
- Index mark the driveshaft and U-joint flange.
- Remove and discard the U-joint strap bolts and U-joint straps.
- Position the driveshaft aside and support it with mechanics wire.
Vehicles equipped with electronic shift on the fly transfer case
- Disconnect the shift motor electrical connector and detach the harness retainer clips and pushpin from the transfer case.
Vehicles equipped with manual shift transfer case
- Disconnect the manual shift indicator harness connector and pushpin.
- Remove manual shift lever cable bracket nuts and position the manual shift lever cable aside.
All vehicles
- Disconnect the vent hose from the transfer case.
- Remove the transmission support crossmember. Refer to: Transmission Support Crossmember .
- Remove the transmission mount bolts and the transmission mount.

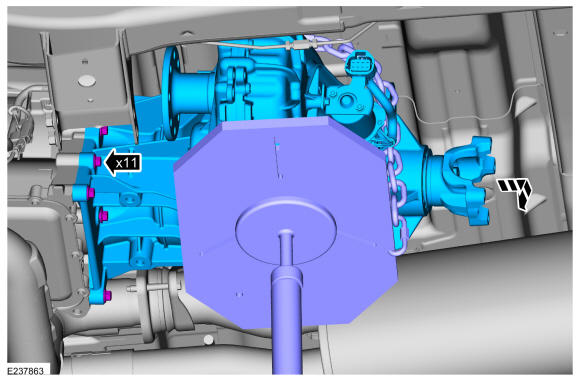

- Using a transmission jack, remove the transfer case-to-transmission bolts and remove the transfer case. Use the General Equipment: Transmission Jack
