Body Control Module (BCM) - Component Location

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

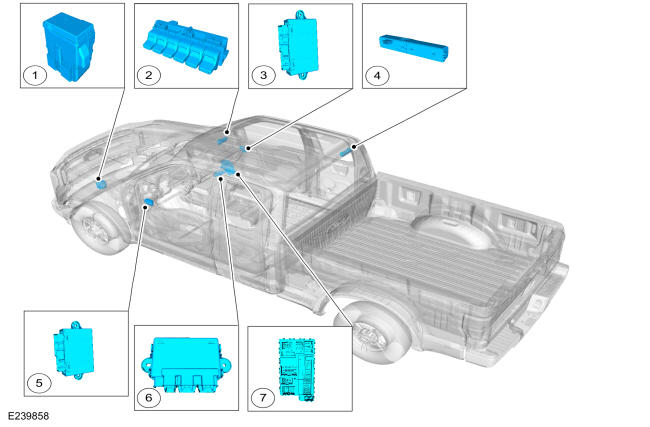

GFD410378Courtesy of FORD MOTOR COMPANY
Item Description
1 Upfitter relay box
2 Auxiliary (upfitter) Switch Assembly (Optional)
3 PDM
4 RTM
5 DDM
6 GFM2 (UIM (User interface module) Optional)
7 BCM
