Passenger Door Module (PDM): Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. NOTE: If installing a new module, it is necessary to upload the module configuration information to the diagnostic scan tool prior to removing the module. This information must be downloaded into the new module after installation.

    Using a diagnostic scan tool, begin the PMI process for the PDM following the on-screen instructions.

  2. Remove the front door trim panel. Refer to: Front Door Trim Panel .

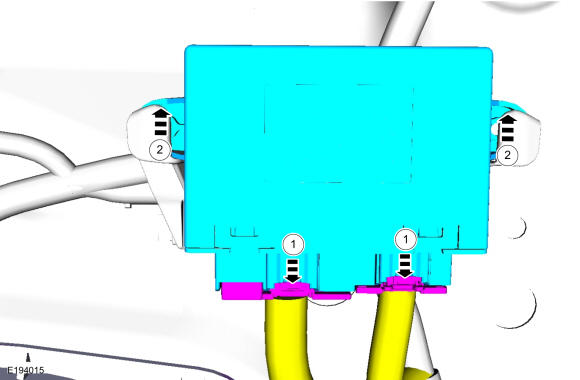

    1. Disconnect the electrical connectors.
    2. Remove the PDM by lifting upwards.
GFD410405Courtesy of FORD MOTOR COMPANY
