VC Codes

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

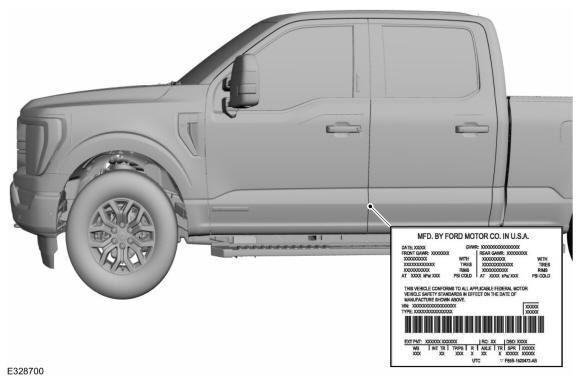

VC Label Locator

Courtesy of FORD MOTOR COMPANY

The VC label contains the manufacturer name, the month and year of manufacture, the certification statement and the VIN. It also includes GVW and tire information. If a vehicle requires replacement of the VC label and is 4 years old or less, an authorized dealer must submit the VIN to their respective regional office. The regional office will submit a web form to the assembly plant for the replacement label. Once the label has been printed, a representative from the regional office will deliver the label to the dealer and witness installation on the vehicle. If a vehicle is more than 4 years old and requires a replacement label, the dealer must submit a request to the Department of Motor Vehicles.

Courtesy of FORD MOTOR COMPANY

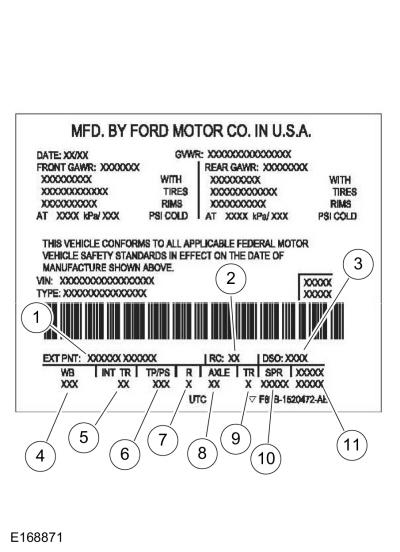

Item	Description
1	Exterior paint code
2	Region code
3	DSO (District Special Order) code
4	Wheelbase code
5	Interior trim code
6	Tape/paint stripe code
7	Radio code
8	Axle code
9	Transmission code
10	Spring code
11	Powertrain calibration information

Paint Codes

Paint codes are listed as a 2-part code. The first set of numbers/letters indicate the vehicle primary body color. The second set of letters/numbers (if applicable) indicate a 2-tone or accent body color. All paint codes are a base/clear coat finish.

Primary Body Color

A3 - Space White (kcap only)
AT - Yellow W6695F (fleet/kcap only)
AZ - Star White Metallic (tri-coat)
B1 - School Bus Yellow (fleet/kcap only)
D1 - Stone Gray
D4 - Rapid Red (tinted clearcoat)
E4 - Vermillion Red (kcap only)
E7 - Velocity Blue
GR - Green W7514G (fleet/kcap only)
HN - Guard (kcap only)
HX - Antimatter Blue / Signature Navy
J7 - Kodiak Brown (DTP only)
JS - Iconic Silver / Silver Radiance
JX - Lead Foot
M7 - Carbonized Gray / Asher Gray
MB - Orange W5684E (fleet/kcap only)
PQ - Race Red (kcap only)
TQ - Smoked Quartz (tinted clearcoat) (DTP only)
UM - Agate Black Metallic
YZ - Oxford White

2-Tone/Accent Color

Exterior 2-Tone/Accent Colors are as follows.

D1 - Stone Gray
M7 - Carbonized Gray

Wheelbase Codes

The following identifies the vehicle wheelbase:

122 - 3, 098 mm (122 in) wheelbase
141 - 3, 581 mm (141 in) wheelbase
145 - 3, 683 mm (145 in) wheelbase
157 - 3, 987 mm (157 in) wheelbase
163 - 4, 140 mm (163 in) wheelbase

Interior Trim Codes

Interior trim codes are listed as a 2-part code. The first digit listed indicates the seat type and fabric style. The second digit indicates the interior trim color.

Interior Trim Type

9 - Luxury micro-perforated leather, 40/console/40 bucket seats, Platinum package
A - Vinyl 40/20/40 split bench seat
B - Luxury leather, 40/console/40 bucket seats
C - Cloth 40/20/40 split bench seat
E - Luxury micro-perforated leather, 40/20/40 split bench seat
F - Sport cloth, 40/console/40 bucket seats
G - Cloth, 40/20/40 split bench seats
H - Luxury micro-perforated leather, 40/console/40 bucket seats
J - Cloth, 40/console/40 bucket seats
K - Luxury micro-perforated leather, 40/console/40 bucket seats
M - Cloth, 40/20/40 split bench seat
S - Cloth/vinyl, 40/blank/40 bucket seats
T - Luxury leather, 40/console/40 bucket seats
U - Cloth, 40/console/40 bucket seats
W - Cloth, 40/console/40 bucket seats

Interior Trim Color Codes

A - Admiral Blue
B - Black
J - Java
S - Medium Dark Slate
T - Baja Tan

Tape/Paint Stripe Codes

Tape and paint stripe codes do not apply.

Radio Codes

The following lists available radio codes:

A - AM/ FM stereo
2 - AM/ FM stereo with SDARS (satellite digital audio receiver system)
3 - AM/ FM stereo with SDARS (satellite digital audio receiver system) and HD (high-definition), B and 0 Play®
8 - AM/ FM stereo with SDARS (satellite digital audio receiver system) and HD (high-definition), B and 0 Play®

Axle Type

The following lists the available axle ratios and associated codes:

15 - 3.15 ratio, non-limited slip
19 - 3.55 ratio, non-limited slip
26 - 3.73 ratio, non-limited slip
27 - 3.31 ratio, non-limited slip
L3 - 3.31 ratio, electronic locking differential
L4 - 4.10 ratio, electronic locking differential
L6 - 3.73 ratio, electronic locking differential
L9 - 3.55 ratio, electronic locking differential

Transmission Codes

Available transmissions are as follows:

G - 10-speed automatic (10R80)
H - HEV 10-speed (A10R80-MHT-X)

Spring Codes

Spring codes are listed as a 2-part code. The first 2 characters identify the RH and LH front springs. The third and fourth characters identify the RH and LH rear springs.

Front Springs

Base part number - 5310

Rear Springs

Base part number - 5560
