Rain Sensor: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

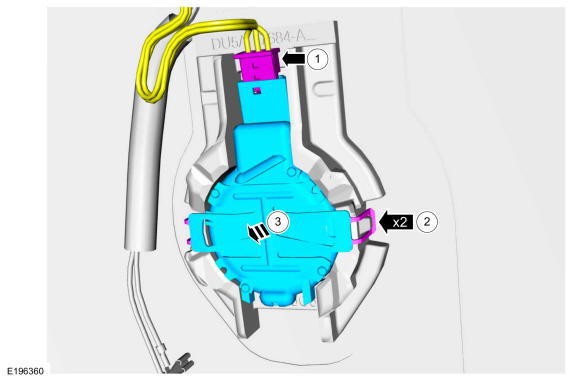

  1. Remove the interior rear view mirror. Refer to: Interior Rear View Mirror .
    1. Disconnect the electrical connector and position aside.
    2. Release the retainers.
    3. Remove the rain sensor.
GFD206916Courtesy of FORD MOTOR COMPANY
