Tie Rod: Installation

NOTE: Hold the steering gear rack while tightening the tie rod. Failure to hold the rack securely could result in steering gear damage.

NOTE: It may be necessary to turn the steering wheel to LH side in order to expose the steering gear rack enough to hold with a wrench.

NOTE: LH side shown, RH side similar.

NOTE: The help of an assistant may be necessary to torque the RH tie rod.

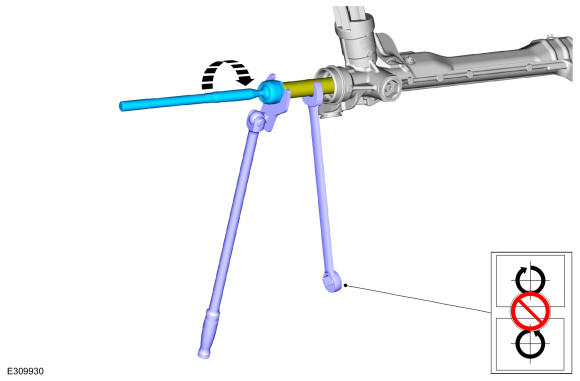

Using an appropriate-sized wrench on the flat/teeth to hold the rack and an appropriate size crows foot wrench or open end wrench, install the tie rod.

Torque: 89 lb.ft (120 Nm)

Courtesy of FORD MOTOR COMPANY
Install the steering gear boot. Refer to: Steering Gear Boot
