Front Wheel Speed Sensor: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the wheel and tire. Refer to: Wheel and Tire

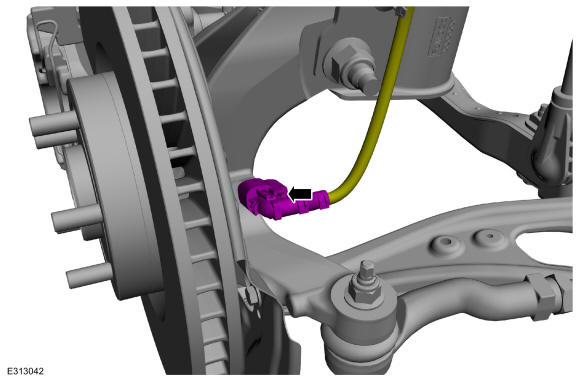

- Disconnect the electrical connector.
-

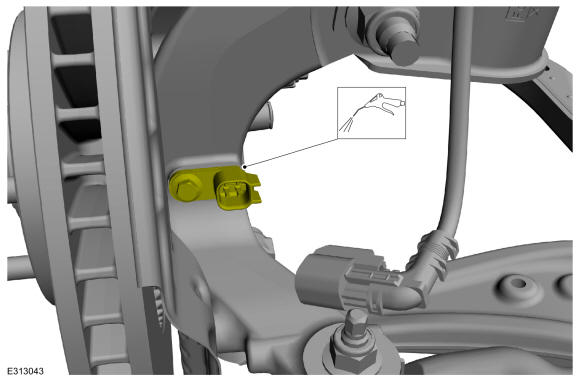

NOTE: Make sure that the sensor housing area is clean and free of foreign material before the sensor is removed.
Using compressed air, clean the sensor housing area.

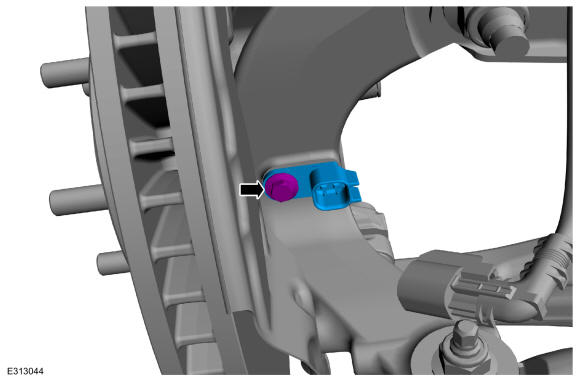

- Remove the bolt and the front wheel speed sensor.
Torque
: 71 lb.in (8 Nm)
