Steering Column Telescopic Motor: Installation
- To install, reverse the removal procedure.

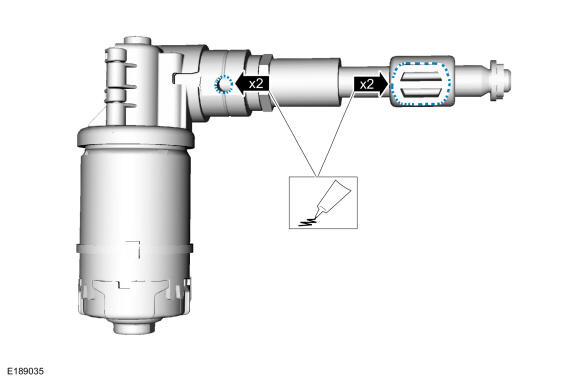

- Apply grease (supplied with the new motor) to the trunnion nut axles and the telescopic motor leadscrew housing holes.

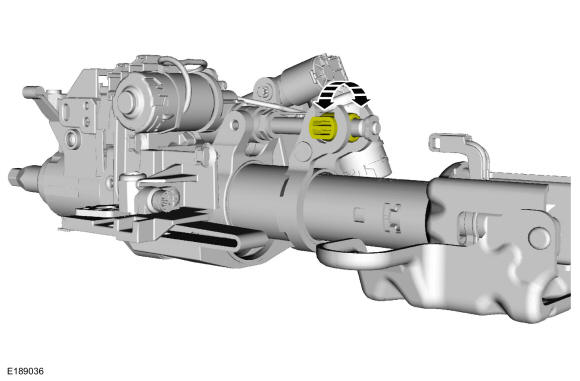

- Rotate the trunnion nut until the correct length is achieved to align the leadscrew housing with the threaded holes in the support arm.
- If equipped with memory steering column, use the steering column control switch and set the soft stops as follows.
- Move the column rearward until it reaches the end of travel and hold the switch for 2 seconds after the column has reached the end of travel.
- Move the column in the same direction until it reaches the end of travel again and hold the switch for 2 seconds after the motor has reached the end of travel. This clears any unintended soft stops.
- Move the column forward until it reaches the end of travel and hold the switch for 2 seconds after the motor has reached the end of travel.
- Move the column in the same direction until it reaches the end of travel and hold the switch for 2 seconds after the motor has reached the end of travel. This clears any unintended soft stops.
