Selector Lever Assembly: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the steering column shrouds. Refer to: Steering Column Shrouds .

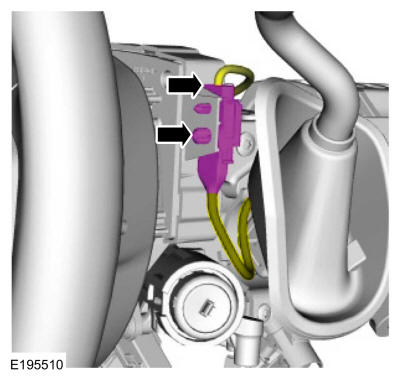

  2. Disconnect the selector lever assembly electrical connector.
    GFD583045Courtesy of FORD MOTOR COMPANY

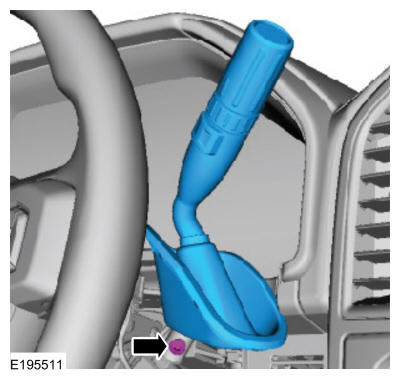

  3. Remove the bolt and the selector lever assembly.

    Torque: 159 lb.in (18 Nm)

GFD583046Courtesy of FORD MOTOR COMPANY
