Emergency Park Position Release

For information on Ford Color Coded Illustrations, refer to OEM COLOR CODING

Activation

NOTE: This procedure should only be used to temporarily place the transmission in Neutral during certain service procedures when the engine cannot crank. Do not tow the vehicle on road in this mode. Failure to follow this instruction will result in transmission damage.

NOTE: The following steps should be used when the engine will not crank.

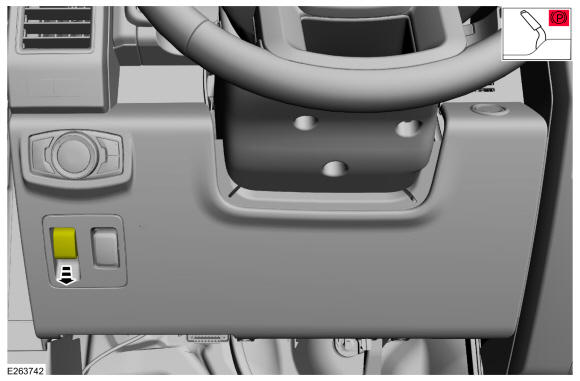

Apply the parking brake and chock the wheels.

Courtesy of FORD MOTOR COMPANY

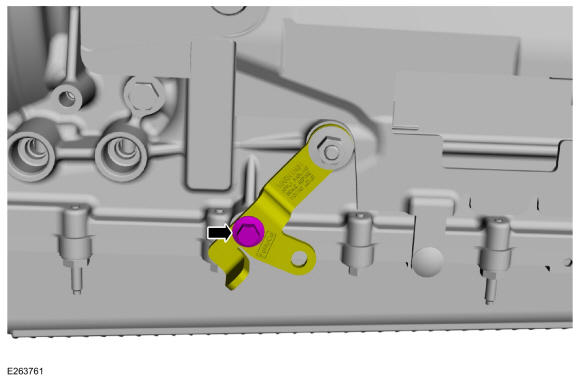

Remove the park override lever bolt.

Courtesy of FORD MOTOR COMPANY

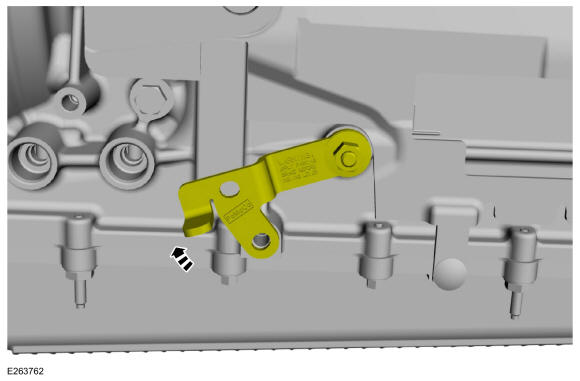

Move the park override lever to the park override position.

Courtesy of FORD MOTOR COMPANY

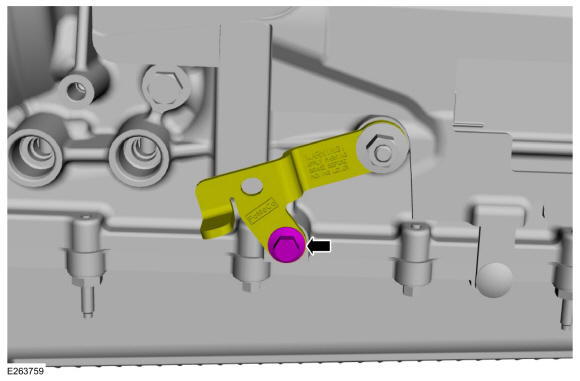

Install the park override lever bolt.
Torque: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY

NOTE: When the repair is complete, the park override lever must be returned to the normal operating position.

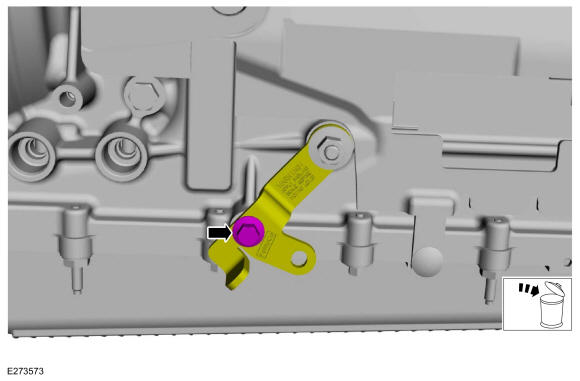

Remove and discard the park override lever bolt.

Courtesy of FORD MOTOR COMPANY

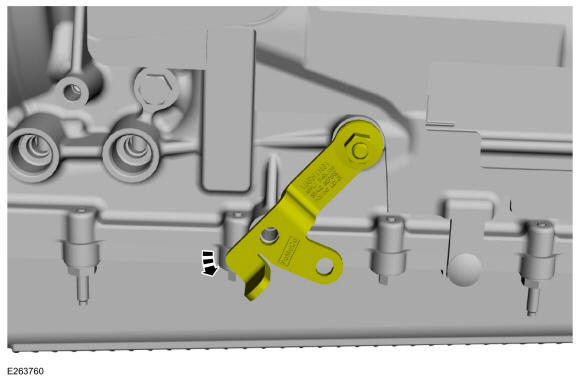

Move the park override lever to the normal operating position.

Courtesy of FORD MOTOR COMPANY
Install a
NEW park override lever bolt (7P219).

Torque: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY
