Selector Lever Cable Adjustment - Vehicles With: Column Shift

For information on Ford Color Coded Illustrations, refer to OEM COLOR CODING

Adjustment

1. With the vehicle in N, position it on a hoist. Refer to: Jacking and Lifting .

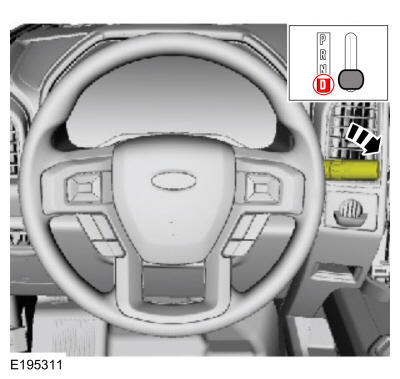

2. Position the selector lever in D.

   Courtesy of FORD MOTOR COMPANY

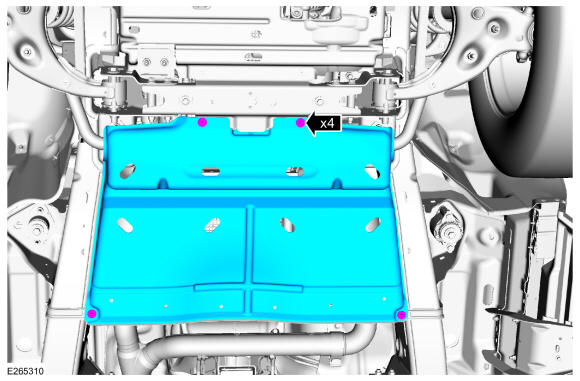

3. If equipped, remove the retainers and the splash shield.

   Courtesy of FORD MOTOR COMPANY

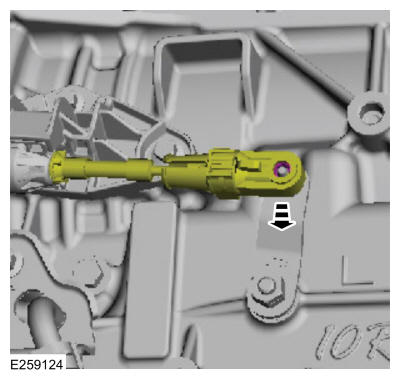

4. NOTE: To prevent selector lever cable damage, do not apply force to the selector lever cable between the manual control lever and the selector lever cable bracket.

   Disconnect the selector lever cable from the manual control lever.

   Courtesy of FORD MOTOR COMPANY

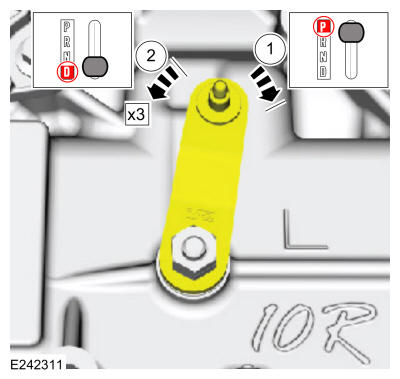

5. Position the manual lever in D.
   1. Rotate the manual lever clockwise until it stops.
   2. Rotate the manual lever counterclockwise 3 detents.

   Courtesy of FORD MOTOR COMPANY

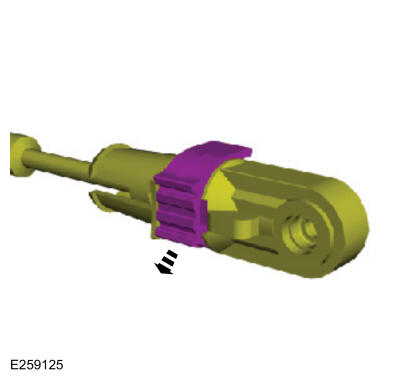

6. Unlock the cable adjuster lock.

   Courtesy of FORD MOTOR COMPANY

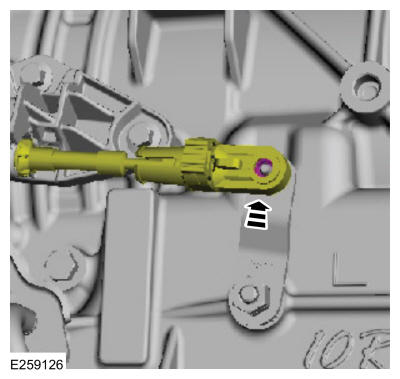

7. Connect the selector lever cable to the manual control lever.

   Courtesy of FORD MOTOR COMPANY

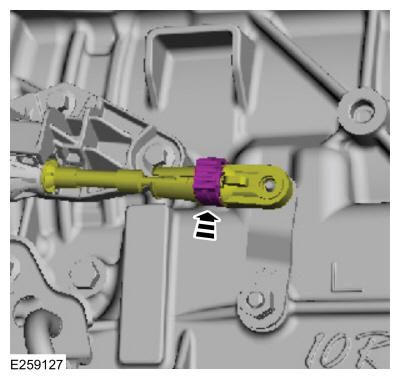

8. Lock the cable adjuster lock.

   Courtesy of FORD MOTOR COMPANY

9. Verify the vehicle starts in P and N only and that the reverse lamps illuminate in R.
10. If equipped, install the splash shield and the retainers.

    Torque: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY
