OEM Electrical Wiring Diagram Introduction: Introduction

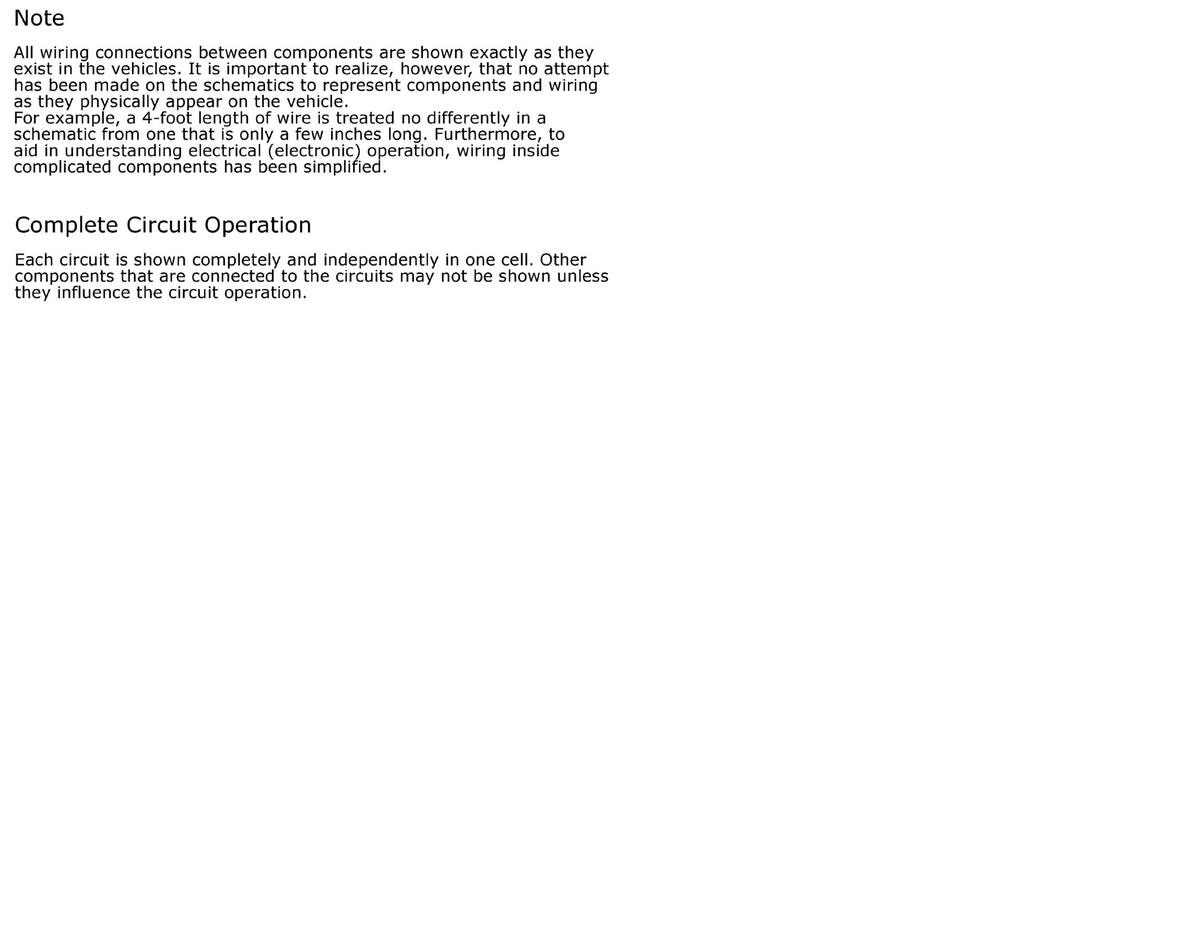

GFDWR94278Courtesy of FORD MOTOR COMPANY

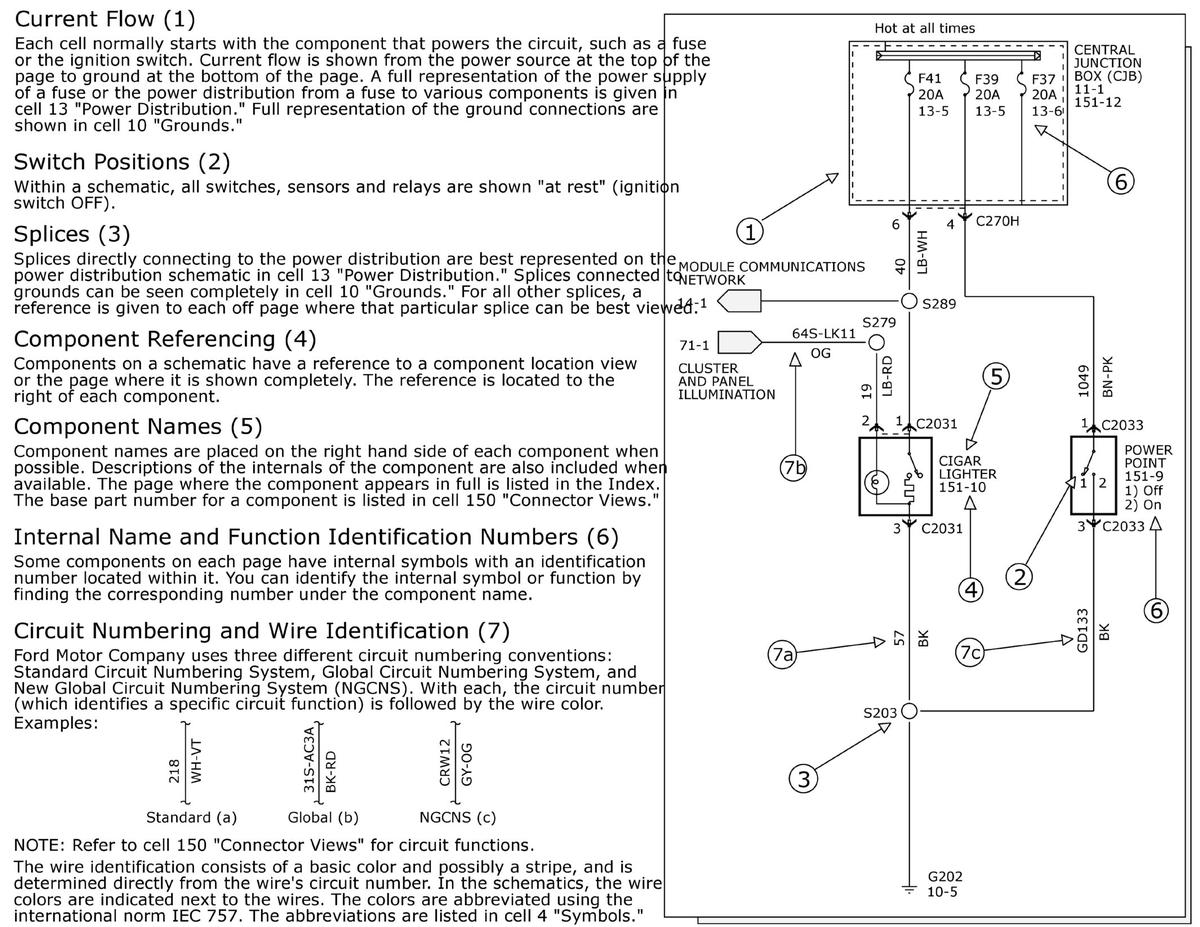

GFDWR94276Courtesy of FORD MOTOR COMPANY
GFDWR94277Courtesy of FORD MOTOR COMPANY

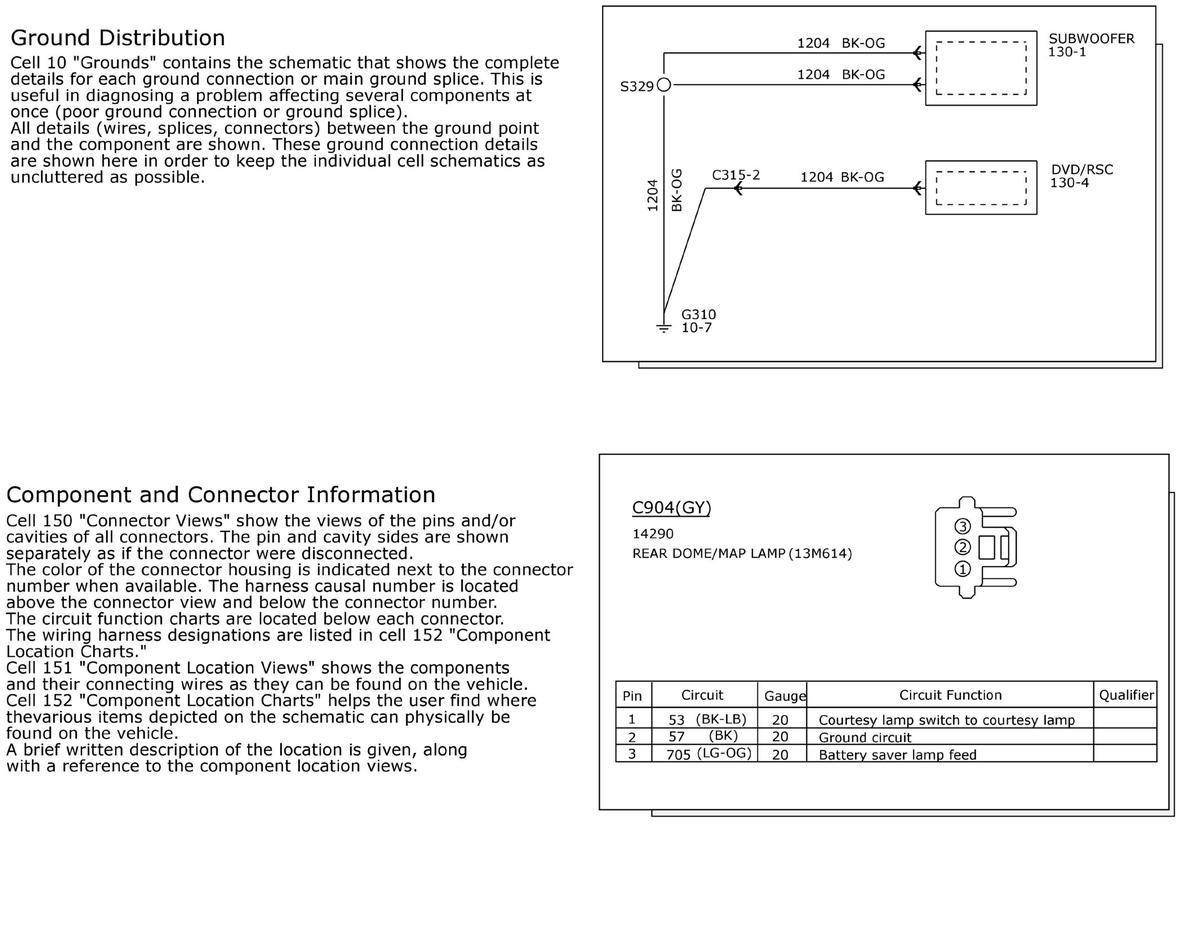

GFDWR94279Courtesy of FORD MOTOR COMPANY

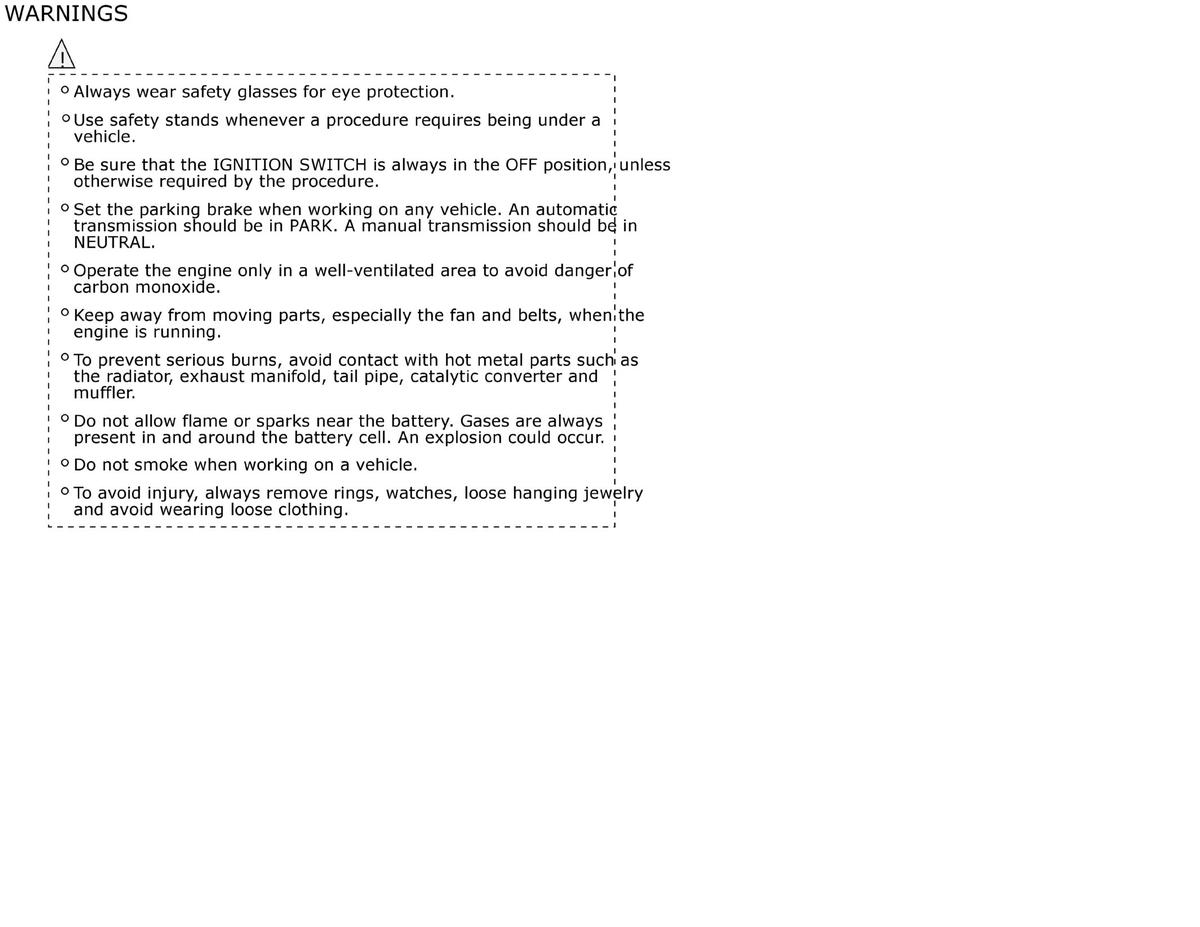

GFDWR94280Courtesy of FORD MOTOR COMPANY
