Heated Second Row Seat Module: Removal
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
The heated second row seat module is located under the RH (right hand) second row seat cushion frame.

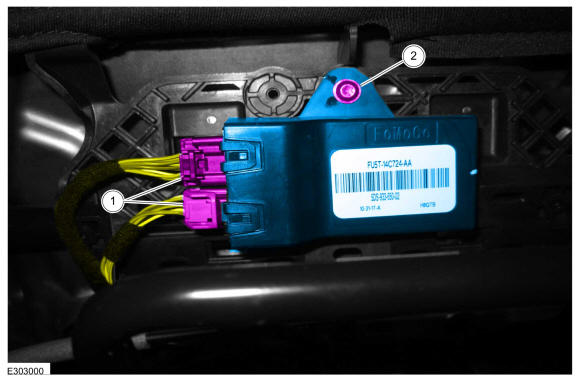

- Remove the heated second row seat module.
- Disconnect the electrical connectors.
- Remove the bolt.
Torque: 71 lb.in (8 Nm)
