Exhaust System - Component Location: Notes

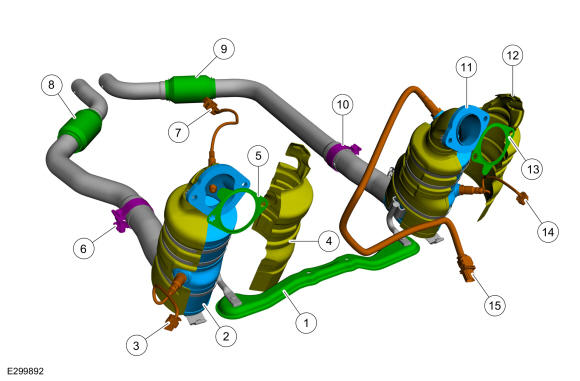

| Item | Description |
|---|---|
| 1 | Support bracket |
| 2 | RH catalytic converter |
| 3 | Exhaust gas oxygen sensor - downstream |
| 4 | RH catalytic converter heat shield |
| 5 | Exhaust gasket |
| 6 | Exhaust clamp |
| 7 | Exhaust gas oxygen sensor - upstream |
| 8 | RH exhaust flexible pipe |
| 9 | LH exhaust flexible pipe |
| 10 | Exhaust clamp |
| 11 | LH catalytic converter |
| 12 | LH catalytic converter heat shield |
| 13 | Exhaust gasket |
| 14 | Exhaust gas oxygen sensor - downstream |
| 15 | Exhaust gas oxygen sensor - upstream |

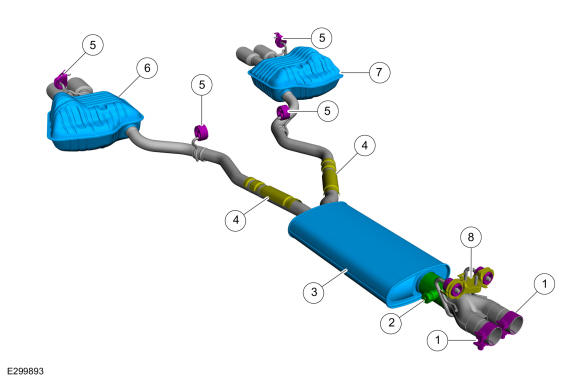

| Item | Description |
|---|---|
| 1 | Exhaust clamps |
| 2 | Passive valve (if equipped) |
| 3 | Resonator |
| 4 | Heat shield |
| 5 | Isolators |
| 6 | RH muffler |
| 7 | LH muffler |
| 8 | Exhaust hanger bracket |
