Exploded View Of Engine -- Front Components

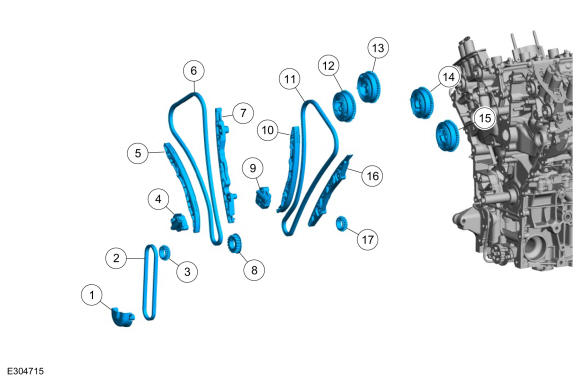

Engine -- Front Components (1 of 3)

Courtesy of FORD MOTOR COMPANY

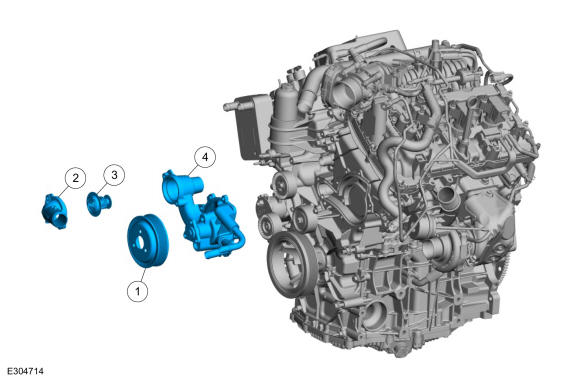

Engine -- Front Components (2 of 3)

Courtesy of FORD MOTOR COMPANY

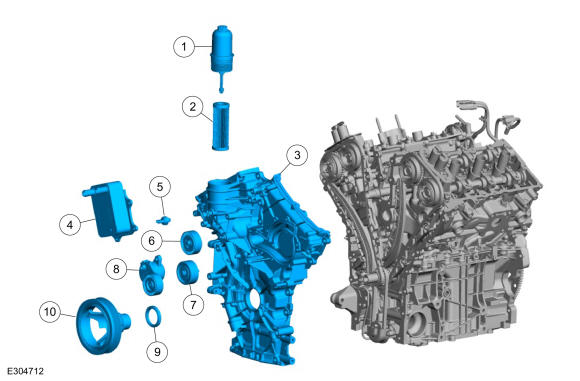

Engine -- Front Components (3 of 3)

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	6616	Cover
2	6B651	Belt
3	6306	Crankshaft sprocket
4	6L266	RH timing chain tensioner
5	6K255	RH timing chain tensioner arm
6	6268	RH timing chain
7	6M256	RH timing chain guide
8	6306	Crankshaft sprocket
9	6L266	LH timing chain tensioner
10	6K255	LH timing chain tensioner arm
11	6268	LH timing chain
12	6B297	RH exhaust variable Camshaft Timing (VCT) unit
13	6B297	RH intake variable Camshaft Timing (VCT) unit
14	6B297	LH intake variable Camshaft Timing (VCT) unit
15	6B297	LH exhaust variable Camshaft Timing (VCT) unit
16	6B274	LH timing chain guide
17	6306	Crankshaft sprocket
