Exploded View Of Engine -- Upper Components

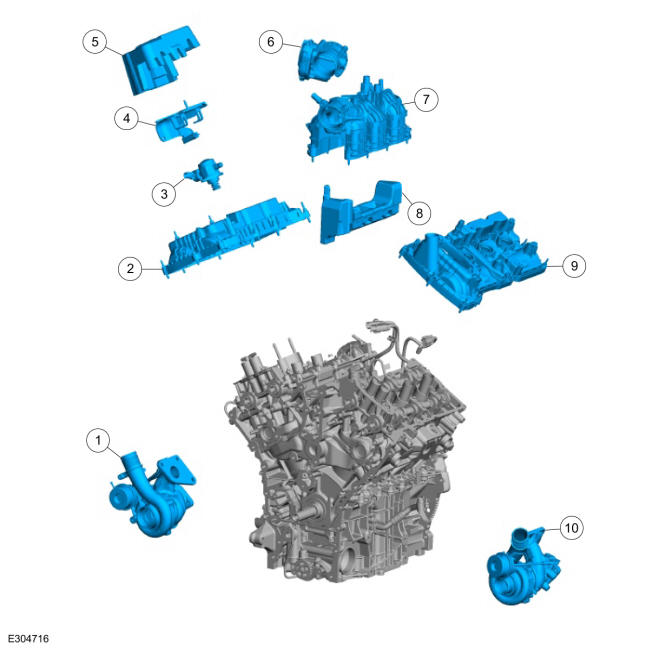

Engine -- Upper Components (1 of 2)
| Item | Part Number | Description |
|---|---|---|
| 1 | 6K682 | RH turbocharger |
| 2 | 6582 | RH valve cover |
| 3 | 9D376 | High pressure fuel pump |
| 4 | 9A397 | High pressure fuel pump shield |
| 5 | 9U550 | High pressure fuel pump insulator |
| 6 | 9F991 | Throttle body |
| 7 | 9424 | Intake manifold |
| 8 | 9U550 | Insulator |
| 9 | 6582 | LH valve cover |
| 10 | 6C879 | LH turbocharger |

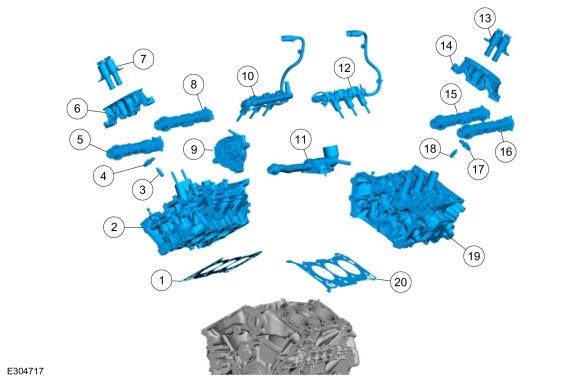

Engine -- Upper Components (2 of 2)
| Item | Part Number | Description |
|---|---|---|
| 1 | 6051 | RH cylinder head gasket |
| 2 | 6049 | RH cylinder head |
| 3 | 6500 | Hydraulic lash adjuster (12 required) |
| 4 | 6564 | Roller follower (12 required) |
| 5 | 6250 | RH exhaust camshaft |
| 23 | -- | Camshaft bearing cap (part of 6049) |
| 7 | 6C524/6C525/6C525 | Variable Camshaft Timing (VCT) solenoid (2 required) |
| 8 | 6250 | RH intake camshaft |
| 9 | 2A451 | Vacuum pump |
| 10 | 9F792 | RH Fuel rail |
| 11 | 8592 | Coolant outlet connector pipe |
| 12 | 9F792 | LH Fuel rail |
| 13 | 6C524/6C525/6C525 | Variable Camshaft Timing (VCT) solenoid (2 required) |
| 23 | -- | Camshaft bearing cap (part of 6049) |
| 15 | 6250 | LH intake camshaft |
| 16 | 6250 | LH exhaust camshaft |
| 17 | 6564 | Roller follower (12 required) |
| 18 | 6500 | Hydraulic lash adjuster (12 required) |
| 19 | 6049 | LH cylinder head |
| 20 | 6051 | LH cylinder head gasket |
