Engine - 3.0L ECOBOOST: Disassembly: Engine

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	205-153 (T80T-4000-W) Handle
Courtesy of FORD MOTOR COMPANY	303-1246 Engine Spreader Bar TKIT-2006UF-FLM TKIT-2006UF-ROW

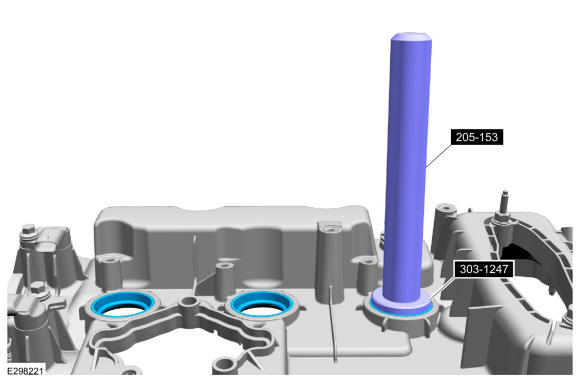

Courtesy of FORD MOTOR COMPANY	303-1247 VCT Spark Plug Tube Seal Remover and Installer TKIT-2006UF-FLM TKIT-2006UF-ROW
Courtesy of FORD MOTOR COMPANY	303-1248 Camshaft holding tools TKIT-2006UF-FLM TKIT-2006UF-ROW
Courtesy of FORD MOTOR COMPANY	303-1634 Lift Eyes (2) TKIT-2014D-ROW3 TKIT-2014D-FL_ROW

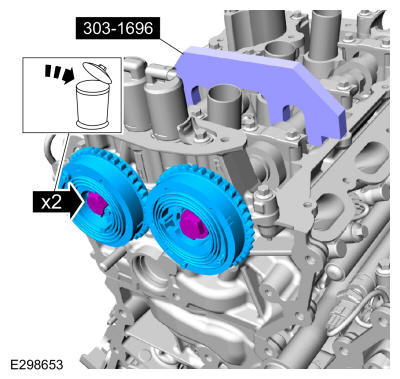

Courtesy of FORD MOTOR COMPANY	303-1696 Cam Comb Tool Study
Courtesy of FORD MOTOR COMPANY	303-409 (T92C-6700-CH) Remover, Crankshaft Seal TKIT-1992-FH/FMH/FLMH TKIT-1993-LMH/MH
Floor Crane
Mounting Stand
Plastic Scraper
Flat-Bladed Screwdriver

Materials

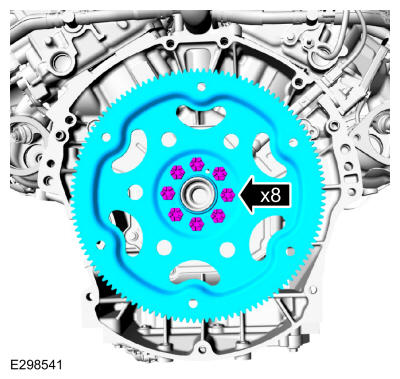

1. Remove the bolts and the flexplate.

   Courtesy of FORD MOTOR COMPANY

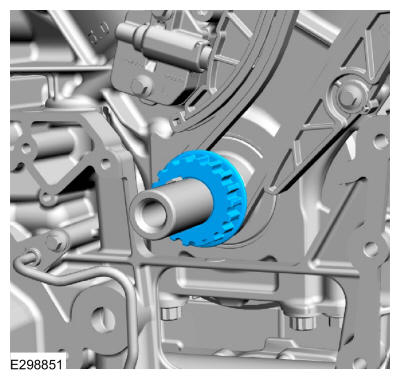

2. Remove the crankshaft sensor ring.

   Courtesy of FORD MOTOR COMPANY

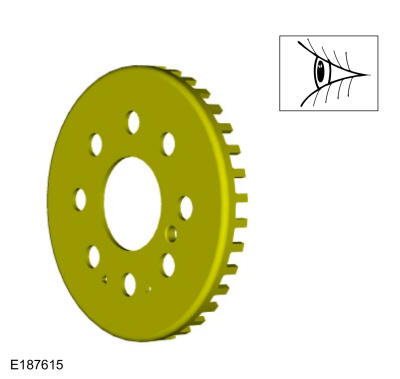

3. Inspect the crankshaft sensor ring for damage. If the crankshaft sensor ring has been dropped or has any visual damage, it must be discarded.

   Courtesy of FORD MOTOR COMPANY

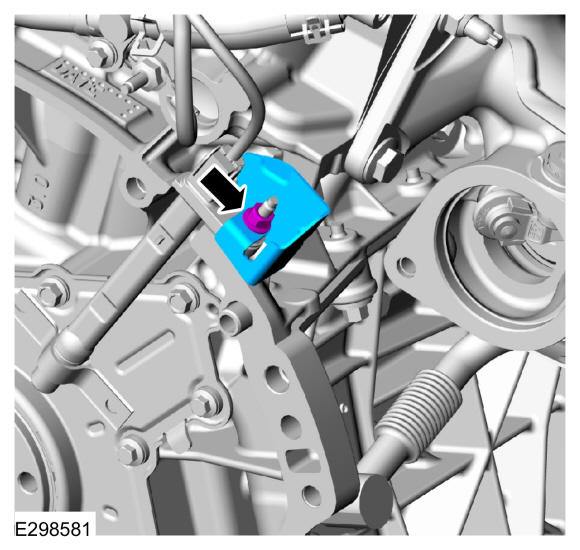

4. Remove the nut and the heat shield.

   Courtesy of FORD MOTOR COMPANY

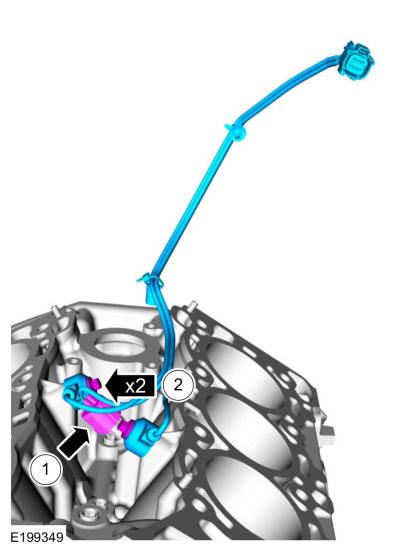

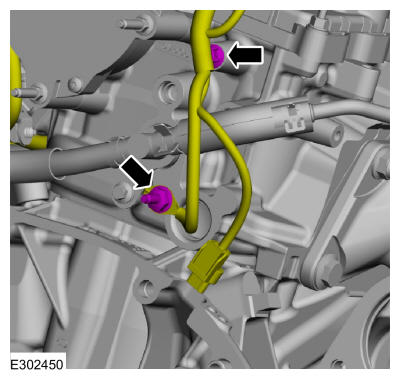

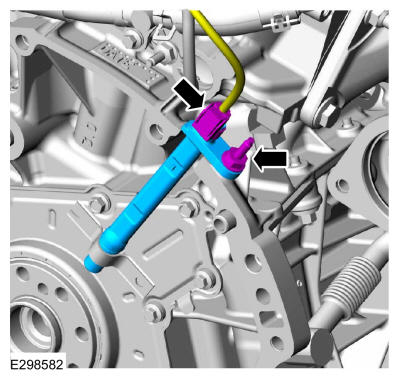

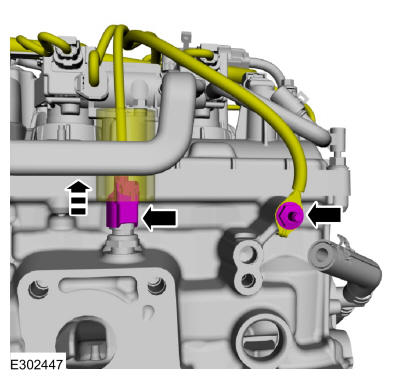

5. 1. Disconnect the CKP sensor electrical connector.
   2. Remove the stud bolt and the CKP sensor.

   Courtesy of FORD MOTOR COMPANY

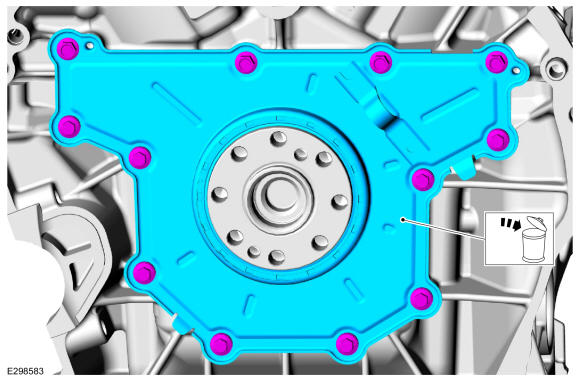

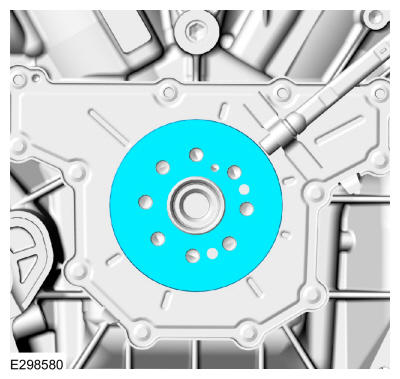

6. Remove the bolts and the crankshaft rear seal and retainer plate.
   • Discard the crankshaft rear seal and retainer plate.

   Courtesy of FORD MOTOR COMPANY

7. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of old Sealant.

   Clean and inspect the mating surface. Refer to: RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper

   Material: Motorcraft® Silicone Gasket Remover / ZC-30-A

   Material: Motorcraft® Metal Brake Parts cleaner / PM-4-A, PM-4-B

   Material: Motorcraft® Metal Surface Prep wipes / ZC-31-B

   Courtesy of FORD MOTOR COMPANY

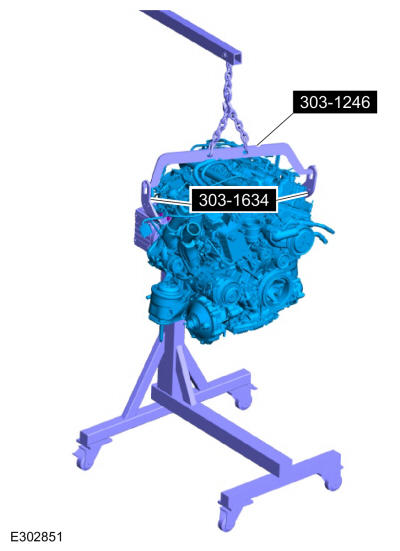

8. Using a floor crane, install the engine on a mounting stand. Remove Special Service Tool: 303-1246 Engine Spreader Bar, 303-1634 Lift Eyes (2). Use the General Equipment: Floor Crane Use the General Equipment: Mounting Stand

   Courtesy of FORD MOTOR COMPANY

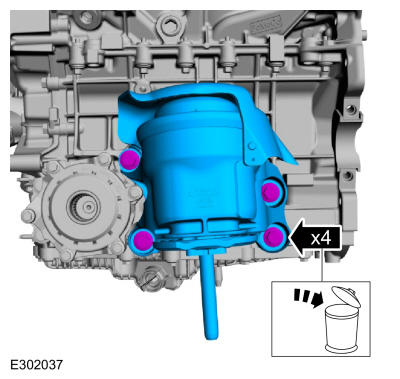

9. • Remove the bolts and the LH engine mount.
   • Discard the bolts.

   Courtesy of FORD MOTOR COMPANY

10. Remove the bolts and the front axle disconnect actuator.

    Courtesy of FORD MOTOR COMPANY

11. Remove and discard the seal.

    Courtesy of FORD MOTOR COMPANY

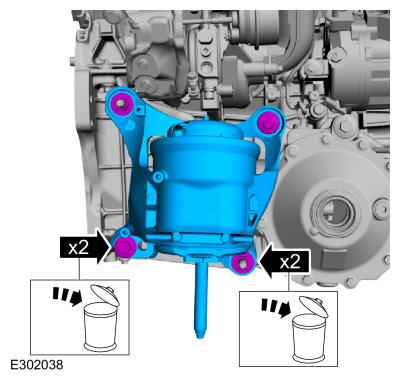

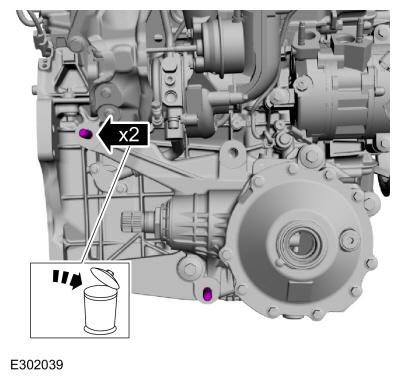

12. • Remove and discard the nuts and bolts.
    • Remove the RH engine mount.

    Courtesy of FORD MOTOR COMPANY

13. Remove and discard the studs.

    Courtesy of FORD MOTOR COMPANY

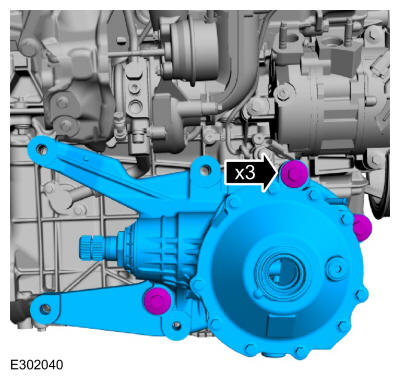

14. Remove the bolts and the front axle assembly.

    Courtesy of FORD MOTOR COMPANY

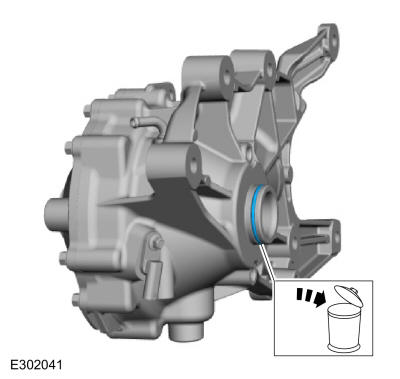

15. Remove and discard the front axle assembly seal.

    Courtesy of FORD MOTOR COMPANY

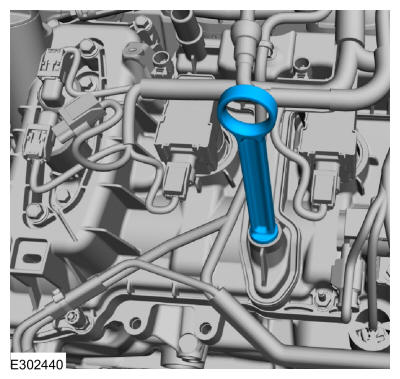

16. Remove the oil level indicator.

    Courtesy of FORD MOTOR COMPANY

17. • Detach the fuel tube retainer.
    • Disconnect the quick release coupling and remove the fuel tube assembly. Refer to: QUICK RELEASE COUPLING - 3.0L
    • Disconnect the quick release coupling and remove the EVAP tube. Refer to: QUICK RELEASE COUPLING - 3.0L

    Courtesy of FORD MOTOR COMPANY

18. Remove the bolts and the A/C compressor.

    Courtesy of FORD MOTOR COMPANY

19. Remove the bolts and the air cleaner outlet pipe.

    Courtesy of FORD MOTOR COMPANY

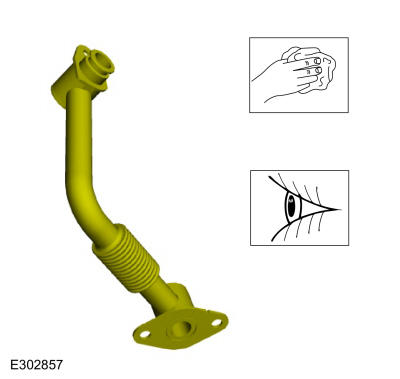

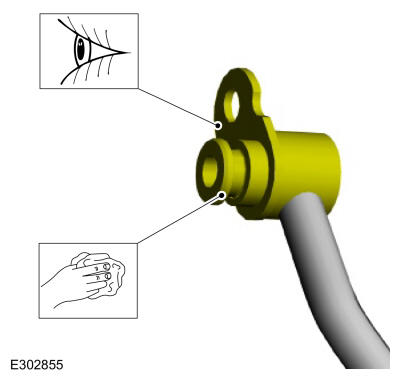

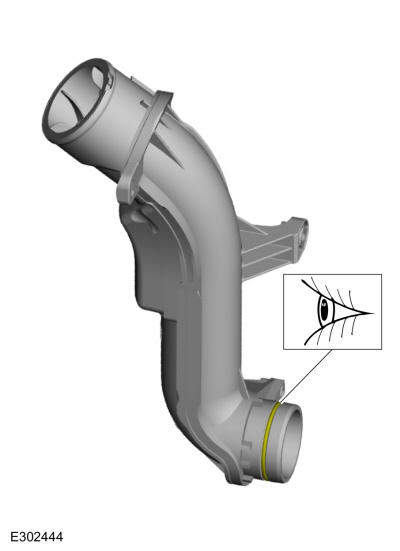

20. Inspect the O-ring seal and replace as necessary.

    Courtesy of FORD MOTOR COMPANY

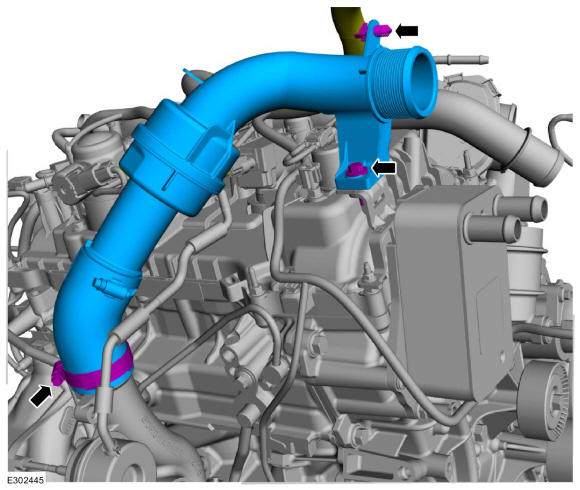

21. • Detach the wiring harness retainer.
    • Remove the bolt.
    • Loosen the clamp and remove the CAC inlet pipe.

    Courtesy of FORD MOTOR COMPANY

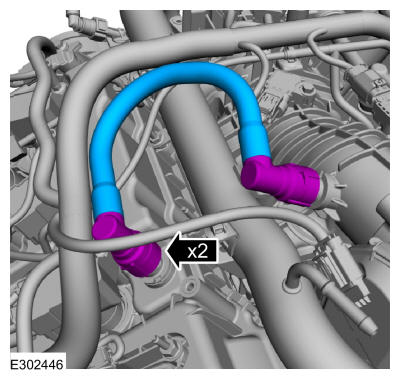

22. Disconnect the quick release couplings and remove the crankcase vent tube. Refer to: QUICK RELEASE COUPLING - 3.0L

    Courtesy of FORD MOTOR COMPANY

23. • Remove the stud bolt and the ground wire.
    • Slide the wiring harness insulator up.
    • Disconnect the CHT electrical connector.

    Courtesy of FORD MOTOR COMPANY

24. • Disconnect the wiring harness electrical connectors.
    • Detach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

25. • Disconnect the wiring harness electrical connectors.
    • Detach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

26. • Remove the stud bolt and the ground wire from the rear of the RH cylinder head.
    • Detach the wiring harness retainer.

    Courtesy of FORD MOTOR COMPANY

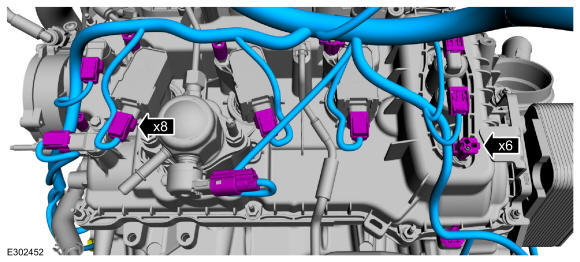

27. • Disconnect the wiring harness electrical connectors.
    • Detach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

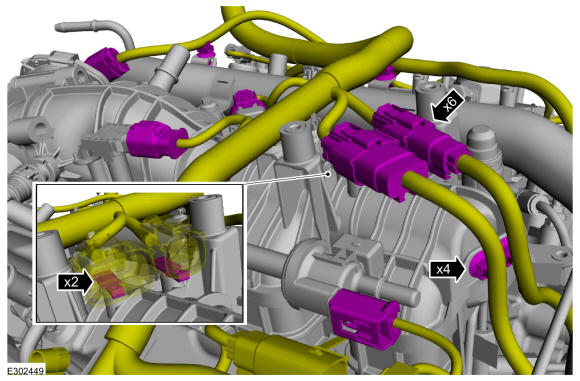

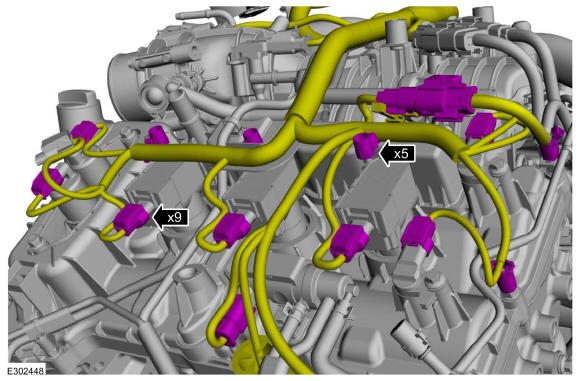

28. • Disconnect the wiring harness electrical connectors.
    • Detach the wiring harness retainers.
    • Remove the wiring harness from the engine.

    Courtesy of FORD MOTOR COMPANY

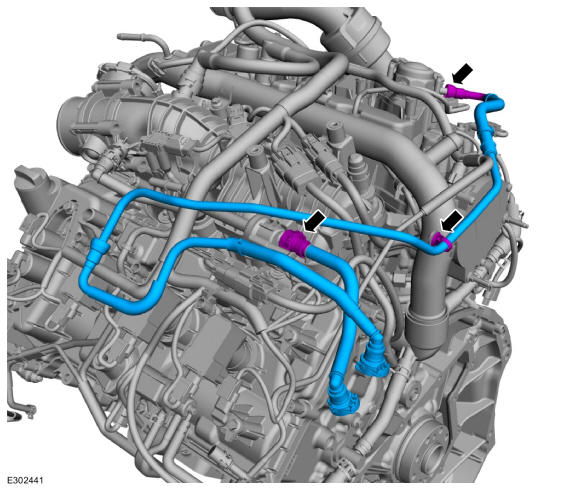

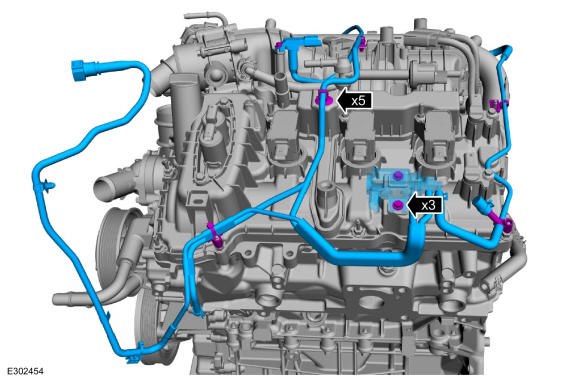

29. • Release the clamp and disconnect the vacuum hose.
    • Detach the vacuum harness retainer.
    • Disconnect the vacuum harness quick release coupling. Refer to: QUICK RELEASE COUPLING - 3.0L

    Courtesy of FORD MOTOR COMPANY

30. • Remove the bolts.
    • Detach the vacuum harness retainers.
    • Remove the vacuum harness from the engine.

    Courtesy of FORD MOTOR COMPANY

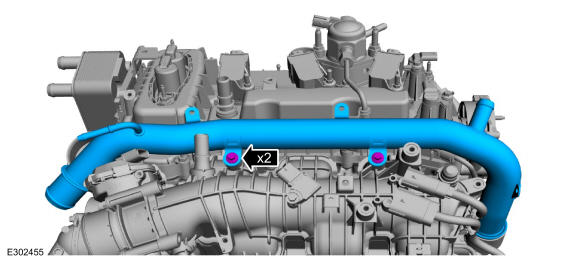

31. Remove the bolts and the coolant pipe.

    Courtesy of FORD MOTOR COMPANY

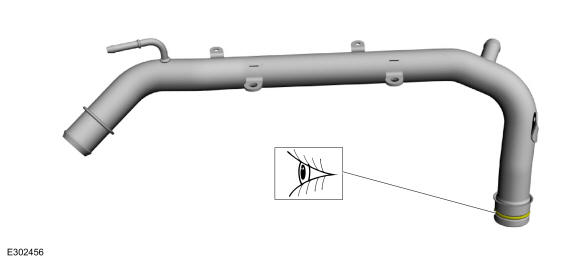

32. Inspect the O-ring seal and replace as necessary.

    Courtesy of FORD MOTOR COMPANY

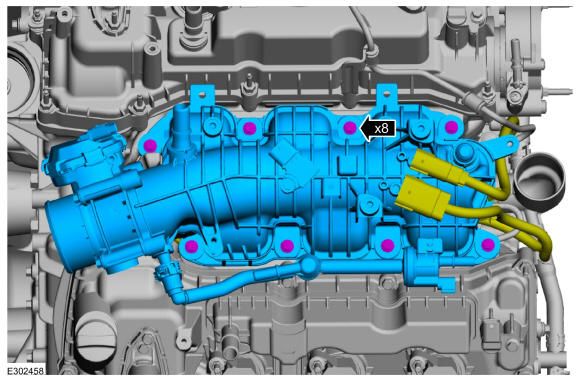

33. Loosen the bolts and remove the intake manifold.

    Courtesy of FORD MOTOR COMPANY

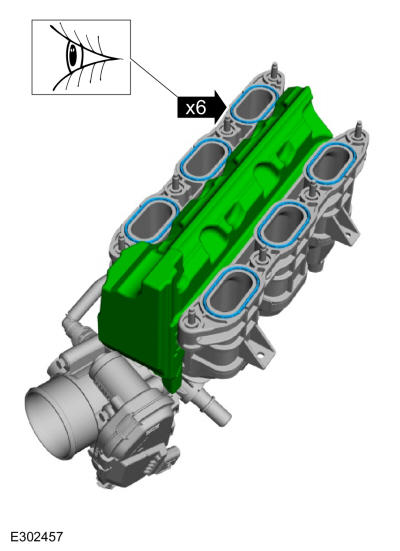

34. • Remove the insulator.
    • Remove and inspect the gaskets, replace as necessary.

    Courtesy of FORD MOTOR COMPANY

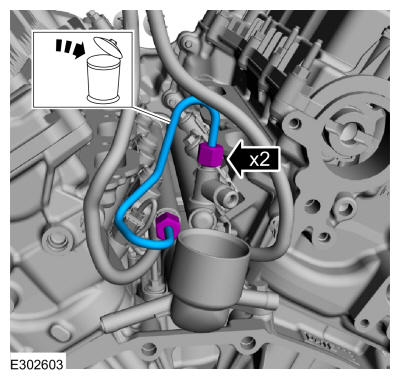

35. NOTE: To release the fuel pressure in the high-pressure fuel tube, wrap the high-pressure fuel tube flare nuts with a shop towel to absorb any residual fuel pressure during the loosening of high-pressure fuel tube flare nuts.
    • Loosen the fuel tube flare nut fittings.
    • Remove the nuts.
    • Remove and discard the fuel tube.

    Courtesy of FORD MOTOR COMPANY

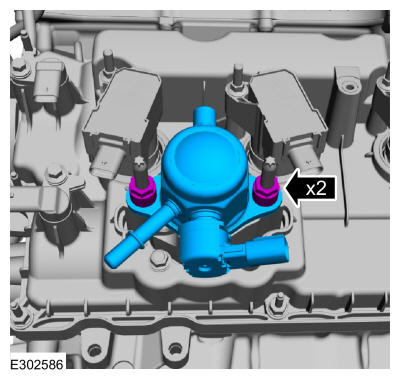

36. NOTE: Alternately loosen the high-pressure fuel pump nuts one revolution at a time.

    Remove the nuts and the high-pressure fuel pump.

    Courtesy of FORD MOTOR COMPANY

37. Remove and discard the high-pressure fuel pump O-ring seal.

    Courtesy of FORD MOTOR COMPANY

38. Remove the high-pressure fuel pump tappet.

    Courtesy of FORD MOTOR COMPANY

39. Inspect the high-pressure fuel pump roller tappet. If any flat spots or scoring are found, especially in the indicated areas, then inspect the high-pressure fuel pump and the high-pressure fuel pump roller tappet drive lobe. Install new components as necessary.

    Courtesy of FORD MOTOR COMPANY

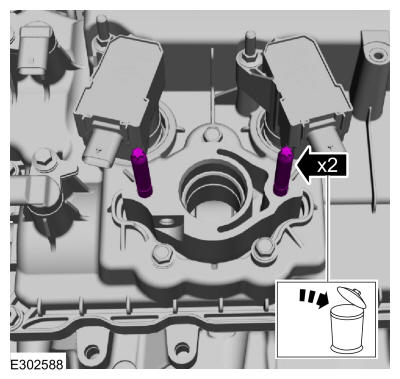

40. If damaged, remove and discard the studs.

    Courtesy of FORD MOTOR COMPANY

41. Remove the fasteners and the TC oil return tube.

    Courtesy of FORD MOTOR COMPANY

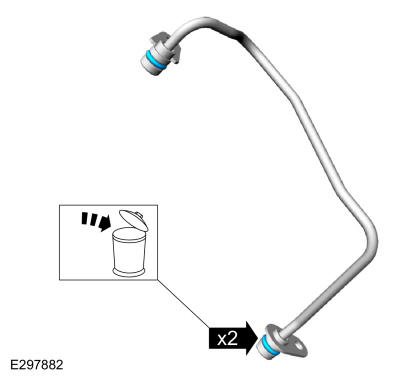

42. Remove and discard the TC oil return tube tube-to-engine block gasket.

    Courtesy of FORD MOTOR COMPANY

43. Remove and discard the TC oil return tube O-ring seal.

    Courtesy of FORD MOTOR COMPANY

44. NOTE: Inspect for blockage in the turbocharger tube. Check the tube, the sealing surfaces and the flange for flatness and damage. Ensure that the retaining bracket is not bent, check for square-ness of the retaining bracket to the O-ring area. Use brake cleaner and a NYLON brush to clean. DO NOT USE A METAL BRUSH; DAMAGE TO SEALING AREA WILL RESULT IN LEAKS.

    Clean and inspect the TC oil return tube.

    Material: Motorcraft® Metal Brake Parts cleaner / PM-4-A, PM-4-B

    Courtesy of FORD MOTOR COMPANY

45. Remove the TC coolant return tube bolt.

    Courtesy of FORD MOTOR COMPANY

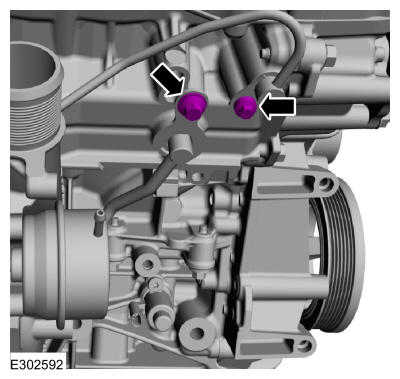

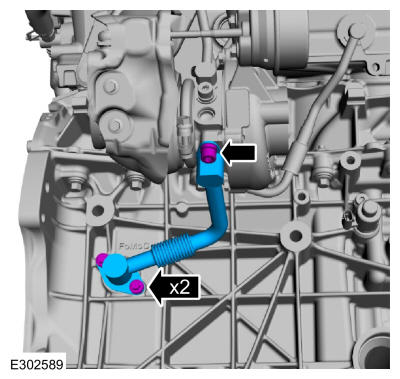

46. • Remove the TC oil supply tube bolt.
    • Remove the TC coolant supply tube bolt.

    Courtesy of FORD MOTOR COMPANY

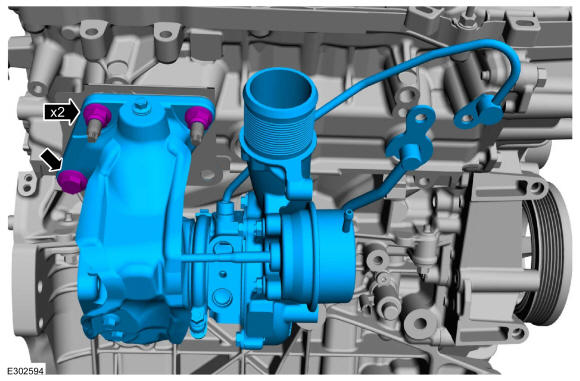

47. Remove the fasteners and the TC.

    Courtesy of FORD MOTOR COMPANY

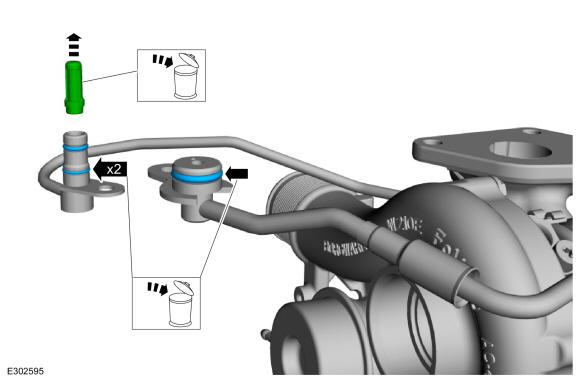

48. • Remove and discard the TC oil supply tube filter and O-ring seals.
    • Remove and discard the TC coolant supply tube O-ring seal.

    Courtesy of FORD MOTOR COMPANY

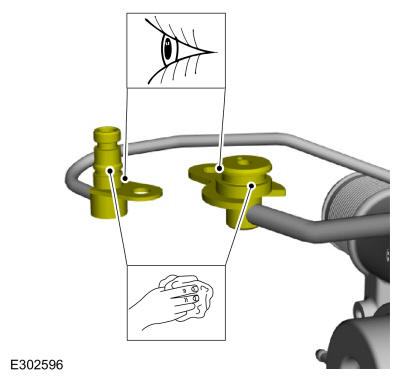

49. NOTE: Inspect the turbocharger tubes and the sealing surfaces. Ensure that the retaining brackets are not bent, check for square-ness of the retaining brackets to the O-ring areas. Use brake cleaner and a NYLON brush to clean. DO NOT USE A METAL BRUSH; DAMAGE TO SEALING AREA WILL RESULT IN LEAKS.
    • Clean and inspect the TC oil supply tube.

      Material: Motorcraft® Metal Brake Parts cleaner / PM-4-A, PM-4-B

    • Clean and inspect the TC coolant supply tube.

      Material: Motorcraft® Metal Brake Parts cleaner / PM-4-A, PM-4-B

    Courtesy of FORD MOTOR COMPANY

50. • Remove and discard the TC gasket.
    • If damaged, remove and discard the TC stud(s).

    Courtesy of FORD MOTOR COMPANY

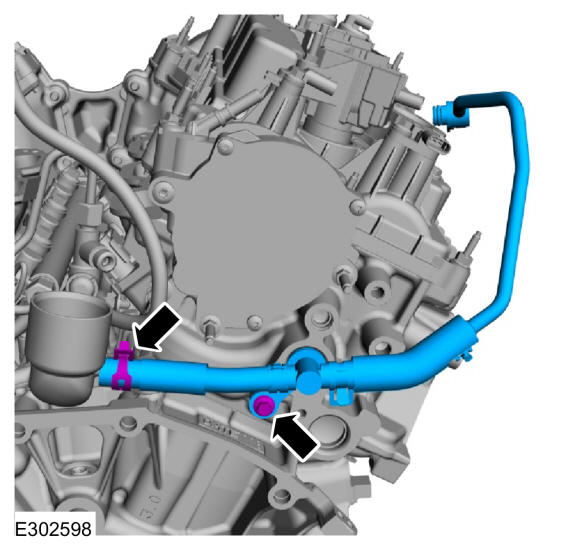

51. • Remove the bolt.

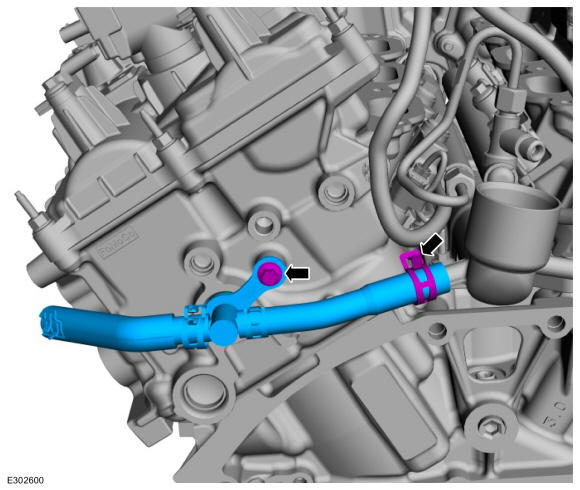

    • Release the clamp and remove the TC coolant return tube.

    Courtesy of FORD MOTOR COMPANY

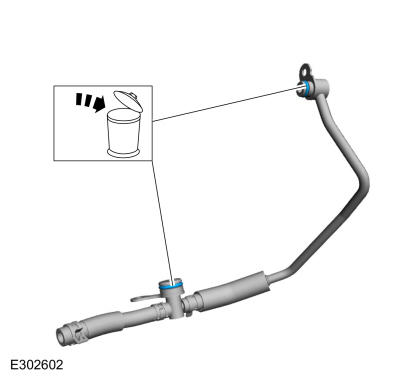

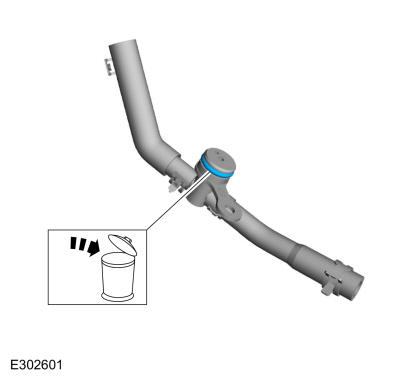

52. Remove and discard the O-ring seals.

    Courtesy of FORD MOTOR COMPANY

53. NOTE: Inspect the turbocharger tube and the sealing surfaces. Ensure that the retaining bracket is not bent, check for square-ness of the retaining brackets to the O-ring area. Use brake cleaner and a NYLON brush to clean. DO NOT USE A METAL BRUSH; DAMAGE TO SEALING AREA WILL RESULT IN LEAKS.

    Clean and inspect the TC coolant return tube fitting.

    Material: Motorcraft® Metal Brake Parts cleaner / PM-4-A, PM-4-B

    Courtesy of FORD MOTOR COMPANY

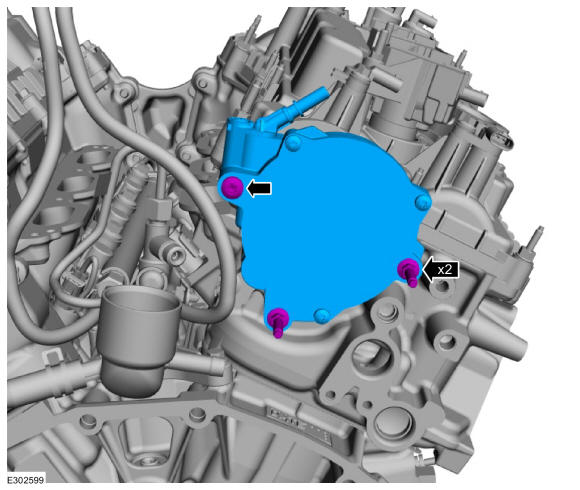

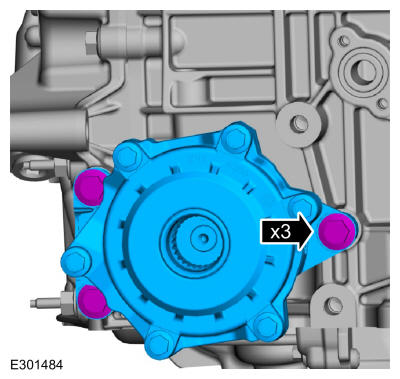

54. Remove the fasteners and the vacuum pump.

    Courtesy of FORD MOTOR COMPANY

55. • Remove the bolt.
    • Release the clamp and remove the TC coolant return tube.

    Courtesy of FORD MOTOR COMPANY

56. Remove and discard the O-ring seal.

    Courtesy of FORD MOTOR COMPANY

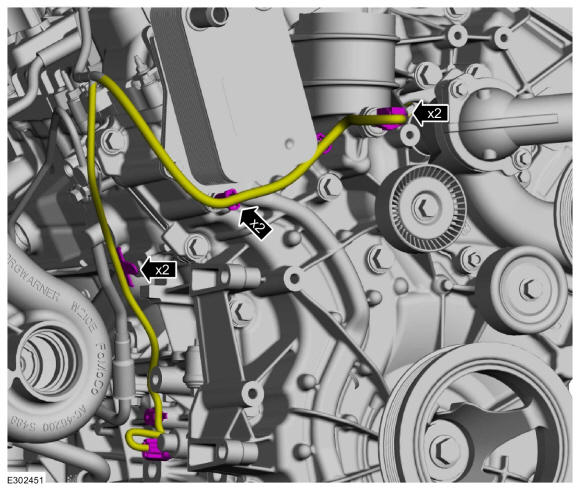

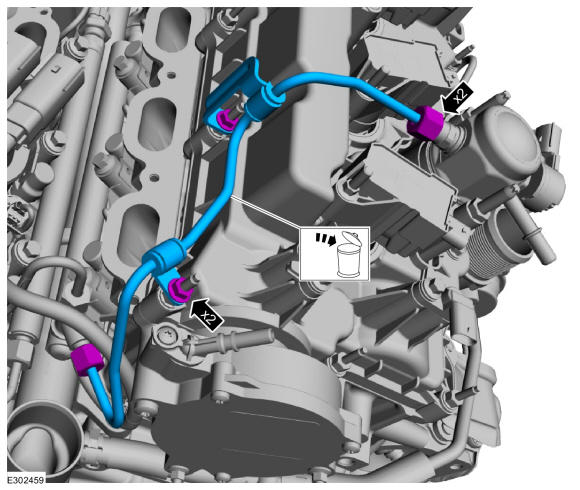

57. • Loosen the fuel tube flare nut fittings.
    • Remove and discard the fuel tube

    Courtesy of FORD MOTOR COMPANY

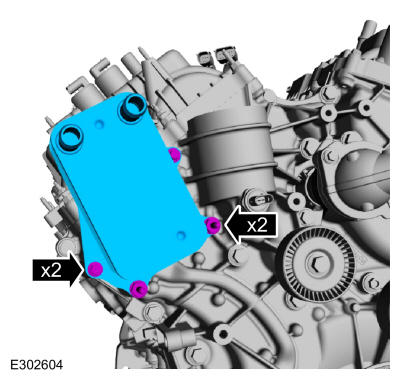

58. Remove the bolts and the oil cooler.

    Courtesy of FORD MOTOR COMPANY

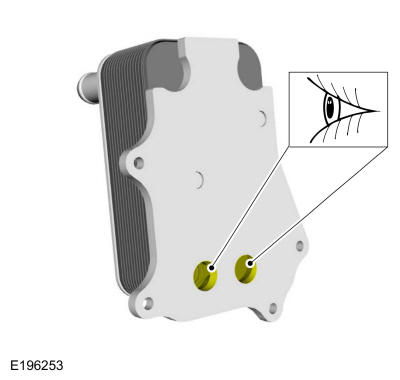

59. Inspect the oil cooler. If metal or aluminum material is present in the oil cooler, mechanical concerns exist. Failure to correct these concerns may cause engine failure. Refer to: Engine .

    Courtesy of FORD MOTOR COMPANY

60. Remove and discard the oil cooler gasket.

    Courtesy of FORD MOTOR COMPANY

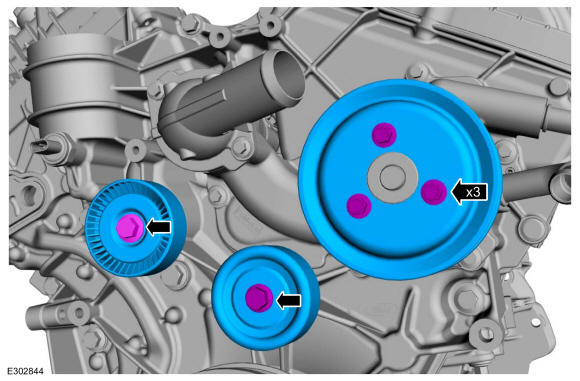

61. • Remove the bolts and the coolant pump pulley.
    • Remove the bolt and the idler pulley.
    • Remove the bolt and the idler pulley.

    Courtesy of FORD MOTOR COMPANY

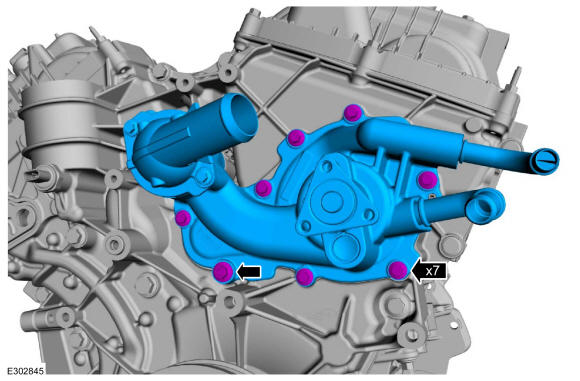

62. Remove the bolts and the coolant pump.

    Courtesy of FORD MOTOR COMPANY

63. Remove and discard the coolant pump gasket and seal.

    Courtesy of FORD MOTOR COMPANY

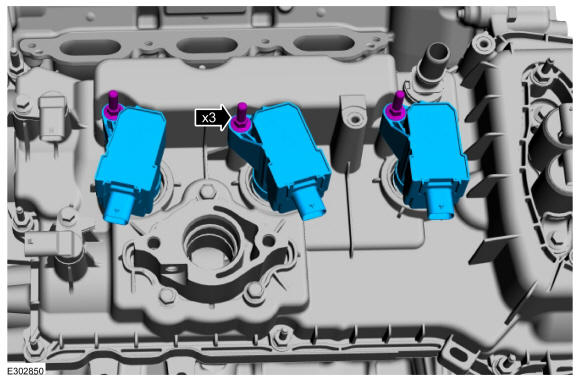

64. NOTE: When removing the ignition coil-on-plugs, a slight twisting motion will break the seal and ease removal.

    Remove the stud bolts and the LH ignition coil-on-plugs.

    Courtesy of FORD MOTOR COMPANY

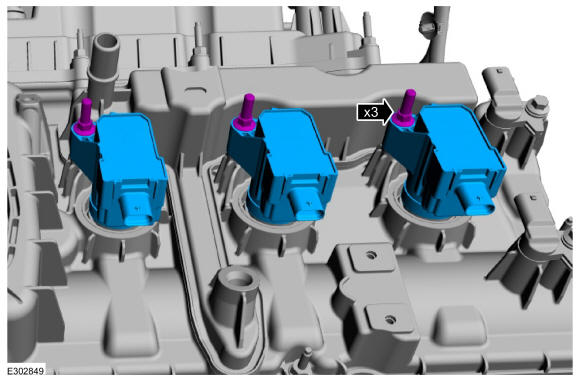

65. NOTE: When removing the ignition coil-on-plugs, a slight twisting motion will break the seal and ease removal.

    Remove the stud bolts and the RH ignition coil-on-plugs.

    Courtesy of FORD MOTOR COMPANY

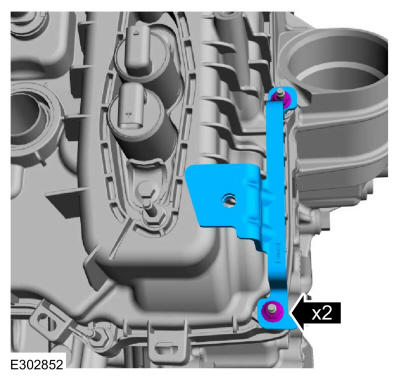

66. Remove the nuts and the bracket.

    Courtesy of FORD MOTOR COMPANY

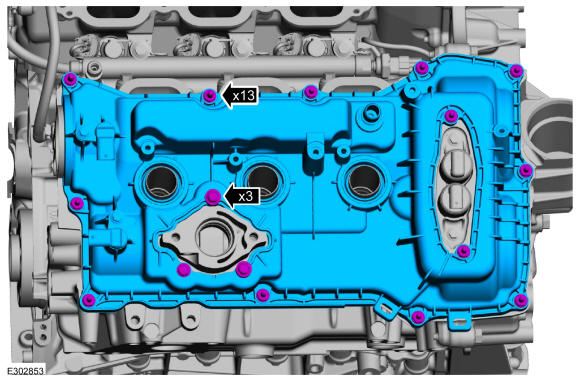

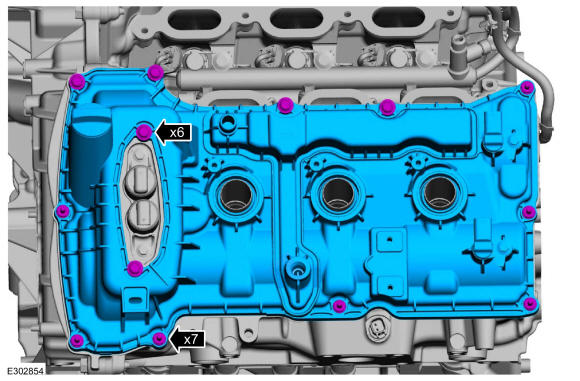

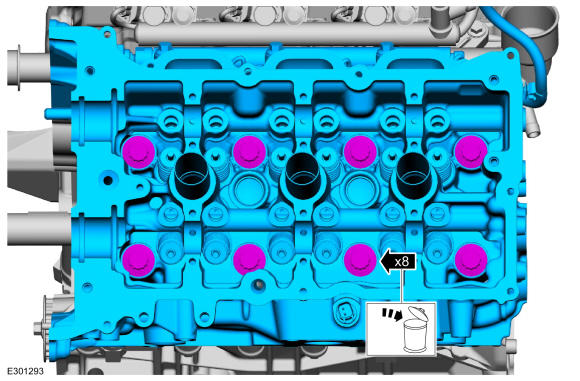

67. Loosen the fasteners and remove the valve cover.

    Courtesy of FORD MOTOR COMPANY

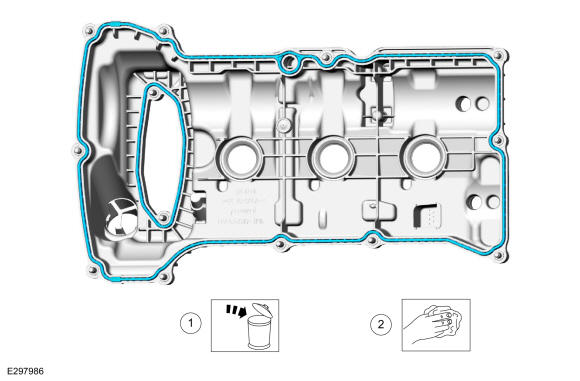

68. 1. Remove and discard the gaskets.
    2. Clean the valve cover gasket groove with soap and water or a suitable solvent.

    Courtesy of FORD MOTOR COMPANY

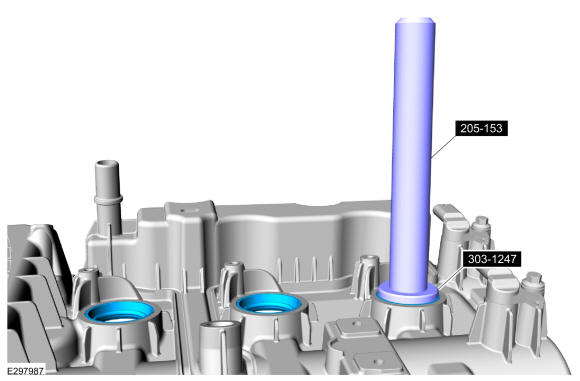

69. Inspect the spark plug seals. Remove any damaged seals using the special tools. Use Special Service Tool: 205-153 (T80T-4000-W) Handle, 303-1247 VCT Spark Plug Tube Seal Remover and Installer.

    Courtesy of FORD MOTOR COMPANY

70. Loosen the fasteners and remove the valve cover.

    Courtesy of FORD MOTOR COMPANY

71. 1. Remove and discard the gaskets.
    2. Clean the valve cover gasket groove with soap and water or a suitable solvent.

    Courtesy of FORD MOTOR COMPANY

72. Inspect the spark plug seals. Remove any damaged seals using the special tools. Use Special Service Tool: 205-153 (T80T-4000-W) Handle, 303-1247 VCT Spark Plug Tube Seal Remover and Installer.

    Courtesy of FORD MOTOR COMPANY

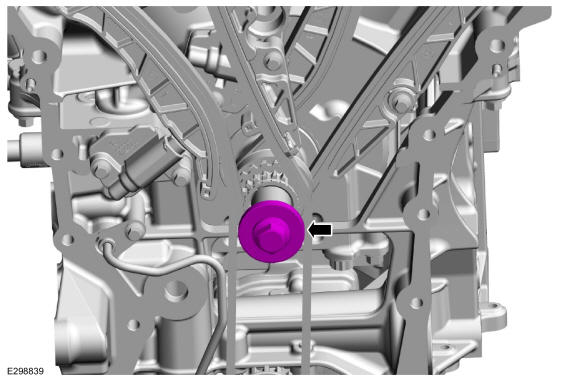

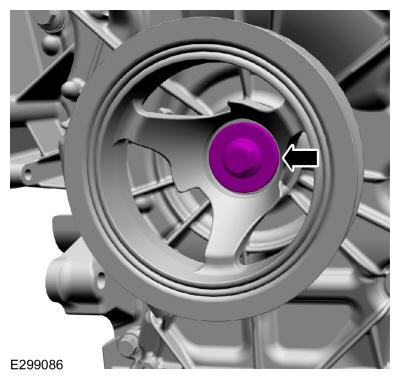

73. Remove the crankshaft pulley bolt.

    Courtesy of FORD MOTOR COMPANY

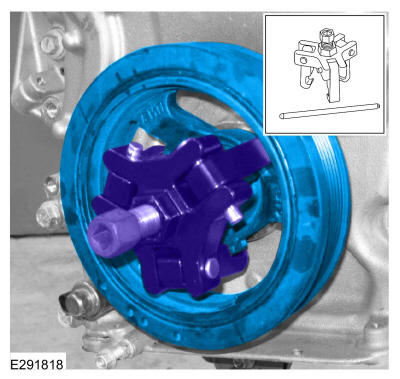

74. NOTE: Use a universal puller (such as an OTC 6667, or equivalent).

    Using a universal puller, remove the crankshaft pulley.

    Courtesy of FORD MOTOR COMPANY

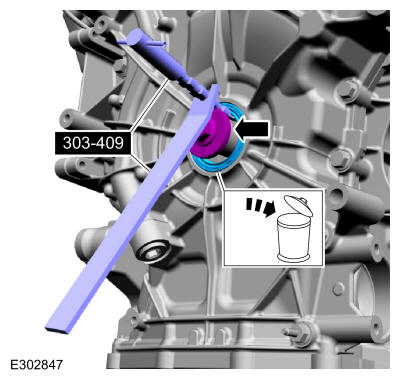

75. NOTE: Use care not to damage the engine front cover or the crankshaft when removing the seal.

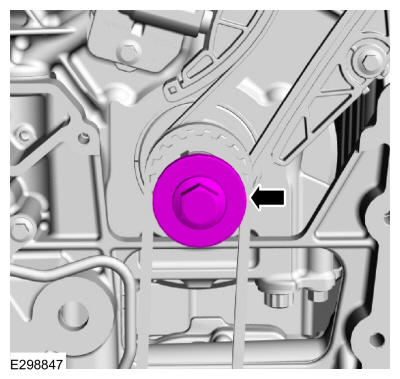

    1. Install the crankshaft pulley bolt.

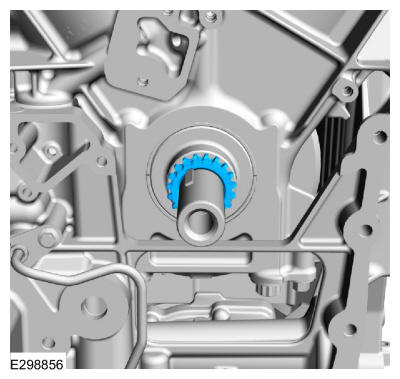

    2. Using the special tool, remove and discard the crankshaft front oil seal. Use Special Service Tool: 303-409 (T92C-6700-CH) Remover, Crankshaft Seal.
    3. NOTE: Retain the original crankshaft pulley bolt for turning the crankshaft while the pulley is removed.

       Remove the crankshaft pulley bolt.

    Courtesy of FORD MOTOR COMPANY

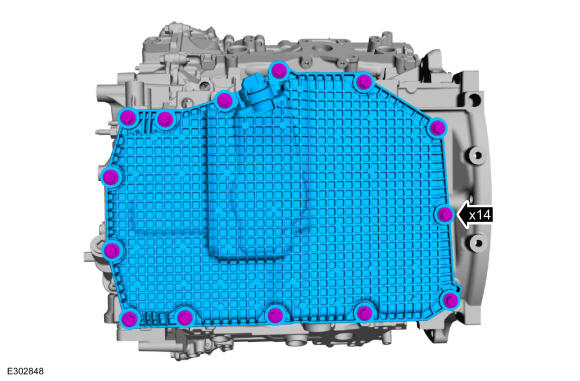

76. Remove the bolts and the oil pan.

    Courtesy of FORD MOTOR COMPANY

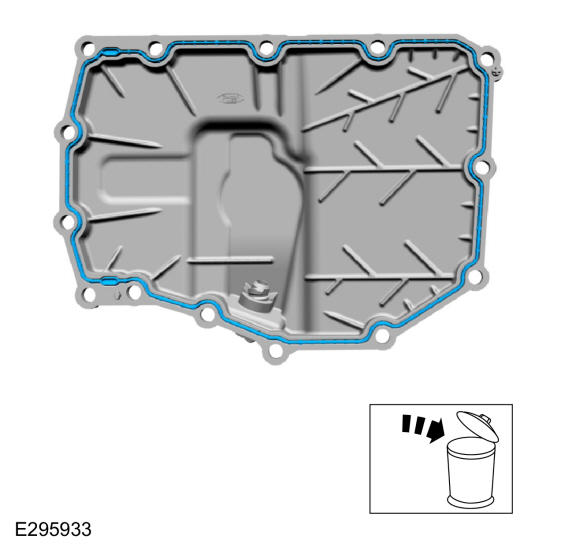

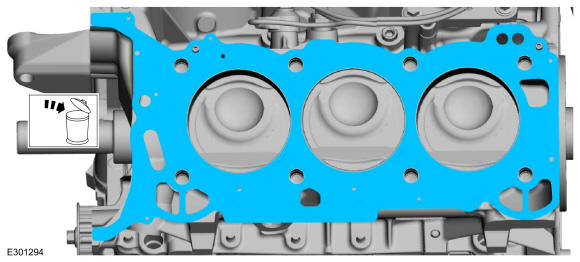

77. Remove and discard the oil pan gasket.

    Courtesy of FORD MOTOR COMPANY

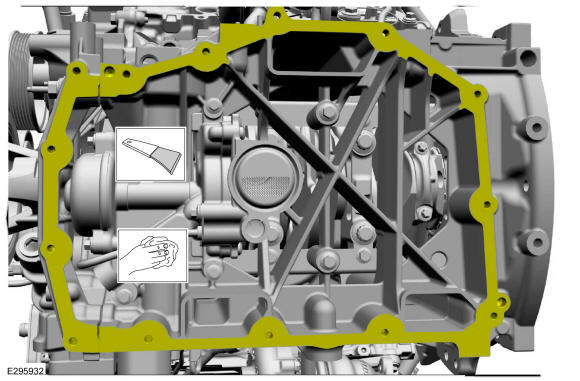

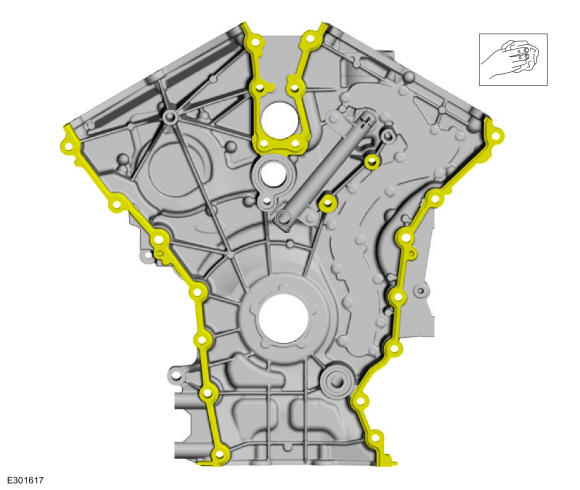

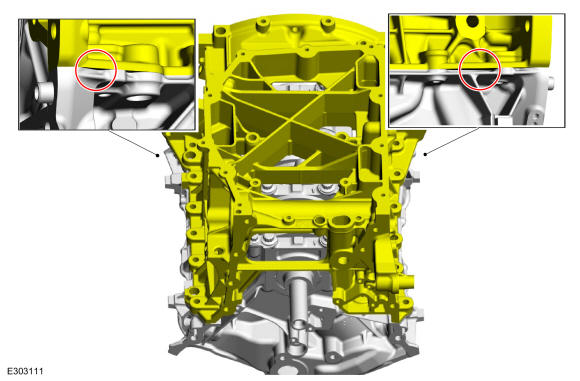

78. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges, which make leak paths. Use a plastic scraping tool to remove traces of Sealant.

    Make sure that the mating faces of the engine block and engine front cover are clean and free of foreign material.

    Courtesy of FORD MOTOR COMPANY

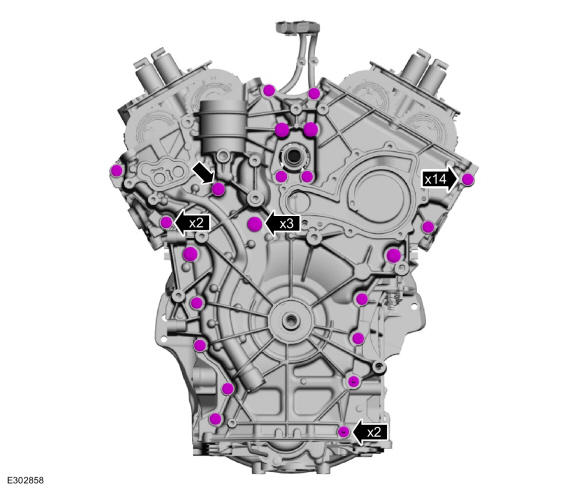

79. NOTE: There are 5 different types of fasteners, note location of each fastener for assembly.

    Remove the engine front cover fasteners.

    Courtesy of FORD MOTOR COMPANY

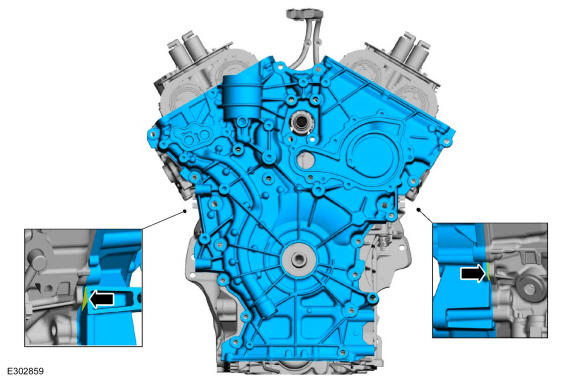

80. Using a large flat-bladed screwdriver and the indicated pry pads, release the sealer and remove the engine front cover. Use the General Equipment: Flat-Bladed Screwdriver

    Courtesy of FORD MOTOR COMPANY

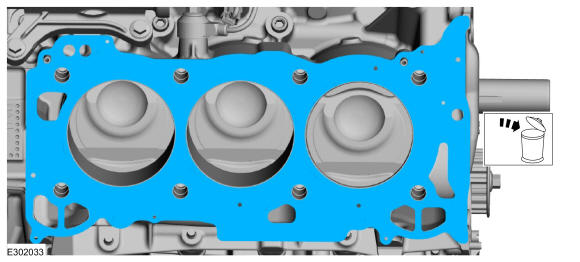

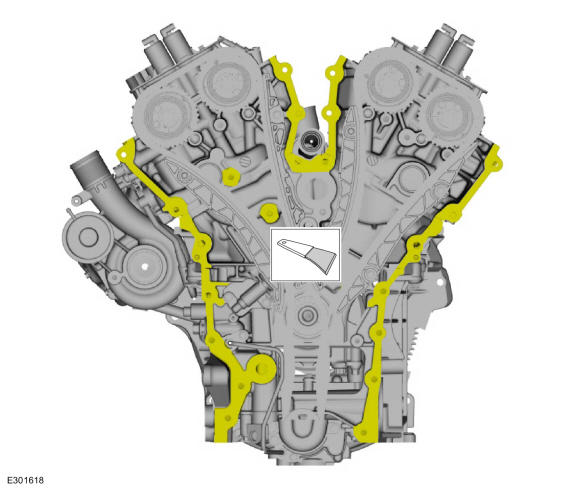

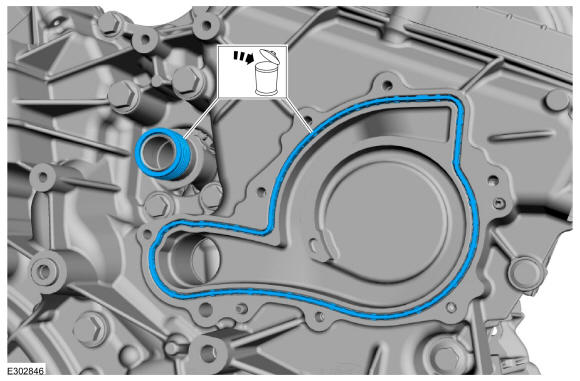

81. Remove and discard the engine front cover gaskets.

    Courtesy of FORD MOTOR COMPANY

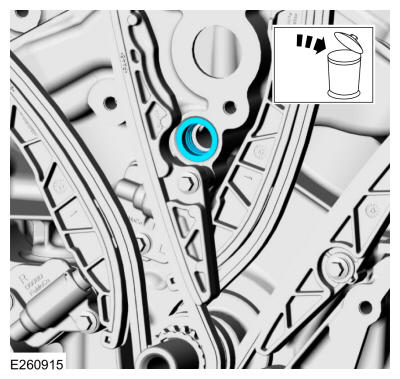

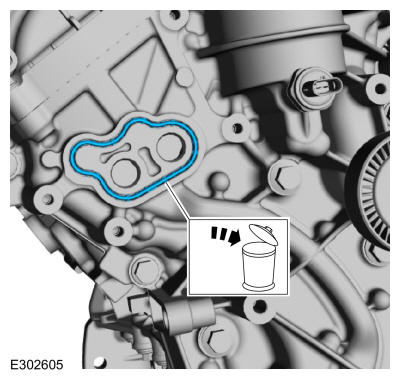

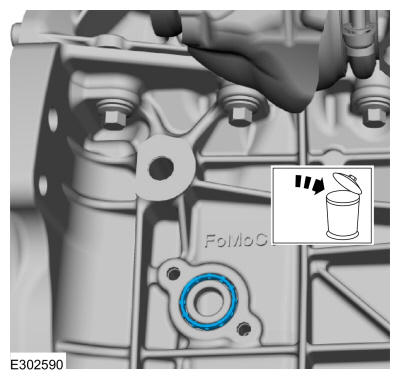

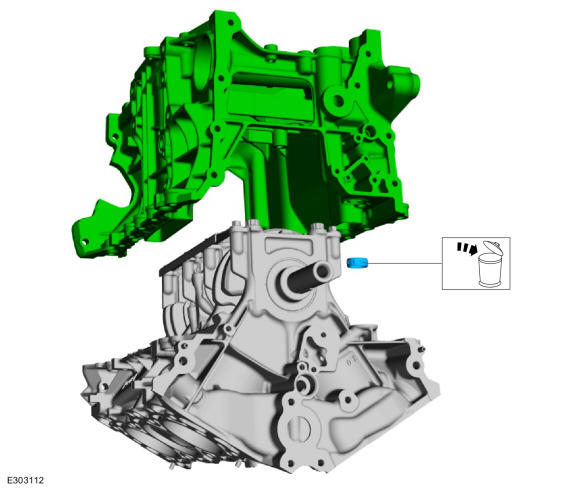

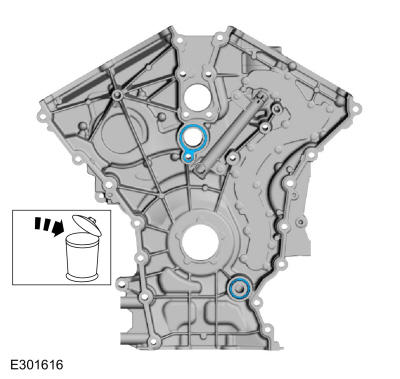

82. Remove and discard the oil gallery seal (6G068).

    Courtesy of FORD MOTOR COMPANY

83. NOTE: Only use a 3M™ Roloc® Bristle Disk (2-in white, part number 07528) to clean the engine front cover. Do not use metal scrapers, wire brushes or any other power abrasive disk to clean front cover.
    • Clean the engine front cover using a 3M™ Roloc® Bristle Disk (2-in white, part number 07528) in a suitable tool turning at the recommended speed of 15, 000 RPM. Refer to: RTV Sealing Surface Cleaning and Preparation .
    • Thoroughly wash the engine front cover to remove any foreign material, including any abrasive particles created during the cleaning process.

      Material: Motorcraft® Silicone Gasket Remover / ZC-30-A

      Material: Motorcraft® Metal Brake Parts cleaner / PM-4-A, PM-4-B

      Material: Motorcraft® Metal Surface Prep wipes / ZC-31-B

    Courtesy of FORD MOTOR COMPANY

84. NOTE: Place clean, lint-free shop towels over exposed engine cavities. Carefully remove the towels so foreign material is not dropped into the engine. Any foreign material (including any material created while cleaning gasket surfaces) that enters the oil passages may cause engine failure.

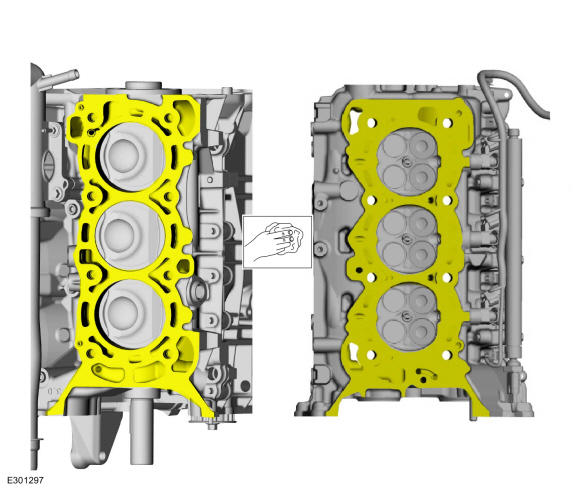

    NOTE: Do not use wire brushes, power abrasive discs or 3M™ Roloc® Bristle Disk (2-in white part number 07528) to clean the sealing surfaces. These tools cause scratches and gouges that make leak paths. They also cause contamination that will cause premature engine failure. Remove all traces of the gasket.

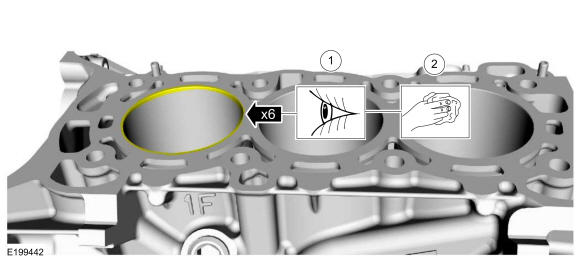

    Make sure that the mating faces of the engine block are clean and free of foreign material. Refer to: RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper

    Material: Motorcraft® Silicone Gasket Remover / ZC-30-A

    Material: Motorcraft® Metal Brake Parts cleaner / PM-4-A, PM-4-B

    Material: Motorcraft® Metal Surface Prep wipes / ZC-31-B

    Courtesy of FORD MOTOR COMPANY

85. NOTE: Rotate the crankshaft utilizing only the original crankshaft pulley bolt. Failure to follow this direction may cause damage to the crankshaft and result in engine failure.

    Install the original crankshaft pulley bolt.

    Courtesy of FORD MOTOR COMPANY

86. NOTE: The VCT units have 2 timing marks on them, a triangle and a circle. For removal and installation of the RH side the triangle marks are used.

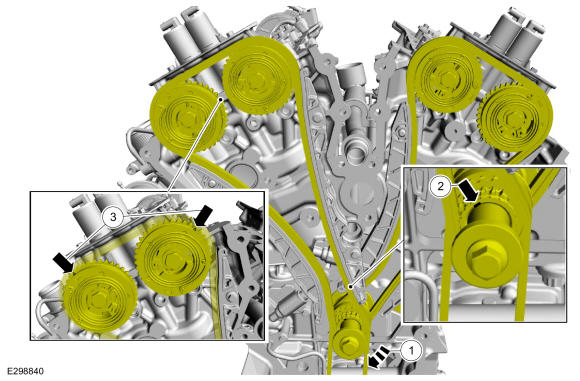

    1. Rotate the crankshaft clockwise.
    2. Position the crankshaft sprocket keyway at the 11 o'clock position.
    3. Verify the triangle  timing marks on the VCT units are at the 2 o'clock (intake) and 11 o'clock (exhaust) positions. If the circle  timing marks are at these positions the crankshaft must be turned clockwise one revolution (360 degrees).

    Courtesy of FORD MOTOR COMPANY

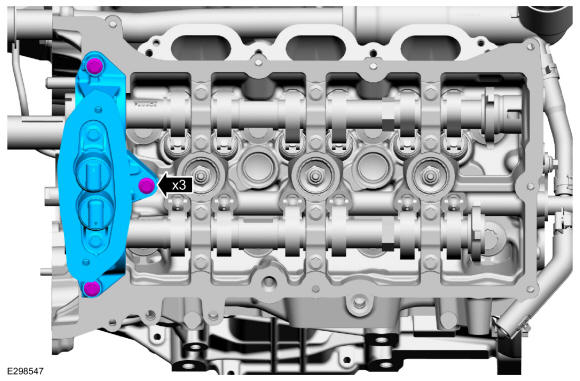

87. Remove the bolts and the RH timing chain tensioner.

    Courtesy of FORD MOTOR COMPANY

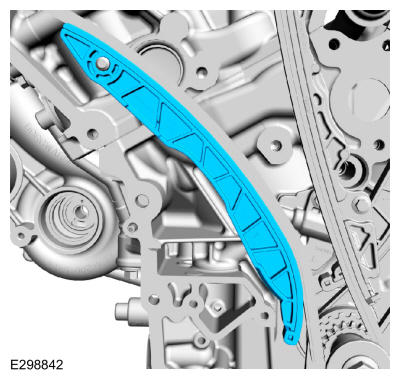

88. Remove the RH timing chain tensioner arm.

    Courtesy of FORD MOTOR COMPANY

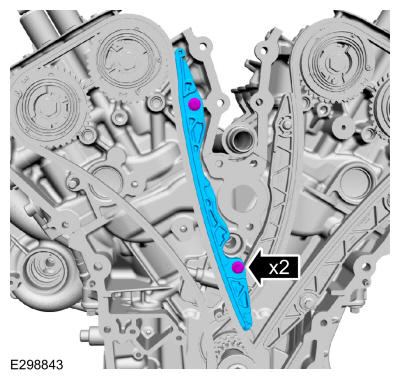

89. Remove the bolts and the RH timing chain guide.

    Courtesy of FORD MOTOR COMPANY

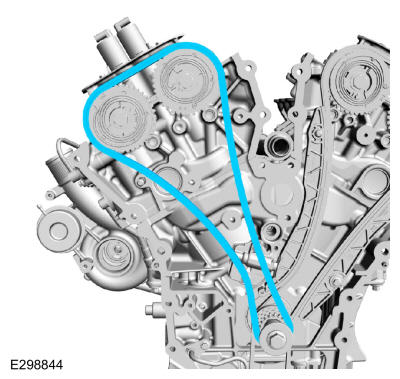

90. Remove the RH timing chain.

    Courtesy of FORD MOTOR COMPANY

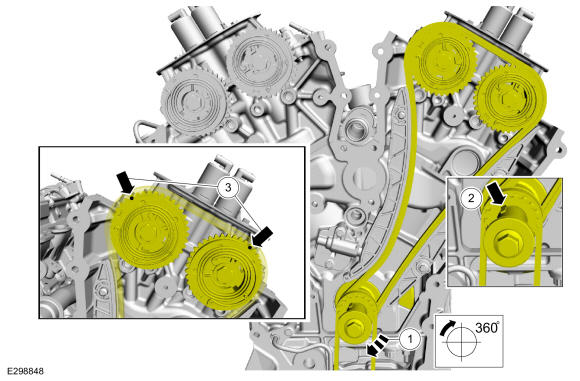

91. NOTE: The crankshaft must be rotated clockwise one revolution (360 degrees). Failure to do so will result in incorrect camshaft timing.
    NOTE: The VCT units have 2 timing marks on them, a triangle and a circle. For removal and installation of the LH side the circle marks are used.
    1. Rotate the crankshaft clockwise one revolution (360 degrees).
    2. Position the crankshaft sprocket keyway at the 11 o'clock position.
    3. The circle  timing marks on the VCT units will be at the 10 o'clock (intake) and 12:30 (exhaust) positions.

    Courtesy of FORD MOTOR COMPANY

92. Remove the original crankshaft pulley bolt.

    Courtesy of FORD MOTOR COMPANY

93. Remove the timing chain sprocket.

    Courtesy of FORD MOTOR COMPANY

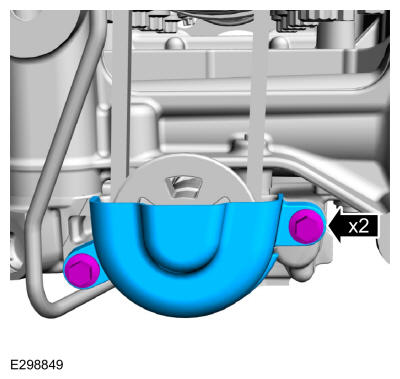

94. Remove the bolts and the splash shield.

    Courtesy of FORD MOTOR COMPANY

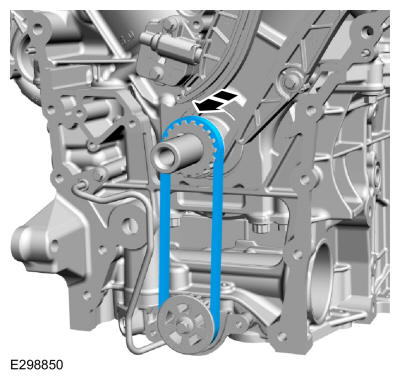

95. Slide the oil pump drive belt off of the crankshaft sprocket and remove the belt.

    Courtesy of FORD MOTOR COMPANY

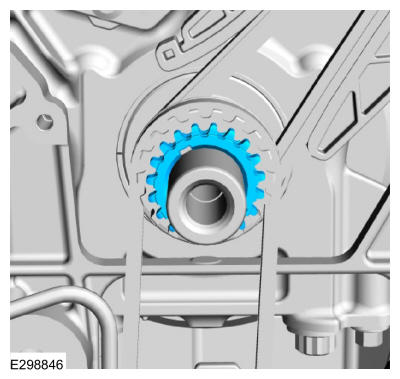

96. Remove the crankshaft sprocket.

    Courtesy of FORD MOTOR COMPANY

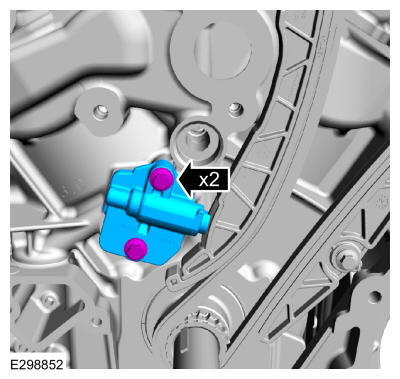

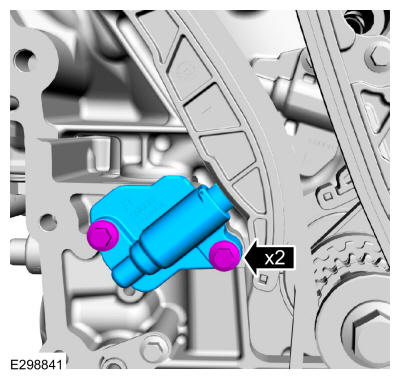

97. Remove the bolts and the LH timing chain tensioner.

    Courtesy of FORD MOTOR COMPANY

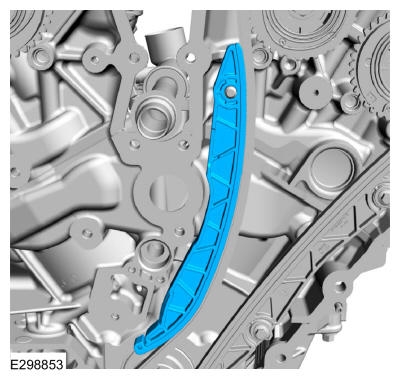

98. Remove the LH timing chain tensioner arm.

    Courtesy of FORD MOTOR COMPANY

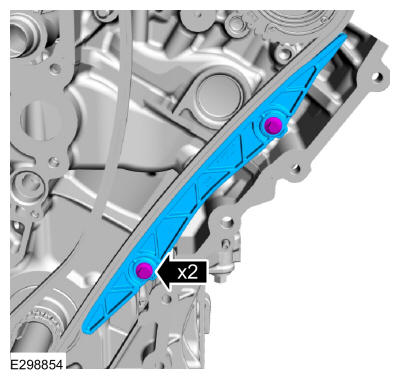

99. Remove the bolts and the LH timing chain guide.

    Courtesy of FORD MOTOR COMPANY

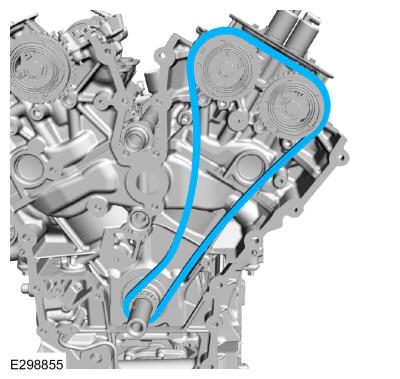

100. Remove the LH timing chain.

     Courtesy of FORD MOTOR COMPANY

101. Remove the timing chain sprocket.

     Courtesy of FORD MOTOR COMPANY

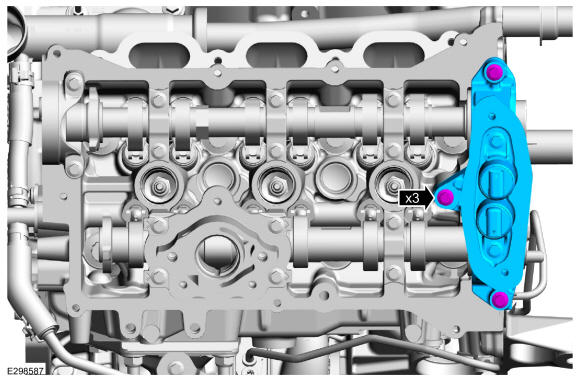

102. • Remove the bolts and the oil return tube,
     • Remove the bolt and the oil control solenoid.

     Courtesy of FORD MOTOR COMPANY

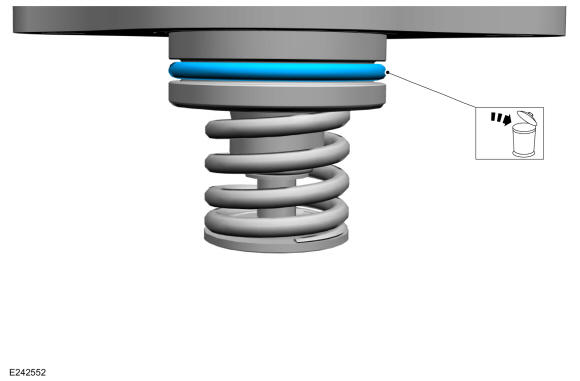

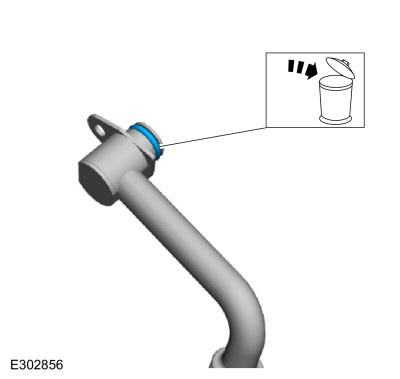

103. Remove and discard the O-ring seals.

     Courtesy of FORD MOTOR COMPANY

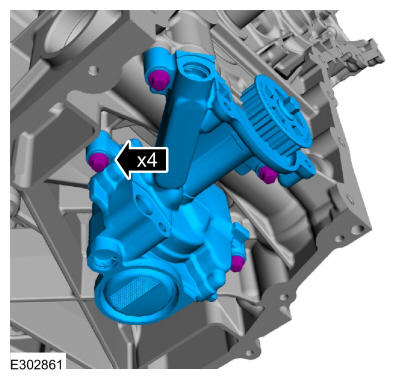

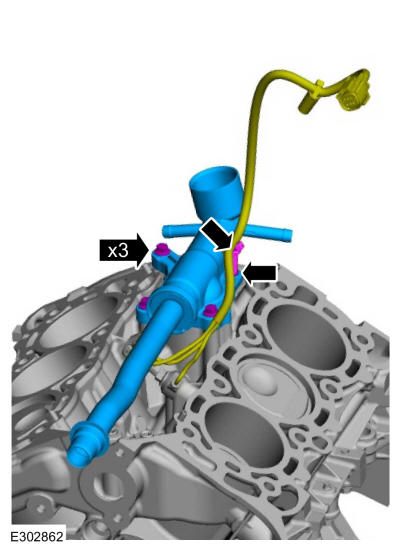

104. Remove the bolts and the oil pump.

     Courtesy of FORD MOTOR COMPANY

105. 1. Install Special Service Tool: 303-1696 Cam Comb Tool Study.
     2. Remove and discard the VCT unit bolts.
     3. Remove the VCT units.
     4. Remove Special Service Tool: 303-1696 Cam Comb Tool Study.

     Courtesy of FORD MOTOR COMPANY

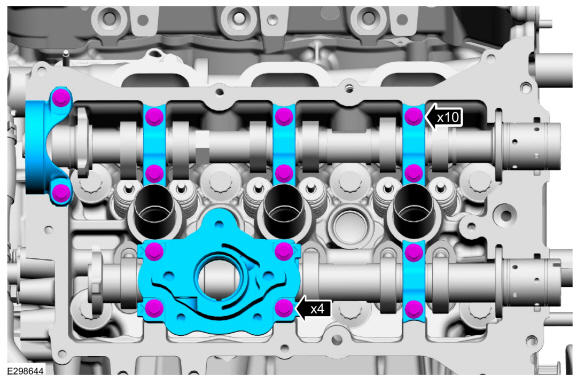

106. NOTE: The front camshaft bearing mega cap must be removed first and then the remaining camshaft bearing caps. Failure to follow this direction may result in damage to the engine.

     Remove the bolts and the front camshaft bearing mega cap.

     Courtesy of FORD MOTOR COMPANY

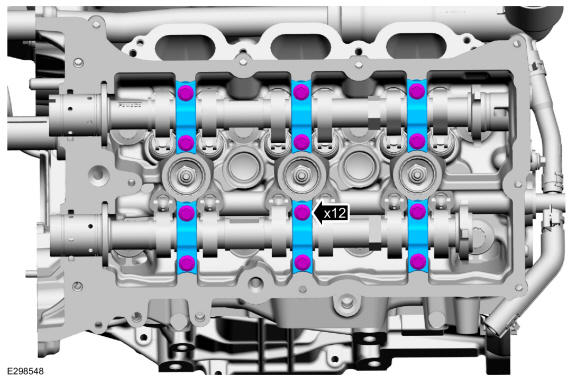

107. Remove the bolts and the camshaft bearing caps.

     Courtesy of FORD MOTOR COMPANY

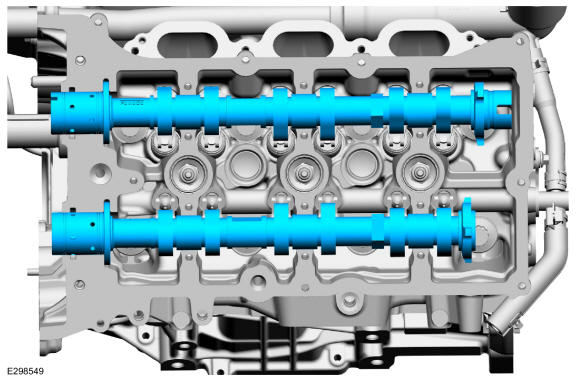

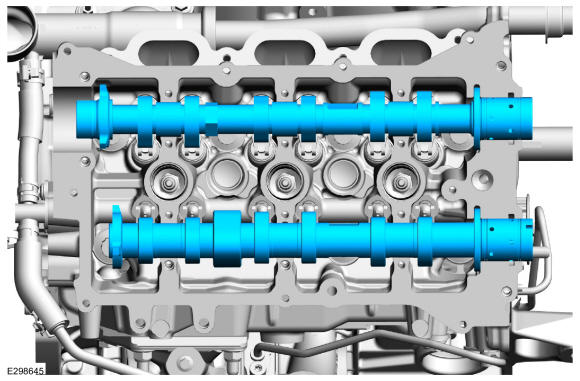

108. Remove the intake and exhaust camshafts.

     Courtesy of FORD MOTOR COMPANY

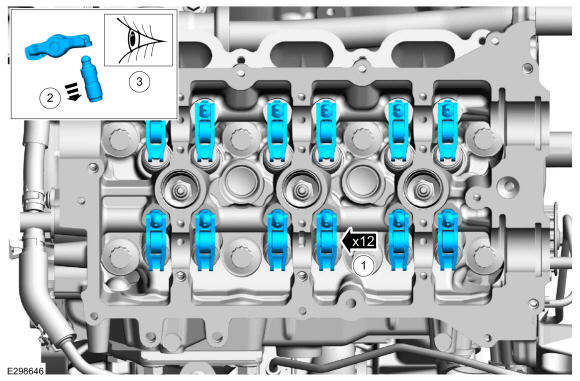

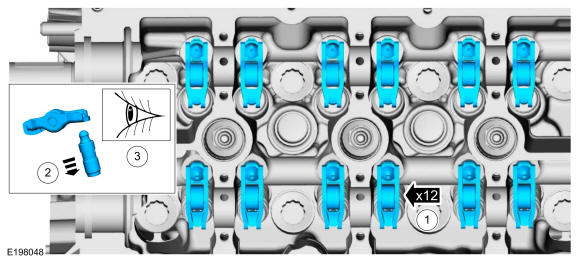

109. 1. Remove the camshaft roller follower and hydraulic lash adjuster assemblies.
     2. Separate the hydraulic lash adjusters from the spring clips on the camshaft roller followers.
     3. Inspect the hydraulic lash adjuster and roller follower for damage. If any damage is found, inspect the camshaft lobes and valves for damage. Replace damaged components as necessary.

     Courtesy of FORD MOTOR COMPANY

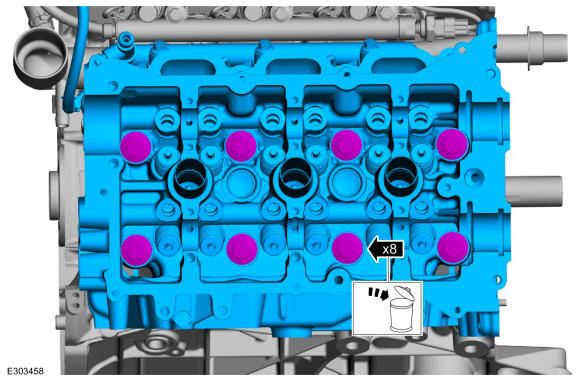

110. • Remove and discard the cylinder head bolts.
     • Remove the cylinder head.

     Courtesy of FORD MOTOR COMPANY

111. Remove and discard the cylinder head gasket.

     Courtesy of FORD MOTOR COMPANY

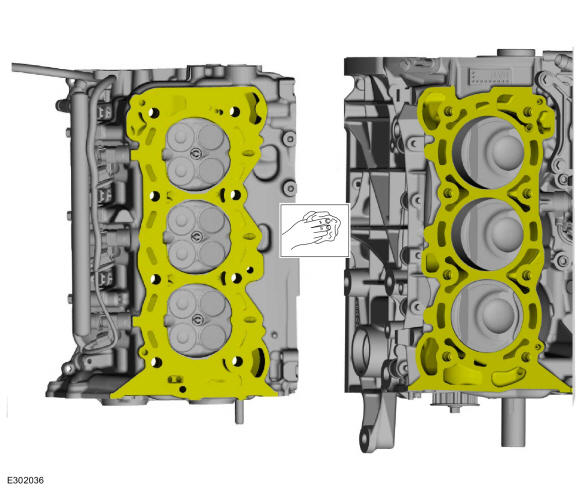

112. • Clean and inspect the cylinder head-to-cylinder block mating surfaces of both the cylinder head and the cylinder block.
     • Refer to: Cylinder Head Distortion .
     • Refer to: Cylinder Block Distortion .

     Courtesy of FORD MOTOR COMPANY

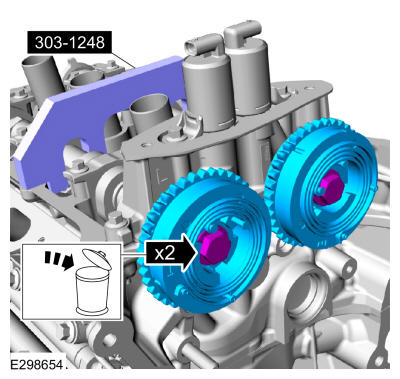

113. 1. Install Special Service Tool: 303-1248 Camshaft holding tools.
     2. Remove and discard the VCT unit bolts.
     3. Remove the VCT units.
     4. Remove Special Service Tool: 303-1248 Camshaft holding tools.

     Courtesy of FORD MOTOR COMPANY

114. NOTE: The front camshaft bearing mega cap must be removed first and then the remaining camshaft bearing caps. Failure to follow this direction may result in damage to the engine.

     Remove the bolts and the front camshaft bearing mega cap.

     Courtesy of FORD MOTOR COMPANY

115. Remove the bolts and the camshaft bearing caps.

     Courtesy of FORD MOTOR COMPANY

116. Remove the intake and exhaust camshafts.

     Courtesy of FORD MOTOR COMPANY

117. 1. Remove the camshaft roller follower and hydraulic lash adjuster assemblies.
     2. Separate the hydraulic lash adjusters from the spring clips on the camshaft roller followers.
     3. Inspect the hydraulic lash adjuster and roller follower for damage. If any damage is found, inspect the camshaft lobes and valves for damage. Replace damaged components as necessary.

     Courtesy of FORD MOTOR COMPANY

118. • Remove and discard the cylinder head bolts.
     • Remove the cylinder head.

     Courtesy of FORD MOTOR COMPANY

119. Remove and discard the cylinder head gasket.

     Courtesy of FORD MOTOR COMPANY

120. • Clean and inspect the cylinder head-to-cylinder block mating surfaces of both the cylinder head and the cylinder block.
     • Refer to: Cylinder Head Distortion .
     • Refer to: Cylinder Block Distortion .

     Courtesy of FORD MOTOR COMPANY

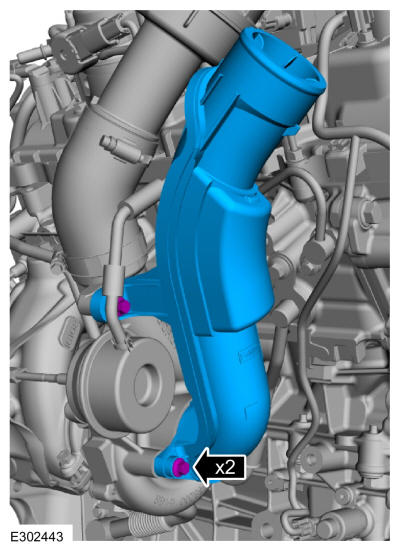

121. 1. Detach the wiring harness retainer from the stud bolt
     2. Remove the stud bolt, the nuts and the coolant outlet connector pipe.

     Courtesy of FORD MOTOR COMPANY

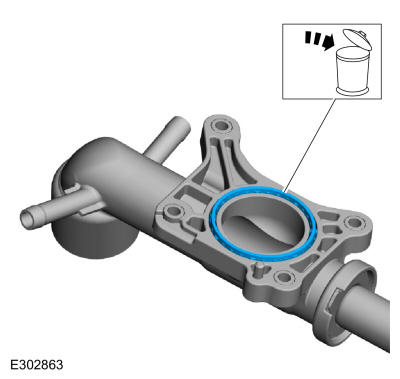

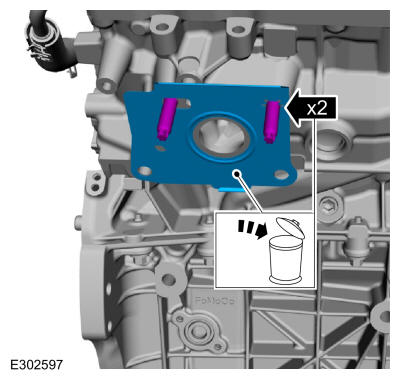

122. Remove and discard the coolant outlet connector pipe gasket.

     Courtesy of FORD MOTOR COMPANY

123. 1. Disconnect the ECT sensor electrical connector.
     2. Remove the bolts and the KS assembly.

     Courtesy of FORD MOTOR COMPANY

124. NOTE: Do not reuse the ECT sensor, install a new sensor.

     Remove and discard the ECT sensor.

     Courtesy of FORD MOTOR COMPANY

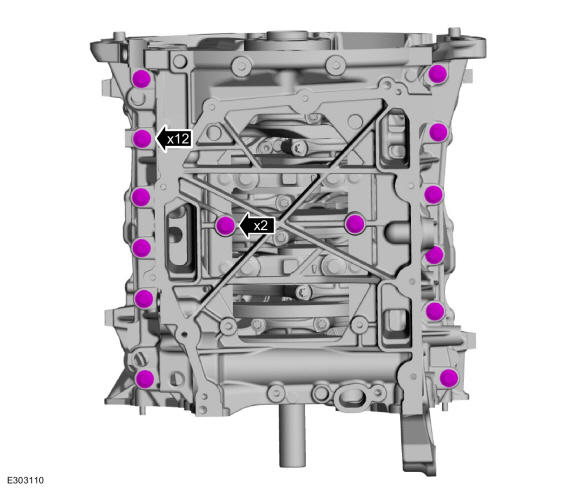

125. Remove the engine block skirt stiffener bolts.

     Courtesy of FORD MOTOR COMPANY

126. Using a suitable pry bar at the pry pad locations, release the engine block skirt stiffener-to-engine block seal.

     Courtesy of FORD MOTOR COMPANY

127. • Remove the engine block skirt stiffener.
     • Remove and discard the oil seal.

     Courtesy of FORD MOTOR COMPANY

128. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of old Sealant.

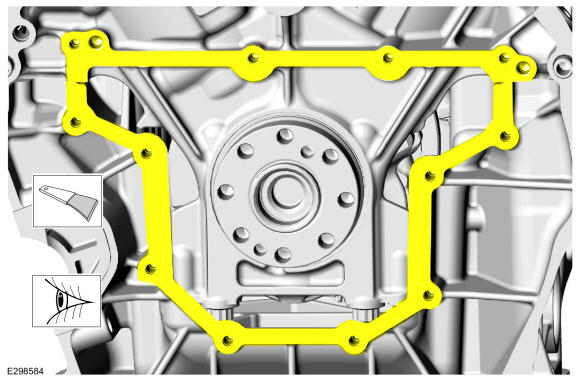

     Clean and inspect the mating surfaces. Refer to: RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper

     Material: Motorcraft® Silicone Gasket Remover / ZC-30-A

     Material: Motorcraft® Metal Brake Parts cleaner / PM-4-A, PM-4-B

     Material: Motorcraft® Metal Surface Prep wipes / ZC-31-B

     Courtesy of FORD MOTOR COMPANY

129. • Before removing the pistons, inspect the top of the cylinder bores.
     • If necessary, remove the ridge or carbon deposits from each cylinder using an abrasive pad.

     Courtesy of FORD MOTOR COMPANY

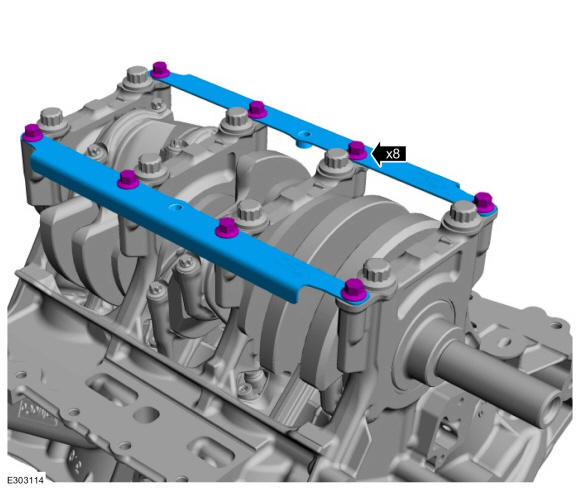

130. Remove the bolts and the main bearing cap support braces.

     Courtesy of FORD MOTOR COMPANY

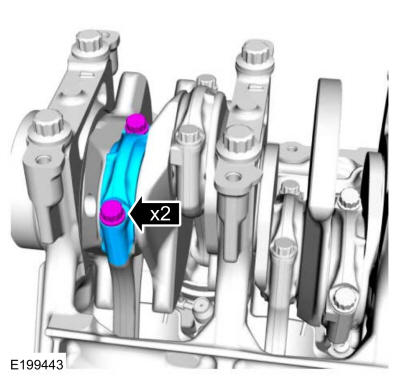

131. Remove the bolts and the connecting rod cap.

     Courtesy of FORD MOTOR COMPANY

132. NOTE: Position the cylinder bank for the piston serviced in a vertical position. Do not scratch the cylinder walls or crankshaft journals with the connecting rod or engine damage may occur.

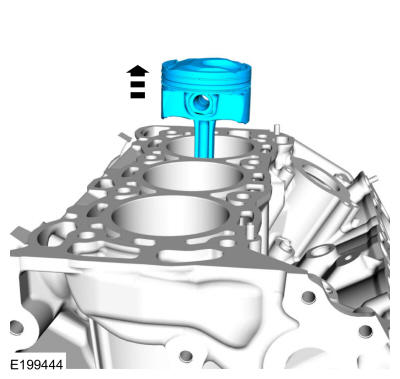

     • Remove the piston through the top of the cylinder block
     • Repeat the steps for each of the remaining pistons.

     Courtesy of FORD MOTOR COMPANY

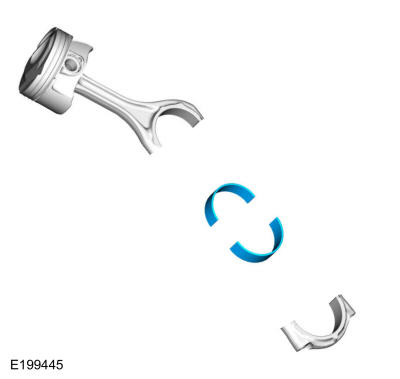

133. • Remove the connecting rod bearings.

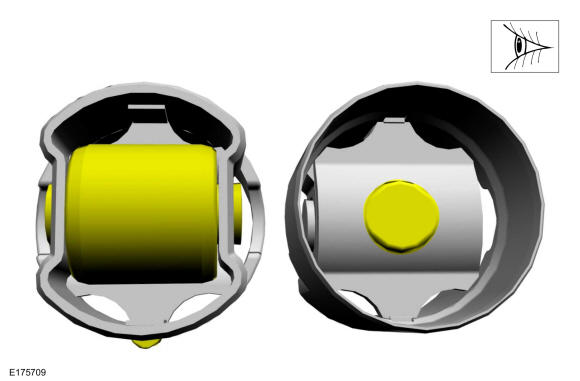

     • Disassemble and inspect the pistons. Refer to: Piston . Refer to: Piston Inspection .

     Courtesy of FORD MOTOR COMPANY

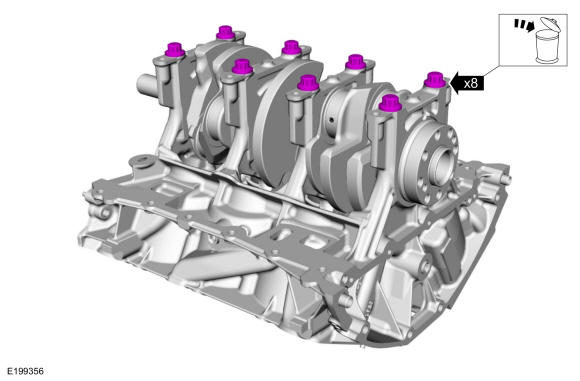

134. Remove and discard the main bearing cap bolts.

     Courtesy of FORD MOTOR COMPANY

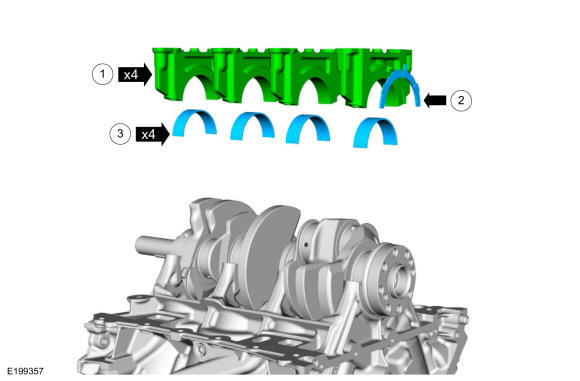

135. 1. Remove the main bearing caps.
     2. Remove the lower thrust washer.
     3. Remove the lower main bearings.

     Courtesy of FORD MOTOR COMPANY

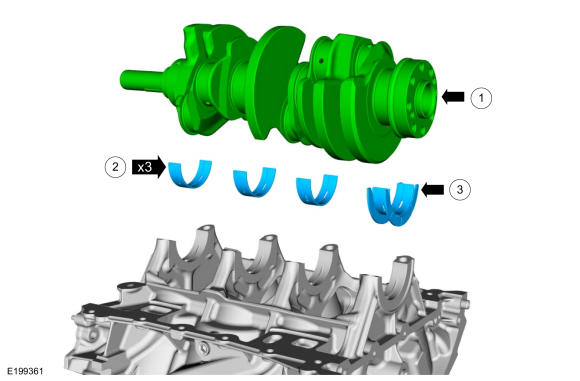

136. 1. Remove the crankshaft.
     2. Remove the lower main bearings.
     3. Remove the lower thrust bearing.

     Courtesy of FORD MOTOR COMPANY

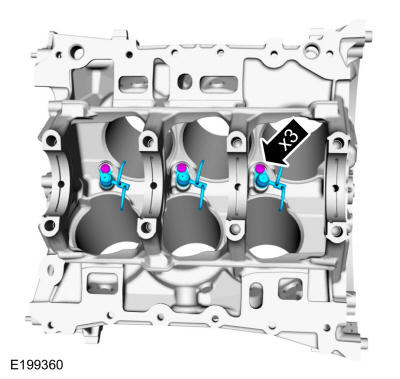

137. Remove the bolts and the piston cooling jets from the cylinder block.

Courtesy of FORD MOTOR COMPANY
