Engine - 3.0L ECOBOOST: Installation: Engine

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	303-1246 Engine Spreader Bar TKIT-2006UF-FLM TKIT-2006UF-ROW
Courtesy of FORD MOTOR COMPANY	303-1634 Lift Eyes (2) TKIT-2014D-ROW3 TKIT-2014D-FL_ROW
Adjustable Mounting Arm
Wooden Block

Materials

1. Inspect the turbocharger or engine air intake system components and clean, if necessary.

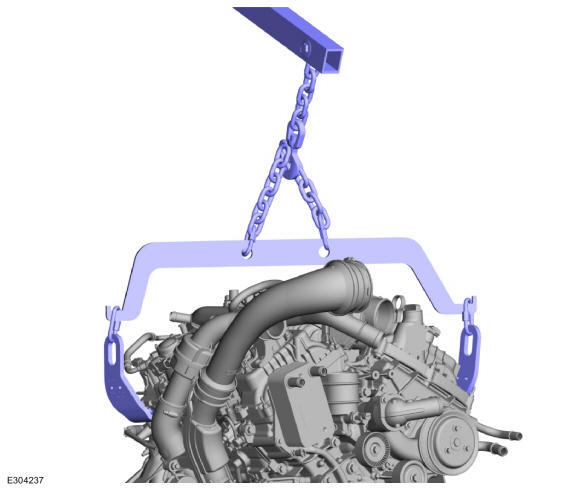

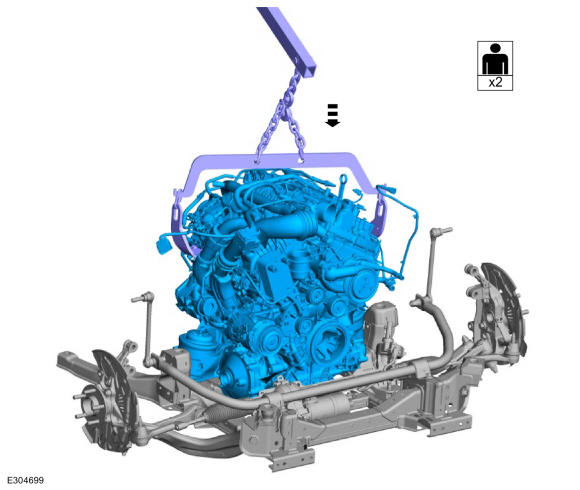

2. With the aid of an assistant and using the floor crane and chain, install the engine on the subframe.

   Courtesy of FORD MOTOR COMPANY

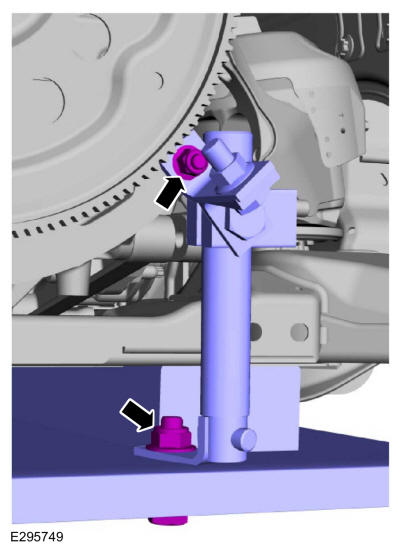

3. Install and adjust and tighten the adjustable mounting arm bolts. Use the General Equipment: Adjustable Mounting Arm

   Courtesy of FORD MOTOR COMPANY

4. Remove the floor crane and chain.

   Courtesy of FORD MOTOR COMPANY

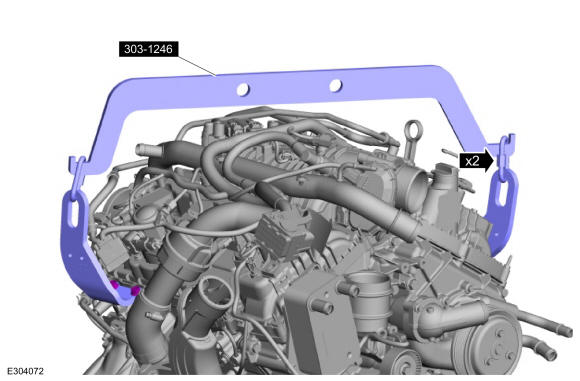

5. Remove the spreader bar and quick links. Remove Special Service Tool: 303-1246 Engine Spreader Bar.

   Courtesy of FORD MOTOR COMPANY

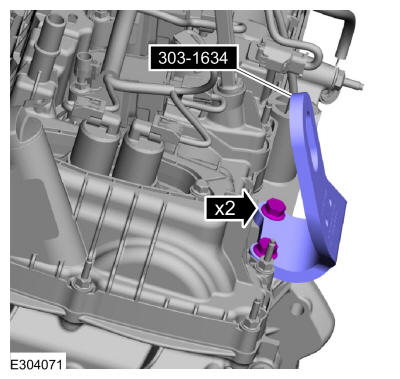

6. Remove Special Service Tool: 303-1634 Lift Eyes (2).

   Courtesy of FORD MOTOR COMPANY

7. Remove Special Service Tool: 303-1634 Lift Eyes (2).

   Courtesy of FORD MOTOR COMPANY

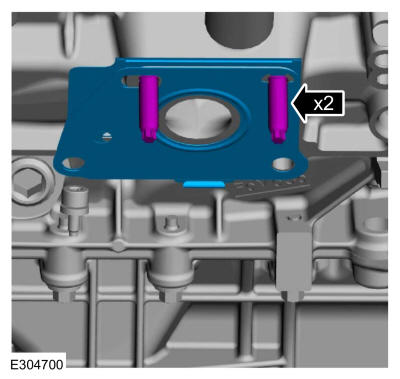

8. • If removed, install new TC mounting studs.

     Torque: 102 lb.in (11.5 Nm)

   • Install a new TC gasket.

   Courtesy of FORD MOTOR COMPANY

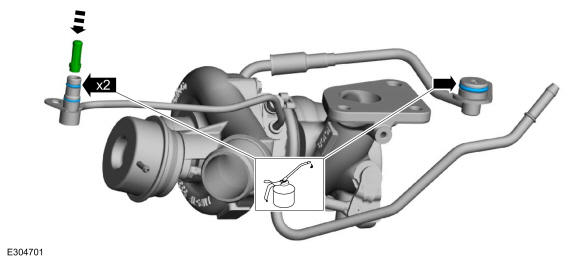

9. 1. Install new TC oil supply tube O-ring seals and a new TC oil supply tube oil filter. Lubricate the new TC oil supply tube O-ring seals with clean engine oil.
   2. Install a new TC coolant supply tube O-ring seal. Lubricate the new TC coolant supply tube O-ring seal with clean engine coolant.

   Courtesy of FORD MOTOR COMPANY

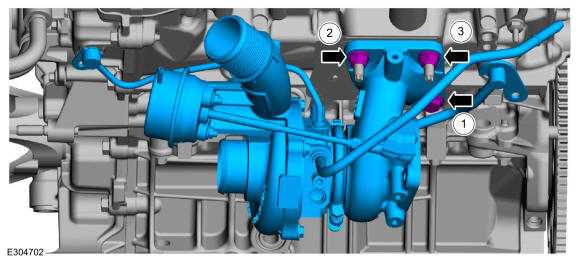

10. 1. NOTE: Install the coolant supply tube and the oil supply tube to the engine block while installing the TC.

       Install the TC and loosely install the new fasteners.

    2. Tighten the fasteners in sequence.

       Torque: Fastener 1: 44 lb.ft (60 Nm) - Fastener 2: 44 lb.ft (60 Nm) - Fastener 3: 27 lb.ft (37 Nm) - Re-tighten fastener 1: 44 lb.ft (60 Nm) - Re-tighten fastener 2: 44 lb.ft (60 Nm) - Re-tighten fastener 3: 27 lb.ft (37 Nm)

    Courtesy of FORD MOTOR COMPANY

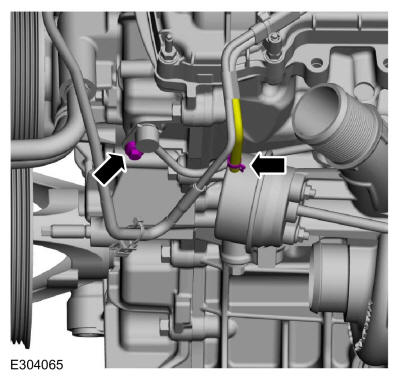

11. • Install the TC oil supply tube bolt.

      Torque: 18 lb.ft (24 Nm)

    • Connect the vacuum hose and clamp.

    Courtesy of FORD MOTOR COMPANY

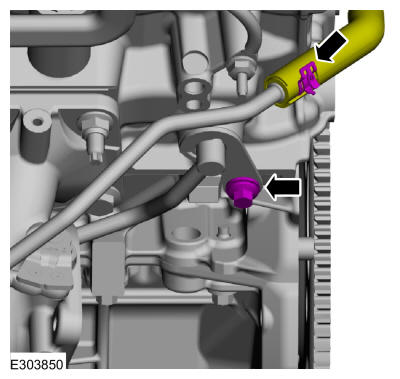

12. • Install the TC coolant supply tube bolt.

      Torque: 89 lb.in (10 Nm)

    • Connect the TC coolant return hose and clamp.

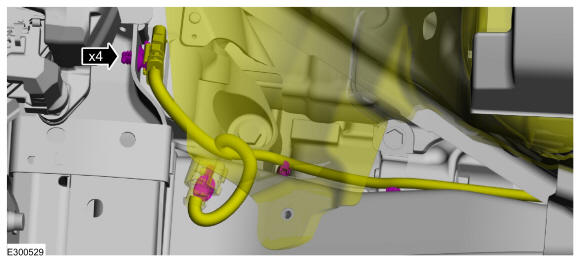

    Courtesy of FORD MOTOR COMPANY

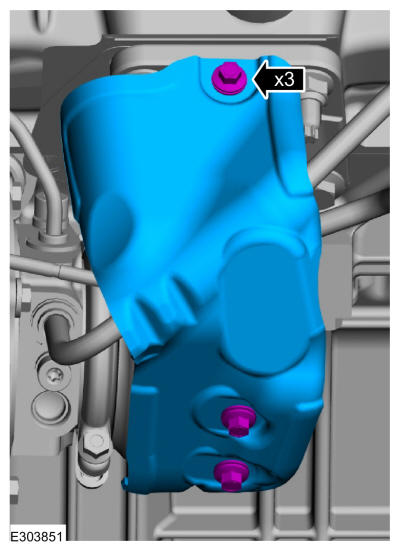

13. Install the heat shield and the bolts.

    Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

14. Install a new TC oil return tube O-ring seal and lubricate with clean engine oil.

    Courtesy of FORD MOTOR COMPANY

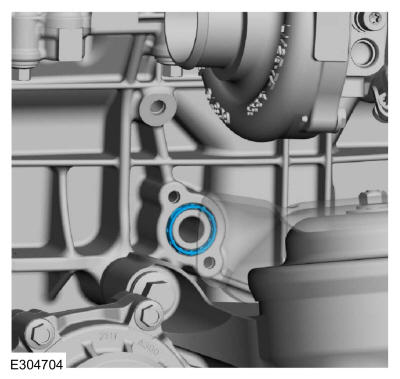

15. Install a new TC oil return tube-to-engine block gasket.

    Courtesy of FORD MOTOR COMPANY

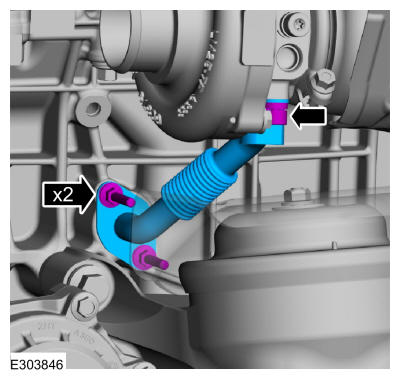

16. Install the TC oil return tube and the fasteners.

    Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

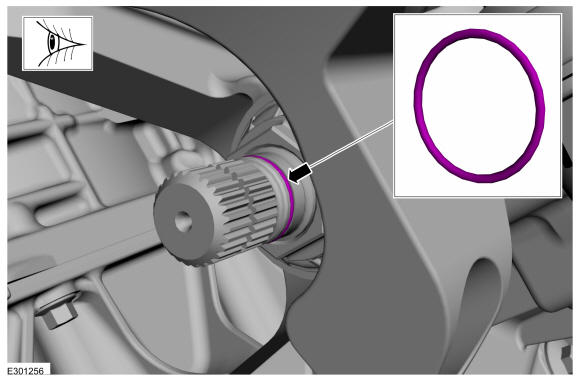

17. NOTE: Make sure that a new component is installed.
    NOTE: Make sure that the O-ring is seated correctly.

    Install a new front axle pinion stem O-ring.

    Courtesy of FORD MOTOR COMPANY

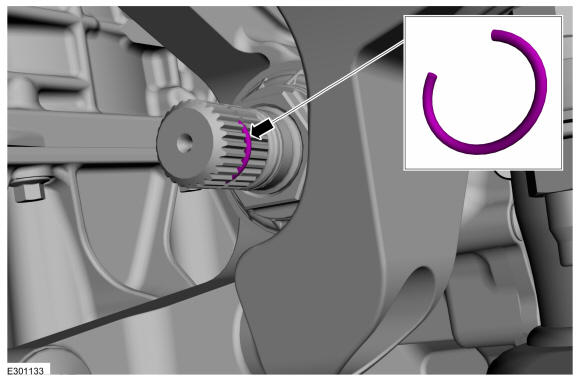

18. NOTE: Make sure that a new component is installed.

    Install the new front axle pinion stem circlip.

    Courtesy of FORD MOTOR COMPANY

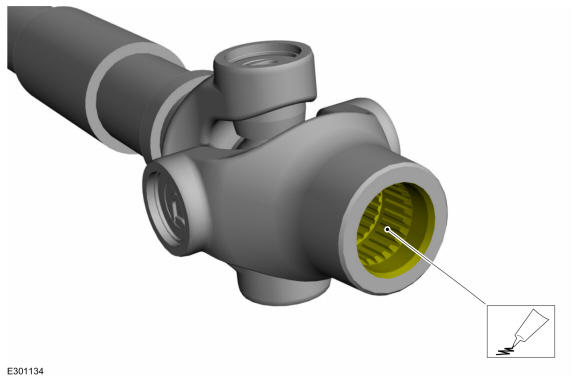

19. NOTE: Do not over-lubricate the driveshaft components. Using excessive Grease may damage the driveshaft components.
    NOTE: Wipe off any excess Grease.

    Lubricate the front drive axle splines with Grease.

    Material: Motorcraft® Premium Long-Life Grease / XG-1-E1 (ESA-M1C75-B)

    Courtesy of FORD MOTOR COMPANY

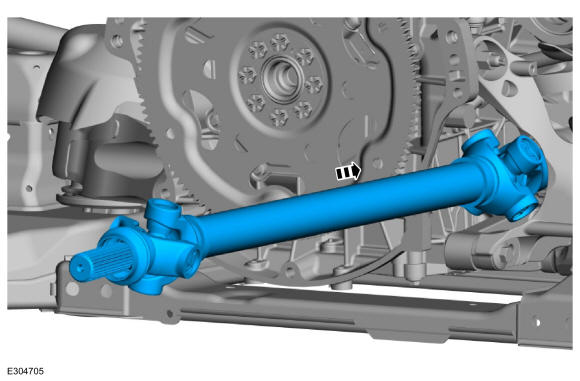

20. Install the front drive shaft.

    Courtesy of FORD MOTOR COMPANY

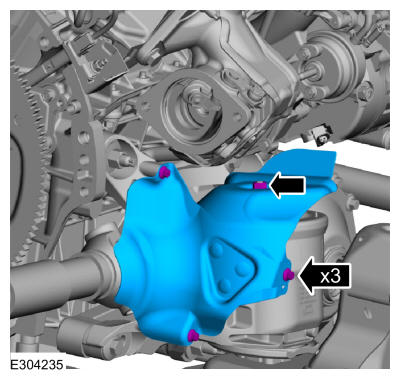

21. Install the heat shield and the fasteners.

    Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

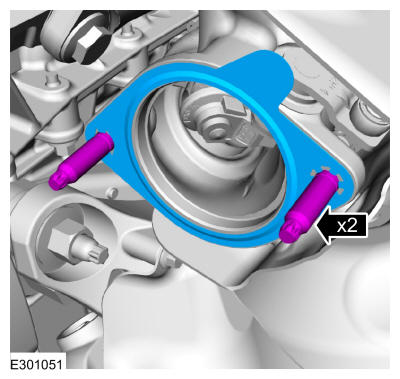

22. • If removed, install new studs.

      Torque: 18 lb.ft (25 Nm)

    • Install the new gasket.

    Courtesy of FORD MOTOR COMPANY

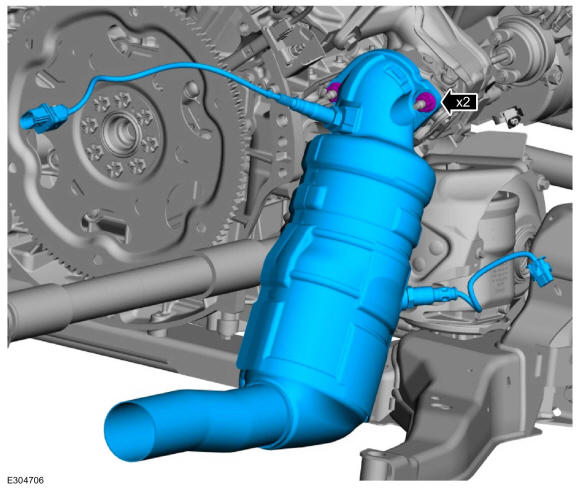

23. Install the RH catalytic converter and the new nuts.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

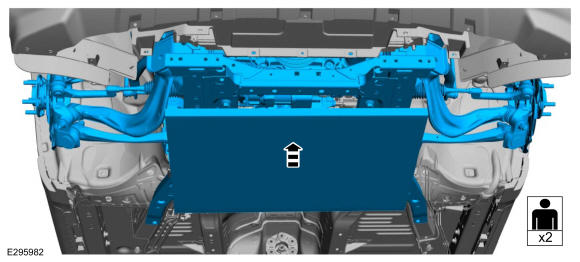

24. With the aid of an assistant and using the powertrain jack, raise the powertrain and subframe as an assembly 25.4 mm (1 in) from the frame.

    Courtesy of FORD MOTOR COMPANY

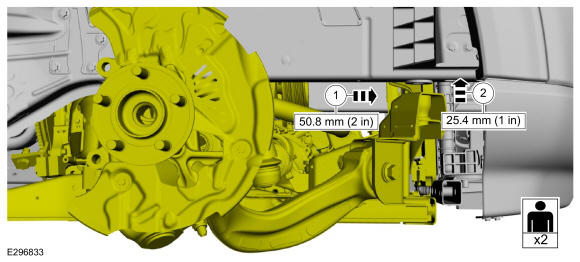

25. 1. With the aid of an assistant and using the powertrain jack, position the powertrain and subframe forwards 50.8 mm (2 in).
    2. With the aid of an assistant and using the powertrain jack, raise the powertrain and subframe 25.4 mm (1 in).

    Courtesy of FORD MOTOR COMPANY

26. Install the new rear subframe bolts finger tight.

    Courtesy of FORD MOTOR COMPANY

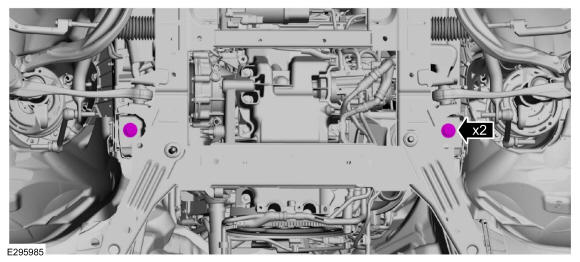

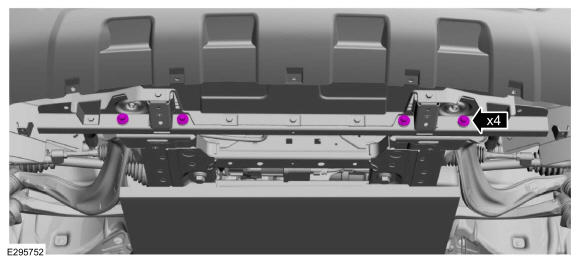

27. Install the new front subframe bolts finger tight.

    Courtesy of FORD MOTOR COMPANY

28. Install the new middle subframe bolts finger tight.

    Courtesy of FORD MOTOR COMPANY

29. Tighten the rear subframe bolts.

    Torque: 52 lb.ft (70 Nm)

    Courtesy of FORD MOTOR COMPANY

30. Tighten the front subframe bolts.

    Torque: 195 lb.ft (265 Nm)

    Courtesy of FORD MOTOR COMPANY

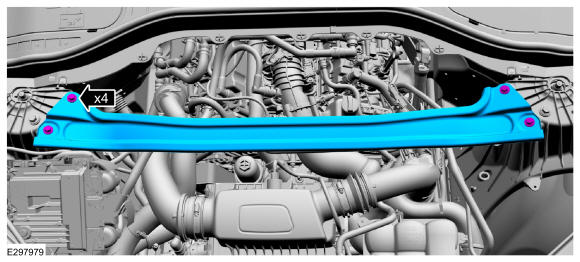

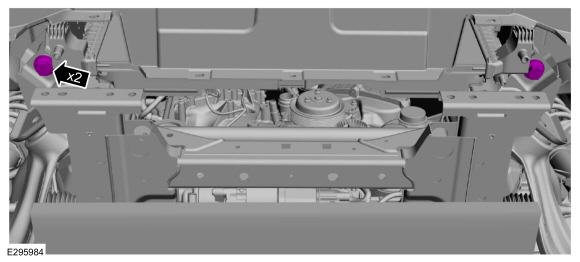

31. Install the front radiator support bar bolts.

    Torque: 46 lb.ft (63 Nm)

    Courtesy of FORD MOTOR COMPANY

32. Remove. Use the General Equipment: Adjustable Mounting Arm

    Courtesy of FORD MOTOR COMPANY

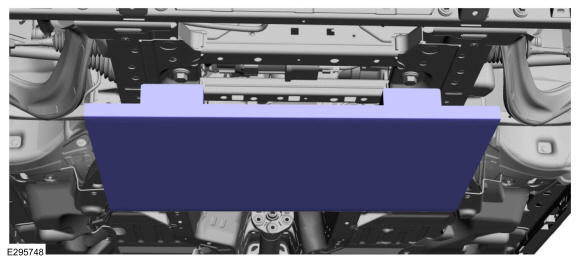

33. Remove the powertrain jack and wooden blocks Use the General Equipment: Wooden Block

    Courtesy of FORD MOTOR COMPANY

34. Tighten the middle subframe bolts.

    Torque: 195 lb.ft (265 Nm)

    Courtesy of FORD MOTOR COMPANY

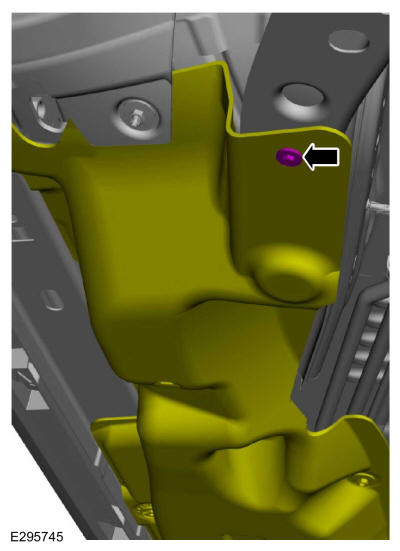

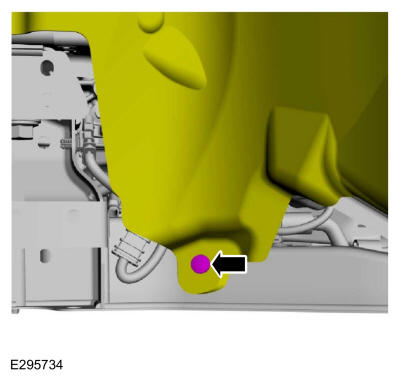

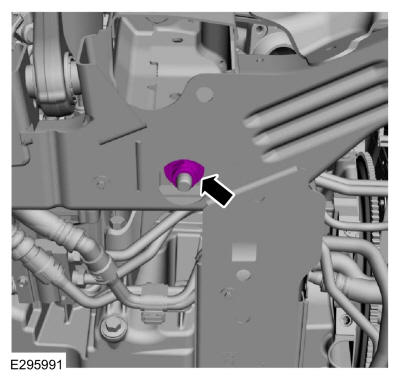

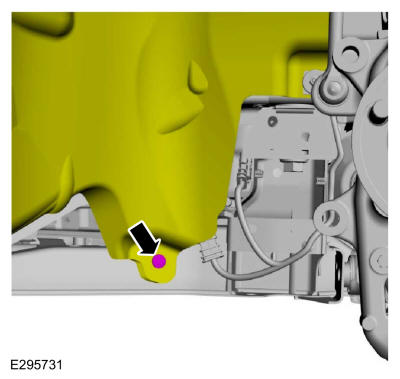

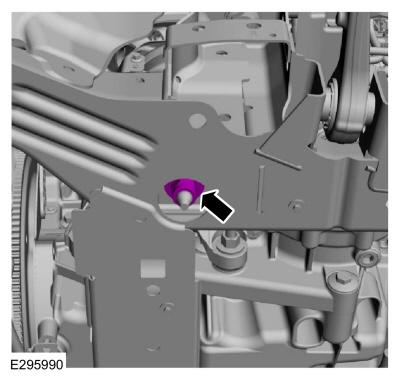

35. Position the LH underbody shield and install the bolt.

    Torque: 22 lb.in (2.5 Nm)

    Courtesy of FORD MOTOR COMPANY

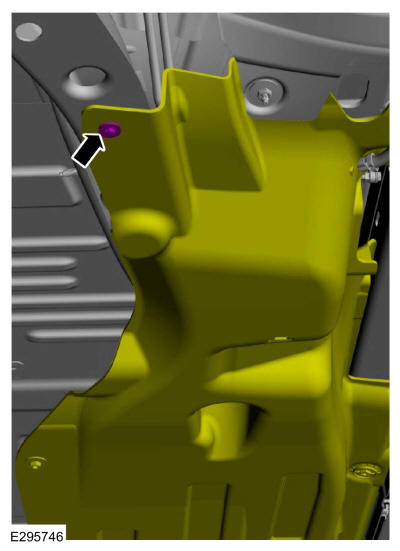

36. Position the RH underbody shield and install the bolt.

    Torque: 22 lb.in (2.5 Nm)

    Courtesy of FORD MOTOR COMPANY

37. NOTE: Only use hand tools when removing the engine mount nuts or damage to the engine mount can occur.

    Install the new RH engine mount nut.

    Torque: 184 lb.ft (250 Nm)

    Courtesy of FORD MOTOR COMPANY

38. NOTE: Only use hand tools when removing the engine mount nuts or damage to the engine mount can occur.

    Install the new LH engine mount nut.

    Torque: 184 lb.ft (250 Nm)

    Courtesy of FORD MOTOR COMPANY

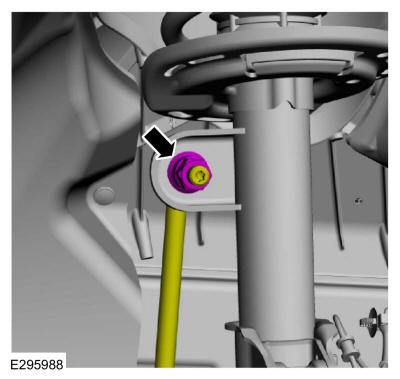

39. NOTE: Use the internal or external hex-holding feature to prevent the ball and stud from turning while removing or installing the stabilizer bar link nuts. The link boot seal must not be allowed to twist while tightening the link nuts or damage to the boot seal will occur.

    Position the RH sway bar link and install the new nut.

    Torque: 129 lb.ft (175 Nm)

    Courtesy of FORD MOTOR COMPANY

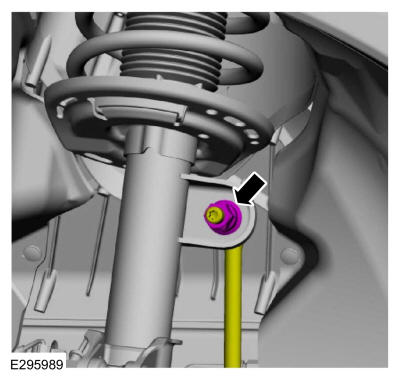

40. NOTE: Use the internal or external hex-holding feature to prevent the ball and stud from turning while removing or installing the stabilizer bar link nuts. The link boot seal must not be allowed to twist while tightening the link nuts or damage to the boot seal will occur.

    Position the LH sway bar link and install the new nut.

    Torque: 129 lb.ft (175 Nm)

    Courtesy of FORD MOTOR COMPANY

41. • Connect the RH heated oxygen sensor electrical connector.
    • Attach the wiring harness retainer.

    Courtesy of FORD MOTOR COMPANY

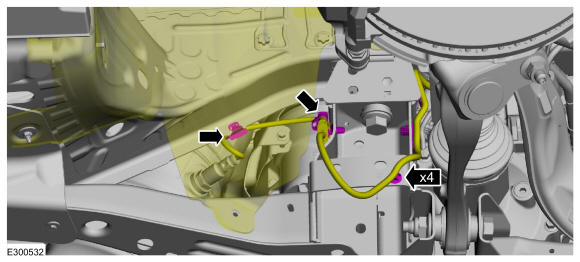

42. • Connect the catalyst monitor sensor electrical connector.
    • Attach the wiring harness retainers to the RH subframe.

    Courtesy of FORD MOTOR COMPANY

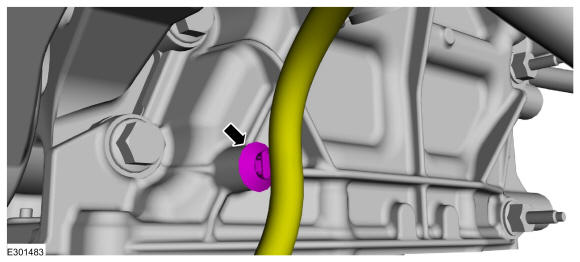

43. Attach the wiring harness retainers to the LH subframe.

    Courtesy of FORD MOTOR COMPANY

44. Install the vent hose(s) and attach the retainer.

    Courtesy of FORD MOTOR COMPANY

45. Install the following items:
    1. RH side. Refer to: Exhaust Flexible Pipe .
    2. If equipped with 10R80 transmission. Refer to: Transmission - 3.0L EcoBoost .
    3. If equipped with 10R60 transmission. Refer to: Transmission - 3.0L EcoBoost .
    4. RH and LH side. Refer to: Halfshaft .
    5. RH and LH side. Refer to: Brake Disc .

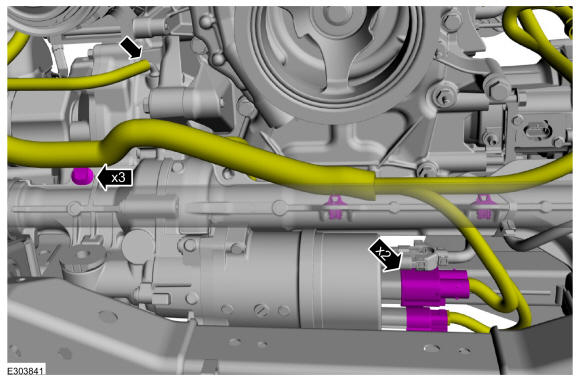

46. • Connect the RH transfer case vent hose.
    • Connect the steering gear wiring harness electrical connectors and attach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

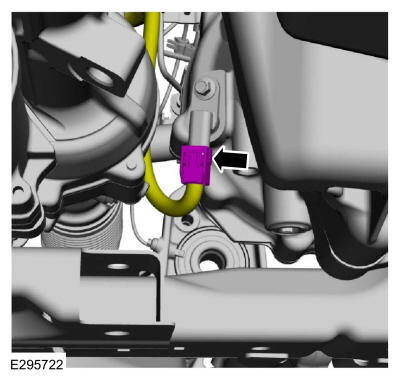

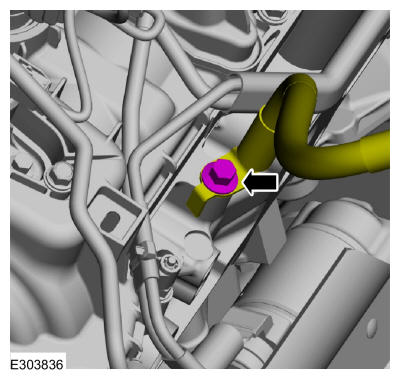

47. Attach the wiring harness retainer.

    Courtesy of FORD MOTOR COMPANY

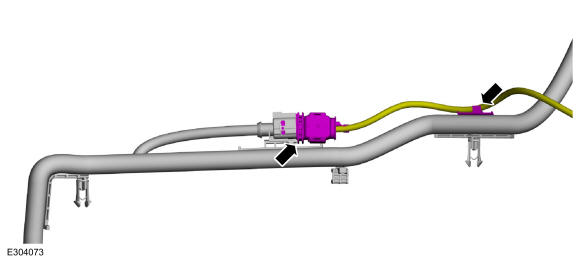

48. Connect the wiring harness electrical connector to the RH transfer case.

    Courtesy of FORD MOTOR COMPANY

49. Install the splash shield pin-type retainer to the RH subframe.

    Courtesy of FORD MOTOR COMPANY

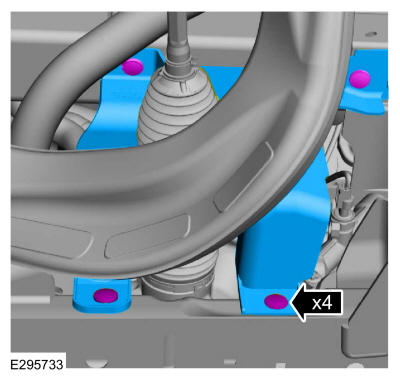

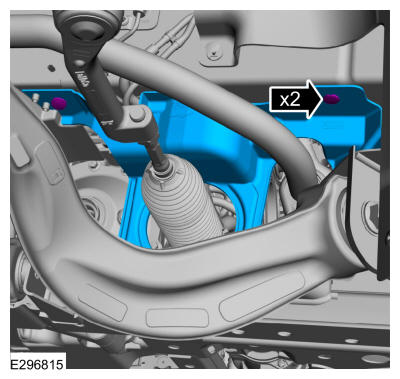

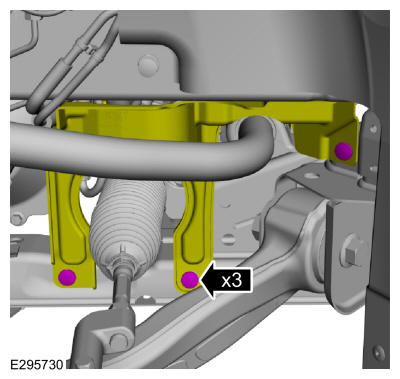

50. Install the steering shield and the pin-type retainers to the RH subframe.

    Courtesy of FORD MOTOR COMPANY

51. Install the steering shield pin-type retainers to the RH subframe.

    Courtesy of FORD MOTOR COMPANY

52. Connect the coolant hoses and tighten the clamps.

    Torque: 33 lb.in (3.7 Nm)

    Courtesy of FORD MOTOR COMPANY

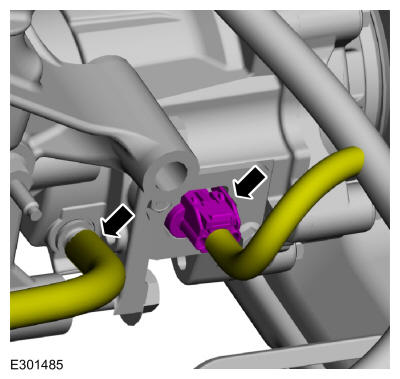

53. • Connect the vent hose.
    • Connect the wiring harness electrical connector.

    Courtesy of FORD MOTOR COMPANY

54. Position the splash shield and install the pin-type retainer to the LH subframe.

    Courtesy of FORD MOTOR COMPANY

55. Install the steering shield and the pin-type retainers to the LH subframe.

    Courtesy of FORD MOTOR COMPANY

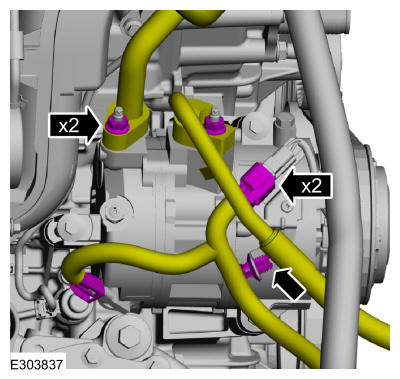

56. • Connect the A/C wiring harness electrical connectors.
    • Attach the wiring harness retainer.
    • Install a new O-ring seal.
    • Connect the A/C lines to A/C compressor and install the nuts.

      Torque: 159 lb.in (18 Nm)

    Courtesy of FORD MOTOR COMPANY

57. Install the front wheels and tires. Refer to: Wheel and Tire .

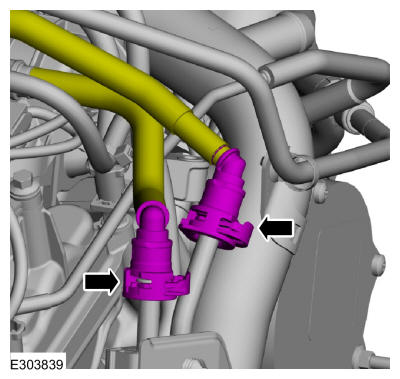

58. • Connect the fuel supply tube quick release coupling. Refer to: QUICK RELEASE COUPLING .
    • Connect the EVAP supply tube quick release coupling. Refer to: QUICK RELEASE COUPLING .

    Courtesy of FORD MOTOR COMPANY

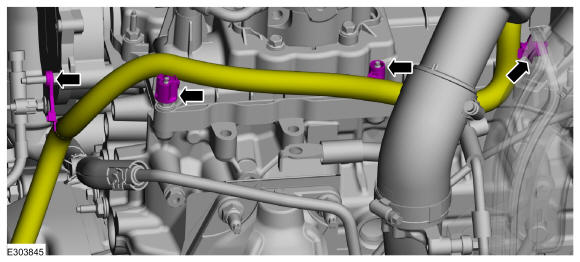

59. Attach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

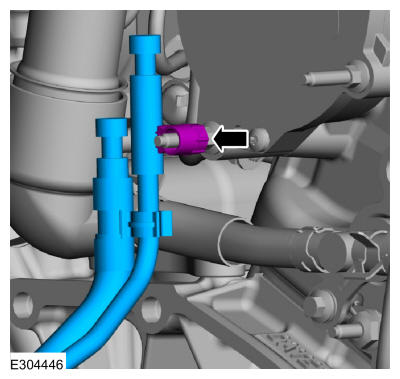

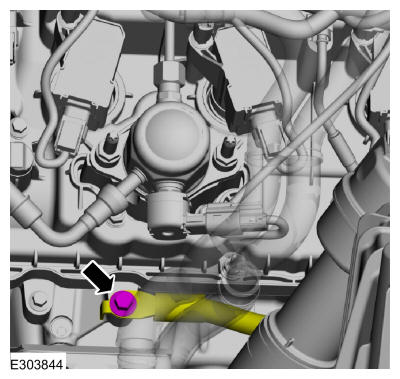

60. Install the ground cable and the bolt.

    Torque: 106 lb.in (12 Nm)

    Courtesy of FORD MOTOR COMPANY

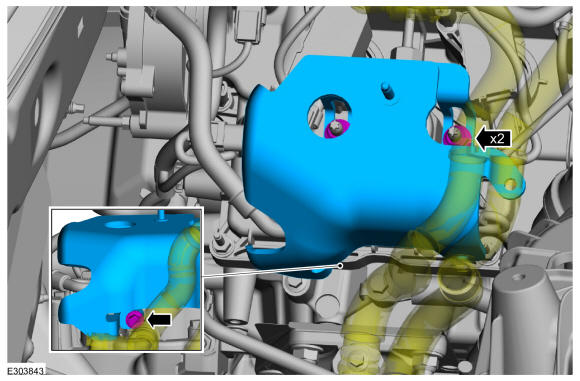

61. Install the high-pressure fuel pump shield, the nuts and the bolt.

    Torque: 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

62. NOTE: When removing or installing the fuel injection pump noise insulator, spreading the openings will reduce the risk of damage.
    1. Install the fuel injection pump noise insulator.
    2. Attach the coolant hose retainers.

    Courtesy of FORD MOTOR COMPANY

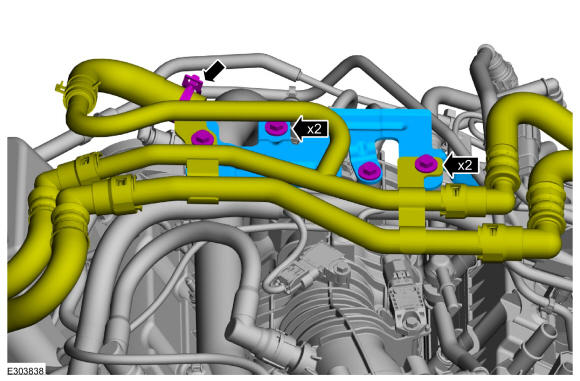

63. • Install the intake manifold bracket and the bolts.

      Torque: 97 lb.in (11 Nm)

    • Position the heater hose brackets and install the bolts.

      Torque: 97 lb.in (11 Nm)

    • Connect the heater hose and clamp.

    Courtesy of FORD MOTOR COMPANY

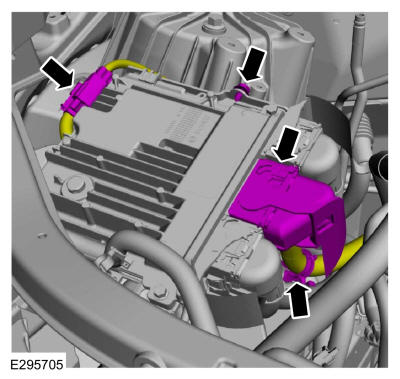

64. • Connect the center PCM electrical connector and attach the wiring harness retainer.
    • Connect the engine harness electrical connector, and attach the retainer.

    Courtesy of FORD MOTOR COMPANY

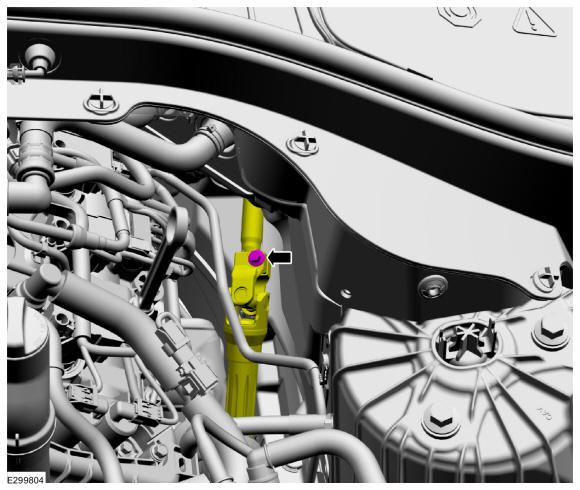

65. Install the new steering shaft bolt.

    Torque: 22 lb.ft (30 Nm)

    Courtesy of FORD MOTOR COMPANY

66. Install the generator. Refer to: Generator - 3.0L EcoBoost .
67. Install the ground cable and the bolt.

    Torque: 106 lb.in (12 Nm)

    Courtesy of FORD MOTOR COMPANY

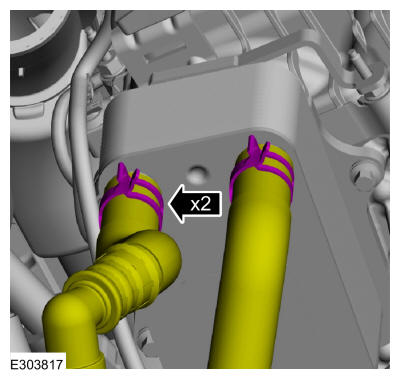

68. Connect the oil cooler hoses and the clamps.

    Courtesy of FORD MOTOR COMPANY

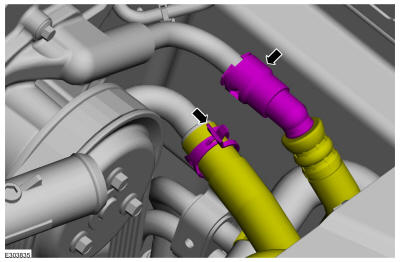

69. • Connect the coolant hose quick release coupling.
    • Connect the coolant hose and the clamp.

    Courtesy of FORD MOTOR COMPANY

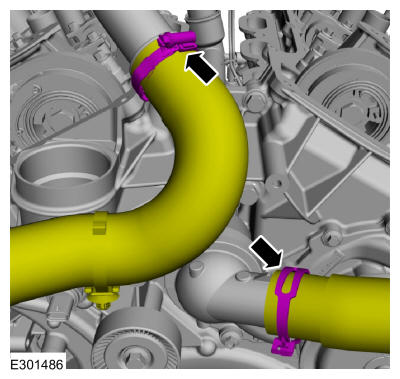

70. • Connect the upper radiator hose and the clamp.
    • Connect the lower radiator hose and the clamp.

      Torque: 48 lb.in (5.4 Nm)

    Courtesy of FORD MOTOR COMPANY

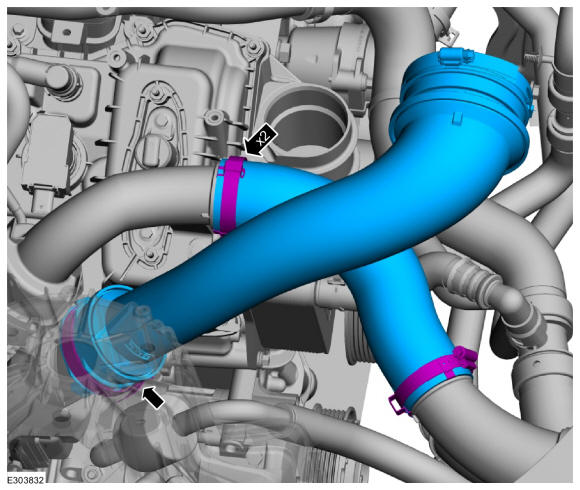

71. 1. Install the air cleaner outlet pipe and the clamp.

       Torque: 42 lb.in (4.8 Nm)

    2. Install the CAC inlet pipe and the clamps.

       Torque: 42 lb.in (4.8 Nm)

    Courtesy of FORD MOTOR COMPANY

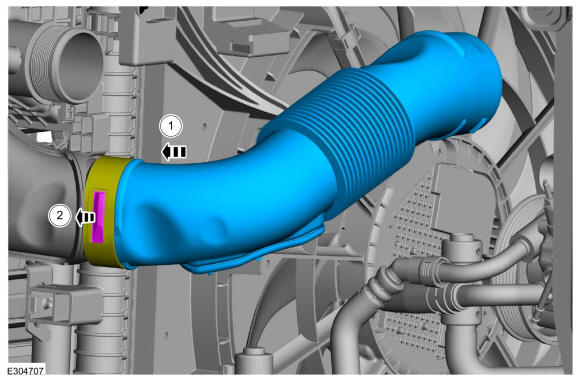

72. 1. Install the air cleaner inlet pipe.
    2. Verify the raised area of the pipe is fully engaged.

    Courtesy of FORD MOTOR COMPANY

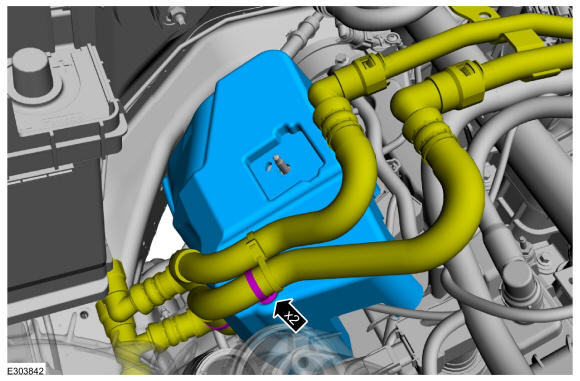

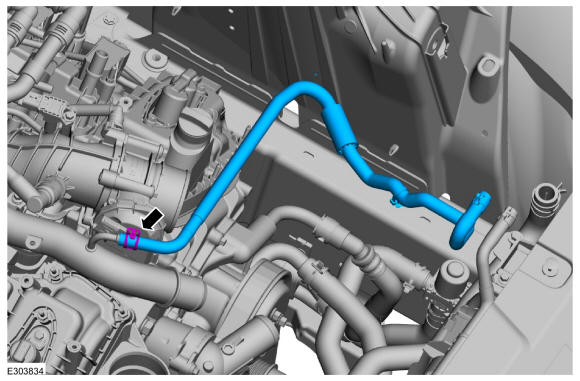

73. Install the coolant hose and the clamp.

    Courtesy of FORD MOTOR COMPANY

74. Install the following items:
    1. LH side. Refer to: Charge Air Cooler (CAC) Intake Pipe .
    2. Refer to: Air cleaner Outlet Pipe LH .
    3. Refer to: Charge Air Cooler (CAC) Outlet Pipe .
    4. Refer to: Air cleaner .
    5. Refer to: Degas Bottle .
    6. Refer to: Cowl Panel .

75. Install a new oil filter and fill the engine with clean engine oil. Refer to: Engine Oil Draining and Filling .

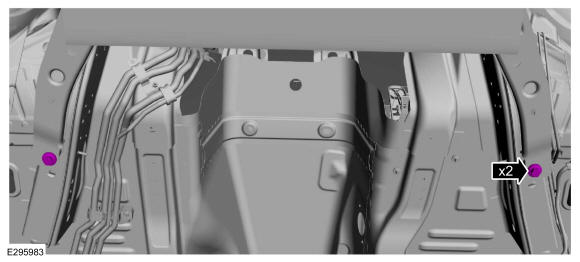

76. Install the suspension support bar and the bolts.

    Torque: 22 lb.ft (30 Nm)

    Courtesy of FORD MOTOR COMPANY

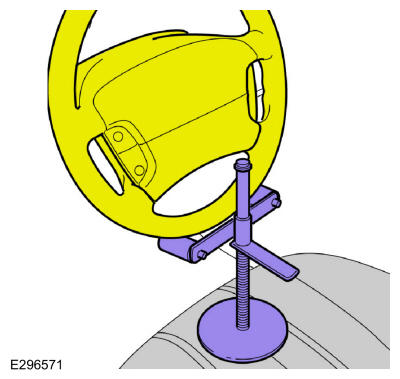

77. Remove the holding device.

    Courtesy of FORD MOTOR COMPANY

78. Connect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT
79. Charge the A/C system. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging - Vehicles With: R1234YF Refrigerant .
80. Front transfer case fluid level check. Refer to: Transfer Case Fluid Level Check .
81. Fill the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
82. Check the transmission fluid level.
    • If equipped with 10R60. Refer to: Transmission Fluid Level Check .
    • If equipped with 10R80. Refer to: Transmission Fluid Level Check .

83. Pressurize the fuel system. Refer to: Fuel System Pressure Release .
84. Use the Powertrain Control Module (PCM) Misfire Monitor Profile Correction routine in the diagnostic scan tool.
85. Start and check the exhaust system for leaks.
